DIY Workbench
Difficulty
Easy

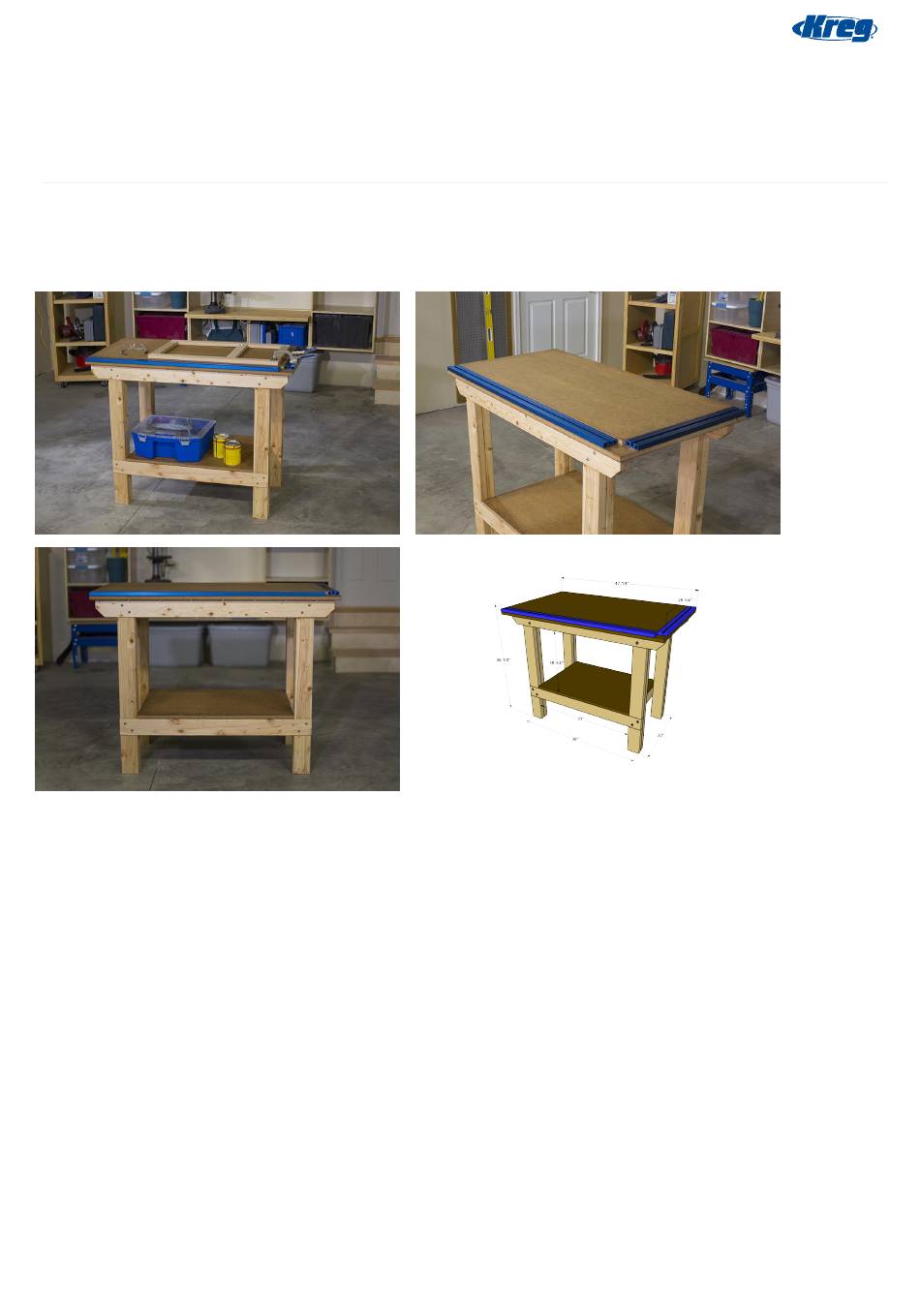

This workbench is easy to build, but built to withstand heavy use. Plus, it offers a versatile benchtop, thanks to a Kreg®
Universal Clamp Trak Kit from that's mounted along the front and one end. Combined with a couple of Kreg Bench Clamps,
this makes a slick setup for holding pieces while you work.
Page 1 of 9
Advertisement
Related Manuals for Kreg DIY Workbench
Summary of Contents for Kreg DIY Workbench
- Page 1 Easy This workbench is easy to build, but built to withstand heavy use. Plus, it offers a versatile benchtop, thanks to a Kreg® Universal Clamp Trak Kit from that’s mounted along the front and one end. Combined with a couple of Kreg Bench Clamps, this makes a slick setup for holding pieces while you work.
- Page 2 2 1/2" Kreg HD Pocket-Hole Screws 2 1/2" (Standard) Kreg Pocket-Hole Screws Straight Edge Guide 1 1/4" Coarse-thread Kreg Pocket-Hole Screws 2 1/2" Flat-head Wood Screws Kreg 27" X 45" Universal Clamp Trak Kit 3" Bench Clamp 6" Bench Clamp Other Tools drill/driver...
- Page 3 Cut List & Parts Leg , 1 1/2" X 3 1/2" X 35" Long Leg Filler , 1 1/2" X 3 1/2" X 20" Short Leg Filler , 1 1/2" X 3 1/2" X 8" Bottom Rail , 1 1/2" X 3 1/2" X 38" Top Rail , 1 1/2"...
- Page 4 Cut two Bottom Rails to length from 2x4 boards, as shown in the cutting diagram. Drill 1/4"-diameter holes where shown. Then, with your Kreg® Pocket-Hole Jig set up for 3/4" material, drill pocket holes along one edge of each Bottom Rail. Sand the Bottom Rails smooth.
- Page 5 Next, position the Bottom Rail so it’s resting on the Short Leg Fillers, and clamp it in place. Make sure the distance between the leg assemblies is correct, and attach the Bottom Rail with large screws. We used Kreg HD (Heavy-Duty) Screws.
- Page 6 Attach the Top Rails Glue and clamp the Top Rail to the leg assemblies as shown. Make sure that the bench legs are parallel and that the distance between them is correct, and then secure each Top Rail to the Legs with four 2 1/2" HD Screws. Make the Side Rails Cut four Side Rails to length, as shown in the cutting diagram.
- Page 7 From a sheet of 3/4" MDF, cut out one Top, one Sub-Top, and one Bottom Shelf to size, as shown in the cutting diagram. The dimensions shown accommodate the Kreg Universal Clamp Trak Kit we installed. If you’re not going to add this feature, make both top layers the size shown for the Sub-Top.
- Page 8 1 1/4" screws in from the underside in place of using clamps. Add the Track Once the glue is set on the bench top assembly, install the Kreg Clamp Trak Kit to the Sub-Top following the manufacturer’s instructions.
- Page 9 Install the bench top assembly by first positioning it, and then checking for equal overhangs at the front and back, and on each end, as shown. Then attach the top assembly using 1 1/4" coarse-thread Kreg Pocket-Hole Screws. Install the Bottom Shelf so it fits flush with the outer edges of the Bottom Rails and the Side Rails.
