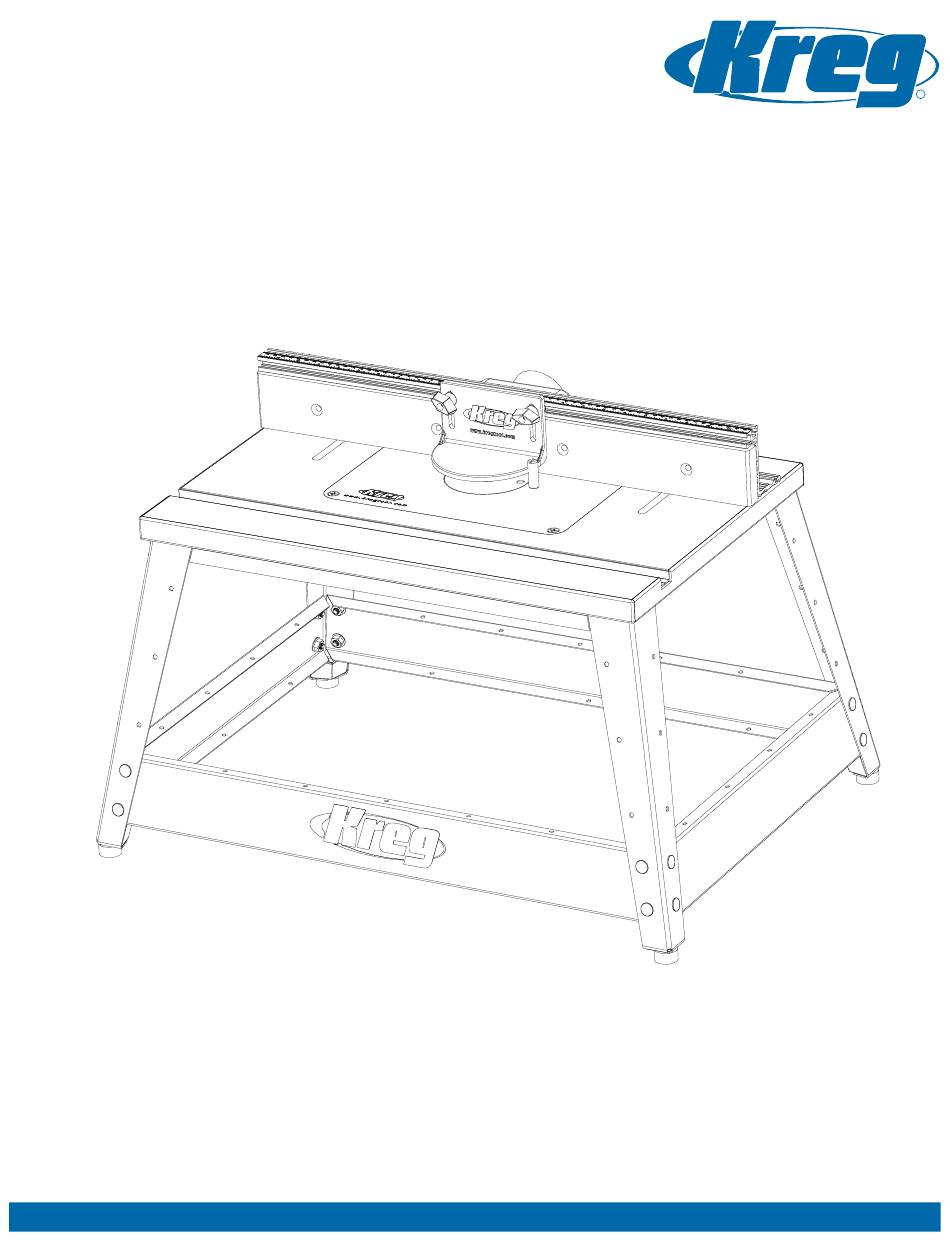

Precision Benchtop
Router Table
OWNER'S MANUAL
Item# PRS2100
Tools Required:
• #2 Square Driver Bit (Included)
• 1/8-in. Hex Wrench (Included)
• #2 Phillips screw driver
• Flat-blade screw driver
• 7/16-in. Socket Wrench
• Double-faced Tape
• Drill Press or Hand Drill
• Drill Bits
www.kregtool.com • 800.447.8638
R
NK8008
Version 2 - 3/2014
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kreg Precision PRS2100
Summary of Contents for Kreg Precision PRS2100
- Page 1 Precision Benchtop Router Table OWNER’S MANUAL Item# PRS2100 Tools Required: • #2 Square Driver Bit (Included) • 1/8-in. Hex Wrench (Included) • #2 Phillips screw driver • Flat-blade screw driver • 7/16-in. Socket Wrench • Double-faced Tape • Drill Press or Hand Drill •...
- Page 2 Safety General Safety Rules e) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power WARNING For your own safety, read the owner’s manual before tool may result in personal injury.
- Page 3 Do not modify and/or use it for any other application. If you have questions relative to the application of the machine, DO NOT use it until you have contacted Kreg Tool Company and have been advised accordingly. Guidelines for extension cord use Extension cords are only to be used for temporary purposes.
- Page 4 Benchtop Router Table Parts List Description Part # Quantity LEGS RT10180-2 1” COARSE-THREAD SCREWS RUBBER FEET FOOT SUPPORTS SHORT RAILS RT10180-1 LONG RAILS BRACES ⁄ -20 X ⁄ " FLATHEAD CARRIAGE BOLTS ⁄ " FLANGE HEX NUTS TABLE TOP NK8033 MITER TRACK RT10174 5MM X 20MM FLATHEAD SCREWS...
- Page 5 Benchtop Router Table Assembly Instructions Step 1 Open inner-pack box RT10180-2 and remove the legs (#1) and hardware pack. On each leg, insert a 1" coarse-thread screw (#2) through a rubber foot (#3), through the hole in the bottom of each leg, and then drive the screw into the foot support (#4) pilot hole.
- Page 6 Position the legs/rails assembly on the bottom face of the router table top with the Kreg logo facing the front. (The miter-gauge track is at the front edge of the table top.) Align the holes in the top fl anges of the legs with the pilot holes in the table top.
- Page 7 Benchtop Router Table Assembly Instructions Step 6 Attach the router base to the insert plate, using the screws that attached the sub-base to the router base. Depending on the thickness of your router sub-base, it may be necessary to purchase longer screws. Make certain that the screws are long enough to fully thread into the router base.
- Page 8 Benchtop Router Table Assembly Instructions Step 10 Assemble the bit guard (#30) using two ¼-20 x 1¼" T-bolts (#31), two spacers (#32), two ¼" brass fl at washers (#28), and two T-knobs (#29), as shown. Slide the T-bolt heads into the T-slot at the top front edge of the fence extrusion and tighten the knobs.
- Page 9 Using Your Router Table Reducing Rings The Kreg Precision Insert Plate includes three reducing rings (#38, #39, #40) for fl exibility in matching the size of the insert-plate opening to the diameter of the router bit in use. The ring with the rabbeted opening accepts standard Porter-Cable-style guide bushings, allowing you to use your router table for pattern routing.
- Page 10 Optional Kreg Accessories Stop Featherboards The T-slot on the top edge of the fence accepts the Kreg The T-slot on the front face of the fence accepts Kreg PRS7850 Precision Router Table Stop that fl ips out of the True-FLEX Featherboards, PRS3010 (single pack) or way when not in use.
