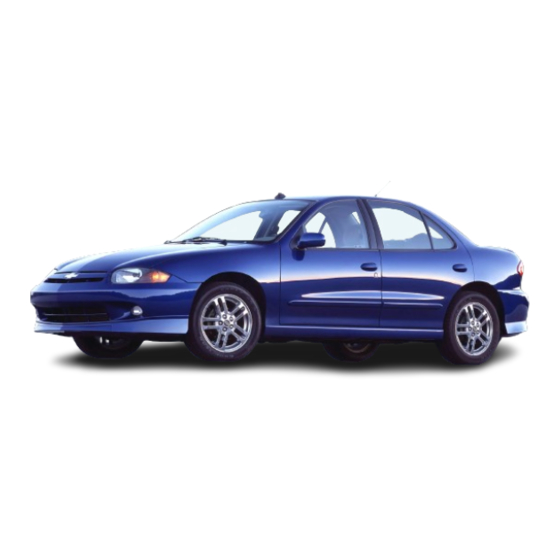

2005 Chevrolet Cavalier Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-2

Rear Seats

............................................... 1-7

Safety Belts

.............................................. 1-8

Child Restraints

....................................... 1-27

Airbag System

......................................... 1-46

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-2

Doors and Locks

....................................... 2-8

Windows

................................................. 2-12

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-31

OnStar

System

...................................... 2-33

Storage Areas

......................................... 2-35

Sunroof

.................................................. 2-35

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-18

Warning Lights, Gages, and Indicators

Audio System(s)

....................................... 3-36

............................ 1-55

............................ 2-14

........... 2-16

.......................... 3-4

........ 3-21

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-35

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-5

Checking Things Under the Hood

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-47

Appearance Care

..................................... 5-72

Vehicle Identiﬁcation

Electrical System

...................................... 5-80

Capacities and Speciﬁcations

Normal Maintenance Replacement Parts

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance and Information .............. 7-1

Customer Assistance and Information

Reporting Safety Defects

Index .................................................................1

........ 4-2

............... 5-10

.................................... 5-41

......... 5-46

................................. 5-79

..................... 5-85

...... 5-86

................................ 6-2

........... 7-2

........................... 7-10

Chapters

Table of Contents

Summary of Contents for Chevrolet 2005 Cavalier

Page 1: Table Of Contents
2005 Chevrolet Cavalier Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-7 Safety Belts ... 1-8 Child Restraints ... 1-27 Airbag System ... 1-46 Restraint System Check ... 1-55 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division whenever it appears in this manual. Keep this manual in the vehicle, so it will be there if it is needed while you are on the road.
Page 3 Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Seats And Restraint Systems
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Reclining Seatbacks ...1-4 Head Restraints ...1-5 Seatback Latches ...1-6 Easy Entry Seat ...1-6 Rear Seats ...1-7 Rear Seat Operation ...1-7 Safety Belts ...1-8 Safety Belts: They Are for Everyone ...1-8 Questions and Answers About Safety Belts ...1-12 How to Wear Safety Belts Properly ...1-13 Driver Position ...1-13 Shoulder Belt Height Adjustment (Four Door...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9 If your vehicle is not equipped with easy entry seats, your passenger seat adjuster looks like this. Slide the lever located under the passenger’s seat to the right to unlock it. Slide the seat to where you want it and release the lever.
Page 10: Reclining Seatbacks
Reclining Seatbacks To adjust the seatback, lift the lever located on the outboard side of the seat and move the seatback to where you want it. Release the lever and push rearward on the seatback to make sure it is locked. Pull up on the lever without pushing on the seatback and the seatback will go to an upright position.
Page 11: Head Restraints
CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can not do their job when you are reclined like this. The shoulder belt can not do its job because it will not be against your body.
Page 12: Seatback Latches
Seatback Latches If your vehicle is a two-door model, the front seatback folds forward to let people get into the back seat. To fold a front seatback forward, lift the latch located on the lower back side of the seatback and push the seatback forward.
Page 13: Rear Seats
Rear Seats Rear Seat Operation Folding the Seatback To fold the seatback, do the following: 1. Pull the release straps located in the trunk. The right strap operates the passenger’s side rear split seat. The left strap operates the driver’s side rear split seat.
Page 14: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she can not wear a safety belt properly.
Page 15: Why Safety Belts Work
You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive.
Page 16 Put someone on it. 1-10 Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 17 The person keeps going until stopped by something. In or the instrument panel... a real vehicle, it could be the windshield... 1-11...
Page 18: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-12 Questions and Answers About Safety Belts...
Page 19: Driver Position
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt.
Page 20 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 1-26. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 21 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 22 What is wrong with this? The belt is buckled in the wrong place. 1-16 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 23 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 24 What is wrong with this? The belt is twisted across the body. 1-18 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 25: Shoulder Belt Height Adjustment
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 26: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 27 Lap-Shoulder Belt All rear seating positions have lap-shoulder belts. Here is how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
Page 28 3. To make the lap part tight, pull down on the buckle end of the belt as you pull up on the shoulder part. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash this applies force to the strong pelvic bones.
Page 29 The safety belt locks if there is a sudden stop or a crash, or if you pull the belt very quickly out of the retractor. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 30 Rear Safety Belt Comfort Guides for Children and Small Adults Rear shoulder belt comfort guides will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.
Page 31 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top.
Page 32: Safety Belt Extender
4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-20. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
Page 33: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 34 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. 1-28 What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt...
Page 35 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 36: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 37 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 38 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 39: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 40 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. 1-34 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 41 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window. How do child restraints work? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position...
Page 42: Where To Put The Restraint
When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may ﬁnd these instructions on the restraint itself or in a booklet, or both.
Page 43: Top Strap
Top Strap Some child restraints have a top strap, or “top tether.” It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle. Some top strap-equipped child restraints are designed for use with or without the top strap being anchored.
Page 44: Top Strap Anchor Location
Anchor the top strap to an anchor point speciﬁed in Top Strap Anchor Location on page 1-38. Be sure to use an anchor point located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 45 Lower Anchorages and Top Tethers for Children (LATCH System) Your vehicle has the LATCH system. You will ﬁnd anchors for the rear outside seating positions. This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts. Instead, it uses vehicle anchors and child restraint attachments to secure the restraints.
Page 46 A. Lower Anchorage B. Lower Anchorage In order to use the LATCH system in your vehicle, you need a child restraint designed for that system. 1-40 To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a label on the seatback at each lower anchor position.
Page 47: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed for the LATCH System 1. Find the LATCH anchorages for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion. See Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-39.
Page 48 Tilt the latch plate to adjust the belt if needed. 3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 1-42...
Page 49: Securing A Child Restraint In The Right Front Seat Position
4. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 50 Your vehicle has a right front passenger airbag. Never put a rear-facing child restraint in this seat. Here is why: CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag.
Page 51 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 52: Airbag System
Airbag System Your vehicle has airbags — a frontal airbag for the driver and another frontal airbag for the right front passenger. Your vehicle may also have side impact airbags. Side impact airbags are available for the driver and right front passenger. If your vehicle has a side impact airbag for the driver and/or the right front passenger, the words AIR BAG will appear on the airbag covering on the side of the...
Page 53 CAUTION: (Continued) Frontal airbags for the driver and right front passenger are designed to deploy only in moderate to severe frontal and near frontal crashes. They are not designed to inﬂate in rollover, rear or low-speed frontal crashes, or in many side crashes.
Page 54 CAUTION: Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 55: Where Are The Airbags
Where Are the Airbags? The driver’s airbag is in the middle of the steering wheel. The right front passenger’s airbag is in the instrument panel on the passenger’s side. 1-49...
Page 56 If your vehicle has one, the driver’s side impact airbag is in the side of the driver’s seatback closest to the door. 1-50 If your vehicle has one, the passenger’s side impact airbag is in the side of the passenger’s seatback closest to the door.
Page 57: When Should An Airbag Inﬂate
CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other...
Page 58: What Makes An Airbag Inﬂate
The frontal airbags (driver and right front passenger) are not intended to inﬂate during vehicle rollovers, rear impacts, or in many side impacts because inﬂation would not likely help the occupants. Your vehicle may or may not have a side impact airbag. See Airbag System on page 1-46.
Page 59: What Will You See After An Airbag Inﬂates
Side impact airbags would not help you in many types of collisions, including frontal or near frontal collisions, rollovers, and rear impacts, primarily because an occupant’s motion is not toward those airbags. Airbags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions for the driver’s and right front passenger’s frontal airbags, and only in...
Page 60 In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system.
Page 61: Restraint System Check
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system.
Page 62: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 63: Features And Controls
Section 2 Keys ...2-2 Remote Keyless Entry System ...2-3 Remote Keyless Entry System Operation ...2-4 Doors and Locks ...2-8 Door Locks ...2-8 Power Door Locks ...2-9 Rear Door Security Locks ...2-9 Lockout Protection ...2-10 Trunk ...2-10 Windows ...2-12 Power Windows ...2-13 Sun Visors ...2-13 Theft-Deterrent Systems ...2-14 Content Theft-Deterrent ...2-14...
Page 64: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 65: Remote Keyless Entry System
One key is used for the ignition, the doors and all other locks. When a new vehicle is delivered, the dealer removes the key tag from the key and gives it to the ﬁrst owner. Each tag has a code on it that tells your dealer or a qualiﬁed locksmith how to make extra keys.
Page 66: Remote Keyless Entry System Operation
At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 67 The following functions are available with the remote keyless entry system: LOCK: Press this button to automatically lock all doors. In addition, if all doors and the trunk are closed, the headlamps will ﬂash once, the interior lamps will turn off, and the vehicle content theft security system will arm.
Page 68: Battery Replacement
Radio Personalization Your vehicle can store different radio preset stations depending on which keyless entry transmitter you use to unlock the doors. The radio will recall all the stored settings associated with that transmitter. Any radio setting changes will be assigned to the transmitter last used to unlock the doors.
Page 69 To replace the battery in the transmitter: 1. Use a coin or similar object to separate the bottom half from the top half of the transmitter. 2. Remove the battery and replace it with the new one. Make sure the positive side of the battery faces down.
Page 70: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 71: Power Door Locks
Power Door Locks If your vehicle has this feature, you can lock or unlock all the doors on your vehicle from the driver’s or front passenger’s door lock switch. Press the lower portion of the switch to lock the doors. Press the upper portion of the switch to unlock the doors.
Page 72: Lockout Protection
Opening a Rear Door When the Security Lock is On 1. Unlock the door from the inside. 2. Then open the door from the outside. If you do not cancel the security lock feature, adults or older children who ride in the rear will not be able to open the rear door from the inside.
Page 73: Remote Trunk Release
Remote Trunk Release Press the remote trunk release button, located on the lower left side of the instrument panel, to release the trunk lid. The daytime running lamps will ﬂash twice when the button is pressed, if your vehicle is equipped with remote keyless entry.
Page 74: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 75: Sun Visors
Power Windows The switches are located on the center console. On four-door models, each rear passenger door has a control switch for that window. The power windows operate when the ignition is ON. To lower a window, press and hold the rear of the switch.
Page 76: Theft-Deterrent Systems
Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. Content Theft-Deterrent Arming the System With the ignition off, press the LOCK button on the remote keyless entry transmitter to arm the system immediately after all doors and the trunk are closed.
Page 77: How To Turn Off The System Alarm
How to Turn Off the System Alarm If the system alarm is active, it can be deactivated by: • Pressing the LOCK or panic button on the transmitter to turn off the alarm. The system will re-arm if all doors and the trunk are later closed. •...
Page 78: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines: • Do not drive at any one speed — fast or slow —...
Page 79 CAUTION: On manual transaxle vehicles, turning the key to LOCK will lock the steering column and result in a loss of ability to steer the vehicle. This could cause a collision. If you need to turn the engine off while the vehicle is moving, turn the key only to OFF.
Page 80: Starting Your Engine
Key Release Button (Manual Transaxle) The ignition key cannot be removed from the ignition unless the key release button is used. To remove the key, turn the key to OFF. Then, while pressing the key release button in, turn the key to LOCK and pull it straight out.
Page 81: Manual Transaxle
Manual Transaxle The shift lever should be in NEUTRAL and the parking brake engaged. Hold the clutch pedal to the ﬂoor and start the engine. Your vehicle will not start if the clutch pedal is not all the way down — that is a safety feature. Starting Your Engine 1.
Page 82: Automatic Transaxle Operation
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The electrical cord is located in front of the engine coolant surge tank on the passenger’s side. 3. Plug it into a normal, grounded 110-volt AC outlet. CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock.
Page 83 CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly.
Page 84 NEUTRAL (N): In this position, your engine does not connect with the wheels. To restart when you are already moving, use NEUTRAL (N) only. Also, use NEUTRAL (N) when your vehicle is being towed. CAUTION: Shifting into a drive gear while your engine is running at high speed is dangerous.
Page 85: Manual Transaxle Operation
Notice: Driving in SECOND (2) for more than 25 miles (40 km) or at speeds over 55 mph (90 km/h) may damage the transaxle. Also, shifting into SECOND (2) at speeds above 65 mph (105 km/h) can cause damage. Drive in THIRD (3) or AUTOMATIC OVERDRIVE (D) instead of SECOND (2).
Page 86: Shift Speeds
SECOND (2): Press the clutch pedal as you let up on the accelerator pedal and shift into SECOND (2). Then, slowly let up on the clutch pedal as you press the accelerator pedal. THIRD (3), FOURTH (4) and FIFTH (5): Shift into THIRD (3), FOURTH (4) and FIFTH (5) the same way you do for SECOND (2).
Page 87: Parking Brake
Up-Shift Light If you have a manual transaxle, you have an up-shift light. This light will show you when to shift to the next higher gear for the best fuel economy. United States Only When this light comes on, you can shift to the next higher gear if weather, road and traffic conditions let you.
Page 88: Shifting Into Park (P) (Automatic Transaxle)
To release the parking brake, hold the brake pedal down. Pull the parking brake lever up until you can press the release button. Hold the release button in as you move the brake lever all the way down. If you forget to release your parking brake prior to driving away, a chime will sound to remind you to release the parking brake.
Page 89: Leaving Your Vehicle With The Engine Running
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 90: Shifting Out Of Park (P) (Automatic Transaxle)
Shifting Out of Park (P) (Automatic Transaxle) Your vehicle has an automatic transaxle shift lock control system which locks the shift lever in PARK (P) when the ignition is in LOCK. In addition, you have to fully apply your regular brakes before you can shift from PARK (P) when the ignition is in RUN.
Page 91: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass or other things that can burn. Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
Page 92: Running Your Engine While You Are Parked
Running Your Engine While You Are Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 93: Mirrors
Mirrors Manual Rearview Mirror To reduce glare from lamps behind you, move the lever toward you to the night position. Outside Remote Control Mirror Adjust the outside mirrors so that the side of the vehicle can be seen while sitting in a comfortable driving position. Adjust the driver’s outside mirror with the control lever located on the...
Page 94: Outside Convex Mirror
Outside Convex Mirror CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right. Check your inside mirror or glance over your shoulder before changing lanes.
Page 95: Onstar System
If the outside mirror control lever is not operating properly, the control lever on the driver’s side mirror can be reset by following these steps: 1. Roll down the driver’s door window. 2. Fold the mirror toward the front of the vehicle. Hold the mirror in position with your left hand.
Page 96 Safe and Sound Plan • Automatic Notiﬁcation of Airbag Deployment • Emergency Services • Roadside Assistance • Stolen Vehicle Tracking • AccidentAssist • Remote Door Unlock/Vehicle Alert • Remote Diagnostics • Online Concierge Directions and Connections Plan • All Safe and Sound Plan Services •...
Page 97: Storage Areas
Storage Areas Cupholder(s) There are two cupholders located at the front of the center console, in front of the shift lever. There are also cupholders for the rear seat passengers located under the center console lid. Open the center console lid all the way to uncover the rear cupholders.
Page 98 NOTES 2-36...
Page 99: Instrument Panel
Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-8 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-9 Windshield Washer ...3-10 Cruise Control ...3-10 Exterior Lamps ...3-13 Headlamps on Reminder ...3-13...
Page 100 Section 3 Audio System(s) ...3-36 Setting the Time for Radios without Radio Data Systems (RDS) ...3-36 Setting the Time for Radios with Radio Data Systems (RDS) ...3-36 AM-FM Radio ...3-37 Radio with CD (Base Level) ...3-39 Radio with CD (Up Level) ...3-44 Radio with CD (MP3) ...3-54 Instrument Panel Personal Choice Radio Controls ...3-69...
Page 101 NOTES...
Page 102: Instrument Panel Overview
Instrument Panel Overview...
Page 103 The main components of your instrument panel are the following: A. Fog Lamp Button. See Fog Lamps on page 3-15. B. Instrument Panel Brightness Control. See Instrument Panel Brightness on page 3-15. C. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. D.
Page 104: Tilt Wheel
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher switch is located on the top of the steering column.
Page 105: Turn Signal/Multifunction Lever
The lever that allows you to tilt the steering wheel is located on the left side of the steering column. To tilt the wheel, hold the wheel and pull the lever. Then, move the wheel to a comfortable position and release the lever to lock the wheel in place. Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following:...
Page 106: Turn And Lane-Change Signals
Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down. When the turn is ﬁnished, the lever will return automatically.
Page 107: Windshield Wipers
Windshield Wipers Use the lever located on the right side of the steering wheel to operate the windshield wipers. OFF: Move the lever to OFF to turn off the windshield wipers. DELAY: If your vehicle has delay wipers, move the lever to DELAY to choose a delayed wiping cycle.
Page 108: Cruise Control
Windshield Washer To wash your windshield, pull the lever with the wiper symbol on it toward you one time. When you release the lever, the washers will stop. The wipers continue wiping for about three cycles and will then either stop or return to your preset speed.
Page 109 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 110 Reducing Speed While Using Cruise Control There are two ways to reduce your speed while using cruise control: • Push in the button at the end of the lever until you reach the lower speed you want, then release it. •...
Page 111: Exterior Lamps
Exterior Lamps The exterior lamp band on the turn signal/multifunction lever controls the exterior lamps. The exterior lamp band has three positions: OFF: Turning the band to this position turns off all lamps, except the Daytime Running Lamps (DRL). < (Parking Lamps): Turning the band to this position turns on the parking lamps, together with the following: •...
Page 112 The DRL system will make your low-beam headlamps come on at a reduced brightness in daylight when the following conditions are met: • The ignition is on. • The exterior lamp band is in OFF or in the parking lamp position. •...
Page 113: Fog Lamps
Fog Lamps If your vehicle has this feature, use your fog lamps for better visibility in foggy or misty conditions. The button for your fog lamps is located next to the instrument panel brightness control. Push the top of the button to turn the fog lamps on. Push the top of the button again to turn the fog lamps off.
Page 114: Entry Lighting
Entry Lighting When you open either a front door or a rear door, the lamps inside your vehicle will go on. In addition, if your vehicle is equipped with remote keyless entry, the light will come on when the remote keyless entry UNLOCK button is pressed.
Page 115: Ashtrays And Cigarette Lighter
To use the outlet, remove the cover. When not in use, always cover the outlet with the protective cap. Notice: Leaving electrical equipment on for extended periods will drain the battery. Always turn off electrical equipment when not in use and do not plug in equipment that exceeds the maximum amperage rating.
Page 116: Climate Controls
Climate Controls Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. Operation To change the current mode, select one of the following: (Vent): This mode directs air to the instrument panel outlets. (Bi-Level): This mode directs approximately half of the air to the instrument panel outlets, and then directs the remaining air to the ﬂoor outlets.
Page 117: Defogging And Defrosting
(Air Conditioning): Press this button to turn the air-conditioning system on or off. When this button is pressed, an indicator light above the button will come on to let you know the air conditioning is activated. On hot days, open the windows to let hot inside air escape;...
Page 118: Outlet Adjustment
(Defrost): This mode directs most of the air to the windshield, with some air directed to the side window outlets and the ﬂoor outlets. When you select this mode, the system runs the air-conditioning compressor unless the outside temperature is at or below freezing. The air-conditioning indicator light will also be on in this setting.
Page 119: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 120: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, about how much fuel is left in the tank, and many other things you will need to drive safely and economically.
Page 121: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your odometer can be seen when the vehicle is running.
Page 122: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will come on for several seconds to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for several seconds, then it will ﬂash for several more.
Page 123: Charging System Light
CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly. The airbags in your vehicle may not inﬂate in a crash, or they could even inﬂate without a crash. To help avoid injury to yourself or others, have your vehicle serviced right away if the airbag readiness light stays on after you start your vehicle.
Page 124 Up-Shift Light If you have a manual transaxle you have this light. This light comes on when you need to shift to the next higher gear. United States Only See Manual Transaxle Operation on page 2-23. Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts.
Page 125: Anti-Lock Brake System Warning Light
If the light comes on while you are driving, pull off the road and stop carefully. You may notice that the pedal is harder to push. Or, the pedal may go closer to the ﬂoor. It may take longer to stop. If the light is still on, have the vehicle towed for service.
Page 126: Enhanced Traction System Warning Light
Enhanced Traction System Warning Light United States If your vehicle is equipped with the Enhanced Traction System (ETS), this warning light should come on brieﬂy as you start the engine. If the warning light does not come on, then have it ﬁxed so it will be ready to warn you if there is a problem.
Page 127: Enhanced Traction System Active Light
Enhanced Traction System Active Light United States When your Enhanced Traction System is limiting wheel spin, this light will come on. Slippery road conditions may exist if the Enhanced Traction System active light comes on, so adjust your driving accordingly. This light may also come on when the anti-lock brake system is active.
Page 128 Low Coolant Warning Light This light comes on brieﬂy when you turn your ignition on. If this light comes on and stays on, the coolant level in your vehicle is low. If the light is on along with an overheat warning, you may have a serious overheating problem.
Page 129: If The Light Is Flashing
Notice: If you keep driving your vehicle with this light on, after awhile, your emission controls may not work as well, your fuel economy may not be as good, and your engine may not run as smoothly. This could lead to costly repairs that may not be covered by your warranty.
Page 130: If The Light Is On Steady
If the Light Is On Steady You also may be able to correct the emission system malfunction by considering the following: Did you recently put fuel into your vehicle? If so, reinstall the fuel cap, making sure to fully install the cap.
Page 131: Oil Pressure Light
Your vehicle will not pass this inspection if the OBD (on-board diagnostic) system determines that critical emission control systems have not been completely diagnosed by the system. The vehicle would be considered not ready for inspection. This can happen if you have recently replaced your battery or if your battery has run down.
Page 132: Highbeam On Light
® Passlock Warning Light United States This light will come on brieﬂy when you turn the key to START. ® If the light ﬂashes, the Passlock tamper mode. If the vehicle fails to start, see Passlock on page 2-15. On vehicles equipped with the remote keyless entry system, when the ignition is off and the security system is armed, the light will ﬂash to indicate that the security system is active.
Page 133: Service Vehicle Soon Light
Service Vehicle Soon Light This light will come on brieﬂy when you turn on the ignition. It will stay on or come on if it detects a problem on the vehicle. If this happens, see your dealer’s service department as soon as possible. Fuel Gage United States Your fuel gage tells you about how much fuel you have...
Page 134: Audio System(S)
Audio System(s) Notice: Before adding any sound equipment to your vehicle, like a tape player, CB radio, mobile telephone, or two-way radio, make sure that it can be added by checking with your dealer. Also, check federal rules covering mobile radio and telephone units.
Page 135: Am-Fm Radio
AM-FM Radio Playing the Radio PWR (Power): Press this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease the volume. RCL (Recall): Press this knob to switch the display between the radio station frequency and the time. When the ignition is off, press this knob to display the time.
Page 136: Setting Preset Stations
Setting Preset Stations Up to 18 stations (six FM1, six FM2, and six AM) can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press AM FM to select FM1, FM2, or AM. 3.
Page 137: Radio With Cd (Base Level)
To adjust both tone controls and both speaker controls to the middle position, ﬁrst end out of audio mode by pressing another button, causing the radio to perform that function, or by waiting ﬁve seconds for the display to return to time of day. Then press and hold AUDIO for more than two seconds until you hear a beep.
Page 138: Finding A Station
Finding a Station AM FM: Press this button to switch between FM1, FM2, and AM. The display will show the selection. TUNE: Turn this knob to select radio stations. SEEK : Press the right or the left arrow to go to the next or to the previous station and stay there.
Page 139: Radio Messages
To adjust both tone controls and both speaker controls to the middle position, ﬁrst end out of audio mode by pressing another button, causing the radio to perform that function, or by waiting ﬁve seconds for the display to return to the time of day. Then press and hold the AUDIO button for more than two seconds until you hear a beep.
Page 140: Playing A Cd
Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. CD will appear on the display. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the RCL knob.
Page 141 6 RPT (Repeat): Press this pushbutton once to hear a track over again. RPT will appear on the display. The current track will continue to repeat. Press RPT again to turn off repeat play. OFF will appear on the display. SEEK : Press the right or the left arrow to go to the next or to the previous track.
Page 142: Radio With Cd (Up Level)
Radio with CD (Up Level) Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: •...
Page 143: Playing The Radio
Playing the Radio PWR (Power): Press this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease the volume. DISPL (Display): Press this knob to switch the display between the radio station frequency and the time. When the ignition is off, press this knob to display the time.
Page 144 PSCAN (Preset Scan): Press and hold either arrow for more than two seconds. SCAN will appear on the display and you will hear a beep. The radio will go to the ﬁrst preset station stored on the pushbuttons, play for a few seconds, then go on to the next preset station.
Page 145: Rds And Xm
Adjusting the Speakers (Balance/Fade) AUDIO: To adjust the balance between the right and the left speakers, push and release the AUDIO knob until BAL appears on the display. Turn the knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and release the AUDIO knob until FADE appears on the display.
Page 146: Rds Messages
BAND (Alternate Frequency): Alternate frequency allows the radio to switch to a stronger station with the same program type. To turn alternate frequency on, press and hold BAND for two seconds. AF ON will appear on the display. The radio may switch to stations with a stronger frequency.
Page 147 TRAF (Traffic): If TRAF appears on the display, the tuned station broadcasts traffic announcements and when a traffic announcement comes on the tuned radio station you will hear it. If the station does not broadcast traffic announcements, press the TRAF button and the radio will seek to a station that does.
Page 148 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signl Loss of signal Loading Acquiring channel audio (after 4 second delay) Off Air Channel not in service CH Unavl Channel no longer...
Page 149 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 150 Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the EJT button or the DISPL knob. If the ignition or radio is turned off with a CD in the player, it will stay in the player.
Page 151 6 RDM (Random): Press this pushbutton to hear the tracks in random, rather than sequential, order. RDM ON will appear on the display. RDM T and the track number will appear on the display when each track starts to play. Press RDM again to turn off random play. RDM OFF will appear on the display.
Page 152: Radio With Cd (Mp3)
Radio with CD (MP3) Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 153 Playing the Radio PWR (Power): Press this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease the volume. DISPL (Display): Press this knob to switch the display between the radio station frequency and the time. When the ignition is turned off, press this knob to display the time.
Page 154 PSCAN (Preset Scan): Press and hold either arrow for more than two seconds. SCAN will appear on the display and the radio will produce one beep. The radio will go to the ﬁrst preset station stored on the pushbuttons, play for a few seconds, then go on to the next preset station.
Page 155: Adjusting The Speakers (Balance/Fade)
Adjusting the Speakers (Balance/Fade) AUDIO: To adjust the balance between the right and the left speakers, push and release the AUDIO knob until BAL appears on the display. Turn the knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and release the AUDIO knob until FADE appears on the display.
Page 156 BAND (Alternate Frequency): Alternate frequency allows the radio to switch to a stronger station with the same program type. To turn alternate frequency on, press and hold BAND for two seconds. AF ON will appear on the display. The radio may switch to stations with a stronger frequency.
Page 157 TRAF (Traffic): If TRAF appears on the display, the tuned station broadcasts traffic announcements and when a traffic announcement comes on the tuned radio station you will hear it. If the station does not broadcast traffic announcements, press the TRAF button and the radio will seek to a station that does.
Page 158 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signl Loss of signal Loading Acquiring channel audio (after 4 second delay) Off Air Channel not in service CH Unavl Channel no longer...
Page 159 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 160 Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in, and READING will appear on the display. The CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the EJT button or the DISPL knob.
Page 161 4 FWD (Forward): Press and hold this pushbutton to advance quickly within a track. Press and hold this pushbutton for less than two seconds to advance at six times the normal playing speed. Press and hold it for more than two seconds to advance at 17 times the normal playing speed.
Page 162: Using An Mp3 Cd
Using an MP3 CD MP3 Format This MP3 player will accept MP3 ﬁles that were recorded on an up to 700 MB CD-R CD. The ﬁles can be recorded with the following ﬁxed bit rates: 32 kbps, 40 kpbs, 56 kpbs, 64 kpbs, 80 kpbs, 96 kpbs, 112 kpbs, 128 kpbs, 160 kpbs, 192 kpbs, 224 kpbs, 256 kpbs, and 320 kpbs or a variable bit rate.
Page 163 Order of Play Tracks will be played in the following order: • Play will begin from the ﬁrst track in the ﬁrst playlist and will continue sequentially through all tracks in each playlist. When the last track of the last playlist has been played, play will continue from the ﬁrst track of the ﬁrst playlist.
Page 164 If the ignition or radio is turned off with a CD in the player it will stay in the player. When the ignition or radio is turned on, the CD will start to play where it stopped, if it was the last selected audio source. As each new track starts to play, the track number will appear on the display.
Page 165 6 RDM (Random): To random the tracks in the current folder or playlist, press and release this pushbutton. FLDR RDM will appear on the display. Once all of the tracks in the current folder or playlist have been played the system will move on to the next folder or playlist and play all of the tracks in random order.
Page 166 INFO (Information): INFO will appear on the display whenever a current track has ID3 tag information. Press this button to display the artist name and album contained in the tag. INFO will disappear from the display when the information in the ID3 tag has ﬁnished. BAND: Press this button to listen to the radio when a CD is playing.
Page 167: Personal Choice Radio Controls
Personal Choice Radio Controls This feature enables two drivers to store and recall personal settings for radio presets, last tuned station, volume, tone, radio, or CD. The numbers, 1 and 2, are located on the back of the remote keyless entry transmitter, correspond to the drivers, 1 and 2.
Page 168: Radio Reception
Radio Reception The range for most AM stations is greater than for FM, especially at night. The longer range can cause station frequencies to interfere with each other. Static can occur on AM stations caused by things like storms and power lines. Try reducing the treble to reduce this noise.
Page 169: Fixed Mast Antenna
Fixed Mast Antenna The ﬁxed mast antenna can withstand most car washes without being damaged. If the mast should ever become slightly bent, straighten it out by hand. If the mast is badly bent, replace it. Check occasionally to make sure the mast is still tightened to the fender.
Page 170 NOTES 3-72...
Page 171 Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-2 Control of a Vehicle ...4-5 Braking ...4-5 Anti-Lock Brake System (ABS) ...4-6 Braking in Emergencies ...4-8 Enhanced Traction System (ETS) ...4-8 Steering ...4-10 Off-Road Recovery ...4-12 Passing ...4-12 Loss of Control ...4-14 Driving at Night ...4-15...
Page 172: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-8. Defensive driving really means “be ready for anything.”...
Page 173 Police records show that almost half of all motor vehicle-related deaths involve alcohol. In most cases, these deaths are the result of someone who was drinking and driving. In recent years, more than 16,000 annual motor vehicle-related deaths have been associated with the use of alcohol, with more than 300,000 people injured.
Page 174 It is the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml of liquor each) within an hour, the person’s BAC would be close to 0.12 percent. A person who consumes food just before or during drinking will have a somewhat lower BAC level.
Page 175: Control Of A Vehicle
CAUTION: Drinking and then driving is very dangerous. Your reﬂexes, perceptions, attentiveness, and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking. Please do not drink and drive or ride with a driver who has been drinking.
Page 176: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 177 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
Page 178: Braking In Emergencies
Using Anti-Lock Do not pump the brakes. Just hold the brake pedal down ﬁrmly and let anti-lock work for you. You may feel a slight brake pedal pulsation or notice some noise, but this is normal. Braking in Emergencies At some time, nearly every driver gets into a situation that requires hard braking.
Page 179 United States This light will come on when your Enhanced Traction System is limiting wheel spin. See Enhanced Traction System Active Light on page 3-29. You may feel or hear the system working, but this is normal. United States When the transaxle shift lever is in any position other than FIRST (1) or SECOND (2) and the parking brake is fully released, this warning light will come on to let you know if there is a problem with the system.
Page 180: Steering
Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Steering Tips Driving on Curves It is important to take curves at a reasonable speed. A lot of the “driver lost control”...
Page 181: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 182: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you’re driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 183 • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 184: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked.
Page 185: Driving At Night
If you have the anti-lock braking system, remember: It helps avoid only the braking skid. If you do not have anti-lock, then in a braking skid, where the wheels are no longer rolling, release enough pressure on the brakes to get the wheels rolling again. This restores steering control.
Page 186: Driving In Rain And On Wet Roads
What you do in the daytime can also affect your night vision. For example, if you spend the day in bright sunshine you are wise to wear sunglasses. Your eyes will have less trouble adjusting to night. But if you are driving, do not wear sunglasses at night.
Page 187 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking.
Page 188: Driving Through Flowing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
Page 189: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 190: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. 4-20 The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 191: Before Leaving On A Long Trip
When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up. Drive on to the next exit. The exit ramp can be curved, sometimes quite sharply. The exit speed is usually posted.
Page 192: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 193 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all ﬂuid levels and also the brakes, tires, cooling system, and transaxle.
Page 194: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your trunk. Also see Tires on page 5-47. 4-24 Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles.
Page 195: Driving On Snow Or Ice
Driving on Snow or Ice Most of the time, those places where your tires meet the road probably have good traction. However, if there is snow or ice between your tires and the road, you can have a very slippery situation. You will have a lot less traction, or grip, and will need to be very careful.
Page 196: If You Are Caught In A Blizzard
Unless you have the anti-lock braking system, you will want to brake very gently, too. If you do have anti-lock, see Anti-Lock Brake System (ABS) on page 4-6. This system improves your vehicle’s stability when you make a hard stop on a slippery road. Whether you have the anti-lock braking system or not, you will want to begin stopping sooner than you would on dry pavement.
Page 197 • Put on extra clothing or wrap a blanket around you. If you have no blankets or extra clothing, make body insulators from newspapers, burlap bags, rags, ﬂoor mats — anything you can wrap around yourself or tuck under your clothing to keep warm. You can run the engine to keep warm, but be careful.
Page 198: If You Are Stuck: In Sand, Mud, Ice Or Snow
Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can. To help keep warm, you can get out of the vehicle and do some fairly vigorous exercises every half hour or so until help comes.
Page 199: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn your steering wheel left and right. That will clear the area around your front wheels. Then shift back and forth between REVERSE (R) and a forward gear (or with a manual transaxle, between FIRST (1) or SECOND (2) and REVERSE (R)), spinning the wheels as little as possible.
Page 200 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 201 5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4. 6. If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle.
Page 202 Example 2 Item Description Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Cargo Weight 4-32 Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 203 Certiﬁcation Label United States version shown, Canada similar The Certiﬁcation label, found on the rear edge of the driver’s door, tells you the gross weight capacity of your vehicle, called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel and cargo.
Page 204 If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or...
Page 205: Towing
Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 7-6. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 206: Dinghy Towing
Dinghy Towing You may dinghy tow your vehicle from the front following these steps: 1. Set the parking brake. 2. Turn the ignition key to OFF to unlock the steering wheel. 3. Shift your automatic transaxle to NEUTRAL (N) or manual transaxle to neutral.
Page 207: Towing A Trailer (Automatic Transaxle)
Dolly Towing Your vehicle cannot be dolly towed, but can be dinghy towed. See “Dinghy Towing” earlier in this section. Notice: Dolly towing your vehicle may cause damage because of reduced ground clearance. Always tow your vehicle using the dinghy towing procedure listed in this section or put your vehicle on a ﬂatbed truck.
Page 208: If You Do Decide To Pull A Trailer
Load-pulling components such as the engine, transaxle, wheel assemblies and tires are forced to work harder against the drag of the added weight. The engine is required to operate at relatively higher speeds and under greater loads, generating extra heat. Also, the trailer adds considerably to wind resistance, increasing the pulling requirements.
Page 209: Weight Of The Trailer Tongue
You can ask your dealer for our trailering information or advice, or you can write us at: Chevrolet Motor Division Customer Assistance Center P.O. Box 33170 Detroit, MI 48232-5170 In Canada write to: General Motors of Canada Limited Customer Communication Centre, 163-005...
Page 210: Safety Chains
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You will ﬁnd these numbers on the Tire-Loading Information label. See Loading Your Vehicle on page 4-29. Then be sure you do not go over the GVW limit for your vehicle, including the weight of the trailer tongue.
Page 211: Making Turns
Before you start, check all trailer hitch parts and attachments, safety chains, electrical connector, lamps, tires and mirror adjustment. If the trailer has electric brakes, start your vehicle and trailer moving and then apply the trailer brake controller by hand to be sure the brakes are working.
Page 212: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle may need a different turn signal ﬂasher and/or extra wiring. Check with your dealer. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change.
Page 213: Towing A Trailer (Manual Transaxle)
3. When the wheel chocks are in place, release the regular brakes until the chocks absorb the load. 4. Reapply the regular brakes. Then apply your parking brake, and then shift into PARK (P) for an automatic transaxle or REVERSE (R) for a manual transaxle.
Page 214 NOTES 4-44...
Page 215 Section 5 Service ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-5 Additives ...5-6 Fuels in Foreign Countries ...5-6 Filling Your Tank ...5-7 Filling a Portable Fuel Container ...5-9 Checking Things Under the Hood ...5-10 Hood Release ...5-10...
Page 216 Section 5 Removing the Flat Tire and Installing the Spare Tire ...5-65 Storing a Flat or Spare Tire and Tools ...5-70 Compact Spare Tire ...5-71 Appearance Care ...5-72 Fabric/Carpet ...5-72 Vinyl ...5-74 Instrument Panel ...5-74 Interior Plastic Components ...5-74 Glass Surfaces ...5-74 Care of Safety Belts ...5-74 Weatherstrips ...5-75 Washing Your Vehicle ...5-75...
Page 217: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 218: Doing Your Own Service Work
Doing Your Own Service Work If you want to do some of your own service work, you will want to use the proper service manual. It tells you much more about how to service your vehicle than this manual can. To order the proper service manual, see Service Publications Ordering Information on page 7-11.
Page 219: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle.
Page 220: Additives
Additives To provide cleaner air, all gasolines in the United States are now required to contain additives that will help prevent engine and fuel system deposits from forming, allowing your emission control system to work properly. You should not have to add anything to your fuel. However, some gasolines contain only the minimum amount of additive required to meet U.S.
Page 221: Filling Your Tank
Filling Your Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 222 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 223: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 224: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing and tools away from any underhood electric fan. CAUTION: Things that burn can get on hot engine parts and start a ﬁre.
Page 225 2. Then go to the front of the vehicle and lift up on the secondary hood release lever. The secondary hood release lever is located near the front center of the hood toward the driver’s side. 3. Lift the hood, release the hood prop from its retainer and put the hood prop into the slot...
Page 226: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the engine, you will see the following: 5-12...
Page 227: Engine Oil
A. Coolant Surge Tank. See Cooling System on page 5-25. B. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 5-13. C. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page 5-13. D.
Page 228: When To Add Engine Oil
The engine oil dipstick handle is a yellow loop. See Engine Compartment Overview on page 5-12 for the location of the engine oil dipstick. 1. Turn off the engine and give the oil several minutes to drain back into the oil pan. If you do not do this, the oil dipstick might not show the actual level.
Page 229 • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils such as SAE 20W-50. Oils meeting these requirements should also have the starburst symbol on the container.
Page 230: When To Change Engine Oil
Notice: Use only engine oil identiﬁed as meeting GM Standard GM6094M and showing the American Petroleum Institute Certiﬁed For Gasoline Engines starburst symbol. Failure to use the recommended oil can result in engine damage not covered by your warranty. ® GM Goodwrench oil meets all the requirements for your vehicle.
Page 231: Engine Air Cleaner/Filter
Your vehicle has a unique oil ﬁlter element. When installing the ﬁlter cap do not exceed 18 lb ft (25 Y). Inspect the condition of the O-ring and replace if damaged. See your dealer for additional information. What to Do with Used Oil Used engine oil contains certain elements that may be unhealthy for your skin and could even cause cancer.
Page 232: How To Inspect The Engine Air Cleaner/Filter
How to Inspect the Engine Air Cleaner/Filter To inspect the air cleaner/ﬁlter remove the ﬁlter from the vehicle and lightly shake the ﬁlter to release loose dust and dirt. If the ﬁlter remains caked with dirt, a new ﬁlter is required. To inspect or replace the ﬁlter, remove the screws that hold the cover on and lift off the cover.
Page 233: Automatic Transaxle Fluid
Automatic Transaxle Fluid It is not necessary to check the transaxle ﬂuid level. A transaxle ﬂuid leak is the only reason for ﬂuid loss. If a leak occurs, take the vehicle to the dealership service department and have it repaired as soon as possible. You may also have your ﬂuid level checked by your dealer or service center when you have your oil changed.
Page 234: Engine Coolant
When to Check and What to Use Refer to the Maintenance Schedule to determine how often you should check the ﬂuid level in your master cylinder reservoir and for the proper ﬂuid. See Part B: Owner Checks and Services on page 6-18 and Part D: Recommended Fluids and Lubricants on page 6-24.
Page 235: What To Use
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 236: Checking Coolant
Checking Coolant The surge tank is located in the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 237: Coolant Surge Tank Pressure Cap
CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. When replacing the pressure cap, make sure it is hand-tight.
Page 238: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine An overheat warning, along with a low coolant light, can indicate a serious problem. See Low Coolant Warning Light on page 3-30. If you get an engine overheat warning with no low coolant light, but see or hear no steam, the problem may not be too serious.
Page 239: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Coolant Surge Tank with Pressure Cap B. Electric Engine Cooling Fan CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 240: How To Add Coolant To The Coolant Surge Tank
CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine ﬁre, and you could be burned.
Page 241 If no coolant is visible in the surge tank, add coolant as follows: CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you turn the coolant surge tank pressure cap —...
Page 242 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. 1. You can remove the coolant surge tank pressure cap when the cooling system, including the coolant surge tank pressure cap and upper radiator hose, is no longer hot.
Page 243 3. Fill the coolant surge tank with the proper mixture, to the hash mark on the label. Wait about ﬁve minutes, then check to see if the level is below the hash mark. If the level is below the hash mark, add additional coolant to bring the level up to the hash mark.
Page 244: Power Steering Fluid
Power Steering Fluid The power steering ﬂuid reservoir is located toward the front of the engine compartment on the driver’s side of the vehicle. See Engine Compartment Overview on page 5-12 for reservoir location. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 245: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 246: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 247 What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Part D: Recommended Fluids and Lubricants on page 6-24. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it.
Page 248: Brake Wear
Brake Wear Your vehicle has front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 249: Replacing Brake System Parts
Brake Pedal Travel See your dealer if the brake pedal does not return to normal height, or if there is a rapid increase in pedal travel. This could be a sign of brake trouble. Brake Adjustment Every time you make a moderate brake stop, your disc brakes adjust for wear.
Page 250: Battery
Battery Your vehicle has a maintenance free battery. When it is time for a new battery, get one that has the replacement number shown on the original battery’s label. We recommend an ACDelco battery. See Engine Compartment Overview on page 5-12 for battery location. Warning: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause...
Page 251: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 252 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 253 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock.
Page 254 9. Connect the other end of the negative ( ) cable at least 18 inches (45 cm) away from the dead battery, but not near engine parts that move. The electrical connection is just as good there, and the chance of sparks getting back to the battery is much less.
Page 255: Bulb Replacement
To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative ( ) cable from the vehicle that had the dead battery. 2. Disconnect the black negative ( ) cable from the vehicle with the good battery. 3.
Page 256: Headlamps
Headlamps To replace a headlamp bulb, do the following: 1. Remove the plastic fasteners from the shield. Use a tool to pry up the center of the fastener. Be careful not to break the fasteners that hold the shield in place. 5-42 2.
Page 257 4. Remove the cover by turning it counterclockwise. 5. Disconnect the bulb base from the socket by lifting the plastic locking tab. 6. Remove the black collar by turning it clockwise. 7. Remove the bulb by pulling it straight out. 8.
Page 258: Front Turn Signal And Parking Lamps
Front Turn Signal and Parking Lamps To replace a front turn signal or parking lamp bulb, do the following: 1. Follow Steps 1 through 3 under Headlamps on page 5-42. 2. Hold down the tab at the top of the bulb retainer.
Page 259: Back-Up Lamps
2. Remove the taillamp bulb socket by turning it one-eighth of a turn counterclockwise. 3. Pull the old bulb out of the socket. 4. Push in a new bulb. 5. Reverse Steps 1 through 2 to reinstall. Back-Up Lamps To replace a back-up lamp bulb, do the following: 1.
Page 260: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking. See “Scheduled Maintenance” for more information on wiper blade inspection. Replacement blades come in different types and are removed in different ways. For proper type and length, see Capacities and Speciﬁcations on page 5-85.
Page 261: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner’s Manual.
Page 262: Tire Sidewall Labelling
Tire Sidewall Labelling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 263 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 264: Tire Terminology And Deﬁnitions
Tire Size The following illustration shows an example of a typical passenger vehicle tire size. (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 265 Belt: A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead: The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim. Bias Ply Tire: A pneumatic tire in which the plies are laid at alternate angles less than 90 degrees to the centerline of the tread.
Page 266 Occupant Distribution: Designated seating positions. Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle. The side of the tire that contains a whitewall, bears white lettering or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same moldings on the other sidewall of the tire.
Page 267: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 268: Tire Inspection And Rotation
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are under-inﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 269: When It Is Time For New Tires
Do not include the compact spare tire in your tire rotation. After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the Tire and Loading Information label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” under Capacities and Speciﬁcations on page 5-85.
Page 270: Buying New Tires
Buying New Tires To ﬁnd out what kind and size of tires your vehicle needs, look at the tire and loading information label. For more information about this label and its location on your vehicle, see Loading Your Vehicle on page 4-29. The tires installed on your vehicle when it was new had a Tire Performance Criteria Speciﬁcation (TPC Spec) number on each tire’s sidewall.
Page 271: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 272: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 273: Used Replacement Wheels
Each new wheel should have the same load-carrying capacity, diameter, width, offset and be mounted the same way as the one it replaces. If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts.
Page 274: Tire Chains
Tire Chains CAUTION: If your vehicle has P195/65R15 or P205/55R16 size tires, don’t use tire chains, there’s not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension or other vehicle parts.
Page 275: If A Tire Goes Flat
If a Tire Goes Flat It’s unusual for a tire to “blowout” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag that pulls the vehicle toward that side.
Page 276: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 277: Removing The Spare Tire And Tools
When you have a ﬂat tire, use the following example as a guide to assist you in the placement of wheel blocks. The following information will tell you how to use the jack and change a tire. Removing the Spare Tire and Tools The equipment you will need is located in the trunk.
Page 278 2. Lift and remove the cover. See Compact Spare Tire on page 5-71 for more information about the compact spare tire. 5-64 3. Turn the wing bolt counterclockwise and remove it. Then lift off the adapter and remove the compact spare tire. 4.
Page 279: Removing The Flat Tire And Installing The Spare Tire
The tools you will be using next include the jack (A) and wheel wrench (B). Removing the Flat Tire and Installing the Spare Tire 1. Use the wheel wrench to begin loosening the plastic wheel nut caps, if your vehicle is equipped with wheel covers.
Page 280 4. Locate the notch that is near each wheel well in the frame which the jack head ﬁts in. The front notch is 9 inches (23 cm) back from the front wheel well. The rear notch is 8 inches (20 cm) forward from the rear wheel well.
Page 281 6. Raise the vehicle by turning the jack handle clockwise. Raise the vehicle far enough off the ground so there is enough room for the compact spare tire to ﬁt underneath the wheel well. 7. Remove all of the wheel nuts. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts...
Page 282 9. Place the compact spare tire on the wheel-mounting surface. CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 10. Reinstall the wheel nuts with the rounded end of the nuts toward the wheel.
Page 283 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 284: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. 5-70 A.
Page 285: Compact Spare Tire
The compact spare tire is for temporary use only. Replace the compact spare tire with a full-size tire as soon as you can. See Compact Spare Tire on page 5-70. See the storage instructions label to replace your compact spare tire into your trunk properly. Compact Spare Tire Although the compact spare tire was fully inﬂated when the vehicle was new, it can lose air after a time.
Page 286: Appearance Care
Appearance Care Cleaning products can be hazardous. Some are toxic. Other cleaning products can burst into ﬂames if a match is struck near them or if they get on a hot part of the vehicle. Some are dangerous if their fumes are inhaled in a closed space.
Page 287: Special Fabric Cleaning Problems
Most stains can be removed with club soda water. To clean, use the following instructions: 1. For liquids: blot with a clean, soft, white cloth. For solids: remove as much as possible and then vacuum or brush. 2. Apply club soda water to a clean, soft, white cloth. Do not over-saturate;...
Page 288: Vinyl
Vinyl Use warm water and a clean cloth. • Rub with a clean, damp cloth to remove dirt. This may have to be done more than once. • Things like tar, asphalt, and shoe polish will stain if they are not removed quickly. Use a clean cloth and vinyl cleaner.
Page 289: Weatherstrips
Weatherstrips Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak. Apply silicone grease with a clean cloth. During very cold, damp weather frequent application may be required. Washing Your Vehicle The paint ﬁnish on the vehicle provides beauty, depth of color, gloss retention, and durability.
Page 290: Windshield And Wiper Blades
Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage the vehicle’s ﬁnish if they remain on painted surfaces. Wash the vehicle as soon as possible. If necessary, use non-abrasive cleaners that are marked safe for painted surfaces to remove foreign matter.
Page 291: Tires
Use chrome polish only on chrome-plated wheels, but avoid any painted surface of the wheel, and buff off immediately after application. Notice: If you drive your vehicle through an automatic car wash that has silicone carbide tire cleaning brushes, you could damage the aluminum or chrome-plated wheels.
Page 292: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, ﬂoor pan, and exhaust system even though they have corrosion protection.
Page 293: Vehicle Identiﬁcation
Description Removes swirl marks, ﬁne Swirl Remover Polish scratches and other light surface contamination. Removes light scratches Cleaner Wax and protects ﬁnish. Cleans, shines and Foaming Tire Shine protects in one easy step, Low Gloss no wiping necessary. Medium foaming shampoo.
Page 294: Service Parts Identiﬁcation Label
Service Parts Identiﬁcation Label You will ﬁnd this label on your spare tire cover. It is very helpful if you ever need to order parts. On this label, you will ﬁnd the following: • • Model designation • Paint information •...
Page 295: Windshield Wiper Fuses
Windshield Wiper Fuses The windshield wiper motor is protected by a circuit breaker and a fuse. If the motor overheats due to heavy snow or ice, the wiper will stop until the motor cools. If the overload is caused by some electrical problem, have it ﬁxed.
Page 296: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located on the driver’s side of the instrument panel. To open, push the tab on the access door to the left and pull the door forward. Make sure to insert the tabs when replacing the cover. 5-82 Fuses Usage...
Page 297 Fuses Usage CRUISE Cruise Control Module/Switch Anti-Lock Brake (Ignition) Accessory Power Outlet RFA BATT Remote Keyless Entry System Power Mirror/Diagnostic Link MIR/DLC Connector LT HDLP Left Headlamp RDO/INTLP Radio, Interior Lamps, OnStar RT HDLP Right Headlamps CLSTR Instrument Panel Cluster EXT LP Exterior Lamps Cigarette Lighter...
Page 298: Engine Compartment Fuse Block
Engine Compartment Fuse Block The engine compartment fuse block is located on the driver’s side of the vehicle. Lift off the cover to check the fuses. See Engine Compartment Overview on page 5-12 for more information on location. Fuses Ignition Switch Circuits Exterior lamps, Power Outlet, BATT 1 Horn, Audio Ampliﬁer...
Page 299: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Part D: Recommended Fluids and Lubricants on page 6-24 for more information. Application Air Conditioning Refrigerant R134a Cooling System Engine Oil with Filter Fuel Tank Transaxle, Automatic (Complete Overhaul) Transaxle, Manual (Complete Drain and Reﬁll) Wheel Nut Torque...
Page 300: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your GM dealer. Part Engine Air Cleaner/Filter Engine Oil Filter Spark Plugs Windshield Wiper Blade (Hook Type) Driver’s Side – 22 inches (56 cm) Passenger’s Side –...
Page 301 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 How This Section is Organized ...6-3 Part A: Scheduled Maintenance Services ...6-4 Using Your Maintenance Schedule ...6-4 Selecting the Right Schedule ...6-5 Short Trip/City Scheduled Maintenance ...6-6 Long Trip/Highway Scheduled Maintenance ...6-13 Part B: Owner Checks and Services ...6-18 At Each Fuel Fill ...6-18...
Page 302: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Maintenance intervals, checks, inspections and recommended ﬂuids and lubricants as prescribed in this...
Page 303: How This Section Is Organized
How This Section is Organized This maintenance schedule is divided into ﬁve parts: “Part A: Scheduled Maintenance Services” explains what to have done and how often. Some of these services can be complex, so unless you are technically qualiﬁed and have the necessary equipment, you should let your GM dealer’s service department do these jobs.
Page 304: Part A: Scheduled Maintenance Services
Part A: Scheduled Maintenance Services In this part are scheduled maintenance services which are to be performed at the mileage intervals speciﬁed. Using Your Maintenance Schedule We at General Motors want to keep your vehicle in good working condition. But we do not know exactly how you will drive it.
Page 305: Selecting The Right Schedule
Selecting the Right Schedule First you will need to decide which of the two schedules is right for your vehicle. Here is how to decide which schedule to follow: Short Trip/City Deﬁnition Follow the Short Trip/City Scheduled Maintenance if any one of these conditions is true for your vehicle: •...
Page 306: Short Trip/City Scheduled Maintenance
Long Trip/Highway Deﬁnition Follow this scheduled maintenance only if none of the conditions from the Short Trip/City Scheduled Maintenance are true. Do not use this schedule if the vehicle is used for trailer towing, driven in a dusty area or used off paved roads. Use the Short Trip/City schedule for these conditions.
Page 307 Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life. We, however, urge that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded.
Page 308 15,000 Miles (25 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Inspect engine air cleaner ﬁlter. If necessary, replace the ﬁlter. If vehicle is driven in dusty/dirty conditions, inspect ﬁlter at every engine oil change. See Engine Air Cleaner/Filter on page 5-17 for more information.
Page 309 33,000 Miles (55 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. 36,000 Miles (60 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Lubricate chassis components (or every 6 months, whichever occurs ﬁrst).
Page 310 50,000 Miles (83 000 km) Change automatic transaxle ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: − In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher. − In hilly or mountainous terrain. −...
Page 311 63,000 Miles (105 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. 66,000 Miles (110 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Lubricate chassis components (or every 6 months, whichever occurs ﬁrst).
Page 312 81,000 Miles (135 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. 84,000 Miles (140 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Lubricate chassis components (or every 6 months, whichever occurs ﬁrst).
Page 313: Long Trip/Highway Scheduled Maintenance
100,000 Miles (166 000 km) Replace spark plugs. An Emission Control Service. Change automatic transaxle ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: − In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher.
Page 314 Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life. We, however, urge that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded.
Page 315 30,000 Miles (50 000 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst). An Emission Control Service. Lubricate chassis components (or every 12 months, whichever occurs ﬁrst).(See footnote #.) Rotate tires. See Tire Inspection and Rotation on page 5-54 for proper rotation pattern and additional information.
Page 316 52,500 Miles (87 500 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst). An Emission Control Service. Lubricate chassis components (or every 12 months, whichever occurs ﬁrst).(See footnote #.) Rotate tires. See Tire Inspection and Rotation on page 5-54 for proper rotation pattern and additional information.
Page 317 90,000 Miles (150 000 km) Change engine oil and ﬁlter (or every 12 months, whichever occurs ﬁrst). An Emission Control Service. Lubricate chassis components (or every 12 months, whichever occurs ﬁrst).(See footnote #.) Replace engine air cleaner ﬁlter. See Engine Air Cleaner/Filter on page 5-17 for more information.
Page 318: Part B: Owner Checks And Services
Part B: Owner Checks and Services Listed in this part are owner checks and services which should be performed at the intervals speciﬁed to help ensure the safety, dependability and emission control performance of your vehicle. Be sure any necessary repairs are completed at once. Whenever any ﬂuids or lubricants are added to your vehicle, make sure they are the proper ones, as shown in Part D.
Page 319: At Least Once A Year
Wiper Blade Check Inspect wiper blades for wear or cracking. Replace blade inserts that appear worn or damaged or that streak or miss areas of the windshield. Also see Windshield and Wiper Blades on page 5-76. Weatherstrip Lubrication Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak.
Page 320: Starter Switch Check
Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. 2. Firmly apply both the parking brake and the regular brake.
Page 321: Ignition Transaxle Lock Check
Ignition Transaxle Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK in each shift lever position. • With an automatic transaxle, the ignition should turn to LOCK only when the shift lever is in PARK (P). •...
Page 322: Part C: Periodic Maintenance Inspections
Part C: Periodic Maintenance Inspections Listed in this part are inspections and services which should be performed at least twice a year (for instance, each spring and fall). You should let your dealer’s service department do these jobs. Make sure any necessary repairs are completed at once.
Page 323: Brake System Inspection
Brake System Inspection Inspect the complete system. Inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition. Also inspect drum brake linings for wear and cracks. Inspect other brake parts, including drums, wheel cylinders, calipers, parking brake, etc.
Page 324: Part D: Recommended Fluids And Lubricants
Part D: Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 325 Usage Fluid/Lubricant Chassis Lubricant (GM Part No. Manual U.S. 12377985, in Canada Transaxle Shift 88901242) or lubricant meeting Linkage requirements of NLGI #2, Category LB or GC-LB. Clutch Linkage Engine oil. Pivot Points Chassis Lubricant (GM Part No. U.S. 12377985, in Canada Chassis 88901242) or lubricant meeting Lubrication...
Page 326: Part E: Maintenance Record
Part E: Maintenance Record After the scheduled services are performed, record the date, odometer reading and who performed the service and any additional information from “Owner Checks and Services” or “Periodic Maintenance” on the following record pages. Also, you should retain all maintenance receipts. Maintenance Record Odometer Date...
Page 327 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Record Reading 6-27...
Page 328 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Record Reading 6-28...
Page 329 Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Program for Persons with Disabilities ...7-5 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Customer Assistance and Information...
Page 330: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Chevrolet. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 331: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 332: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Chevrolet encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Chevrolet, the letter should be addressed to Chevrolet’s Customer Assistance Center. United States — Customer Assistance Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 333: Gm Mobility Program For Persons With Disabilities
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 334: Roadside Assistance Program
Roadside Assistance Program As the owner of a new Chevrolet vehicle, you are automatically enrolled in the Chevrolet Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road. Call Chevrolet’s Roadside Assistance at 1–800–CHEV-USA...
Page 335: Courtesy Transportation
Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty. Chevrolet reserves the right to make any changes or discontinue the Roadside Assistance program at any time without notiﬁcation.
Page 336: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, Chevrolet helps minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following:...
Page 337: Vehicle Data Collection And Event Data Recorders
Additional Program Information Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but it is not part of the New Vehicle Limited Warranty. A separate booklet entitled “Warranty and Owner Assistance Information” furnished with each new vehicle provides detailed warranty coverage information. Courtesy Transportation is available only at participating GM dealers and all program options, such as shuttle service, may not be available at every dealer.
Page 338: Reporting Safety Defects
To read this information, special equipment is needed and access to the vehicle or the device that stores the data is required. GM will not access information about a crash event or share it with others other than: • with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, •...
Page 339: Reporting Safety Defects To The Canadian Government
Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify General Motors. Please call the Chevrolet Customer Assistance Center at 1-800-222-1020, or write: Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 340: Service Bulletins
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 341 Accessory Power Outlets ... 3-16 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-80 Air Cleaner/Filter, Engine ... 5-17 Air Conditioning ... 3-18 Airbag Readiness Light ... 3-24 Airbag Sensing and Diagnostic Module (SDM) ... 7-9 Airbag System ... 1-46 How Does an Airbag Restrain? ...
Page 342 Audio System(s) (cont.) Theft-Deterrent Feature ... 3-69 Understanding Radio Reception ... 3-70 XM™ Satellite Radio Antenna System ... 3-71 Automatic Transaxle Fluid ... 5-19 Operation ... 2-20 Battery ... 5-36 Run-Down Protection ... 3-16 Before Leaving on a Long Trip ... 4-21 Brake Anti-Lock Brake System (ABS) ...
Page 343 Child Restraints (cont.) Lower Anchorages and Top Tethers for Children (LATCH System) ... 1-39 Older Children ... 1-27 Securing a Child Restraint Designed for the LATCH System ... 1-41 Securing a Child Restraint in a Rear Seat Position ... 1-41 Securing a Child Restraint in the Right Front Seat Position ...
Page 344 Customer Assistance Information (cont.) Reporting Safety Defects to General Motors ... 7-11 Reporting Safety Defects to the Canadian Government ... 7-11 Reporting Safety Defects to the United States Government ... 7-10 Roadside Assistance Program ... 7-6 Service Publications Ordering Information ... 7-11 Daytime Running Lamps ...
Page 345 Engine (cont.) Overheating ... 5-23 Starting ... 2-18 Enhanced Traction System (ETS) ... 4-8 Active Light ... 3-29 Warning Light ... 3-28 Entry Lighting ... 3-16 Event Data Recorders (EDR) ... 7-9 Extender, Safety Belt ... 1-26 Exterior Lamps ... 3-13 Filter Engine Air Cleaner ...
Page 346 Gasoline Octane ... 5-5 Speciﬁcations ... 5-5 GM Mobility Program for Persons with Disabilities ... 7-5 Hazard Warning Flashers ... 3-6 Head Restraints ... 1-5 Headlamp Wiring ... 5-80 Headlamps ... 5-42 Bulb Replacement ... 5-41 Daytime Running Lamps ... 3-13 Flash-to-Pass ...
Page 347 Jump Starting ... 5-37 Keyless Entry System ... 2-3 Keys ... 2-2 Labelling, Tire Sidewall ... 5-48 Lamps Battery Run-Down Protection ... 3-16 Exterior ... 3-13 Fog ... 3-15 Front Reading ... 3-16 Map ... 3-16 LATCH System Child Restraints ... 1-39 Securing a Child Restraint Designed for the LATCH System ...
Page 348 Maintenance, Normal Replacement Parts ... 5-86 Maintenance Schedule At Each Fuel Fill ... 6-18 At Least Once a Month ... 6-18 At Least Once a Year ... 6-19 At Least Twice a Year ... 6-18 Brake System Inspection ... 6-23 Caliper/Knuckle Maintenance Inspection ...
Page 349 Odometer ... 3-23 Odometer, Trip ... 3-23 Off-Road Recovery ... 4-12 Engine ... 5-13 Pressure Light ... 3-33 Older Children, Restraints ... 1-27 Online Owner Center ... 7-3 ® OnStar System ... 2-33 Other Warning Devices ... 3-6 Outlet Adjustment ... 3-20 Outside Breakaway Mirrors ...
Page 350 Radios ... 3-36 AM-FM Radio ... 3-37 Care of Your CD Player ... 3-70 Care of Your CDs ... 3-70 Personal Choice Radio Controls ... 3-69 Radio with CD ... 3-39, 3-44, 3-54 Setting the Time for Radios with Radio Data Systems (RDS) ...
Page 351 Safety Belts (cont.) Rear Safety Belt Comfort Guides for Children and Small Adults ... 1-24 Rear Seat Passengers ... 1-20 Right Front Passenger Position ... 1-20 Safety Belt Extender ... 1-26 Safety Belt Use During Pregnancy ... 1-20 Safety Belts Are for Everyone ... 1-8 Shoulder Belt Height Adjuster ...
Page 352 Storage Areas Center Console Storage Area ... 2-35 Convenience Net ... 2-35 Cupholder(s) ... 2-35 Stuck in Sand, Mud, Ice or Snow ... 4-28 Sun Visors ... 2-13 Sunroof ... 2-35 Tachometer ... 3-23 Taillamps Turn Signal Lamps ... 5-44 Theft-Deterrent, Radio ...
Page 353 Traction (cont.) Enhanced Traction System (ETS) Warning Light ... 3-28 Transaxle Fluid, Automatic ... 5-19 Fluid, Manual ... 5-19 Transaxle Operation, Automatic ... 2-20 Transaxle Operation, Manual ... 2-23 Transmission Up-Shift Light ... 3-26 Trip Odometer ... 3-23 Trunk ... 2-10 Turn and Lane-Change Signals ...
Page 354 Windshield Washer ... 3-10 Fluid ... 5-31 Windshield Wiper Blade Replacement ... 5-46 Fuses ... 5-81 Windshield Wipers ... 3-9 Winter Driving ... 4-24 XM™ Satellite Radio Antenna System ... 3-71 Your Vehicle and the Environment ... 6-2...

Chevrolet 2005 Cavalier Owner's Manual

Table of Contents

Seats and Restraint Systems

Features and Controls

Instrument Panel

Section 3 Instrument Panel

Section 4 Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service

Fuel

Service and Appearance Care

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Normal Maintenance Replacement Parts

Quick Links

Chapters

Related Manuals for Chevrolet 2005 Cavalier

Summary of Contents for Chevrolet 2005 Cavalier
