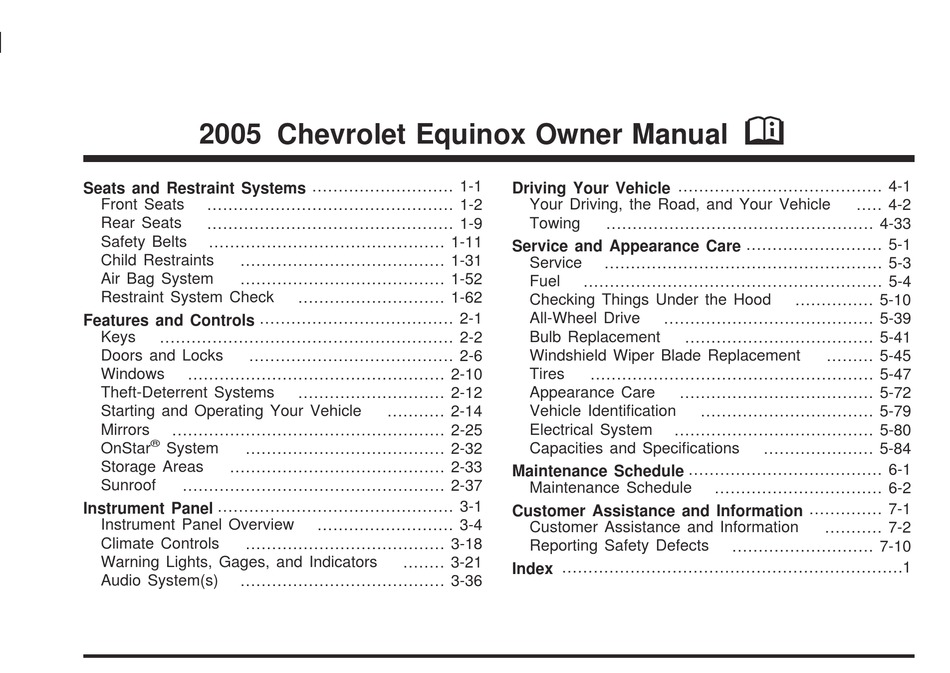

Page 1 2005 Chevrolet Equinox Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-9 Safety Belts ... 1-11 Child Restraints ... 1-31 Air Bag System ... 1-52 Restraint System Check ... 1-62 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division whenever it appears in this manual. Keep this manual in the vehicle, so it will be there if you ever need it while you are on the road.
Page 3 Index A good place to quickly locate information about the vehicle is the Index in the back of the manual. It is an alphabetical list of what is in the manual, and the page number where it can be found. Safety Warnings and Symbols There are a number of safety cautions in this book.
Page 4 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Table Of Contents
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Driver Seat Height Adjuster ...1-2 Power Seats ...1-3 Manual Lumbar ...1-3 Heated Seats ...1-4 Reclining Seatbacks ...1-4 Head Restraints ...1-6 Passenger Folding Seatback ...1-7 Rear Seats ...1-9 Split Folding Rear Seat ...1-9 Safety Belts ...1-11 Safety Belts: They Are for Everyone ...1-11 Questions and Answers About Safety Belts ...1-15...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9: Power Seats
Power Seats If your vehicle has this feature, the control is located on the outboard side of the seat. To adjust the seat: • Slide the entire control forward or rearward to move the seat forward or rearward. • Lift or push down the front of the control to raise or lower the front portion of the seat.
Page 10: Heated Seats
Heated Seats The switches for the heated seats, if equipped, are located on the outboard sides of the front seats. Press the forward part of the switch to turn the heated seat to high. Press the forward part of the switch again to turn the setting to low.
Page 11 Do not have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can not do their job when you are reclined like this. The shoulder belt can not do its job because it will not be against your body.
Page 12: Head Restraints
Head Restraints Press the button on the side of the head restraint to adjust it. Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash.
Page 13: Passenger Folding Seatback
Passenger Folding Seatback The front passenger’s seatback may fold ﬂat. To fold the seatback, do the following: 1. Lift the release bar located under the front of the seat cushion. 2. Slide the seat as far back as it will go and release the bar.
Page 14 4. Lift the recliner lever located on the outside of the seat cushion and fold the seatback forward until it locks in the folded position. Pull up on the seat to ensure it is locked in place. CAUTION: If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag.
Page 15: Rear Seats
Rear Seats Split Folding Rear Seat The rear split bench seatbacks have three available positions — folded forward, upright, or partially reclined. Both of the seatbacks can be moved to any of the three positions independent of the other seatback position.
Page 16 To fold the seatback down, do the following: 1. Ensure all three of the safety belts are unbuckled and the front seatbacks are not reclined. 2. Lift the lever located on the top of the seatback to release the seatback. 3.
Page 17: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she can not wear a safety belt properly.
Page 18: Why Safety Belts Work
In most states and in all Canadian provinces, the law says to wear safety belts. Here’s why: They work. You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person wouldn’t survive.
Page 19 Put someone on it. Get it up to speed. Then stop the vehicle. The rider doesn’t stop. 1-13...
Page 20 The person keeps going until stopped by something. or the instrument panel... In a real vehicle, it could be the windshield... 1-14...
Page 21: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense. Questions and Answers About Safety Belts Won’t I be trapped in the vehicle after an...
Page 22: How To Wear Safety Belts Properly
If I’m a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you’re in an accident – even one that isn’t your fault – you and your passengers can be hurt.
Page 23 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 24 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 25 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 26 What is wrong with this? The belt is buckled in the wrong place. 1-20 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 27 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 28 What is wrong with this? The belt is twisted across the body. 1-22 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your retailer to ﬁx it.
Page 29: Shoulder Belt Height Adjustment
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 30: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 31 Lap-Shoulder Belt All rear seating positions have lap-shoulder belts. Here is how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
Page 32 3. To make the lap part tight, pull down on the buckle The lap part of the belt should be worn low and snug on end of the belt as you pull up on the shoulder part. the hips, just touching the thighs. In a crash this applies force to the strong pelvic bones.
Page 33 The safety belt locks if there is a sudden stop or a crash, or if you pull the belt very quickly out of the retractor. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 34: Rear Safety Belt Comfort Guides For Children And Small Adults
Rear Safety Belt Comfort Guides for Children and Small Adults Rear shoulder belt comfort guides will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.
Page 35 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top. 4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-24. Make sure that the shoulder belt crosses the shoulder.
Page 36: Safety Belt Pretensioners
Safety Belt Pretensioners Your vehicle has safety belt pretensioners. Although you cannot see them, they are located on the retractor part of the safety belts for the driver and right front passenger. They help the safety belts reduce a person’s forward movement in a moderate to severe crash in which the front of the vehicle hits something.
Page 37: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 38 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. 1-32 What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt...
Page 39 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 40: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 41 CAUTION: (Continued) hold it. For example, in a crash at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 240-lb. (110 kg) force on a person’s arms. A baby should be secured in an appropriate restraint. CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously...
Page 42 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 43: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 44 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. 1-38 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 45 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 46: Where To Put The Restraint
When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may ﬁnd these instructions on the restraint itself or in a booklet, or both.
Page 47: Top Strap
CAUTION: (Continued) If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat. Wherever you install it, be sure to secure the child restraint properly.
Page 48 In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored. 1-42 Anchor the top strap to an anchor point speciﬁed in Top Strap Anchor Location on page 1-43.
Page 49: Top Strap Anchor Location
Top Strap Anchor Location Your vehicle has top strap anchors in the rear seating positions. Do not secure a child restraint with a top strap in the right front passenger’s position if a national or local law requires that the top strap be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored.
Page 50: Lower Anchorages And Top Tethers For Children (Latch System)
Lower Anchorages and Top Tethers for Children (LATCH System) Your vehicle has the LATCH system. You will ﬁnd anchors for all three rear seating positions. The anchors are visible between the seatback and the seat cushion. There is a speciﬁc way to attach a child restraint to the anchors in the three possible positions.
Page 51 This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts. Instead, it uses vehicle anchors and child restraint attachments to secure the restraints. Some restraints also use another vehicle anchor to secure a top tether strap.
Page 52: Securing A Child Restraint Designed For
LATCH anchorages are located near the base of all three rear seating positions, where the bottom of the seatback meets the back of the seat cushion. CAUTION: If a LATCH-type child restraint is not attached to its anchorage points, the restraint will not be able to protect the child correctly.
Page 53: Securing A Child Restraint In A
Securing a Child Restraint in a Rear Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-44. See Top Strap on page 1-41 if the child restraint has one. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position.
Page 54 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 1-48 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 55: Securing A Child Restraint In The Right Front Seat Position
To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. Securing a Child Restraint in the Right Front Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for...
Page 56 A rear seat is a safer place to secure a forward-facing child restraint. If you need to secure a forward-facing child restraint in the right front seat, you will be using the lap-shoulder belt to secure the child restraint. Be sure to follow the instructions that came with the child restraint.
Page 57 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 58: Air Bag System
Air Bag System This part explains the air bag systems. Your vehicle has a frontal air bag for the driver and another frontal air bag for the right front passenger. Your vehicle may also have roof mounted side impact air bags.
Page 59 CAUTION: (Continued) rollover, rear or low-speed frontal crashes, or in many side crashes. And, for some unrestrained occupants, frontal airbags may provide less protection in frontal crashes than more forceful airbags have provided in the past. The roof-mounted side impact airbags are designed to inﬂate only in moderate to severe crashes where something hits the side of your vehicle.
Page 60 CAUTION: Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 61: Where Are The Air Bags
Where Are the Air Bags? The driver’s frontal air bag is in the middle of the steering wheel. The right front passenger’s frontal air bag is in the instrument panel on the passenger’s side. 1-55...
Page 62 If your vehicle has a side impact air bag for the driver and the person seated directly behind the driver, it is in the ceiling above the side windows. 1-56 If your vehicle has a side impact air bag for the right front passenger and the person seated directly behind that passenger, it is in the ceiling above the side windows.
Page 63: When Should An Air Bag Inﬂate
CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other...
Page 64 Airbags may inﬂate at different crash speeds. For example: • If the vehicle hits a stationary object, the airbag could inﬂate at a different crash speed than if the object were moving. • If the object deforms, the airbag could inﬂate at a different crash speed than if the object does not deform.
Page 65: What Makes An Air Bag Inﬂate
What Makes an Air Bag Inﬂate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. For both frontal and side impact air bags, the sensing system triggers a release of gas from the inﬂator, which inﬂates the air bag.
Page 66: What Will You See After An Air Bag Inﬂates
What Will You See After an Air Bag Inﬂates? After an air bag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the air bag inﬂated. Some components of the air bag module — the steering wheel hub for the driver’s frontal air bag, the instrument panel for the right front passenger’s frontal air bag or the ceiling of your vehicle near the side windows —...
Page 67 Your vehicle has a feature that will automatically unlock the doors and turn the interior dome lamp on and ﬂash the parklamps on and off when the air bags inﬂate (if battery power is available.) You can lock the doors again and turn the interior lamps off by using the door lock and interior lamp controls.
Page 68: Servicing Your Air Bag-Equipped Vehicle
Servicing Your Air Bag-Equipped Vehicle Air bags affect how your vehicle should be serviced. There are air bag system parts in several places around your vehicle. You don’t want the system to inﬂate while someone is working on your vehicle. Your Saturn retailer and the Saturn Service Manual have information about servicing your vehicle and the air bag systems.
Page 69: Replacing Restraint System Parts
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 70 NOTES 1-64...
Page 71: Features And Controls
Section 2 Keys ...2-2 Remote Keyless Entry System ...2-3 Remote Keyless Entry System Operation ...2-4 Doors and Locks ...2-6 Door Locks ...2-6 Power Door Locks ...2-7 Programmable Automatic Door Locks ...2-7 Rear Door Security Locks ...2-8 Lockout Protection ...2-8 Leaving Your Vehicle ...2-9 Liftgate ...2-9 Windows ...2-10 Power Windows ...2-11...
Page 72: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 73: Remote Keyless Entry System
Have extra keys made. Your service parts department can make extra keys for you. Notice: If you ever lock your keys in your vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys. If your vehicle is equipped with the OnStar an active subscription and you lock your keys inside ®...
Page 74: Remote Keyless Entry System Operation
Remote Keyless Entry System Operation With this feature, you can lock and unlock the doors from about 26 feet (8 m) away using the remote keyless entry transmitter supplied with your vehicle. button on the remote keyless entry transmitter one time to lock the doors. The headlamps will ﬂash once.
Page 75: Battery Replacement
Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer.
Page 76: Doors And Locks
Resynchronization This is used to keep the transmitter of the vehicle communicating with the receiver of the vehicle. Resynchronization may be required due to the security method used by this system. Your vehicle has an automatic resynchronization function built into the system. If your transmitter is not working properly and you have to manually resynchronize, press the lock and unlock buttons at the same time for seven seconds while you are near...
Page 77: Power Door Locks
There are a couple of ways to manually lock or unlock your vehicle. From the outside, use your key. From the inside, use the lock control on the door. Power Door Locks The power door lock switches are located on the driver’s and front passenger’s doors.
Page 78: Rear Door Security Locks
Rear Door Security Locks Your vehicle has rear door security locks that prevent passengers from opening the rear doors from the inside. The rear door security locks are located on the inside edge of each rear door. You must open the rear doors to access them.
Page 79: Leaving Your Vehicle
Leaving Your Vehicle If you are leaving the vehicle, open your door and set the locks from the inside. Then get out and close the door. Liftgate CAUTION: It can be dangerous to drive with the liftgate or liftglass open because carbon monoxide (CO) gas can come into your vehicle.
Page 80: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 81: Power Windows
Power Windows The window switches are located below the shift lever on the center console. To open a window, press the bottom of the switch. To close a window, press the top of that window switch. The power windows can operate only when the ignition key is in the run or the ACC position or while in the Retained Accessory Power (RAP) mode.
Page 82: Theft-Deterrent Systems
Visor Vanity Mirrors Your vehicle has covered visor vanity mirrors on both the driver’s and passenger’s side. Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal.
Page 83: Passlock
3. You must complete one of the following within three seconds to change the mode. • To select the active arming mode, press the lock button on the transmitter once within three seconds. A chime will sound two times to acknowledge that the active arming mode has been selected.
Page 84: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines: • Do not drive at any one speed — fast or slow —...
Page 85: Retained Accessory Power (Rap)
ACC (Accessory): This position operates some of your electrical accessories. It unlocks the steering wheel and ignition. RUN: This is the position the switch returns to after you start your engine and release the switch. The switch stays in the RUN position when the engine is running. But even when the engine is not running, you can use RUN to operate your electrical accessories and to display some warning and indicator lights.
Page 86: Engine Coolant Heater
2. If it does not start within 10 seconds, push the accelerator pedal all the way to the ﬂoor, while you hold the ignition key in START. When the engine starts, let go of the key and let up on the accelerator pedal.
Page 87: To Use The Engine Coolant Heater
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. 3. Plug it into a normal, grounded 110-volt AC outlet. CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a ﬁre.
Page 88: Automatic Transaxle Operation
Automatic Transaxle Operation The shift lever is located on the center console. There are several different positions for the automatic transaxle. PARK (P): This position locks your front wheels. It is the best position to use when you start your engine because your vehicle cannot move easily.
Page 89 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transaxle. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped.
Page 90: Parking Brake
LOW TWO (L2): This position gives you more power but lower fuel economy. You can use LOW TWO (L2) on hills. It can help control your speed as you go down steep mountain roads, but then you would also want to use your brakes off and on.
Page 91: Shifting Into Park (P)
To release the parking brake, hold the brake pedal down. Pull the parking brake lever up until you can press the release button. Hold the release button in as you move the brake lever all the way down. Make sure to release the parking brake before driving the vehicle.
Page 92: Leaving Your Vehicle With The Engine Running
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 93: Shifting Out Of Park (P)
Shifting Out of Park (P) Your vehicle has an automatic transaxle shift lock control system. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition is in RUN. If you cannot shift out of PARK (P), ease pressure on the shift lever —...
Page 94: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can not see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different.
Page 95: Mirrors
CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly.
Page 96: Automatic Dimming Rearview Mirror With Onstar , Compass And Temperature Display
Automatic Dimming Rearview Mirror ® with OnStar , Compass and Temperature Display If the vehicle has this feature, an automatic dimming mirror automatically dims to the proper level to minimize glare at night from lights behind your vehicle. For ® more information about OnStar , see OnStar on page 2-32.
Page 97: Compass Variance
Compass Variance Compass variance is the difference between earth’s magnetic north and true geographic north. If not adjusted to account for compass variance, the mirror’s compass could give false readings. The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if you live outside of zone eight.
Page 98: Compass Calibration
Compass Calibration The compass may need calibration if one of the following occurs: • After approximately ﬁve seconds, the display does not show a compass heading (N for North, for example), there may be a strong magnetic ﬁeld interfering with the compass. Such interference may be caused by a magnetic antenna mount, magnetic note pad holder, or a similar magnetic item.
Page 99: Compass Operation
Temperature Display The temperature can be displayed by pressing the TEMP button. Pressing the TEMP button once brieﬂy, will toggle the temperature reading on and off. To alternate the temperature reading between Fahrenheit and Celsius, press and hold the TEMP button for approximately four seconds until the display blinks °F and °C.
Page 100 To adjust for compass variance: 1. Find the current location and variance zone number on the following zone map. 2. Press and hold the COMP button for ﬁve seconds until a zone number appears in the display. 3. Press the COMP button until the new zone number appears in the display.
Page 101: Outside Power Mirrors
Outside Power Mirrors The controls for the power mirrors are located on the instrument panel. To adjust the mirrors do the following: 1. Move the selector switch to the left or right to choose the driver’s or passenger’s mirror. 2. Press the corresponding edges of the round control pad to move each mirror to the desired direction.
Page 102: Onstar System
® OnStar System ® OnStar uses global positioning system (GPS) satellite technology, wireless communications, and call centers to provide you with a wide range of safety, security, information, and convenience services. ® A complete OnStar user’s guide and the terms and ®...
Page 103: Storage Areas
Directions and Connections Plan • All Safe and Sound Plan services • Driving Directions • RideAssist • Information and Convenience Services Luxury and Leisure Plan • All Directions and Connections Plan services • Personal Concierge ® OnStar Personal Calling ® As an OnStar subscriber, the Personal Calling capability is there for you if your hand-held cell phone is...
Page 104: Luggage Carrier
Luggage Carrier CAUTION: If you try to carry something on top of your vehicle that is longer or wider than the luggage carrier — like paneling, plywood, a mattress and so forth — the wind can catch it as you drive along.
Page 105: Rear Compartment Storage Panel/Cover
Don’t exceed the maximum vehicle capacity when loading your vehicle. For more information on vehicle capacity and loading, see Loading Your Vehicle on page 4-33. To prevent damage or loss of cargo as you’re driving, check now and then to make sure the luggage carrier crossrails are locked and cargo is still securely fastened.
Page 106 The panel can be used in this position if you need additional space above the panel. Place the cargo on top of the panel in this position. CAUTION: If you were to carry things on the adjustable panel when it is in the upper (cargo cover) or center positions, during a sudden vehicle movement or a crash, those things could be thrown around in the vehicle.
Page 107: Convenience Net
Make sure to place the table leg securely onto the liftgate lock striker. Notice: Driving with the panel extended into the table position could damage your vehicle. Always have the panel in the stored position while you are driving. Notice: Placing hot items on the surface of the table could damage it.
Page 108 NOTES 2-38...
Page 109: Instrument Panel
Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-5 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Windshield Wipers ...3-8 Windshield Washer ...3-9 Cruise Control ...3-10 Headlamps ...3-12 Headlamps on Reminder ...3-13 Daytime Running Lamps ...3-13...
Page 110 Section 3 Audio System(s) ...3-36 Setting the Time ...3-36 Radio with CD (Base Level) ...3-37 Radio with CD (MP3) ...3-47 Radio with Six-Disc CD ...3-61 Theft-Deterrent Feature ...3-75 Audio Steering Wheel Controls ...3-76 Instrument Panel Radio Reception ...3-77 Care of Your CDs ...3-77 Care of Your CD Player ...3-77 Fixed Mast Antenna ...3-77 XM™...
Page 111 NOTES...
Page 112: Instrument Panel Overview
Instrument Panel Overview...
Page 113: Hazard Warning Flashers
The main components of your instrument panel are the following: A. Power Mirror Control. See Outside Power Mirrors on page 2-31. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 3-22. D.
Page 114: Other Warning Devices
Other Warning Devices If you carry reﬂective triangles, you can set one up at the side of the road about 300 feet (100 m) behind your vehicle. Horn Press near or on the horn symbols on your steering wheel pad to sound the horn. Tilt Wheel Your vehicle has a tilt wheel that allows you to adjust the steering wheel.
Page 115: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane-Change Signals. See Turn and Lane-Change Signals on page 3-7. • Headlamps. See Headlamps on page 3-12. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 3-8.
Page 116: Headlamp High/Low-Beam Changer
Headlamp High/Low-Beam Changer To change the headlamps from low beam to high or high beam to low, pull the turn signal lever all the way towards you. Then release it. When the high beams are on, this light on the instrument panel cluster will also be on.
Page 117: Windshield Washer
Rear Window Wiper/Washer There is a band on the wiper lever to operate the rear wiper/washer. : Put the band in this position to turn off the rear wiper. : Put the band in this position to turn on the rear wiper.
Page 118: Cruise Control
Cruise Control If your vehicle has cruise control, the buttons for the cruise control are located on the steering wheel. (Cruise On/Off): Push this button to turn the system on and off. +RES (Resume/Accelerate): Push the top part of this button to make the vehicle resume a previously set speed or to accelerate when cruise is already active.
Page 119 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 120: Headlamps
Reducing Speed While Using Cruise Control There are two ways to reduce your speed while using cruise control: • Press set button until you reach the lower speed you want, then release it. • To slow down in very small amounts, brieﬂy press the set button.
Page 121: Headlamps On Reminder
(Parking Lamps): Turn the control to this position to turn on the parking lamps together with the following: • Sidemarker Lamps • Taillamps • License Plate Lamps • Instrument Panel Lights (Headlamps): Turning the control to this position turns on the headlamps, together with the previously listed lamps and lights.
Page 122: Automatic Headlamp System
Automatic Headlamp System When it is dark enough outside and the exterior lamps control is in the automatic position, the headlamps will come on automatically. See Headlamps on page 3-12. Your vehicle has a light sensor located on top of the instrument panel.
Page 123: Dome Lamp
Dome Lamp The dome lamp switch has three positions. (Off): The lamp will not come on as long as the switch is in this position. AUTO: The lamp will come on when a door is opened. See Entry Lighting on page 3-15. (On): The lamp will stay on as long as the switch is in this position.
Page 124: Map Lamps
Map Lamps Your vehicle may have lamps located on the headliner above the rearview mirror. Push on the lens in the lamp to turn them on and off. Cargo Lamp The cargo lamp is located over the rear compartment, and is controlled by the dome lamp. See Dome Lamp on page 3-15.
Page 125: Ashtrays And Cigarette Lighter
Certain electrical accessories may not be compatible with the accessory power outlets and could result in blown vehicle or adapter fuses. If you experience a problem, see your dealer for additional information on the accessory power outlet. Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should.
Page 126: Climate Controls
Climate Controls Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. Operation Temperature Control: Turn the left knob clockwise or counterclockwise to increase or decrease the temperature inside your vehicle. 3-18 (Fan): Turn the center knob clockwise or counterclockwise to increase or decrease the fan speed.
Page 127: Rear Window Defogger
(Air Conditioning): Press this button to turn the air-conditioning system on or off. When this button is pressed, an indicator light above the button will come on to let you know the air conditioning is activated. Air-conditioning can be selected in any mode as long as the fan switch is on.
Page 128: Outlet Adjustment
Outlet Adjustment Use the louvers located on the air outlets to change the direction of the airﬂow. Operation Tips • Clear away any ice, snow or leaves from the air inlets at the base of the vehicle that may block the ﬂow of air into your vehicle.
Page 129: Warning Lights, Gages, And Indicators
5. Remove the ﬁlter from the ﬁlter housing by depressing the release tab at the inboard edge of the ﬁlter housing. 6. Remove the ﬁlter from the vehicle. 7. Install a new passenger compartment air ﬁlter. For the type of ﬁlter to use see Normal Maintenance Replacement Parts on page 6-13.
Page 130: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, how much fuel you’re using, and many other things you will need to drive safely and economically. United States version shown, Canada similar 3-22...
Page 131: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your vehicle has a tamper resistant odometer.
Page 132: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will come on for several seconds to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for several seconds, then it will ﬂash for...
Page 133: Battery Warning Light
If the air bag readiness light stays on after you start the vehicle or comes on when you are driving, your air bag system may not work properly. Have your vehicle serviced right away. CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly.
Page 134: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part isn’t working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the brake system warning light comes on, there is a brake problem.
Page 135: Anti-Lock Brake System Warning Light
If the light comes on while you are driving, pull off the road and stop carefully. You may notice that the pedal is harder to push. Or, the pedal may go closer to the ﬂoor. It may take longer to stop. If the light is still on, have the vehicle towed for service.
Page 136: Low Traction Light
Traction Control System (TCS) Warning Light Your vehicle may have a traction control system warning light. The traction control system warning light may come on for the following reasons: • For vehicles equipped with the traction control system and front-wheel drive, this light will come on and stay on if you turn the system off by pressing the traction control button located on the instrument panel above the audio system.
Page 137: Engine Coolant Temperature Warning Light
Engine Coolant Temperature Warning Light The engine coolant temperature warning light will come on when the engine has overheated. If this happens you should pull over and turn off the engine as soon as possible. See Engine Overheating on page 5-24 for more information. Notice: Driving with the engine coolant temperature warning light on could cause your vehicle to overheat.
Page 138: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle is equipped with a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 139: If The Light Is Flashing
If the Light is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed • Avoiding hard accelerations • Avoiding steep uphill grades • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 140: Oil Pressure Light
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or may begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the Check Engine light is on or not working properly.
Page 141: Maintenance Schedule
CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced. Notice: Lack of proper engine oil maintenance may damage the engine.
Page 142: Reduced Engine Power Light
Reduced Engine Power Light This light will come on brieﬂy when you start the engine. This light, along with the service engine soon light will be displayed when a noticeable reduction in the vehicle’s performance may occur. Stop the vehicle and turn off the ignition.
Page 143: Service Vehicle Soon Light
Service Vehicle Soon Light This light will come on if you have problems that may require the vehicle to be taken in for service. If the light comes on, take your vehicle to a GM dealer for service as soon as possible. Fuel Gage When the ignition is on, the fuel gage tells you...
Page 144: Low Fuel Warning Light
Low Fuel Warning Light The light next to the fuel gage will come on brieﬂy when you are starting the engine. This light also comes on when the fuel tank is low on fuel. When you add fuel the light should go off. If it doesn’t have your vehicle serviced.
Page 145: Radio With Cd (Base Level)
Radio with CD (Base Level) Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: •...
Page 146: Playing The Radio
Playing the Radio (Power): Press this button to turn the system on and off. (Volume): Turn this knob to increase or to decrease the volume. AUTO (Automatic Volume): With automatic volume, the audio system adjusts automatically to make up for road and wind noise as you drive. Set the volume at the desired level.
Page 147: Setting Preset Stations
The radio will only seek and scan stations with a strong signal that are in the selected band. 1–6 (Preset Pushbuttons): Press this button to play stations that are programmed on the radio preset pushbuttons. The radio will only seek preset stations with a strong signal that are in the selected band.
Page 148: Rds And Xm
Adjusting the Speakers (Balance/Fade) (Balance/Fade): To adjust the balance between the right and the left speakers, push and release the balance and fade button until BAL appears on the display. Turn the ADJ knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and release the balance and fade button until FADE appears on the display.
Page 149: Rds Messages
BAND (Alternate Frequency): Alternate frequency allows the radio to switch to a stronger station with the same program type. To turn alternate frequency on, press and hold BAND for two seconds. FM ALT FREQ ON and AF will appear on the display. The radio may switch to stations with a stronger frequency.
Page 150: Radio Messages
TRAF (Traffic): If TRAF appears on the display, the tuned station broadcasts traffic announcements and when a traffic announcement comes on the tuned radio station you will hear it. If the station does not broadcast traffic announcements, press the TRAF button and the radio will seek to a station that does.
Page 151 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) Off Air Channel not in service CH Unavl Channel no...
Page 152 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Check XM...
Page 153: Playing A Cd
Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject or DISP knob. If the ignition or radio is turned off with the CD in the player, it will stay in the player.
Page 154 RDM (Random): Press this button to hear the tracks in random, rather than sequential, order. TRACK, TRK#, and RDM will appear on the display. TRACK and the track number will appear on the display when each track starts to play. Press RDM again to turn off random play.
Page 155: Radio With Cd (Mp3)
CD Messages CHECK DISK: If this message appears on the display, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road. When the road becomes smoother, the CD should play.
Page 156 With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming • Receive announcements concerning local and national emergencies • Display messages from radio stations • Seek to stations with traffic announcements This system relies upon receiving speciﬁc information from these stations and will only work when the information is available.
Page 157 Set the volume at the desired level. Press this button to select LOW, MEDIUM, or HIGH. AUTO VOL LOW, AUTO VOL MEDIUM, or AUTO VOL HIGH will appear on the display. Each higher setting will allow for more volume compensation at faster vehicle speeds. Then as you drive, automatic volume increases the volume, as necessary, to overcome noise at any speed.
Page 158 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, AM, or XM1 or XM2.
Page 159 To adjust the fade between the front and the rear speakers, push and release the balance and fade button until FADE appears on the display. Turn the ADJ knob to move the sound toward the front or the rear speakers. To adjust the balance or the fade to the middle position, select BAL or FADE.
Page 160 ALERT! will not be affected by tests of the emergency broadcast system. This feature is not supported by all RDS stations. MSG (Message): If the current station has a message, MSG will appear on the display. Press this button to see the message.
Page 161 Radio Display Message XL (Explicit XL on the radio display, Language Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) Off Air Channel not in service CH Unavl Channel no...
Page 162 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Check XM...
Page 163 Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject or DISP knob. If the ignition or radio is turned off with the CD in the player, it will stay in the player.
Page 164: Using An Mp3 Cd
SEEK : Press the down arrow to go to the start of the current track more than eight seconds have played. If this button is pressed more than once, the player will continue moving backward through the CD. Press the up arrow to go to the start of the next track. If this button is pressed more than once, the player will continue moving forward through the CD.
Page 165 If you wish to play large numbers of ﬁles, folders, playlists or sessions minimize the length of the ﬁle, folder or playlist name. You can also play an MP3 CD that was recorded using no ﬁle folders. The system can support up to 11 folders in depth, though, keep the depth of the folders to a minimum in order to keep down the complexity and confusion in trying to locate a...
Page 166 File System and Naming The song name that will be displayed will be the song name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio will display the ﬁle name without the extension (such as.mp3) as the track name.
Page 167 (Reverse): Press and hold this button to reverse quickly within a track. Press and hold this button for less than two seconds to reverse at 10 times the normal playing speed. Press and hold it for more than two seconds to reverse at 20 times the normal playing speed.
Page 168 DISP (Display): Press this knob to switch between track mode, folder/playlist mode, and time of day mode. The display will show sixteen characters, but there can be two pages of text. If there are more than eight characters in the song, folder, or playlist name, pressing this knob within two seconds will take you to the next page of text.
Page 169: Radio With Six-Disc Cd
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 170 With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming • Receive announcements concerning local and national emergencies • Display messages from radio stations • Seek to stations with traffic announcements This system relies upon receiving speciﬁc information from these stations and will only work when the information is available.
Page 171 Set the volume at the desired level. Press this button to select LOW, MEDIUM, or HIGH. AUTO VOL LOW, AUTO VOL MEDIUM, or AUTO VOL HIGH will appear on the display. Each higher setting will allow for more volume compensation at faster vehicle speeds. Then as you drive, automatic volume increases the volume, as necessary, to overcome noise at any speed.
Page 172 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, AM, or XM1 or XM2.
Page 173 Adjusting the Speakers (Balance/Fade) (Balance/Fade): To adjust the balance between the right and the left speakers, press and release the balance and fade button until BAL appears on the display. Turn the ADJ knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, press and release the balance and fade button until FADE appears on the display.
Page 174 BAND (Alternate Frequency): Alternate frequency allows the radio to switch to a stronger station with the same program type. To turn alternate frequency on, press and hold BAND for two seconds. FM ALT FREQ ON and AF will appear on the display. The radio may switch to stations with a stronger frequency.
Page 175 If the station does not broadcast traffic announcements, press this button and the radio will seek to a station that does. When a station that broadcasts traffic announcements is found, the radio will stop seeking and TRAF and brackets will appear on the display. If no station is found that broadcasts traffic announcements, NO TRAFFIC INFO will appear on the display.
Page 176 Radio Display Message XL (Explicit XL on the radio display, Language Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) Off Air Channel not in service CH Unavl Channel no...
Page 177 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Check XM...
Page 178 Playing a CD If the ignition or radio is turned off, with a CD in the player, it will stay in the player. When the ignition or radio is turned on, the CD will start playing where it stopped, if it was the last selected audio source. When a CD is inserted, the CD symbol will appear on the CD.
Page 179 If more than one CD has been loaded, a number for each CD will be displayed and the currently selected slot number will be underlined. (Eject): To eject a single CD press this button. EJECTING CD # will appear on the display and the single CD symbol will ﬂash.
Page 180 (Fast Forward): Press and hold this button to advance quickly within a track. You will hear sound at a reduced volume. T#, the elapsed time of the track, and FWD will appear on the display. Release this button to play the passage. RPT (Repeat): With repeat, one track or an entire CD can be repeated.
Page 181: Using Song List Mode
DISP (Display): Press this button to switch between time and the elapsed time of the track. To change the default on the display (CD#/Track#/Time, CD#/Track#, or Track#/Elapsed Time), press the button until you see the display you want, then hold the button for two seconds.
Page 182 Seek through the song list by using the SEEK arrows. Seeking past the last saved track will return to the ﬁrst saved track. To delete tracks from the song list, perform the following steps: 1. Turn the CD player on. 2.
Page 183: Theft-Deterrent Feature
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 184: Audio Steering Wheel Controls
Audio Steering Wheel Controls If your vehicle has this feature, some audio controls can be adjusted at the steering wheel. They include the following: SEEK : Press the up or the down arrow to go to the next or to the previous radio station and stay there.
Page 185: Radio Reception
Radio Reception The range for most AM stations is greater than for FM, especially at night. The longer range can cause station frequencies to interfere with each other. Static can occur on AM stations caused by things like storms and power lines. Try reducing the treble to reduce this noise.
Page 186: Xm™ Satellite Radio Antenna System
XM™ Satellite Radio Antenna System The XM™ Satellite Radio antenna is located on the roof of your vehicle. Keep this antenna clear of snow and ice build up for clear radio reception. The performance of the XM system may be affected if the rear roof rack rail is too close to the XM antenna or if objects are stored on the roof rack that will cover or block the XM antenna.
Page 187: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Driver Behavior ...4-2 Driving Environment ...4-2 Vehicle Design ...4-2 Defensive Driving ...4-3 Drunken Driving ...4-3 Control of a Vehicle ...4-6 Braking ...4-7 Anti-Lock Brake System (ABS) ...4-8 Braking in Emergencies ...4-9 Traction Control System (TCS) ...4-10 All-Wheel Drive (AWD) System ...4-11 Steering ...4-12...
Page 188: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Whenever we drive, we are taking on an important responsibility. This is true for any motor vehicle — passenger car, van, truck, sport utility. Driver behavior, the driving environment, and the vehicle’s design all affect how well a vehicle performs. But statistics show that the most important factor, by far, is how we drive.
Page 189: Defensive Driving
But driver behavior factors are far more often the cause of a utility vehicle rollover than are environmental or vehicle factors. Safe driver behavior and understanding the environment in which you will be driving can help avoid a rollover crash in any type of vehicle, including utility vehicles.
Page 190 Police records show that almost half of all motor vehicle-related deaths involve alcohol. In most cases, these deaths are the result of someone who was drinking and driving. In recent years, more than 16,000 annual motor vehicle-related deaths have been associated with the use of alcohol, with more than 300,000 people injured.
Page 191 It is the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml of liquor each) within an hour, the person’s BAC would be close to 0.12 percent. A person who consumes food just before or during drinking will have a somewhat lower BAC level.
Page 192: Control Of A Vehicle
There is something else about drinking and driving that many people do not know. Medical research shows that alcohol in a person’s system can make crash injuries worse, especially injuries to the brain, spinal cord, or heart. This means that when anyone who has been drinking —...
Page 193: Braking
Braking Braking action involves perception time and reaction time. First, you have to decide to push on the brake pedal. That is perception time. Then you have to bring up your foot and do it. That is reaction time. Average reaction time is about 3/4 of a second. But that is only an average.
Page 194: Anti-Lock Brake System (Abs)
Anti-Lock Brake System (ABS) Your vehicle may have anti-lock brakes. ABS is an advanced electronic braking system that will help prevent a braking skid. If your vehicle has anti-lock brakes, this warning light on the instrument panel will come on brieﬂy when you start your vehicle.
Page 195: Braking In Emergencies
The anti-lock system can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. As you brake, your computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
Page 196: Traction Control System (Tcs)
If you do not have anti-lock, use a “squeeze” braking technique. This will give you maximum braking while maintaining steering control. You can do this by pushing on the brake pedal with steadily increasing pressure. In an emergency, you will probably want to squeeze the brakes hard without locking the wheels.
Page 197: All-Wheel Drive (Awd) System
The traction control system can be turned off by pressing the traction control button, located on the instrument panel above the audio system. The traction control system can be activated again by pressing the traction control button. If the system is limiting wheel spin when you press the button, the traction control off light will appear on the instrument panel cluster.
Page 198: Steering
Steering Electric Power Steering If the engine stalls while you are driving, the power steering assist system will continue to operate until you are able to stop your vehicle. If you lose power steering assist because the electric power steering system is not functioning, you can steer, but it will take more effort.
Page 199: Steering In Emergencies
The same thing can happen if you are steering through a sharp curve and you suddenly accelerate. Those two control systems — steering and acceleration — can overwhelm those places where the tires meet the road and make you lose control. See Traction Control System (TCS) on page 4-10.
Page 200: Off-Road Recovery
An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly, and just as quickly straighten the wheel once you have avoided the object.
Page 201: Passing
Passing The driver of a vehicle about to pass another on a two-lane highway waits for just the right moment, accelerates, moves around the vehicle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two-lane highway is a potentially dangerous move, since the passing vehicle occupies the same lane as oncoming traffic for several seconds.
Page 202: Loss Of Control
• Check your mirrors, glance over your shoulder, and start your left lane change signal before moving out of the right lane to pass. When you are far enough ahead of the passed vehicle to see its front in your inside mirror, activate your right lane change signal and move back into the right lane.
Page 203 A cornering skid is best handled by easing your foot off the accelerator pedal. If you have the Traction Control System, remember: It helps avoid only the acceleration skid. If you do not have this system, or if the system is off, then an acceleration skid is also best handled by easing your foot off the accelerator pedal.
Page 204: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. 4-18 Here are some tips on night driving. •...
Page 205: Driving In Rain And On Wet Roads
You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to readjust to the dark. When you are faced with severe glare, as from a driver who does not lower the high beams, or a vehicle with misaimed headlamps, slow down a little.
Page 206 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking.
Page 207: Driving Through Flowing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
Page 208: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-22 Here are ways to increase your safety in city driving: •...
Page 209: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 210: Before Leaving On A Long Trip
When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up. Drive on to the next exit. The exit ramp can be curved, sometimes quite sharply. The exit speed is usually posted.
Page 211: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 212 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all ﬂuid levels and also the brakes, tires, cooling system, and transaxle.
Page 213: Winter Driving
• Stay in your own lane when driving on two-lane roads in hills or mountains. Do not swing wide or cut across the center of the road. Drive at speeds that let you stay in your own lane. • As you go over the top of a hill, be alert. There could be something in your lane, like a stalled car or an accident.
Page 214: Driving On Snow Or Ice
Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles. And, if you will be driving under severe conditions, include a small bag of sand, a piece of old carpet, or a couple of burlap bags to help provide traction.
Page 215 If you have traction control, keep the system on. It will improve your ability to accelerate when driving on a slippery road. But you can turn the traction system off if you ever need to. You should turn the system off if your vehicle ever gets stuck in sand, mud, ice, or snow.
Page 216: If You Are Caught In A Blizzard
If You Are Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: •...
Page 217 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You can not see it or smell it, so you might not know it is in your vehicle.
Page 218: If You Are Stuck: In Sand, Mud, Ice Or Snow
If You Are Stuck: In Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you do not want to spin your wheels too fast. The method known as rocking can help you get out when you are stuck, but you must use caution.
Page 219: Towing
Towing Loading Your Vehicle It is very important to know how much weight your vehicle can carry. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Vehicle Certiﬁcation label. CAUTION: Do not load your vehicle any heavier than the GVWR, or either the maximum front or rear...
Page 220 If your vehicle does not have the Tire and Loading Information label, the Certiﬁcation/Tire label shows the tire size and recommended inﬂation pressures needed to obtain the Gross Vehicle Weight Rating (GVWR) and the Gross Axle Weight Rating (GAWR) for the front and rear axles.
Page 221 Example 1 Item Description Maximum Vehicle Capacity Weight for Example 1 Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs. (317 kg) Example 2 Description Maximum Vehicle Capacity Weight for 1,000 lbs (453 kg)
Page 222 Example 3 Item Description Maximum Vehicle Capacity Weight for Example 3 Subtract Occupant Weight 200 lbs (91 kg) Available Cargo Weight Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s maximum vehicle capacity weight and seating positions. The combined weight of the driver, passengers, and cargo should never exceed your vehicle’s maximum vehicle capacity weight.
Page 223 The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called the Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle.
Page 224: Towing Your Vehicle
Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 7-6. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 225: Towing A Trailer
Dolly Towing If you have a two-wheel-drive vehicle, it can be towed with two of its wheels on the ground. To dolly tow your vehicle, do the following: 1. Put the front wheels on a dolly. 2. Put the vehicle in PARK (P). 3.
Page 226: If You Do Decide To Pull A Trailer
Trailering means changes in handling, acceleration, braking, durability, and fuel economy. Successful, safe trailering takes correct equipment, and it has to be used properly. That is the reason for this section. In it are many time-tested, important trailering tips and safety rules. Many of these are important for your safety and that of your passengers.
Page 227: Weight Of The Trailer Tongue
You can ask your dealer for our trailering information or advice, or you can write us at: Chevrolet Customer Assistance P.O. Box 33170 Detroit, MI 48232-5170 In Canada, write to:...
Page 228: Safety Chains
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You will ﬁnd these numbers on the Certiﬁcation/Tire Label at the rear edge of the driver’s door, or see Loading Your Vehicle on page 4-33. Then be sure you do not go over the GVW limit for your vehicle, including the weight of the trailer tongue.
Page 229: Driving With A Trailer
Driving with a Trailer CAUTION: If you have a rear-most window open and you pull a trailer with your vehicle, carbon monoxide (CO) could come into your vehicle. You can not see or smell CO. It can cause unconsciousness or death. See Engine Exhaust on page 2-24.
Page 230: Turn Signals When Towing A Trailer
Passing You will need more passing distance up ahead when you are towing a trailer. And, because you are a good deal longer, you will need to go much farther beyond the passed vehicle before you can return to your lane. Backing Up Hold the bottom of the steering wheel with one hand.
Page 231: Parking On Hills
Parking on Hills CAUTION: You really should not park your vehicle, with a trailer attached, on a hill. If something goes wrong, your rig could start to move. People can be injured, and both your vehicle and the trailer can be damaged. But if you ever have to park your rig on a hill, do the following: 1.
Page 232 NOTES 4-46...
Page 233: Service And Appearance Care
Section 5 Service ...5-3 Doing Your Own Service Work ...5-3 Adding Equipment to the Outside of Your Vehicle ...5-4 Fuel ...5-4 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling Your Tank ...5-8 Filling a Portable Fuel Container ...5-10 Checking Things Under the Hood ...5-10 Hood Release ...5-10...
Page 234 Section 5 Removing the Flat Tire and Installing the Spare Tire ...5-64 Storing a Flat or Spare Tire and Tools ...5-70 Compact Spare Tire ...5-71 Appearance Care ...5-72 Fabric/Carpet ...5-72 Vinyl ...5-74 Leather ...5-74 Instrument Panel ...5-74 Interior Plastic Components ...5-74 Glass Surfaces ...5-74 Care of Safety Belts ...5-75 Weatherstrips ...5-75...
Page 235: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 236: Adding Equipment To The Outside Of
You should keep a record with all parts receipts and list the mileage and the date of any service work you perform. See Maintenance Record on page 6-15. CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it.
Page 237: Gasoline Octane
Gasoline Octane Use regular unleaded gasoline with a posted octane of 87 or higher. If the octane is less than 87, you may get a heavy knocking noise when you drive. If this occurs, use a gasoline rated at 87 octane or higher as soon as possible.
Page 238: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emission Standards (see the underhood emission control label), it is designed to operate on fuels that meet California speciﬁcations. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 239: Fuels In Foreign Countries
Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in your fuel system and also damage the plastic and rubber parts. That damage would not be covered under your warranty.
Page 240: Filling Your Tank
Filling Your Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 241 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any “hiss”...
Page 242: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 243 2. Then go to the front of the vehicle and lift up on the secondary hood release lever. 3. Lift the hood, release the hood prop from its retainer and put the hood prop into the slot in the hood. Before closing the hood, be sure all the ﬁller caps are on properly.
Page 244: Engine Compartment Overview
Engine Compartment Overview When you open the hood you will see the following: 5-12...
Page 245: Engine Oil
A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-17. B. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page 5-13. C. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 5-13. D.
Page 246: What Kind Of Engine Oil To Use
See Engine Compartment Overview on page 5-12 for the location of the engine oil ﬁll cap. SAE 5W-30 may not appear on all caps. Be sure to add enough oil to put the level somewhere in the proper operating range in the cross-hatched area.
Page 247: Engine Oil Additives
• SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle. However, if it is going to be 0°F (–18°C) or above and SAE 5W-30 is not available, you may use SAE 10W-30. These numbers on an oil container show its viscosity, or thickness.
Page 248: Engine Oil Life System
Engine Oil Life System When to Change Engine Oil Your vehicle has a computer system that lets you know when to change the engine oil and ﬁlter. This is based on engine revolutions and engine temperature, and not on mileage. Based on driving conditions, the mileage at which an oil change will be indicated can vary considerably.
Page 249: Engine Air Cleaner/Filter
What to Do with Used Oil Used engine oil contains certain elements that may be unhealthy for your skin and could even cause cancer. Do not let used oil stay on your skin for very long. Clean your skin and nails with soap and water, or a good hand cleaner.
Page 250 See Scheduled Maintenance on page 6-4 for information on when to replace the engine air cleaner/ﬁlter. CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air, it helps to stop ﬂame if the engine backﬁres.
Page 251 3. Disconnect the crank case ventilation tube. 4. Loosen the screws on the clamps holding the air outlet duct in place. Do not pry the clamps off. 5. Remove the air outlet duct. 5-19...
Page 252 6. Undo the clamps on the ﬁlter cover. To remove the cover, pull up on the front and then pull the cover out. 5-20 7. Inspect or replace the engine air cleaner/ﬁlter. If the air ﬁlter element is dirty, you should replace it.
Page 253: Automatic Transaxle Fluid
Automatic Transaxle Fluid It is not necessary to check the transaxle ﬂuid level. A transaxle ﬂuid leak is the only reason for ﬂuid loss. If a leak occurs, have the vehicle repaired as soon as possible. You may also have your ﬂuid level checked when you have your oil changed.
Page 254: What To Use
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 255: Checking Coolant
Checking Coolant The surge tank is located on the driver’s side of the engine compartment. See Engine Compartment Overview on page 5-12 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 256: Engine Overheating
Adding Coolant If you need more coolant, add the proper DEX-COOL coolant mixture at the surge tank, but only when the engine is cool. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
Page 257: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine An overheat warning can indicate a serious problem. If you get an engine overheat warning, but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: •...
Page 258: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Electric Engine Cooling Fans B. Coolant Surge Tank 5-26 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 259 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine ﬁre, and you could be burned.
Page 260: How To Add Coolant To The Coolant Surge Tank
How to Add Coolant to the Coolant Surge Tank Notice: This vehicle has a speciﬁc coolant ﬁll procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged. If you have not found a problem yet, check to see if coolant is visible in the surge tank.
Page 261 Notice: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. Use the recommended coolant and the proper coolant mixture. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough.
Page 262 3. Fill the coolant surge tank with the proper ® DEX-COOL coolant mixture, to the COLD line. 5-30 4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot.
Page 263: Windshield Washer Fluid
Check the level in the surge tank when the cooling system has cooled down. If the coolant is not at the proper level, repeat Steps 1 through 3 and reinstall the pressure cap. If the coolant is not at the proper level when the system cools down again, see your dealer.
Page 264: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 265: Brake Wear
Brake Wear Your vehicle has front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 266: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts.
Page 267: Jump Starting
Vehicle Storage If you are not going to drive your vehicle for 25 days or more, remove the black, negative (-) cable from the battery. This will help keep your battery from running down. CAUTION: Batteries have acid that can burn you and gas that can explode.
Page 268 Notice: If the other vehicle’s system is not a 12-volt system with a negative ground, both vehicles can be damaged. Only use vehicles with 12-volt systems with negative grounds to jump start your vehicle. 2. Get the vehicles close enough so the jumper cables can reach, but be sure the vehicles are not touching each other.
Page 269 CAUTION: An electric fan can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded.
Page 270 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock. The vehicles could be damaged, too. Before you connect the cables, here are some basic things you should know. Positive (+) will go to positive (+) or to a remote positive (+) terminal if the vehicle has one.
Page 271: All-Wheel Drive
Notice: If the jumper cables are removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 272: Rear Drive Module
How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, you’ll need to add some lubricant. Add enough lubricant to raise the level to the bottom of the ﬁller plug hole. What to Use Refer to the Maintenance Schedule to determine what kind of lubricant to use.
Page 273: Bulb Replacement
To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, you’ll need to add some lubricant. Add enough lubricant to raise the level to the bottom of the ﬁller plug hole. A ﬂuid loss could indicate a problem;...
Page 274: Headlamps, Front Turn Signal
Headlamps, Front Turn Signal, Sidemarker, and Parking Lamps 1. Open the hood. 2. Remove the fastener plugs that hold down the radiator cover/front grill. 5-42 3. The front grill bar is attached to the headlamp lens with a hidden clip. Gently pull the radiator cover/front grill toward you and pull the...
Page 275 5. Gently pull the radiator cover/front grill toward you and pull the headlamp assembly up and out from the vehicle. A. Parking Lamp C. Low/High-Beam B. Sidemarker Lamp Headlamp D. Turn Signal Lamp 6. When replacing the low/high-beam bulb, press the clip (A) on the electrical connector and pull it straight off.
Page 276: Center High-Mounted
Center High-Mounted Stoplamp (CHMSL) If your vehicle has this component and it needs replacement, it is recommended that it be replaced as a unit by your dealer. Taillamps, Turn Signal, Stoplamps and Back-up Lamps A. Turn Signal Lamp/Taillamp B. Stoplamp/Taillamp C.
Page 277: Replacement Bulbs
3. Carefully slide the taillamp housing outward to clear the stud (see arrow) and then rearward and away from the body of the vehicle. 4. Turn the affected bulb socket counterclockwise to disconnect it from the taillamp housing. 5. Pull the bulb out of the bulb socket. 6.
Page 278 3. Pull the windshield wiper arm away from the windshield. 4. Pull up the release clip, located at the connecting point of the blade and the arm. Then, pull the blade assembly down toward the glass to remove it from the wiper arm. 5-46 5.
Page 279: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner’s Manual.
Page 280: Tire Sidewall Labelling
Tire Sidewall Labelling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger Vehicle Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 281 (G) Maximum Cold Inﬂation Load Limit: Maximum load that can be carried and the maximum pressure needed to support that load. For information on recommended tire pressure see Inﬂation - Tire Pressure on page 5-53 and Loading Your Vehicle on page 4-33. Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately...
Page 282: Tire Size
(F) Tire Size: A combination of letters and numbers deﬁne a tire’s width, height, aspect ratio, construction type and service description. The letter T as the ﬁrst character in the tire size means the tire is for temporary use only. (G)TPC Spec (Tire Performance Criteria Speciﬁcation): Original equipment tires designed to GM’s speciﬁc tire performance criteria have a TPC...
Page 283: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure: The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight: This means the combined weight of optional accessories.
Page 284 Load Index: An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire. Maximum Inﬂation Pressure: The maximum air pressure to which a cold tire may be inﬂated. The maximum air pressure is molded onto the sidewall. Maximum Load Rating: The load rating for a tire at the maximum permissible inﬂation pressure for that tire.
Page 285: Inﬂation - Tire Pressure
UTQGS (Uniform Tire Quality Grading Standards): A tire information system that provides consumers with ratings for a tire’s traction, temperature, and treadwear. Ratings are determined by tire manufacturers using government testing procedures. The ratings are molded into the sidewall of the tire. See Uniform Tire Quality Grading on page 5-57.
Page 286: Tire Inspection And Rotation
When to Check Check your tires once a month or more. Don’t forget your compact spare tire. It should be at 60 psi (420 kPa). How to Check Use a good quality pocket-type gage to check tire pressure. You can’t tell if your tires are properly inﬂated simply by looking at them.
Page 287: When It Is Time For New Tires
Do not include the compact spare tire in your tire rotation. After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the Tire and Loading Information label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque”...
Page 288: Buying New Tires
Buying New Tires To ﬁnd out what kind and size of tires you need, look at the Tire and Loading Information label. For information about this label and where to ﬁnd it, see Loading Your Vehicle on page 4-33. The tires installed on your vehicle when it was new had a Tire Performance Criteria Speciﬁcation (TPC Spec) number on each tire’s sidewall.
Page 289: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 290: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 291: Used Replacement Wheels
If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle. CAUTION: Using the wrong replacement wheels, wheel bolts or wheel nuts on your vehicle can be...
Page 292: Tire Chains
Tire Chains CAUTION: If your vehicle has P235/65R16 or P235/60R17 size tires, don’t use tire chains, there’s not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension or other vehicle parts.
Page 293: If A Tire Goes Flat
If a Tire Goes Flat It’s unusual for a tire to “blowout” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag that pulls the vehicle toward that side.
Page 294: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 295: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The spare tire is located under the load ﬂoor in the rear cargo area. You may need to remove the rear compartment storage panel/cover and/or the table to access the load ﬂoor. See Rear Compartment Storage Panel/Cover on page 2-35 and Table on page 2-36.
Page 296: Removing The Flat Tire And Installing The Spare Tire
4. The jack and wheel wrench are located on the driver’s side of the rear cargo area behind the access door. Pull out the access door to reach them. 5. Remove the wing-bolt on the jack, and remove the jack. 6.
Page 297 4. The jack has a bolt head at the end. Attach the wheel wrench to the jack bolt head and rotate the wheel wrench clockwise (to the right). That will raise the lift head a little. 5. Move the jack over to where the ﬂat tire is. Notice: Make sure that the jack lift head is in the correct position or you may damage your vehicle.
Page 298 With the jack head positioned correctly on the metal jacking ﬂange, the setup should look like this from underneath. 5-66 Do not lift the vehicle using the plastic lower body panel. 7. Put the compact spare tire near you. CAUTION: Getting under a vehicle when it is jacked up is dangerous.
Page 299 CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to ﬁt the jack lift head into the proper location before raising the vehicle.
Page 300 CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from the places where the wheel attaches to the vehicle.
Page 301 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 302: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. 1.
Page 303: Compact Spare Tire
4. Screw the threaded wheel stow rod onto the spare tire bracket. The ﬁnal position of the wheel stow rod must be rotated to the farthest forward position. 5. Place the ﬂat, or damaged tire, face down, on the load ﬂoor with the threaded wheel stow rod sticking up through the center hole of the wheel.
Page 304: Appearance Care
Appearance Care Cleaning products can be hazardous. Some are toxic. Other cleaning products can burst into ﬂames if a match is struck near them or if they get on a hot part of the vehicle. Some are dangerous if their fumes are inhaled in a closed space.
Page 305: Special Fabric Cleaning Problems
Here are some cleaning tips: • Always read the instructions on the cleaner label. • Clean up stains as soon as possible — before they set. • Carefully scrape off any excess stain. • Use a clean cloth or sponge, and change to a clean area often.
Page 306: Vinyl
Vinyl Use warm water and a clean cloth. • Rub with a clean, damp cloth to remove dirt. This may have to be done more than once. • Things like tar, asphalt, and shoe polish will stain if they are not removed quickly. Use a clean cloth and vinyl cleaner.
Page 307: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 308: Finish Care
Finish Care Occasional waxing or mild polishing of the vehicle by hand may be necessary to remove residue from the paint ﬁnish. GM-approved cleaning products can be obtained from your dealer. See Vehicle Care/Appearance Materials on page 5-78. The vehicle has a “basecoat/clearcoat” paint ﬁnish. The clearcoat gives more depth and gloss to the colored basecoat.
Page 309: Aluminum Wheels
Aluminum Wheels Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied. The surface of these wheels is similar to the painted surface of the vehicle.
Page 310: Chemical Paint Spotting
At least every spring, ﬂush these materials from the underbody with plain water. Clean any areas where mud and debris can collect. Dirt packed in close areas of the frame should be loosened before being ﬂushed. Your dealer or an underbody car washing system can do this for you.
Page 311: Vehicle Identiﬁcation
Description Removes swirl marks, ﬁne Swirl Remover Polish scratches, and other light surface contamination. Removes light scratches Cleaner Wax and protects ﬁnish. Cleans, shines, and Foaming Tire Shine protects in one step. No Low Gloss wiping necessary. Medium foaming shampoo. Cleans and Wash Wax Concentrate lightly waxes.
Page 312: Service Parts Identiﬁcation Label
Service Parts Identiﬁcation Label You will ﬁnd this label on your spare tire cover. It is very helpful if you ever need to order parts. On this label, you will ﬁnd the following: • • Model designation • Paint information •...
Page 313: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located on the passenger’s side of the instrument panel. Fuses LOCK/MIRROR Door Lock, Power Mirror CRUISE Cruise Control System Electric Power Steering IGN 1 Ignition System PARK LAMP Park Lamps HTD SEATS Heated Seats Fuses...
Page 314: Engine Compartment Fuse Block
Engine Compartment Fuse Block The engine compartment fuse block is located on the driver’s side of the engine compartment. Fuses HTD SEATS Heated Seats PREM. AUD. Premium Audio System SUNROOF Sunroof CB POWER Power Seats SEATS 5-82 HTD SEATS ABS PWR PWR WDW RR WIPER FRT WIPER...
Page 315 Fuses Usage HTD SEATS Heated Seats FUEL PUMP Fuel Pump A/C DIODE Diode Accessory Power Outlet 2, AUX 2/CARGO Cargo Outlet BRAKE Brake System BACKUP Back-Up Lamps Anti-Lock Brake System RR DEFOG Rear Window Defogger START Ignition Anti-Lock Brake System FOG LP Fog Lamps COOL FAN LO Cooling Fan Low...
Page 316: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant R134a Cooling System Engine Oil with Filter Fuel Tank Transaxle Fluid Wheel Nut Torque All capacities are approximate.
Page 317 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using Your Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-8 At Least Once a Month ...6-9 At Least Once a Year ...6-9 Recommended Fluids and Lubricants ...6-12...
Page 318: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts and recommended ﬂuids and...
Page 319 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the tire and loading information label. See Loading Your Vehicle on page 4-33. • are driven on reasonable road surfaces within legal driving limits.
Page 320: Scheduled Maintenance
Scheduled Maintenance When the change engine oil message comes on, it means that service is required for your vehicle. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 321 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 5-13. Reset oil life system. See Engine Oil Life System on page 5-16. An Emission Control Service. Visually check for any leaks or damage. See footnote (k). Inspect engine air cleaner ﬁlter.
Page 322: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 323: Maintenance Footnotes
Maintenance Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life. We, however, urge that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded.
Page 324: Owner Checks And Services
(h) Change automatic transaxle ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: − In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher. − In hilly or mountainous terrain. −...
Page 325: At Least Once A Month
Engine Coolant Level Check Check the engine coolant level and add ® DEX-COOL coolant mixture if necessary. See Engine Coolant on page 5-21 for further details. Windshield Washer Fluid Level Check Check the windshield washer ﬂuid level in the windshield washer tank and add the proper ﬂuid if necessary.
Page 326 Automatic Transaxle Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface.
Page 327 Parking Brake and Automatic Transaxle Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 328: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines starburst symbol.
Page 329: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. Part Engine Air Cleaner/Filter Engine Oil Filter Fuel Filter Passenger Compartment Air Filter Element Spark Plugs Windshield Wiper Blades Driver’s Side – 24 inches (60.0 cm) Passenger’s Side –...
Page 330: Engine Drive Belt Routing
Engine Drive Belt Routing 6-14...
Page 331: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2 in this section. Any additional information from Owner Checks and Services on page 6-8 can be added on the following record pages.
Page 332 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
Page 333: Customer Assistance And Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Program for Persons with Disabilities ...7-5 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Customer Assistance and Information...
Page 334: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Chevrolet. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 335: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 336: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Chevrolet encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Chevrolet, the letter should be addressed to Chevrolet’s Customer Assistance Center. United States – Customer Assistance Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 337: Gm Mobility Program For Persons With Disabilities
Canada – Customer Assistance General Motors of Canada Limited Customer Communication Centre, 163-005 1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7 1-800-263-3777 (English) 1-800-263-7854 (French) 1-800-263-3830 (For Text Telephone devices (TTYs)) Roadside Assistance: 1-800-268-6800 Overseas – Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S.
Page 338: Roadside Assistance Program
Roadside Assistance Program 1-800-CHEV-USA (243-8872) As the proud owner of a new Chevrolet vehicle, you are automatically enrolled in the Chevrolet Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road. Chevrolet’s Roadside...
Page 339: Courtesy Transportation
Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty. Chevrolet reserves the right to make any changes or discontinue the Roadside Assistance program at any time without notiﬁcation.
Page 340: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, Chevrolet helps minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following:...
Page 341: Vehicle Data Collection And Event Data Recorders
Additional Program Information Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but it is not part of the New Vehicle Limited Warranty. A separate booklet entitled “Warranty and Owner Assistance Information” furnished with each new vehicle provides detailed warranty coverage information. Courtesy Transportation is available only at participating dealers and all program options, such as shuttle service, may not be available at every dealer.
Page 342: Reporting Safety Defects
To read this information, special equipment is needed and access to the vehicle or the SDM is required. GM will not access information about a crash event or share it with others other than • with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, •...
Page 343: Reporting Safety Defects To The Canadian Government
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-222-1020, or write: Chevrolet Motor Division Chevrolet Customer Assistance Center P.O. Box 33170 Detroit, MI 48232-5170 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 344: Service Bulletins
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 345 About Driving Your Vehicle ... ii Accessory Power Outlets ... 3-16 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-80 Air Cleaner/Filter, Engine ... 5-17 Air Conditioning ... 3-18 Airbag Readiness Light ... 3-24 Airbag Sensing and Diagnostic Module (SDM) ... 7-9 Airbag System ...
Page 346 Automatic Headlamp System ... 3-14 Automatic Transaxle Fluid ... 5-21 Operation ... 2-18 Battery ... 5-34 Run-Down Protection ... 3-16 Battery Warning Light ... 3-25 Before Leaving on a Long Trip ... 4-24 Brake Anti-Lock Brake System (ABS) ... 4-8 Emergencies ...
Page 347 Child Restraints (cont.) Top Strap Anchor Location ... 1-43 Where to Put the Restraint ... 1-40 Chime Level Adjustment ... 3-78 Cigarette Lighter ... 3-17 Cleaning Aluminum Wheels ... 5-77 Exterior Lamps/Lenses ... 5-75 Fabric/Carpet ... 5-72 Finish Care ... 5-76 Glass Surfaces ...
Page 348 Door Locks ... 2-6 Power Door Locks ... 2-7 Programmable Automatic Door Locks ... 2-7 Rear Door Security Locks ... 2-8 Driver Position, Safety Belt ... 1-16 Seat Height Adjuster ... 1-2 Driver Behavior ... 4-2 Driving At Night ... 4-18 City ...
Page 349 Flat Tire, Changing ... 5-62 Flat Tire, Storing ... 5-70 Fluid Automatic Transaxle ... 5-21 Windshield Washer ... 5-31 Fog Lamps ... 3-14 Folding Rear Seat ... 1-9 Folding Seatback, Passenger ... 1-7 Fuel ... 5-4 Additives ... 5-6 California Fuel ... 5-6 Filling a Portable Fuel Container ...
Page 350 Hood Release ... 5-10 Horn ... 3-6 How to Use This Manual ... ii How to Wear Safety Belts Properly ... 1-16 If You Are Stuck in Sand, Mud, Ice or Snow ... 4-32 Ignition Positions ... 2-14 Infants and Young Children, Restraints ... 1-34 Inﬂation -- Tire Pressure ...
Page 351 Light (cont.) Oil Pressure ... 3-32 Reduced Engine Power ... 3-34 Safety Belt Reminder ... 3-24 Security ... 3-33 Service Vehicle Soon ... 3-35 TCS Warning Light ... 3-28 Traction Control System (TCS) Warning ... 3-28 Lighting Entry ... 3-15 Theater Dimming ...
Page 352 Mirrors (cont.) Outside Convex Mirrors ... 2-31 Outside Power Mirrors ... 2-31 MyGMLink.com ... 7-3 New Vehicle Break-In ... 2-14 Normal Maintenance Replacement Parts ... 6-13 Odometer ... 3-23 Odometer, Trip ... 3-23 Off-Road Recovery ... 4-14 Change Engine Oil Light ... 3-33 Engine ...
Page 353 Questions and Answers About Safety Belts ... 1-15 Radios ... 3-36 Care of Your CD Player ... 3-77 Care of Your CDs ... 3-77 Radio with CD ... 3-37, 3-47 Radio with Six-Disc CD ... 3-61 Setting the Time ... 3-36 Theft-Deterrent ...
Page 354 Safety Belts (cont.) How to Wear Safety Belts Properly ... 1-16 Questions and Answers About Safety Belts ... 1-15 Rear Safety Belt Comfort Guides for Children and Small Adults ... 1-28 Rear Seat Passengers ... 1-24 Right Front Passenger Position ... 1-24 Safety Belt Extender ...
Page 355 Storage Areas (cont.) Luggage Carrier ... 2-34 Rear Compartment Storage Panel/Cover ... 2-35 Stuck in Sand, Mud, Ice or Snow ... 4-32 Sun Visors ... 2-11 Sunroof ... 2-37 Tachometer ... 3-23 Taillamps Turn Signal, Stoplamps and Back-up Lamps ... 5-44 TCS Warning Light ...
Page 356 Understanding Radio Reception ... 3-77 Uniform Tire Quality Grading ... 5-57 Vehicle Control ... 4-6 Damage Warnings ... iv Design ... 4-2 Loading ... 4-33 Service Soon Light ... 3-35 Symbols ... iv Vehicle Data Collection and Event Data Recorders ... 7-9 Vehicle Identiﬁcation Number (VIN) ...

Chevrolet 2005 Equinox Owner's Manual

Section 1 Seats and Restraint Systems

Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Child Restraints

Air Bag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

All-Wheel Drive

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Chevrolet 2005 Equinox

Summary of Contents for Chevrolet 2005 Equinox
