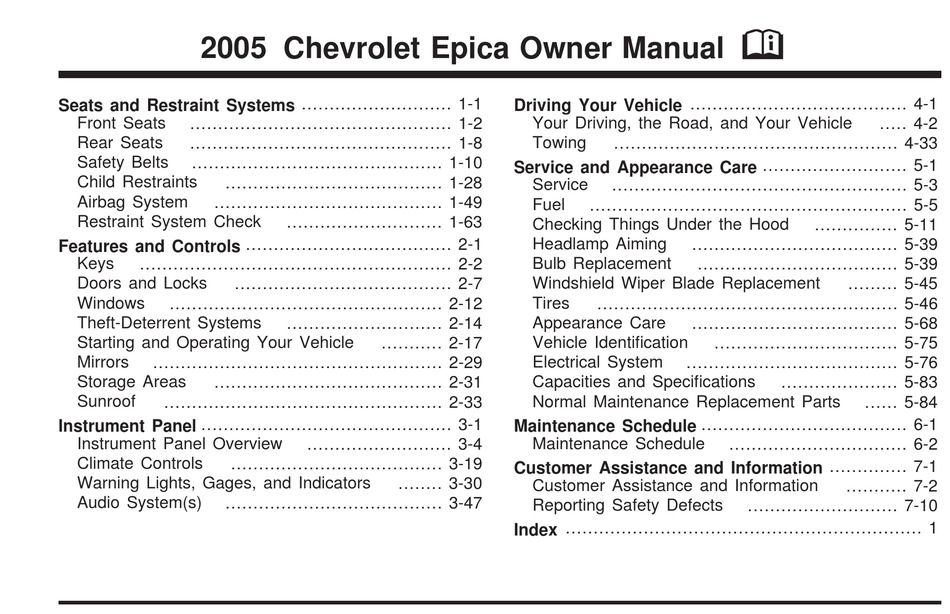

2005 Chevrolet Epica Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-2

Rear Seats

............................................... 1-8

Safety Belts

............................................. 1-10

Child Restraints

....................................... 1-28

Airbag System

......................................... 1-49

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-2

Doors and Locks

....................................... 2-7

Windows

................................................. 2-12

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-29

Storage Areas

......................................... 2-31

Sunroof

.................................................. 2-33

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-19

Warning Lights, Gages, and Indicators

Audio System(s)

....................................... 3-47

............................ 1-63

............................ 2-14

........... 2-17

.......................... 3-4

........ 3-30

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-33

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-5

Checking Things Under the Hood

Headlamp Aiming

..................................... 5-39

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-46

Appearance Care

..................................... 5-68

Vehicle Identiﬁcation

Electrical System

...................................... 5-76

Capacities and Speciﬁcations

Normal Maintenance Replacement Parts

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance and Information .............. 7-1

Customer Assistance and Information

Reporting Safety Defects

Index ................................................................ 1

M

............... 5-11

.................................... 5-39

......... 5-45

................................. 5-75

..................... 5-83

...... 5-84

................................ 6-2

........... 7-2

........................... 7-10

..... 4-2
