- Page 1 INSTRUCTION MANUAL Competition steeplechase barrier for water jump PP14-366 File: 2018-06-04 PRODUCT SUPPORT Pawel Ciechanowski p.ciechanowski@polanik.com...

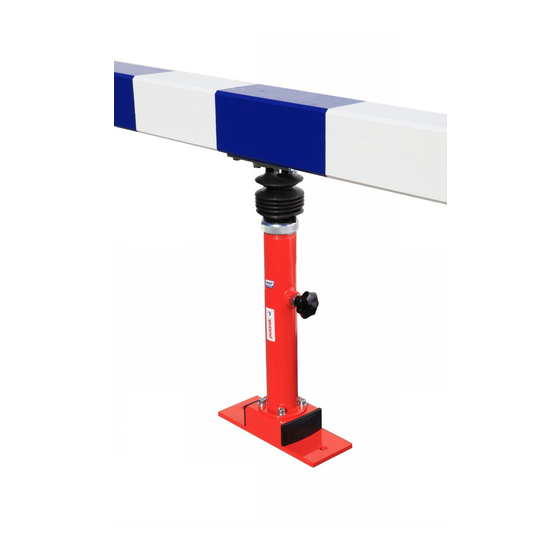

- Page 2 I. General description and use PP14-366 is a high quality competition barrier, which is designed for water jump in steeplechase race. It is fastened to the edge of the water jump. The barrier requires concrete foundations. The telescopes, which are protected with special rubber aprons, guarantee a long product life and an easy operation.
- Page 3 4) clean the wholes (e. g. with vacuum cleaner) 5) position the barrier on the edge of the water pit, 6) put the anchors into the wholes, 7) screw down the nuts with approximate force 50 Nm. Instruction manual PP14-366...
- Page 4 – optional concrete infill for existing water jumps k – drain e – fixed hurdle [mm] f – height for Women g – height for Men h – max depth Drawing no. 1 Instruction manual PP14-366...
- Page 5 UV protection agents should be regularly applied on them. During idle periods the barrier must be stored in a roofed dry place. After every athletics season the barrier must be cleaned from sand (mud, dust and etc). Instruction manual PP14-366...
- Page 6 1 barrier length Package’s dimensions [cm] width height Volume [ m 0,21 Gross weight [kg] VI. Product images PP14-366 © 2018 Polanik The producer reserves the right to introduce without warning changes in product constructions and colours. Instruction manual PP14-366...
- Page 7 VII. IAAF Certificate Instruction manual PP14-366...
