OPERATOR'S MANUAL
Automated External Defibrillator
EU representative
OBELIS S.A
Bd. Général Wahis, 53, 1030 Brussels, Belgium
Manufacturer
Mediana Co., Ltd.
132, Donghwagongdan-ro,
Munmak-eup, Wonju-si, Gangwon-do, Korea
Tel: (82) 2 542 3375 (82) 33 742 5400
Fax: (82) 2 542 7447 (82) 33 742 5483
Revised Date: 2020-01
Part Number-Revision: A7659-0
Copyright © 2020 All rights reserved.
MEDIANA
HEARTON
AED A16

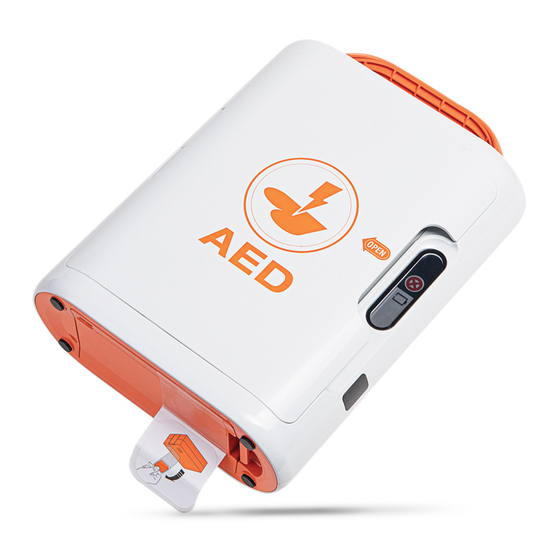

Automated External Defibrillator
HeartOn A16
OPERATORS
MANUAL
