Lenovo ThinkPad E580 User Manual page 107

Attention: The hard disk drive is sensitive. Inappropriate handling might cause damage and permanent loss
of data.
When handling the hard disk drive, observe the following guidelines:
• Replace the hard disk drive only for upgrade or repair. The hard disk drive is not designed for frequent
changes or replacement.
• Before replacing the hard disk drive, make a backup copy of all the data that you want to keep.
• Do not touch the contact edge of the hard disk drive. Otherwise the hard disk drive might get damaged.
• Do not apply pressure to the hard disk drive.
• Do not make the hard disk drive subject to physical shocks or vibration. Put the hard disk drive on a soft
material, such as cloth, to absorb physical shocks.

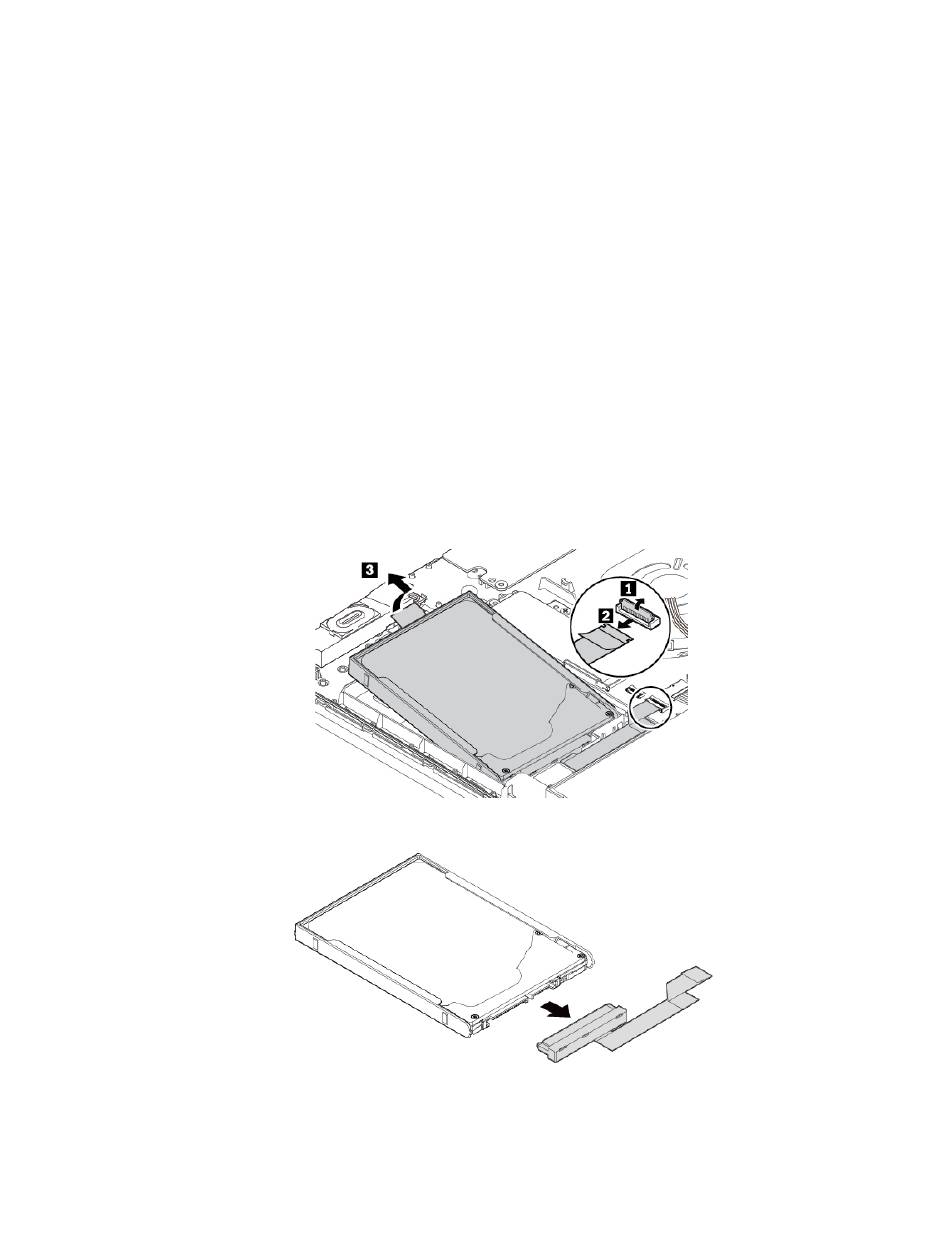

Removing the hard disk drive
1. Disable the built-in battery. See "Disabling the built-in battery" on page 78.
2. Ensure that the computer is turned off and disconnected from ac power and all cables.
3. Close the computer display and turn the computer over.
4. Remove the base cover assembly. See "Replacing the base cover assembly" on page 86.
5. Disconnect the hard-disk-drive cable from the system board. Lift the tab and remove the hard disk drive
together with its bracket.
6. Detach the cable from the hard disk drive.
7. Detach the bracket from the hard disk drive.
.
Chapter 9 Replacing devices
89
