E580 and E585 User Guide

Advertisement

Table of Contents
loading

Related Manuals for Lenovo ThinkPad E580

Summary of Contents for Lenovo ThinkPad E580

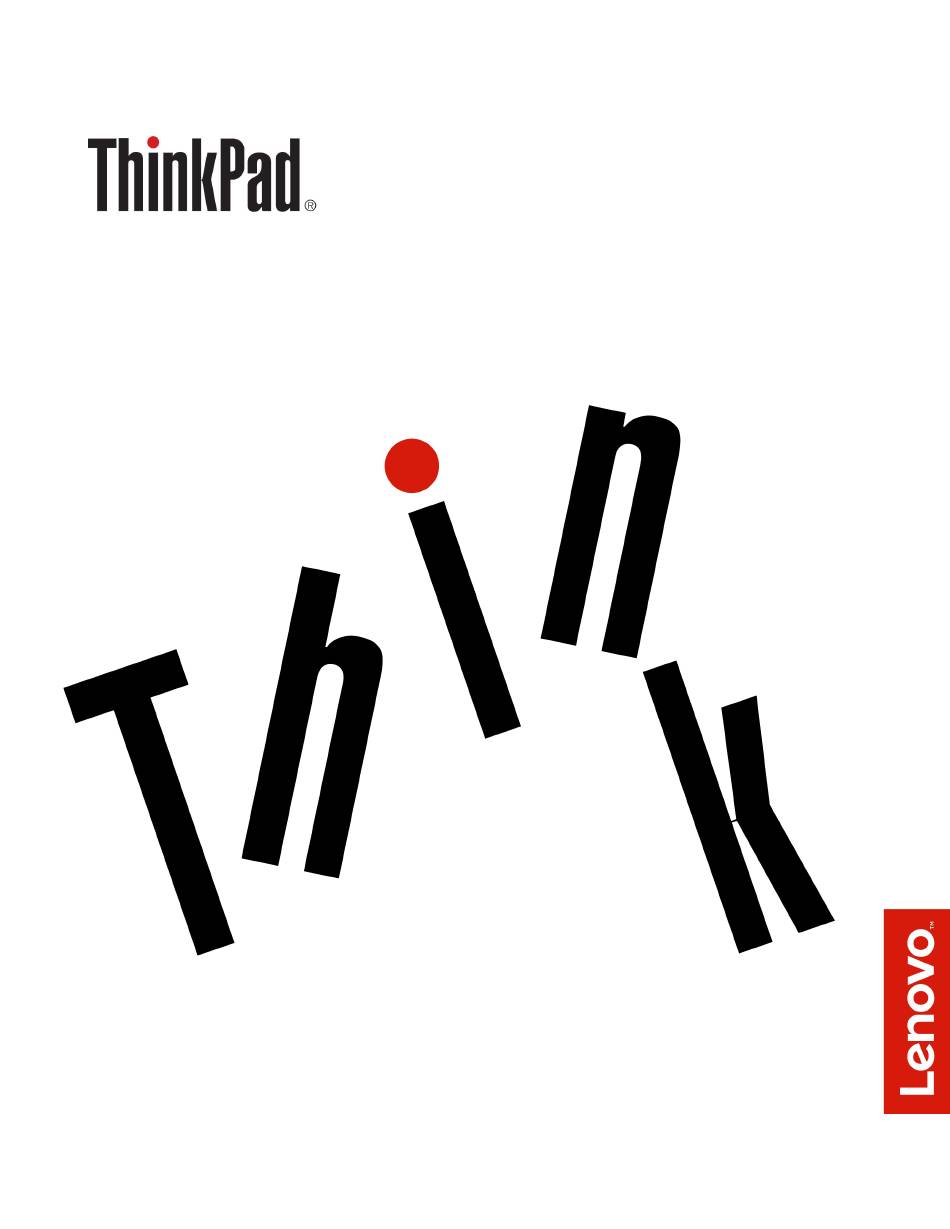

  • Page 1 E580 and E585 User Guide...
  • Page 2 Second Edition (April 2018) © Copyright Lenovo 2017, 2018. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-...

  • Page 3: Table Of Contents

    Hard disk security ....Lenovo programs ....Setting the security chip ...
  • Page 4 Diagnosing problems ... . Calling Lenovo ... . . 100 Troubleshooting ....
  • Page 5 Appendix E. Notices ..119 Appendix C. Restriction of Appendix F. Trademarks ..121 Hazardous Substances (RoHS) Directive of countries and regions ..113 © Copyright Lenovo 2017, 2018...
  • Page 6 E580 and E585 User Guide...

  • Page 7: Important Safety Information

    • Avoid keeping your hands, your lap, or any other part of your body in contact with a hot section of the computer for any extended time. • Periodically take hands from using the keyboard by lifting your hands from the palm rest. © Copyright Lenovo 2017, 2018...
  • Page 8 Protect yourself from the heat generated by the ac power adapter. When the ac power adapter is connected to an electrical outlet and your computer, it generates heat. Extended contact with your body, even through clothing, may cause a skin burn.

  • Page 9: Conditions That Require Immediate Action

    In the unlikely event that you notice any of the following conditions, or if you have any safety concerns with your product, stop using the product and unplug it from the power source and telecommunication lines until you can speak to the Customer Support Center for further guidance. © Copyright Lenovo 2017, 2018...

  • Page 10: Service And Upgrades

    Replacement parts approved for customer installation are referred to as Customer Replaceable Units, or CRUs. Lenovo provides documentation with instructions when it is appropriate for customers to install options or replace CRUs. You must closely follow all instructions when installing or replacing parts.

  • Page 11: Power Cords And Power Adapters

    Never overload these devices. If power strips are used, the load should not exceed the power strip input rating. Consult an electrician for more information if you have questions about power loads, power requirements, and input ratings. © Copyright Lenovo 2017, 2018...

  • Page 12: Plugs And Outlets

    Plugs and outlets DANGER If a receptacle (power outlet) that you intend to use with your computer equipment appears to be damaged or corroded, do not use the outlet until it is replaced by a qualified electrician. Do not bend or modify the plug. If the plug is damaged, contact the manufacturer to obtain a replacement.

  • Page 13: External Devices

    Batteries supplied by Lenovo for use with your product have been tested for compatibility and should only be replaced with approved parts. A battery other than the one specified by Lenovo, or a disassembled or modified battery is not covered by the warranty.

  • Page 14: Notice For Non-Rechargeable Coin-Cell Battery

    Do not attempt to replace the non-rechargeable coin-cell battery. Replacement of the battery must be done by a Lenovo-authorized repair facility or technician. The Lenovo-authorized repair facilities or technicians recycle Lenovo batteries according to local laws and regulations. The following statement applies to users in the state of California, U.S.A.

  • Page 15: Heat And Product Ventilation

    • Do not restrict or block any ventilation openings. • Do not operate your computer inside furniture, as this might increase the risk of overheating. • Airflow temperatures into the computer should not exceed 35°C (95°F). xiii © Copyright Lenovo 2017, 2018...

  • Page 16: Electrical Current Safety Information

    Electrical current safety information DANGER Electric current from power, telephone, and communication cables is hazardous. To avoid a shock hazard: • Do not use your computer during a lightning storm. • Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this product during an electrical storm.

  • Page 17: Liquid Crystal Display (Lcd) Notice

    2 can be dangerous due to excessive sound pressure levels. If your Lenovo computer came with headphones or earphones in the package, as a set, the combination of the headphones or earphones and the computer already complies with the specifications of EN 50332-1. If different headphones or earphones are used, ensure that they comply with EN 50332-1 (Clause 6.5...

  • Page 18: Glass Parts Notice

    Glass parts notice CAUTION: Some parts of your product may be made of glass. This glass could break if the product is dropped on a hard surface or receives a substantial impact. If glass breaks, do not touch or attempt to remove it. Stop using your product until the glass is replaced by trained service personnel.

  • Page 19: Chapter 1. Product Overview

    Power button You can press the power button to turn on the computer or put the computer into sleep mode. To turn off the computer, open the Start menu, click Power, and then click Shut down. © Copyright Lenovo 2017, 2018...

  • Page 20: Left-Side View

    ThinkPad pointing device TrackPoint pointing stick TrackPoint buttons Trackpad Your computer is equipped with the Lenovo-unique ThinkPad pointing device. For more information, see “ThinkPad pointing device overview” on page 16. Left-side view HDMI™ connector USB-C™ connector Always On USB 3.1 connector Gen 1 USB 3.1 connector Gen 1...
  • Page 21 To charge these devices when the computer is off or in hibernation mode, and the computer is not connected to ac power, do the following: 1. Start the Lenovo Vantage program. See “Accessing Lenovo programs” on page 11. 2. Click Hardware Settings ➙ Power.

  • Page 22: Right-Side View

    Note: You are responsible for evaluating, selecting, and implementing the locking device and security feature. Lenovo makes no comments, judgments, or warranties about the function, quality, or performance of the locking device and security feature. Cable locks for your product are available from Lenovo at https:// www.lenovoquickpick.com/...

  • Page 23: Bottom View

    Bottom view Fan louvers Speakers Fan louvers The fan louvers and internal fan enable air to circulate in the computer to ensure proper cooling, especially the cooling of the microprocessor. Note: To ensure proper airflow, do not place any obstacles in front of the fan louvers. Speakers Your computer is equipped with a pair of stereo speakers.
  • Page 24 Caps Lock indicator When this indicator is on, you can type uppercase letters by directly pressing the letter keys. Fn Lock indicator This indicator shows the status of Fn Lock function. For more information, see “Using the special keys” on page 14.

  • Page 25: Important Product Information

    • FCC ID and IC Certification information • Windows operating systems information Machine type and model label When you contact Lenovo for help, the machine type and model information helps the technicians to identify your computer and provide faster service. Chapter 1...

  • Page 26: Fcc Id And Ic Certification Number

    Lenovo. Note: Do not remove or replace a factory-preinstalled wireless module by yourself. For replacement, you must contact Lenovo service first. Lenovo is not responsible for any damage caused by unauthorized replacement. E580 and E585 User Guide...

  • Page 27: Labels For The Windows Operating Systems

    Labels for the Windows operating systems ® ® Windows 10 Genuine Microsoft label: Your computer might have a Genuine Microsoft label affixed to its cover depending on the following factors: • Your geographic location • Date when your computer was manufactured •...

  • Page 28: Computer Specifications

    ® • AMD hybrid graphics or discrete graphic Keyboard • Six-row keyboard (conventional or backlight) • Function keys • Numeric keypad • ThinkPad pointing device (including the TrackPoint pointing device and trackpad) Connectors and slots • USB-C connector • Audio connector •...

  • Page 29: Operating Environment

    2. If you do not find the program in the program list, search for the program in the search box. An introduction to Lenovo programs This topic provides a brief introduction to Lenovo programs. Depending on your computer model, some of the programs might not be available.
  • Page 30 • Configure hardware settings. • Create and manage your Lenovo ID. This app is filled with exclusive Lenovo content to help you learn more about what you can do with your Lenovo computer. E580 and E585 User Guide...

  • Page 31: Chapter 2. Using Your Computer

    This chapter provides information to help you use the various features provided by your computer. Registering your computer When you register your computer, information is entered into a database, which enables Lenovo to contact you if there is a recall or other severe problem. In addition, some locations offer extended privileges and services to registered users.

  • Page 32: Getting Help About The Windows Operating System

    How do I attach an external display? • Refer to “Using an external display” on page 26. • With the Extend desktop function, you can display output on both the computer display and an external display. How do I attach or replace a device? Refer to the appropriate topic in Chapter 9 “Replacing devices”...
  • Page 33 1. Go to Control Panel, and then change the view of Control Panel from Category to Large icons or Small icons. 2. Click Lenovo - Keyboard Manager and the Keyboard Manager window is displayed. 3. Select the options of your preference.

  • Page 34: Using The Thinkpad Pointing Device

    • : Open the Snipping Tool program. • Fn+Spacebar: If your computer supports keyboard backlight, press Fn+Spacebar to switch between the different keyboard backlight status. • Fn+B: This key combination has the same function as the Break key on a conventional external keyboard. •...

  • Page 35: Using The Trackpoint Pointing Device

    By default, both the TrackPoint pointing device and the trackpad are active with the touch gestures enabled. To change the settings, see “Customizing the ThinkPad pointing device” on page 19. Using the TrackPoint pointing device The TrackPoint pointing device enables you to perform all the functions of a traditional mouse, such as pointing, clicking, and scrolling.

  • Page 36: Using The Trackpad

    Using the trackpad The entire trackpad surface is sensitive to finger touch and movement. You can use the trackpad to perform all the pointing, clicking, and scrolling functions of a traditional mouse. The trackpad can be divided into two zones: Left-click zone (primary-click zone) Right-click zone (secondary-click zone) To use the trackpad, see the following instructions:...

  • Page 37: Using The Trackpad Touch Gestures

    Using the trackpad touch gestures The entire trackpad surface is sensitive to finger touch and movement. You can use the trackpad to perform the same point and click actions as you would use a traditional mouse. You also can use the trackpad to perform various touch gestures.

  • Page 38: Replacing The Cap On The Pointing Stick

    Replacing the cap on the pointing stick The cap on the end of the pointing stick is removable. After you use the cap for a period of time, you might consider replacing the cap with a new one. Notes: • Ensure that you use a cap with grooves as shown in the following illustration.

  • Page 39: Using The Battery

    10°C (50°F) and 35°C (95°F). Notes: To check the battery temperature, do the following: 1. Open Lenovo Vantage. 2. Click Hardware Settings ➙ Power 3. Locate the Power Status section and then click Show Details to view the battery temperature.

  • Page 40: Managing The Battery Power

    Maximizing the battery life To maximize the life of the battery, do the following: • Use the battery until the charge is depleted. • Recharge the battery completely before using it. You can see whether the battery is fully charged from the battery-status icon in the Windows notification area.

  • Page 41: Cabled Ethernet Connections

    When you are not using the wireless features, such as Bluetooth or wireless LAN, turn them off to help conserve power. Cabled Ethernet connections With an Ethernet cable, you can connect your computer to a local network through the Ethernet connector on your computer.

  • Page 42: Using The Bluetooth Connection

    Using the Bluetooth connection Bluetooth can connect devices that are within a short distance from one another. Bluetooth is commonly used in the following scenarios: • Connecting peripheral devices to a computer • Transferring data between hand-held devices and a personal computer •...

  • Page 43: Using The Camera

    • Open the Start menu and then click Lenovo Vantage ➙ Hardware Settings ➙ Audio/Visual. Locate the Camera section and then follow the instructions on the screen to configure the camera settings.

  • Page 44: Using An External Display

    • Secure Digital High-Capacity (SDHC) card Attention: While transferring data to or from a media card, such as an SD card, do not put your computer into sleep or hibernation mode before the data transfer is completed. Otherwise, your data could get damaged.
  • Page 45 • Up to 4096 x 2160 pixels / 30 Hz, with an external display connected to the HDMI connector • Up to 3840 x 2160 pixels / 60 Hz, with an external display connected to the USB-C connector For more information about the external display, see the manuals that come with it. Connecting an external display You can use either a wired display or a wireless display.

  • Page 46: Traveling With Your Computer

    If you are traveling to another country or region, you might want to consider an appropriate ac power adapter for the country or region to which you are traveling. To purchase travel accessories, go to: https://www.lenovo.com/accessories E580 and E585 User Guide...

  • Page 47: Chapter 3. Enhancing Your Computer

    This chapter provides instructions on how to use hardware devices to expand your computer capabilities. Finding ThinkPad options If you want to expand the capabilities of your computer, Lenovo has a number of hardware accessories and upgrades to meet your needs. Options include memory modules, storage devices, network cards, port replicators or docking stations, batteries, power adapters, keyboards, mice, and more.
  • Page 48 E580 and E585 User Guide...

  • Page 49: Chapter 4. Accessibility, Ergonomic, And Maintenance Information

    This chapter provides information about accessibility, ergonomic, and cleaning and maintenance. Accessibility information Lenovo is committed to providing users who have hearing, vision, and mobility limitations with greater access to information and technology. This section provides information about the ways these users can get the most out of their computer experience.
  • Page 50 If you prefer to type or enter data into your computer using a mouse, joystick, or other pointing device instead of a physical keyboard, you can use On-Screen Keyboard. On-Screen Keyboard displays a visual keyboard with all the standard keys. You can select keys using the mouse or another pointing device, or you can tap to select the keys if your computer supports multi-touch screen.

  • Page 51: Ergonomic Information

    Your computer provides industry-standard connectors that enable you to connect assistive devices. Documentation in accessible formats Lenovo provides electronic documentation in accessible formats, such as properly tagged PDF files or HyperText Markup Language (HTML) files. Lenovo electronic documentation is developed to ensure that visually impaired users can read the documentation through a screen reader.

  • Page 52: Cleaning And Maintenance

    You can find some of these options at https:// . Explore your options for docking solutions and external products that provide www.lenovo.com/accessories the adjustability and features that you want. Questions about vision? The visual display screens of ThinkPad notebook computers are designed to meet the highest standards.
  • Page 53 • Do not turn your computer over when the ac power adapter is plugged in, otherwise, it could break the adapter plug. • Before moving your computer, be sure to remove any media, turn off attached devices, and disconnect cords and cables. •...
  • Page 54 E580 and E585 User Guide...

  • Page 55: Chapter 5. Security

    The following two types of hard disk passwords can help protect the information stored on the storage drive: • User hard disk password © Copyright Lenovo 2017, 2018...

  • Page 56: Setting, Changing, Or Removing A Password

    Lenovo cannot reset your passwords or recover data from the storage drive. You must take your computer to a Lenovo reseller or a marketing representative to have the storage drive replaced. Proof of purchase is required, and a fee will be charged for parts and service.

  • Page 57: Hard Disk Security

    Hard disk security To protect the computer from unauthorized security attacks, refer to the following tips to enhance security: • Set a power-on password as well as a hard disk password. For security, a longer password is recommended. • The hard disk drive built into your computer can be protected by UEFI BIOS. To provide reliable security, use the security chip and a security program with the Trusted Platform Module (TPM) management feature.

  • Page 58: Using The Fingerprint Reader

    1. Restart the computer. When the logo screen is displayed, press F1 to start the ThinkPad Setup program. 2. Select Security ➙ Security Chip by using the directional keys. 3. Press Enter. The Security Chip submenu opens. 4. Move to an item you want to set by using the directional keys. When the item is highlighted, press Enter. 5.

  • Page 59: Deleting Data From Your Storage Drive

    • Move the data to the Recycle Bin, and then empty the Recycle Bin. • Format your storage drive, using the software to initialize it. • Use the recovery program provided by Lenovo to bring the storage drive back to the factory default settings.

  • Page 60: Using Firewalls

    Protecting data against viruses Lenovo provides a full version of antivirus software on your computer with a free 30-day subscription. After 30 days, you must renew the license to continue receiving the antivirus software updates. For more information about your antivirus software, see the help system of your antivirus software.

  • Page 61: Chapter 6. Advanced Configuration

    8. After installing the device drivers, apply Windows Update to get the latest modules, for example the security patches. 9. Depending on your preference, install Lenovo programs. For information about Lenovo programs, see “Lenovo programs” on page 11. Note: After installing the operating system, do not change the initial UEFI/Legacy Boot setting in the ThinkPad Setup program.

  • Page 62: Installing Device Drivers

    Lenovo Vantage is preinstalled on your computer and is ready to run. The only prerequisite is an active Internet connection. You can start the program manually, or you can use the schedule feature to enable the program to search for updates automatically at specified intervals.

  • Page 63: Using The Thinkpad Setup Program

    Using the ThinkPad Setup program The ThinkPad Setup program enables you to select the preferred settings for your computer through configuring the BIOS. Configuring ThinkPad Setup The ThinkPad Setup program menu lists various items about system configuration. Attention: The default configurations are already optimized for you. Improper change of the configurations might cause unexpected results.

  • Page 64: Updating The Uefi Bios

    • The computer must be engaged in the Preboot eXecution Environment (PXE). • A network-management program must be installed on the computer of the network administrator. For instructions on how to update the UEFI BIOS, go to https://support.lenovo.com BIOS menu This topic introduces the following BIOS menus of your computer: •...
  • Page 65 • CPU Type • CPU Speed • Installed Memory • UUID • MAC Address (Internal LAN) • Preinstalled operating system license • UEFI Secure Boot • OA3 ID • OA2 Config menu Note: The BIOS menu items might change without notice. Depending on the model, the default value might vary.
  • Page 66 • MAC address Pass Through Values: Disabled, Enabled Description: The MAC address for the LENOVO USB Dock will be changed to the Internal MAC address. If you select Disabled, the MAC address for the LENOVO USB Dock will remain the original MAC address. If you select Enabled, the MAC address for the LENOVO USB Dock will be changed to the Internal MAC address.
  • Page 67 Description: If you select Enabled, pressing the function keys directly inputs F1–F12. If you select Disabled, pressing the function keys directly initiates the special function printed as an icon on each key. To temporarily switch the above two functions, press Fn+Esc. Display •...
  • Page 68 Note: The battery will be automatically enabled when the ac power adapter is reconnected. Beep and Alarm • Password Beep Values: Disabled, Enabled Description: Enable or disable a beep when the computer is waiting for a power-on, hard disk, or supervisor password.
  • Page 69 Descriptions: If you enable this option, the supervisor password is required when you try to enter the Boot menu by repeatedly pressing F12. To use this function, a supervisor password must be set. • Password Count Exceeded Error Values: Disabled, Enabled Descriptions: Enable this option to display the POST 0199 error message when you enter a wrong supervisor password more than three times.
  • Page 70 Descriptions: If this option is enabled, a confirmation message is displayed when you clear the security chip. UEFI BIOS Update Option • Flash BIOS Updating by End-Users Values: Disabled, Enabled Descriptions: When this option is enabled, all users can update the UEFI BIOS. If you disable this option, only the person who knows the supervisor password can update the UEFI BIOS.
  • Page 71 • Bluetooth • USB port • Memory module slot • Integrated camera • Microphone • Fingerprint reader Internal Device Access • Internal Storage Tamper Detection Values: Disabled, Enabled Descriptions: When this option is enabled, removing any internal storage device when your computer is in sleep mode will be detected.
  • Page 72 Descriptions: Enable or disable the Intel Software Guard Extensions (SGX) function. If you select Software Controlled, SGX will be controlled by the operating system. • Owner EPOCH Change Value: Enter Descriptions: Change Owner EPOCH to a random value. Use this option to clear SGX user data. Device Guard •...

  • Page 73: Using System Management

    • Boot Device List F12 Option Values: Disabled, Enabled Descriptions: If you enable this option, you can open the Boot Menu window by continuously pressing F12 when the computer is powered on. • Boot Order Lock Values: Disabled, Enabled Descriptions: Enable this option to lock the boot device priority order. Restart menu Note: The BIOS menu items might change without notice.
  • Page 74 Preboot eXecution Environment The Preboot eXecution Environment (PXE) technology makes the computer more manageable by enabling the computer to start from a server. Your computer supports the personal computer functions that PXE requires. For example, with the appropriate LAN card, your computer can be started from the PXE server. Note: The Remote Initial Program Load (RIPL or RPL) function cannot be used with your computer.
  • Page 75 4. Press F10 to save the settings and exit. You can press F9 to restore to the factory default settings. Chapter 6 Advanced configuration...
  • Page 76 E580 and E585 User Guide...

  • Page 77: Chapter 7. Troubleshooting Computer Problems

    Note: If you are unable to isolate and repair the problem yourself after running Lenovo Vantage, save and print the log files created by the program. You need the log files when you speak to a Lenovo technical support representative.

  • Page 78: Troubleshooting

    The troubleshooting information or the diagnostic programs might tell you that you need additional or updated device drivers or other software. You can get the latest technical information and download device drivers and updates from the Lenovo Support Web site at: https://support.lenovo.com For additional information, see the help system of the program.
  • Page 79 Solution: Checksum of the supervisor password in the EEPROM is not correct. The system board should be replaced. Have the computer serviced. • Message: 0183: Bad CRC of Security Settings in EFI Variable. Enter ThinkPad Setup. Solution: Checksum of the Security settings in the EFI Variable is not correct. Enter ThinkPad Setup to check security settings, press F10, and then press Enter to restart the system.

  • Page 80: Beep Errors

    Firmware Interface Specification. If the user selects “No”, all data will be kept, but the operating system or programs will not be able to create, modify, or delete data in the storage. If this error happens at a service center, Lenovo authorized service personnel will clean up the non-volatile system UEFI variable storage using the preceding solution.

  • Page 81: Memory Module Problems

    Error codes Solutions 0001: Reset error (platform reset not de-asserted) 1. Remove all power resources (the ac power adapter, removable battery, and coin-cell battery). If your computer has a built-in battery, reset the computer by inserting a straightened paper clip into the emergency-reset hole.

  • Page 82: Ethernet Problems

    5. Run diagnostic programs. See “Diagnosing problems” on page 59. Ethernet problems • Problem: My computer cannot connect to the network. Solution: Ensure that: – The cable is installed correctly. The network cable must be securely connected both to the Ethernet connector of your computer and to the RJ45 connector of the hub.

  • Page 83: Wireless-Lan Problem

    Wireless-LAN problem Problem: I cannot connect to the network using the built-in wireless network card. Solution: Ensure that: • The Airplane mode is off. • Your wireless-LAN driver is the latest version. • Your computer is within the range of a wireless access point. •...

  • Page 84: Computer Screen Problems

    Note: If the Fn and function keys tab is not displayed, connect your computer to the Internet. Then download and install the ThinkPad Hotkey Features program from the Lenovo Support Web site. For more information, see “Installing device drivers” on page 44.
  • Page 85 Do the following to try to solve the problem: 1. Turn off the computer, and then turn it on again. 2. If you still see only the cursor on the screen, do the following: – If you have used partition software, examine the partition on the hard disk drive by using the software, and recover the partition if required.

  • Page 86: External Monitor Problems

    11. Select the correct manufacturer and model for the external monitor. If you cannot find your monitor on the list, stop the installation of this driver and use the driver shipped with your monitor. 12. After updating the driver, click Close. •...

  • Page 87: Audio Problems

    • Problem: Wrong characters are displayed on the screen. Solution: Ensure that you follow the correct procedure when installing the operating system and program. If they are installed and configured correctly, but the problem still persists, have the external monitor serviced.

  • Page 88: Fingerprint Reader Problems

    Solution: The slider might be grayed out. This means that its position is fixed by the hardware and cannot be changed. • Problem: The volume sliders do not stay in place when some audio programs are used. Solution: It is normal for the sliders to change position when certain sound programs are used. The programs are aware of the settings in the Volume Mixer window and are enabled to change the settings themselves.

  • Page 89: Battery Problems

    Solution: You cannot charge the battery when it is too hot. Turn off the computer and allow it to cool to room temperature. After it cools, recharge the battery. If it still cannot be charged, call Lenovo Customer Service to have it serviced.

  • Page 90: Power Button Problem

    • Problem: I receive an error message while the operating system is loading the desktop configuration after the POST is completed. Solution: Find solutions by searching for the error message at the following Web sites: – https://support.lenovo.com – https://support.microsoft.com/ Sleep and hibernation problems •...

  • Page 91: Hard Disk Drive Problems

    • Problem: The computer does not resume from sleep mode, or the system status indicator blinks slowly and the computer does not work. Solution: If the system does not resume from sleep mode, it might have entered sleep or hibernation mode automatically because the battery is depleted.

  • Page 92: Software Problem

    Software problem Problem: A program does not run properly. Solution: Ensure that the problem is not being caused by the program. Check that your computer has the minimum required memory to run the program. See the manuals supplied with the program. Check the following: •...

  • Page 93: Chapter 8. Recovery Information

    After two consecutive failed boot attempts, the Windows recovery environment starts automatically. Then you can choose repair and recovery options by following the on-screen instructions. Note: Ensure that your computer is connected to ac power during the recovery process. © Copyright Lenovo 2017, 2018...

  • Page 94: Creating And Using A Recovery Usb Drive

    It is recommended that you create a recovery USB drive as early as possible. If you did not create a recovery USB drive as a precautionary measure, you can contact Lenovo Customer Support Center and purchase one from Lenovo. For a list of the Lenovo Support phone numbers for your country or region, go to: https://pcsupport.lenovo.com/supportphonelist Creating a recovery USB drive To create a recovery USB drive, you need a USB drive with at least 16 GB of storage capacity.

  • Page 95: Chapter 9. Replacing Devices

    If you intend on installing the CRU, Lenovo will ship the CRU to you. CRU information and replacement instructions are shipped with your product and are available from Lenovo at any time upon request. You might be required to return the defective part that is replaced by the CRU.

  • Page 96: Disabling The Built-In Battery

    • Always handle components carefully. Handle adapters, memory modules, and other circuit boards by the edges. Never touch exposed circuitry. • Prevent others from touching the components. • Before you install a static-sensitive option or CRU, do either of the following to reduce static electricity in the package and your body: –...
  • Page 97 To replace a microSD card, do the following: 1. Locate the microSD card slot at the right side of the computer. 2. Push the microSD card inward a little bit until you hear a click . Then, release it. The microSD card ejects.

  • Page 98: Replacing The Keyboard

    Replacing the keyboard Before you start, read “Important safety information” on page v and print the following instructions. To remove the keyboard, do the following: 1. Disable the built-in battery. See “Disabling the built-in battery” on page 78. 2. Ensure that the computer is turned off and disconnected from ac power and all cables. 3.
  • Page 99 6. Loosen the screws that secure the keyboard. 7. Insert the tabs into the two dents near the two screw heads. Chapter 9 Replacing devices...
  • Page 100 8. Pivot the tool in the direction as shown to release the keyboard . Push the keyboard in the direction as shown by arrows to release the latches from the keyboard bezel. 9. Pivot the keyboard slightly upward as shown by arrow .
  • Page 101 10. Put the keyboard on the palm rest as shown and detach the connectors. Then remove the keyboard. To install the new keyboard, do the following: 1. Attach the connectors and turn the keyboard over as shown. Chapter 9 Replacing devices...
  • Page 102 2. Insert the keyboard into the keyboard bezel as shown. Ensure that the front edge of the keyboard (the edge that is close to the display) is under the keyboard bezel. 3. Slide the keyboard in the direction as shown by the arrows. Ensure that the latches are secured under the keyboard frame.
  • Page 103 4. Tighten the screws to secure the keyboard. 5. Take the new TrackPoint buttons out of the new keyboard package. Install the TrackPoint buttons as shown. Chapter 9 Replacing devices...

  • Page 104: Replacing The Base Cover Assembly

    6. Install the screw to secure the keyboard. 7. Reinstall the base cover assembly. 8. Connect the ac power adapter and all cables to the computer. Replacing the base cover assembly Before you start, read “Important safety information” on page v and print the following instructions. Notes: •...

  • Page 105: Replacing The Memory Module

    4. Loosen the screws that secure the base cover assembly , pry up the latches , and then remove the base cover assembly 5. Install the new base cover assembly and ensure that the latches of the base cover assembly are secured in place .

  • Page 106: Replacing The Hard Disk Drive

    Increasing memory capacity is an effective way to make programs run faster. You can increase memory capacity by replacing or adding a memory module. Note: The operating speed of the memory module has dependency on the system configuration. In some conditions, the memory module in your computer might not be able to operate at the maximum speed.
  • Page 107 Attention: The hard disk drive is sensitive. Inappropriate handling might cause damage and permanent loss of data. When handling the hard disk drive, observe the following guidelines: • Replace the hard disk drive only for upgrade or repair. The hard disk drive is not designed for frequent changes or replacement.
  • Page 108 Installing the hard disk drive 1. Attach the bracket to the new hard disk drive. 2. Connect the cable to the new hard disk drive. 3. Insert the new hard disk drive together with its bracket and pivot it downward. Ensure that the new hard disk drive is seated in place.

  • Page 109: Replacing The Speaker Assembly

    4. Reinstall the base cover assembly. 5. Turn the computer over. Connect the ac power adapter and all cables. Replacing the speaker assembly Before you start, read “Important safety information” on page v and print the following instructions. To replace the speaker assembly, do the following: 1.
  • Page 110 6. Remove the speaker assembly. 7. Install the new speaker assembly in place. 8. Attach the connector of the speaker assembly. 9. Reinstall the base cover assembly. E580 and E585 User Guide...

  • Page 111: Replacing The Fingerprint Reader

    10. Turn the computer over. Connect the ac power adapter and all cables to the computer. Replacing the fingerprint reader Before you start, read “Important safety information” on page v and print the following instructions. To replace the fingerprint reader, do the following: 1.
  • Page 112 7. Remove the screw that secures the bracket. 8. Remove the bracket and the fingerprint reader. E580 and E585 User Guide...
  • Page 113 9. Install the new fingerprint reader and the bracket in place. 10. Install the screw to secure the fingerprint reader. Chapter 9 Replacing devices...

  • Page 114: Replacing The M.2 Solid-State Drive

    11. Connect the cable and attach the connectors. 12. Reinstall the base cover assembly. 13. Turn the computer over. Connect the ac power adapter and all cables to the computer. Replacing the M.2 solid-state drive Before you start, read “Important safety information” on page v and print the following instructions. Attention: The M.2 solid-state drive is sensitive.
  • Page 115 5. Loosen the two screws that secure the bracket and remove the bracket . Then remove the M.2 solid-state drive out of the slot 6. Insert the new M.2 solid-state drive into the slot at an angle of about 20 degrees and pivot the M.2 solid-state drive downward .
  • Page 116 E580 and E585 User Guide...

  • Page 117: Chapter 10. Getting Support

    • What is the serial number? Getting help and service If you need help, service, technical assistance, or more information about Lenovo products, you will find a wide variety of sources available from Lenovo to assist you. Information about your computer and preinstalled software, if any, is available in the documentation that comes with your computer or on the Lenovo Support Web site at https://support.lenovo.com...

  • Page 118: Lenovo Support Web Site

    • Lenovo hardware repair - If the problem is determined to be caused by Lenovo hardware under warranty, trained service personnel are available to provide the applicable level of service.

  • Page 119: Purchasing Additional Services

    Telephone numbers For a list of the Lenovo Support phone numbers for your country or region, go to https:// pcsupport.lenovo.com/supportphonelist or refer to the Safety and Warranty Guide that comes with your computer. Note: Phone numbers are subject to change without notice. The latest phone numbers are available at https://pcsupport.lenovo.com/supportphonelist...
  • Page 120 E580 and E585 User Guide...

  • Page 121: Appendix A. Regulatory Information

    This computer contains integrated wireless cards that operate within the guidelines identified by radio frequency (RF) safety standards and recommendations; therefore, Lenovo believes that this product is safe for use by consumers. These standards and recommendations reflect the consensus of the worldwide scientific community, and result from deliberations of panels and committees of scientists, who continually review and interpret the extensive research literature.

  • Page 122: Locating The Ultraconnect Wireless Antennas

    If you are uncertain of the policy that applies to the use of wireless devices in a specific area (such as an airport or hospital), you are encouraged to ask for authorization to use a wireless device prior to turning on the computer.

  • Page 123: Tco Certification

    • Consult an authorized dealer or service representative for help. Lenovo is not responsible for any radio or television interference caused by using other than specified or recommended cables and connectors or by unauthorized changes or modifications to this equipment.

  • Page 124: Industry Canada Class B Emission Compliance Statement

    • For tablets: https://www.lenovo.com/eu-doc-tablets Lenovo cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the installation of option cards from other manufacturers. This product has been tested and found to comply with the limits for Class B equipment according to European Standards harmonized in the Directives in compliance.

  • Page 125: Japan Vcci Class B Compliance Statement

    Geräten), bzw. der EMV EU Richtlinie 2014/30/EU, für Geräte der Klasse B. Dieses Gerät ist berechtigt, in Übereinstimmung mit dem Deutschen EMVG das EG-Konformitätszeichen - CE - zu führen. Verantwortlich für die Konformitätserklärung nach Paragraf 5 des EMVG ist die Lenovo (Deutschland) GmbH, Meitnerstr. 9, D-70563 Stuttgart.
  • Page 126 E580 and E585 User Guide...

  • Page 127: Appendix B. Weee And Recycling Statements Of Countries And Regions

    Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information about recycling Lenovo products, go to: https://www.lenovo.com/recycling...

  • Page 128: Japan Recycling Statements

    Collecting and recycling a disused Lenovo computer or monitor If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources.

  • Page 129: Recycling Information For Brazil

    Disposing of lithium batteries and battery packs from Lenovo products A coin-cell type lithium battery might be installed inside your Lenovo product. You can find details about the battery in the product documentation. If the battery needs to be replaced, contact your place of purchase or...

  • Page 130: Battery Recycling Information For Taiwan

    Lenovo for service. If you need to dispose of a lithium battery, insulate it with vinyl tape, contact your place of purchase or a waste-disposal operator, and follow their instructions. Disposing of battery packs from Lenovo products Your Lenovo device might contain a lithium-ion battery pack or a nickel metal hydride battery pack. You can find details on the battery pack in the product documentation.

  • Page 131: Appendix C. Restriction Of Hazardous Substances (Rohs) Directive Of Countries And Regions

    For more information about Lenovo worldwide compliance on RoHS, go to: https://www.lenovo.com/rohs-communication Turkish RoHS The Lenovo product meets the requirements of the Republic of Turkey Directive on the Restriction of the Use of Certain Hazardous Substances in Waste Electrical and Electronic Equipment (WEEE). Ukraine RoHS India RoHS RoHS compliant as per E-Waste (Management) Rules.
  • Page 132 E580 and E585 User Guide...
  • Page 133 Taiwan RoHS Appendix C. Restriction of Hazardous Substances (RoHS) Directive of countries and regions...
  • Page 134 E580 and E585 User Guide...

  • Page 135: Appendix D. Energy Star Model Information

    Windows help information on the computer. The Wake on LAN function is enabled when your Lenovo computer is shipped from the factory, and the setting remains valid even when the computer is in sleep mode. If you do not need to have Wake on LAN enabled while the computer is in sleep mode, you can reduce the power consumption and prolong the time in sleep mode, by disabling the setting of Wake on LAN for sleep mode.
  • Page 136 3. Right-click your network adapter device, and click Properties. 4. Click the Power Management tab. 5. Clear the Allow this device to wake the computer check box. 6. Click OK. E580 and E585 User Guide...

  • Page 137: Appendix E. Notices

    Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.
  • Page 138 This document is copyrighted by Lenovo and is not covered by any open source license, including any Linux agreement(s) which may accompany software included with this product. Lenovo may update this document at any time without notice. To obtain the most up-to-date documentation for your computer, go to: https://support.lenovo.com...

  • Page 139: Appendix F. Trademarks

    Appendix F. Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo Lenovo logo ThinkPad ThinkPad logo TrackPoint UltraConnect Intel and Intel SpeedStep are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
  • Page 140 E580 and E585 User Guide...
