Page 1 Should any errors be detected, we would greatly appreciate to receive sug- gestions to improve the quality of the contents of this manual. For more detailed technical data about Beamex MC6-Ex, Intrinsically Safe Ad- vanced Field Calibrator and Communicator, please contact the manufacturer.
Page 3: Table Of Contents
Resistance Measurement ............ 20 General ................7 Frequency Measurement ............. 20 Connectors on Top of MC6-Ex......... 8 Pulse Counting..............21 Connectors on the Right Side of MC6-Ex ......8 Switch Sensing ..............21 Internal Barometric Pressure Module ....... 9 Generations/Simulations Memory ................9 Changing the Generated/Simulated Value ......
Page 4 Starting the Data Log ............56 Instrument Overview Window ..........41 Viewing and Saving or Deleting the Results ......57 Calibrating an Instrument Using MC6-Ex ......41 Viewing Saved Data Log Results .......... 57 Changing the Pressure Module During Calibration ..43 Transferring Data Log Results to a Personal About Fieldbus and HART Device Specifics ....
Page 5 Tools in MC6-Ex ..............71 Communication ............. 86 Saving Configurations ............ 71 Configuring Controller Communication ......87 Viewing/Managing Configurations ........72 Changing Controller During Calibration ......87 Beamex MC6 Fieldbus Configuration Viewer ......72 Uploading Configurations..........72 Linking Configurations to CMX........72...
Page 6 MC6-Ex User Manual - Contents Service Appendix Sending MC6-Ex for Service ..........99 Updating MC6-Ex Firmware and Battery Pack Safety Firmware ................99 MC6-Ex's Firmware Update ........... 99 Approvals ................90 Battery Pack's Firmware Update ........99 Symbols Used ..............91 Resetting MC6-Ex ..............
Page 7 Only the next page needs to be strictions; fill in the form when you feel like it (all items need not be answered). faxed to us. Then send it to Beamex using one of the possibilities listed to the right. Internet: https://www.beamex.com...
Page 8 ____________________________________________ How helpful was the manual in using the product? (Tick a box in the percentage scale below) 10. Any ideas You want to propose to Beamex so that we can im- prove our products, operations and/or services. ____________________________________________ How well did the product suit your needs?
Page 9: Part 1, Introduction
Part 1 Things discussed in this part:  About this manual  Briefly about MC6-Ex's hardware and firmware  Available software and hardware options NTRODUCTION...
Page 10: General
HERE The header of each spread in MC6-Ex User Manual informs you of where you Example of even page header: MC6-Ex User Manual – Part 1, Introduction are: The even page shows the part you are in and the odd page shows the main topic you are currently viewing.
Page 11: Typographical Conventions
NPACKING AND NSPECTION At the factory each new MC6-Ex passes a careful inspection. It should be free Standard accessories: of scrapes and scratches and in proper operation order upon receipt. The re- ...

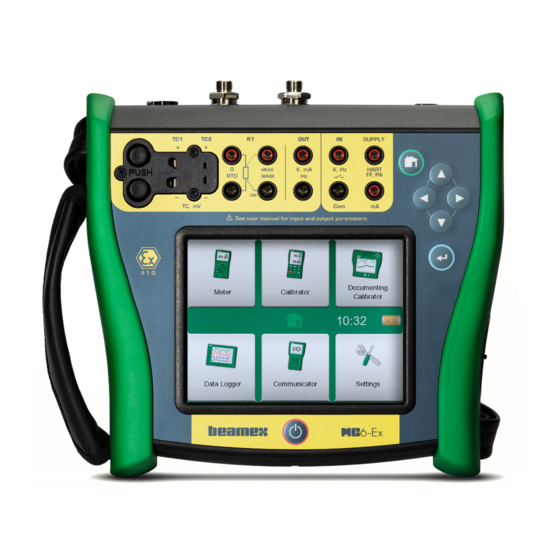

Page 12: About Mc6-Ex
MC6-E TARTING Start MC6-Ex by pressing the Power button for a few seconds. The startup pro- cedure ends in Home View (see picture on the right). From MC6-Ex's Home View you may advance to any of the available main functions. This manual con- tains detailed information of main functions as follows: Power button (left) and Home button (right).
Page 13: Firmware
About MC6-Ex - Firmware IRMWARE You can interact with MC6-Ex by tapping on available buttons/controls dis- played on the touch screen. Optionally: use the hardware arrow keys to move between the available buttons/controls. The first time you push a hardware ar- row key the Hardware Focus Indicator is displayed (a blue border around the Button without and with a Hardware Focus Indicator.
Page 14 MC6-Ex User Manual – Part 1, Introduction MC6-Ex also has some "flat" buttons. They are used in, e.g lists. The color of the flat buttons may vary depending on the context. The following editable fields are available:  Text Fields, ...
Page 15: Hardware
For cables and standard TC plugs. 2. Thermocouple connector (TC2). For TC plugs with flat contacts. 3. RTD and Resistor connector (R1). An R2 connector is on the top of MC6-Ex. More of R2 connector on next page. 4. Voltage, Current and Frequency output (OUT).
Page 16: Connectors On Top Of Mc6-Ex
OP OF Items from left to right:  R2. A possibility to connect an external RTD sensor to MC6-Ex. See al- so Hardware Modules/Options and Accessories on page 14.  P1 and P2. Internal Gauge Pressure Module connectors. These are op- tional.
Page 17: Internal Barometric Pressure Module
ISPLAY Warning! MC6-Ex has a backlit 640 × 480 pixel 5.7" TFT touch screen display. Use the Using sharp tools such as a screwdriver on the touch touch screen with your fingers, gloves on or off. Optionally, use a stylus meant screen may damage it.
Page 18: The Support
At the same time the support is out of Battery Pack's way, if you need to change the Battery Pack. If you rotate the support further up, it can be used to hang MC6-Ex to e.g. a pipeline leaving your hands free during instrument calibration.
Page 19: Removing/Replacing The Battery Back
Less than 20% Blinking Red 20% to less than 40 % The Status LED on the back side of MC6-Ex (#4 in the picture on previous 40% to less than 60 % Yellow page) indicates the charge level of the Battery Pack. Use the Push for Status...
Page 20: Pc Communication / Calibration Software
OMMUNICATION ALIBRATION OFTWARE MC6-Ex is supported in Beamex CMX Calibration Software, from version V2, revision 2.11 onwards and also in Beamex LOGiCAL, a cloud based tool for handling calibration results. USB C OMMUNICATION MC6-Ex uses Windows' generic USB driver (WinUSB) provided by Microsoft.
Page 21: Options Software Options
Multi channel Data Logger,  Communicator, HART®, Notes.  Communicator, FOUNDATION Fieldbus The software options available in the MC6-Ex at hand can be  Communicator, PROFIBUS PA found in MC6-Ex's Settings main function. Select About op- tion and browse to page 3. ...
Page 22: Hardware Modules/Options And Accessories
 There are an increasing number of devices that can be used together with Beamex Field Temperature Block (FB Series), MC6-Ex. The following list includes devices that are already available (valid  Beamex Metrology Temperature Block (MB when this manual was printed): Series), ...
Page 23: Part 2, Active Terminals And Connections
Part 2 Things discussed in this part:  A presentation of measurements MC6-Ex is capable of performing. For all measurements, the active termi- nals together with useful additional information for that particular measurement are presented.  Similarly, a presentation of generations and simula- tions MC6-Ex is capable of performing.
Page 24: General
Read the Safety Information found in the Appendix of this manual and also available as attention. See, e.g. Current Generation (Source or Sink) on a separate leaflet delivered with MC6-Ex. The input and output parameters are also page 24. available in MC6-Ex's User Interface by briefly pressing the off -key.
Page 25: Measurements Pressure Measurement
EASUREMENTS RESSURE EASUREMENT MC6-Ex supports the use of both internal pressure modules, if installed, and the use of supported external pressure modules, EXT, when they are connected to MC6-Ex's PX connector. Note that pressure measurement requires knowledge of pressure types (abso- lute pressure, gauge pressure and differential pressure).
Page 26: Current Measurement
EASUREMENT When measuring electric current, an important thing is selecting whether MC6-Ex provides the loop supply voltage or not. If not, an external device should provide the loop supply voltage. Connection depends on the loop supply setting. See pictures to the right.
Page 27: Temperature Measurement (Thermocouple)
TC2 is for TC plugs with flat contacts. Check the Sensor Type. Your measurement results are unreliable unless you select the same sensor type as is connected to MC6-Ex. Select also a suitable Reference Junction compensation method. Wrong settings yield useless measurement results.
Page 28: Resistance Measurement
(2-wire, 3-wire or 4-wire). For R2 terminal: Beamex offers, as an option, an adapter for the R2 terminal. Please contact Beamex for details. R2 terminal always uses 4-wire measurement. Resistance measurement terminals.
Page 29: Pulse Counting
Frequency Measurement on page 20. Note. There is a trigger level choice for (dry) contacts with no exter- nal potential. MC6-Ex's internal supply may also be used either as supply (with Com) or for signal (with V, Hz, WITCH ENSING Switch Sensing has three settings: ...
Page 30: Using The Soft Numeric Keypad
Use the "Left Arrow" key to delete the number to the left of the cursor. The entered value is taken into use when you close the window using the "Ac- cept" button. Note that MC6-Ex may use the entered value as a source for the value's resolution. Enter trailing zeros to ensure useful resolution.
Page 31: Generations/Simulations Changing The Generated/Simulated Value
Generations/Simulations - Changing the Generated/Simulated Value PINNING Spinning is a tool that is available in Calibrator and Documenting Calibrator. It is useful when making small changes to an existing numeric value, one digit at a time. Inactive spinner Non-empty numeric fields in Calibrator's generation/simulation windows have a button with both "Up"...
Page 32: Current Generation (Source Or Sink)
MC6-Ex User Manual – Part 2, Active Terminals and Connections URRENT ENERATION OURCE OR MC6-Ex's current generation can be done using one of two available methods:  MC6-Ex providing a loop supply voltage (source mode). Setting: Supply: On.  An external device provides the loop supply voltage (sink mode) Setting: Supply: Off.
Page 33: Thermocouple Simulation
Thermocouple simulation terminals. Warning! Range depends on selected sensor type When using a thermocouple or an RTD sensor connected to MC6-Ex to measure the ex- Note. ternal reference junction temperature: Keep in mind that there is no isolation between Thermocouple measurements are error prone. There may be the instrument to be calibrated and the sensor measuring the reference temperature.
Page 34: Resistance Simulation
AC measurement current from the instrument under test is not Notes. supported. With pulsed measurement current, set a wait time When simulating resistance or an RTD sensor, using R1 port, MC6-Ex does not support of few milliseconds before the resistance is measured. measuring the simulated signal using R2 port.
Page 35: Pulse Generation
Generations/Simulations - Pulse Generation ULSE ENERATION Before generating pulses, the following settings should be checked:  Frequency. To set the frequency, tap on the button with the "Hz" value.  Amplitude. Defined from the button with the "V" value.  Waveform and Duty Cycle.
Page 36: Thermocouple Connections
Internal is the simplest. Use suitable thermocouple, extension or compensation In extreme conditions, wait up to 90 minutes. wires to connect to MC6-Ex. MC6-Ex takes care of the Reference Junction compensation. The upper picture to the right presents the connection to TC1 terminals.
Page 37: Part 3, Meter
Part 3 Things discussed in this part:  Presenting the Meter and how to take it into use. ETER...
Page 38: About Meter
MC6-Ex. For calibration needs, use one the calibration re- lated main functions available in MC6-Ex. Start the Meter by tapping the Meter icon in MC6-Ex's Home View (see adja- cent picture). A window like the one on the lower right corner of this page opens.
Page 39: Part 4, Calibrator
Part 4 Things discussed in this part:  How to use the Calibrator  Presenting the available additional Tools in Calibrator ALIBRATOR...
Page 40: About Calibrator
One sub-window for the instrument's input and another for the instrument's output. Start the Calibrator by tapping on the Calibrator icon in MC6-Ex's Home View (see adjacent picture). A window like the one on the lower right corner of this page opens.
Page 41: Tools
Tools - General OOLS ENERAL Calibrator window has Tools buttons in the lower left corner of each sub- window. See the picture to the right. The following list presents available tools. Certain tools are available for measurements only and others for genera- tions/simulations only.
Page 42 MC6-Ex User Manual – Part 4, Calibrator Tool Description Damping Use damping when a measurement signal contains un- wanted noise. Select one of the available options. When Damping is used, a funnel appears to the left of the main measurement. When damping is active, the follow-...
Page 43: Part 5, Documenting Calibrator
Things discussed in this part:  An introduction to calibration  How to calibrate instruments using MC6-Ex's Documenting Calibrator  How to do a Group Calibration  How to view calibration results  How to read instrument data from devices...
Page 44: General
ENERAL MC6-Ex's Documenting Calibrator is an optional, more advanced tool than the "plain" Calibrator that is also available in MC6-Ex. If your MC6-Ex does not have this option installed, the Documenting Calibrator icon is disabled. Documenting Calibrator saves instrument data and presents them in a list.
Page 45: Calibrating Instruments
Instruments are typically calibrated following the procedure shown in the adja- cent picture. In MC6-Ex, you first select (or create) the instrument to be calibrated. Then per- form the As Found calibration – as many repeats as is required - and decide whether or not adjustment is needed.
Page 46: Instrument List
When you start the Documenting Calibrator, you arrive in Instrument List win- dow. See adjacent picture for an example of an Instrument List. MC6-Ex allows you to hierarchically organize your instruments into a Plant Structure. The Instrument List window may contain both instruments (gray items) and Plant Structure Levels (yellow items).
Page 47: Instrument List Window Menu
Calibrating Instruments - Instrument List NSTRUMENT INDOW The Instrument List window's menu contains a lot of useful tools:  Create New for creating a new Instrument etc. (See adjacent picture.)  Sort for sorting the list contents alphabetically etc. Sorting icons shown in status bar (ascending / descending): Identification Due Date Creation...
Page 48: Work Order View Mode
Instrument's general data and on a separate page among instrument data. All basic Note. data of Work Orders (Work Order Number and dates) are read only data in MC6-Ex. When Work Order View Mode is active, Plant Structure is not shown and instruments may not be copied or moved within the structure.
Page 49: Instrument Overview Window
Calibrating Instruments - Instrument Overview Window NSTRUMENT VERVIEW INDOW When an instrument is selected, the Instrument Overview window opens and general data of the selected instrument is presented. See adjacent picture. With the help of the buttons on the right side of the window, you may ...
Page 50 When Automatic Acceptance is in use (checked), MC6-Ex accepts calibration point automatically as follows: 1. MC6-Ex uses the Max. Point Deviation value to see if the input signal is close enough to the next calibration point. 2. When close enough, MC6-Ex checks the signal stability to decide whether the readings can be saved or not.
Page 51: Changing The Pressure Module During Calibration
Calibrating Instruments - Calibrating an Instrument Using MC6-Ex When the calibration is completed, the first of Calibration Result window's pag- es open telling you whether the calibration Passed or Failed. Browse through the pages to get an overview of the calibration results. Note that the amount of pages shown depends on the setting found in the window's menu.
Page 52: About Fieldbus And Hart Device Specifics
Adding fieldbus and HART Instrument to MC6-Ex's database When adding a fieldbus instrument or a HART instrument's digital output to MC6-Ex's database, select HART, FOUNDATION Fieldbus H1 or Profibus PA as the output quantity. See adjacent picture and note below.
Page 53: Group Calibration
Group Calibration - Collecting Instruments/Functions for Group Calibration ROUP ALIBRATION Note. MC6-Ex's Group Calibration allows you to simultaneously calibrate several Switches are not supported in group calibration. All other type Instruments/Functions. This is practical, e.g. when calibrating Instruments/Func- of instruments/functions can be included in a group.
Page 54: Editing A Group
MC6-Ex User Manual – Part 5, Documenting Calibrator DITING A ROUP By default, the Instruments/Functions are calibrated in the order they were in- cluded in the group. However, the Instrument Overview window's menu in- cludes a possibility to sort the group according to your own needs. The same...
Page 55: Group Settings
• A measurement loop, including a temperature transmitter, a local temperature indicator and a temperature indicator When the results of all Instruments/Functions are saved (or not), MC6-Ex re- in the control room. turns to the Calibration window. Now you may do another calibration run or •...
Page 56: Calibration Results
MC6-Ex User Manual – Part 5, Documenting Calibrator ALIBRATION ESULTS Once an instrument has been calibrated, you may view saved calibration results as follows:  When viewing the Instrument Overview Window, select the Calibra- tion Results button. The most recent saved calibration is presented. If you want to see older results, open the menu in Calibration Results window and select Results History.
Page 57: Digital Communication And Mc6-Ex's Instrument Data Getting And Editing Mapped Data
More of Instrument's utilizing Digital Communication can be found in Part 7 of this manual. MC6-Ex has pre-entered default mappings (which Digital Communication In- strument field goes to which field in MC6-Ex) but you may customize the map- ping for each instrument model you use. ETTING AND...
Page 58: Getting Default Mappings
In the adjacent picture you can see a sample of the mappings. The left side lists the fields in MC6-Ex (target fields) and the Mapping Mode of the field (Generic in all cases of the sample picture). The right side lists the value and name of the field in the device.
Page 59 Creating a new mapping or editing an existing mapping is done in a window like the one to the right. Target Field is the field in MC6-Ex, Value is the field and its value in the con- nected device. Mapping Mode defines how the mapping is done.
Page 60 MC6-Ex User Manual – Part 5, Documenting Calibrator...
Page 61: Part 6, Data Logger
Part 6 Things discussed in this part:  An introduction Data Logger option and its capabili- ties.  How to configure and start a Data Log.  How to view, save and delete Data Log results.  How to transfer Data Log results to a personal com- puter (PC).
Page 62: General
The Data Logger is an optional tool that allows you to collect data with MC6-Ex. If the Data Logger option is purchased, the collected data may then be viewed, transferred to a personal computer (PC) and printed using a utility called Beamex MC6 Data Log Viewer.
Page 63: Doing A Data Log Configuring
ONFIGURATIONS channel setup windows (when applicable). In addition to MC6-Ex remembering the latest Data Log configurations, you may save useful configurations for future use. Saving and opening previously saved configurations is available in the menu of Data Logger's main configuration win-...
Page 64: Starting The Data Log
MC6-Ex User Manual – Part 6, Data Logger TARTING THE Start the Data Log by tapping on the red "Record" button in the main configura- tion window's lower right corner. The button changes to a black "Stop" button allowing you to interrupt you Data Log, when necessary.
Page 65: Viewing And Saving Or Deleting The Results
All pages include a possibility to either save or delete the Data Logging results. When saving, you have the possibility to give a descriptive name to the Data Logging results. MC6-Ex automatically adds date and time to the Data Logging results.
Page 66: Transferring Data Log Results To A Personal Computer
Look for Download Center. Before you read data from MC6-Ex, you must connect MC6-Ex to your PC us- ing the USB cable provided. Then install the driver as presented in Part 1, In- troduction, chapter USB Communication Driver.
Page 67: Part 7, Communicator
Part 7 Things discussed in this part:  An introduction MC6-Ex's Communicator and how it can be started.  How to connect to an instrument capable of digital communication.  Instructions on how to quickly select a variable/pa- rameter for use in Calibrator, Documenting Calibrator or Data Logger.
Page 68 MC6-Ex is shown. See lower picture to the right. Notes. Each communication protocol is a separate option in MC6-Ex, so all protocols are not neces- sary enabled in your MC6-Ex. This manual is not an introduction to HART and Fieldbus instruments. Get the know-how and terminology from books dedicated to HART and Fieldbus instruments and technology.
Page 69: General Warnings
In such a case, when returning an instrument with changed parameters to a live segment, ensure that the pa- Beamex cannot be held responsible for any damages caused by connecting MC6-Ex to a rameters are also available in the control system's perma- live factory fieldbus segment.
Page 70: Connections
Warning! When working in PROFIBUS PA: Do not connect two master devices (e.g. MC6-Ex, a Field Communicator or a control system) at the same time to the same segment! They clash and make the fieldbus segment unstable. Remove the instrument to be calibrated from the live segment for calibration.
Page 71: Selecting The Instrument List Of Found Devices
Note. A list of found devices. If MC6-Ex does not have the Device Description file for the selected instrument, a window opens informing you of the situation. Look for new Device Description files at Beamex's web site: IMPORTANT! https://www.beamex.com.
Page 72: About Instrument Parameters
ARAMETERS IN ENERAL This chapter briefly presents how Blocks, Records and Parameters of Digital Communication Instruments are viewed in MC6-Ex and how you may browse through them. Elements seen while viewing/configuring an instrument:  Blocks and Records have yellow background where the upper right corner is folded.
Page 73: Calibrating Or Data Logging Hart Instruments
Unfortunately, the structure of data and naming conventions in HART instru- ments vary between different makes and models. Thus, there is no single path from selecting the instrument in MC6-Ex to locating the parameter. Refer to your instrument's manual to find the blocks where the parameters are located.
Page 74: Editing Parameters
See also Warnings on page 61. Notes. This manual explains how the parameters are accessed using MC6-Ex. For detailed information of instrument data, refer to the manual of the instrument itself. Beamex cannot be held responsible for any damages caused...
Page 75: Trimming A Fieldbus Instrument
About Instrument Parameters - Trimming a Fieldbus instrument RIMMING A IELDBUS INSTRUMENT Trimming a FOUNDATION Fieldbus or a Profibus PA instrument can be initi- ated from the Documenting Calibrator, provided the relevant communicator op- tion is enabled and the instrument's Device Description contains information of parameters needed for trimming.
Page 76: Trimming Ahart Instrument
Optionally, use one of the Copy buttons seen on the right side of the window to copy the reading available in the areas reserved for calibrator readings. To finalize the trim, continue as the trim method describes on MC6-Ex's display. Trim method in progress. Notes.
Page 77: Hart Device Description Specifics General
HART D EVICE ESCRIPTION PECIFICS ENERAL MC6-Ex supports the use of three kinds of Device Descriptions for HART instru- ments:  Device Specific, i.e. custom Device Descriptions for the HART device at hand, available in MC6-Ex. Full instrument data is available.
Page 78: Basic View
The pictures to the right present fields that are available for editing in Device Setup window (top right) and Process Variable Settings window (bottom right). Note. HART trimming is not supported when using MC6-Ex's Basic View. Use another Device De- scription when trimming a HART instrument. Example of a Process Variable Settings Window.
Page 79: Managing Smart Transmitter Configurations General
MC6-Ex (alternatively on a PC's hard disk) for easy configuration of the new transmitter replacing the broken one. Note. Please note that a saved configuration file cannot be written from MC6-Ex back to a transmitter. Configuration menu open.
Page 80: Viewing/Managing Configurations
Configuration options in protocol selection window. MC6 F EAMEX IELDBUS ONFIGURATION IEWER Beamex MC6 Fieldbus Configuration Viewer is a free tool for personal com- ® puters with Windows operating system. Download the Configuration Viewer software from Beamex's web site: https://www.beamex.com. Look for Down- load Center.
Page 81 Part 8 Things discussed in this part:  How to configure MC6-Ex to suit your own needs  Briefly about re-calibrating/adjusting MC6-Ex  Optional security tool ETTINGS...
Page 82: Settings
MC6-Ex User Manual – Part 8, Settings ETTINGS This main function allows you to configure MC6-Ex according to your own needs and also, recalibrate MC6-Ex. The following settings/configurations are available:  Language for selecting user interface language.  About. Information about installed modules, firmware options etc.
Page 83: Optional Security Tool General
PTIONAL ECURITY GENERAL Beamex CMX Calibration Software version 2, revision 2.11 and later include an optional tool called Mobile Security Plus. It is a tool that enforces security re- lated settings in mobile devices, including MC6-Ex. For detailed information about Mobile Security Plus functionality, please see CMX User Guide.
Page 84: Supervisor Window
MC6-Ex User Manual – Part 8, Settings UPERVISOR INDOW To access the Supervisor window, you need an admin PIN code. If the neces- sary option was purchased, the PIN code was shipped together with your cali- brator. For increased security, you should change the default admin PIN code to a personal one once you have entered the Supervisor window.
Page 85 Part 9 Things discussed in this part:  How to create custom pressure units, PRT sensors and transfer functions.  Basic Information on how to connect external devices like pressure controllers or temperature blocks to MC6-Ex. DDITIONAL NFORMATION...
Page 86: Additional Information
MC6-Ex User Manual – Part 9, Additional Information DDITIONAL NFORMATION This section contains detailed information of some of MC6-Ex's more extensive features. The ones presented here are:  User Defined Pressure Units, on page 79,  User Defined PRT / RTD Sensors, on page 80, ...
Page 87: User Defined Pressure Units
RESSURE NITS Wherever in MC6-Ex, when you use pressure as the Quantity, you may choose a pressure unit from a wealth of already available pressure units, divided into several pages. User defined pressure units may be added to the subsequent page(s).
Page 88: User Defined Prt / Rtd Sensors
EFINED ENSORS ENERAL Just as pressure units, MC6-Ex has a wealth of pre-entered standard Platinum Resistance Temperature (PRT) type RTD sensors. They are available wherever you may select RTD Temperature as the Quantity. However, when using a PRT sensor as a reference sensor, the available standard sensors aren't necessary of use.
Page 89: Callendar Van Dusen Formula For Prts
). Additionally, a constant, R , is needed to define the sensor. MC6-Ex supports the use of the equation using coefficients A, B and C only. If your PRT's calibration certificate includes coefficients ,  and , use the follow- ing equations to convert them to A, B and C: ...
Page 90 Sensor Range entered in the 1 configuration page defines how many additional User Sensor pages is added to MC6-Ex. If the range includes temperatures be- low zero, the total amount of configuration pages is four: 1. First page for general settings. See page 80.
Page 91: Factor
HECK ENSOR ONVERSION MC6-Ex has a possibility to test sensors in the window presenting pre-entered and custom RTD sensors. The menu has an option: Test Sensor Conversion. The adjacent picture presents the first of the Test Sensor Conversion pages. It allows you to select a sensor, the unit to be used and a possibility to test a single point.
Page 92: User Defined Transfer Functions
MC6-Ex User Manual – Part 9, Additional Information EFINED RANSFER UNCTIONS Transfer Functions are available in Calibrator's Scaling Tool and in instrument definitions found in Documenting Calibrator. When creating/selecting a user defined transfer function, tap on the Transfer Function button and browse to the User Transfer Function page.
Page 93: User Defined Steps / Calibration Points
Additional Information - User Defined Steps / Calibration Points EFINED TEPS ALIBRATION OINTS These are available for instruments in Documenting Calibrator and also in Cal- ibrator's Step tool. Use either Calibration Points or Step Definition button to modify its setting. In the opened window, browse to User Test Points page. The configuration consists of two (or more) pages as shown in the pictures to the right of this text.
Page 94: Controller Communication
Warnings! Instrument input settings with Control (only) selected. Use MC6-Ex's USB port and External Controllers connected to it in safe area only. When connecting a Beamex FB or MB Temperature Dry Block to MC6-Ex, ensure that both devices are up and running before connecting a communication cable and invoking...
Page 95: Configuring Controller Communication
OMMUNICATION Before utilizing External Controllers, both the communication cable / driver and the controller itself need to be configured in MC6-Ex. We recommend this to be done using the Controller Preset window available in MC6-Ex's main function Settings. MC6-Ex supports up to four presets. Each of the presets create a pair of a Connection Interface (communication cable / driver) and a Controller Type.
Page 96 MC6-Ex User Manual – Part 9, Additional Information...
Page 97: Appendix
Appendix Things discussed in this part:  Safety Issues and Warnings  Safety Information.  Disposal of Waste Electrical and Electronic Equipment  Servicing MC6-Ex  Statements and Warranty  Index PPENDIX...
Page 98: Safety
MC6-Ex User Manual – Appendix AFETY MC6-Ex has an IP65 water/dust proof case. The materials of MC6-Ex's case withstand normal industrial conditions. MC6-Ex endures shocks with the help of the built in impact protectors. Internal pressure modules with a measuring range of 6 bar (90 psi) or less are overpressure protected.
Page 99: Symbols Used
RECAUTIONS AND ARNINGS MC6-Ex is a precision tool that should be used by skilled people who have read Use MC6-Ex only if you are certain of that it can be and understood this manual. Working with MC6-Ex involves the usage of pres- used safely.
Page 100: General Warnings
ENERAL ARNINGS Do not use MC6-Ex in any other way than as described in this User Manual. If this Do not tap the touch screen with sharp or hard objects or equipment is used in a manner not specified by the manufacturer, the protection pro- press hard on the display, especially with fingernails.
Page 101: Warnings Concerning The Ni-Mh Battery Pack
Although MC6-Ex including installed Battery Pack is IP65 protected, a Battery Pack re- charge and discharge the cells or batteries several times moved from MC6-Ex is not. The Battery Pack has holes in order to vent generated gas to obtain maximum performance.
Page 102: General Warnings Concerning Pressure Measurement
MC6-Ex User Manual – Appendix ENERAL ARNINGS ONCERNING RESSURE EASUREMENT In hazardous area: use only EXT-IS or EXT-s-IS external pressure modules. External Pressure Modules: Use only the pressure media stated on the pressure module. Use of wrong type of Pres- The maximum pressures of available optional pressure T-hoses: sure Media may destroy the pressure module.
Page 103: Warnings Concerning High Pressure
Safety - Safety Precautions and Warnings ARNINGS ONCERNING RESSURE High pressure is always dangerous. Only personnel with good experience and Check what the local regulations say about construction knowledge of high pressure liquid, air and nitrogen operations are allowed to work with and use of pressurized vessels.
Page 104: Safety Information Related To Intrinsical Safety
MC6-Ex User Manual – Appendix AFETY NFORMATION ELATED TO NTRINSICAL AFETY Please read carefully the following instructions and specifications before using the calibrator and its accessories in hazardous areas. Also read the warnings presented on page 90 and onwards. The tables below refer to connections labelled in the picture to the right.
Page 105: Ex Approvals
The battery pack shall not be charged on a hazardous location. conducting material, so the user shall be aware of dangers of ignition due to hazardous electrostatic Use only Beamex charger type BC15-Ex for charging. The charger shall not be charges. used in a hazardous location.
Page 106: Disposal Of Waste Electrical And Electronic Equipment
ATTERY MC6-Ex contains a Nickel Metal Hydride (NiMH) battery pack. Before disposing of MC6-Ex, discharge the battery pack, then remove it from MC6-Ex (see chap- ter Removing Replacing the Batteries in Part 1, Introduction). Further infor- mation of the battery pack is in chapter Warnings Concerning the Ni-MH Bat-...
Page 107: Service
Beamex's web site (https://www.beamex.com). Look for Downloads Center (instruments, calibration results, data logs etc.). and see what it says about MC6-Ex firmware versions and downloads. Also Supported file systems on USB Flash Memories are FAT 32 check for possible release notes accompanying the update file.
Page 108: Resetting Mc6-Ex
LEANING Note. If MC6-Ex needs cleaning, use cloth soaked with a mild solution of tall oil soap To clean the display, use a microfiber cloth. If necessary, use a (pine soap). Wait a few minutes and then clean using a cloth moistened with mild detergent and remove it thoroughly when ready.
Page 109: Statements Disclaimer
(including but not limited to damage for third par- ties and loss of use, loss of profit and loss of production) in relation with the use of this manual, even if Beamex has been advised of the possibility of such damages.
Page 110: Intellectual Property Rights
RADEMARKS “Beamex”, “Beamex – World-Class Calibration Solu- The content of this manual is the property of Beamex Oy Ab and/or its subsidi- aries and affiliates (referred hereinafter as Beamex). This manual and its con- tions as well as the color combination of green and...
Page 111: Third-Party Licenses In Mc6-Ex's Battery Pack's
Statements - Intellectual Property Rights MC6-E HIRD ARTY ICENSES IN ATTERY OFTWARE ARM L IMITED ICROELECTRONICS Copyright (c) 2012, ARM Limited, All rights reserved. COPYRIGHT(c) 2016 STMicroelectronics Redistribution and use in source and binary forms, with or without modifi- Redistribution and use in source and binary forms, with or without modifi- cation, are permitted provided that the following conditions are met: cation, are permitted provided that the following conditions are met: ...
Page 112 MC6-Ex User Manual – Appendix...
Page 113: Index
Storing ............93 Data Logger ..........54 Check Boxes ..........5 Buttons ............7 Configuring ..........55 Cleaning MC6-Ex ........100 Accept ............5 Deleting Results ......... 57 Communication Settings ......74 Check Boxes ..........5 Saving Configurations ........ 55 Close ............
Page 114 MC6-Ex User Manual – Appendix Documenting Calibrator ......36 Inheriting Settings ........16 Drop/Shock/Vibration Approval ....90 Language ..........74 Leak Test ..........33 Generation (see also Simulation) Changing the generated value ....22 Battery Pack ........10, 11, 99 Current ............24 Front Panel ........... 9 Frequency ..........
Page 115 Scaling ............ 33 Mobile Security Plus ........ 75 Testing Custom Sensors......83 Security Tool ........... 75 User Defined ..........80 Servicing MC6-Ex ........99 Pulse Counting ........21 Settings ........... 74 Pulse Generation ........27 Simulation (see also Generation) Numbers, Entering ......22, 23 Changing the simulated value ....
Page 116 MC6-Ex User Manual – Appendix Temperature Blocks ........ 14 Temperature Controllers ......86 Unpacking ..........3 Zeroing a Pressure Module ......17 Configuring ..........87 Updating Battery Pack's Firmware ..99 Temperature Measurement ..... 19 Updating MC6-Ex's Firmware ....99 Testing Leakage/Stability ......33 USB Connectors ........

BEAMEX MC6-Ex User Manual

Part 1, Introduction

General

About MC6-Ex

Options Software Options

Part 2, Active Terminals and Connections

General

Measurements Pressure Measurement

Generations/Simulations Changing the Generated/Simulated Value

Thermocouple Connections

Part 3, Meter

About Meter

Part 4, Calibrator

About Calibrator

Tools

Part 5, Documenting Calibrator

General

Calibrating Instruments

Group Calibration

Calibration Results

Digital Communication and MC6-Ex's Instrument Data Getting and Editing Mapped Data

Part 6, Data Logger

General

Doing a Data Log Configuring

Part 7, Communicator

General Warnings

Connections

Selecting the Instrument List of Found Devices

About Instrument Parameters

HART Device Description Specifics General

Managing Smart Transmitter Configurations General

Part 8, Settings

Settings

Optional Security Tool General

Additional Information

Appendix

Safety

Disposal of Waste Electrical and Electronic Equipment

Service

Statements Disclaimer

Index

Quick Links

Related Manuals for BEAMEX MC6-Ex

Summary of Contents for BEAMEX MC6-Ex

Table of Contents
