BIM-01-2-HLLY
Bus Interface Module for Holley EFI
This Bus Interface Module is designed to read engine information from specific Holley EFI kits. The Holley Terminator,
HP, Sniper, Dominator and Terminator X and X Max. The module is connected to the Holley EFI through the CAN-bus
plug on the EFI harness. Depending on your EFI module you may have a 2-pin or 4-pin CAN connector. We supply EFI
adapter harnesses that will allow you to connect with your particular kit.

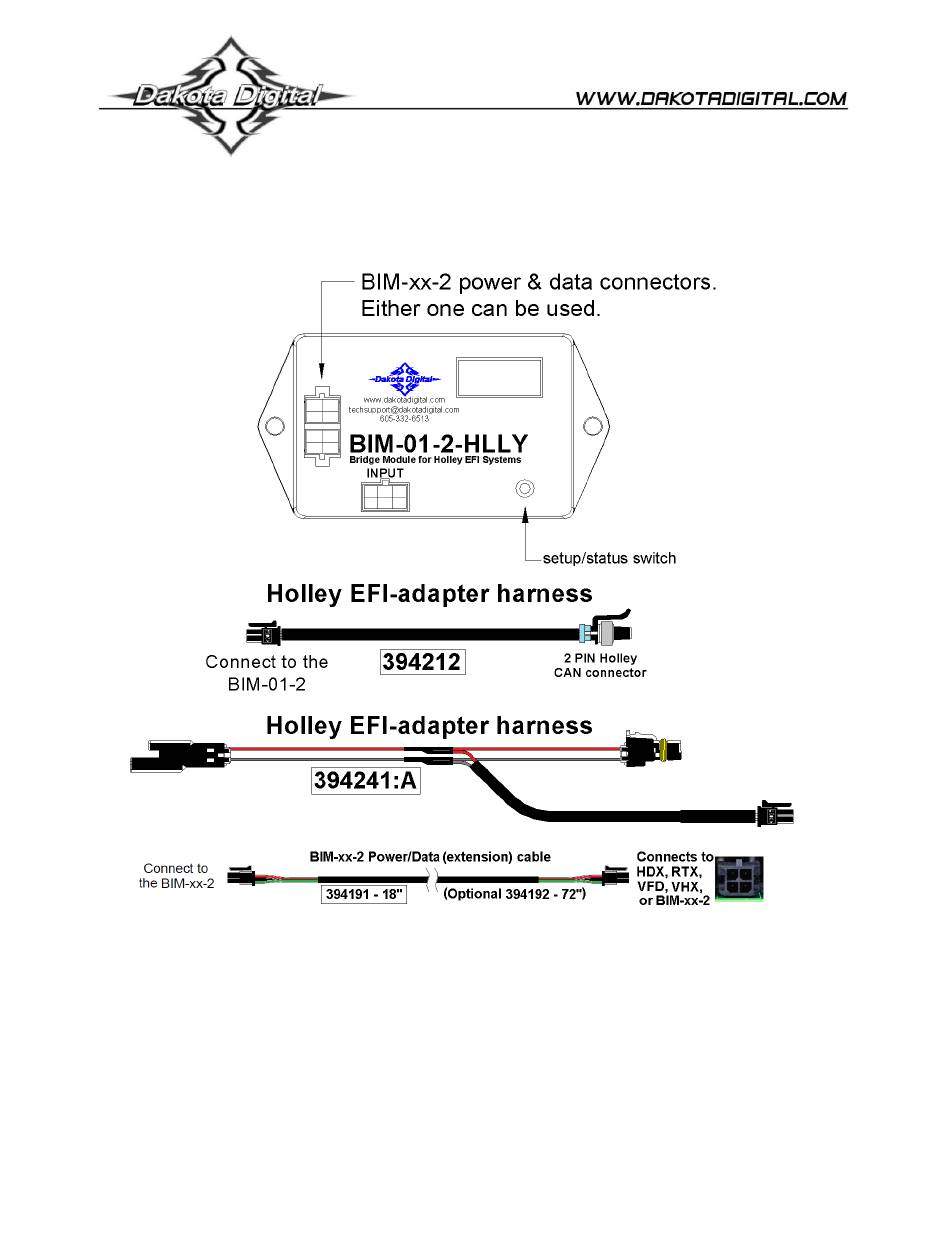

There are two interface (I/O) ports on the BIM-01-2-HLLYmodule. Either one can be connected to the instrument system
or to another module, allowing several units to be daisy chained together.
Cannot daisy chain with GPS-50-2.
Do not connect the I/O port to anything other than a Dakota Digital control box or BIM.
Do not mount the module in the engine compartment; as it should be mounted in the vehicle's cabin.
The engine and transmission information that is available from the unit depends on the EFI kit and module programming
and add-ons. For specific data readings: see individual setups below for each version of Holley EFI system below.
[1]
MAN #650588D

Advertisement

loading
Need help?

Need help?

Do you have a question about the BIM-01-2-HLLY and is the answer not in the manual?

Questions and answers

Related Manuals for Dakota Digital BIM-01-2-HLLY

Summary of Contents for Dakota Digital BIM-01-2-HLLY

  • Page 1 Cannot daisy chain with GPS-50-2. Do not connect the I/O port to anything other than a Dakota Digital control box or BIM. Do not mount the module in the engine compartment; as it should be mounted in the vehicle’s cabin.
  • Page 2 1. The Holley ECU must be wired and configured within the Holley computer software to read vehicle speed a. If speed sensor is connected to Input #1, the BIM-01-2-HLLY must have the speed input enabled Holley ECU speed input wiring: •...
  • Page 3 Terminator X Max: Reads everything as the Terminator X, plus Vehicle speed. Holley system setup: No configuration within the Sniper EFI system or software is required. BIM-01-2-HLLY setup: The BIM must be configured to understand it will be talking to the Terminator X, X Max. •...

  • Page 4: Display Setup

    Setting up the display system will configure the instrument control box to read each input from either the terminals or through the BIM cable from the Bus Interface Module. The BIM menu of the display will not find the BIM-01-2-HLLY, but will find specific channels for Fuel Pressure and Air/Fuel Ratio.
  • Page 5 Tap SW1 until  and DONE are displayed. • Press and hold SW1 until “-” and DONE are displayed. Obtaining oil pressure from the BIM-01-2-HLLY (not Sniper, if available in HP/Dominator) • Hold the SW1 switch from the instrument system control box while turning the key on.
  • Page 6 Tap SW1 (I) until TACH DONE is displayed. • Press and hold SW1 (I) until a big DONE is displayed. Obtaining engine temperature from the BIM-01-2-HLLY • Hold the SW1 (I) switch from the instrument system control box while turning the key on.
  • Page 7 VHX Setup Continued: Obtaining oil pressure from the BIM-01-2-HLLY (not Sniper, if available in HP/Dominator) • Hold the SW1 (I) switch from the instrument system control box while turning the key on. The message display should show SETUP. • Release SW1 (I) - LCD1 should show SETUP SPEED.
  • Page 8 HDX and RTX setup: **HDX/RTX systems can be configured with the Dakota Digital app for Apple and Android devices** HDX and RTX Operations • HDX: With the ignition key already on, press and hold both switches to enter SETUP, release when instructed.
  • Page 9 The BIM-01-2-HLLY must be configured for the correct type of Holley EFI system being used. • Hold the switch on the BIM-01-2-HLLY case while turning the key on. The BIM display will show the current revision code while this is held.
  • Page 10 Enabling Boost: All Holley systems (except for Terminator X) will always send MAP/vacuum data to the BIM-01-2-HLLY. The BIM-01-2-HLLY has an option to enable boost readings if the car has turbocharger, and this works on all models of Holley EFI systems.

  • Page 11: Quick Tips

    Quick tips: While the BIM is operating, the dot in the upper left corner of the display will indicate the status. On steady indicates it is powered up but not receiving any BIM bus activity. Flashing indicates it is communicating on the BIM bus. If the display shows “”...
