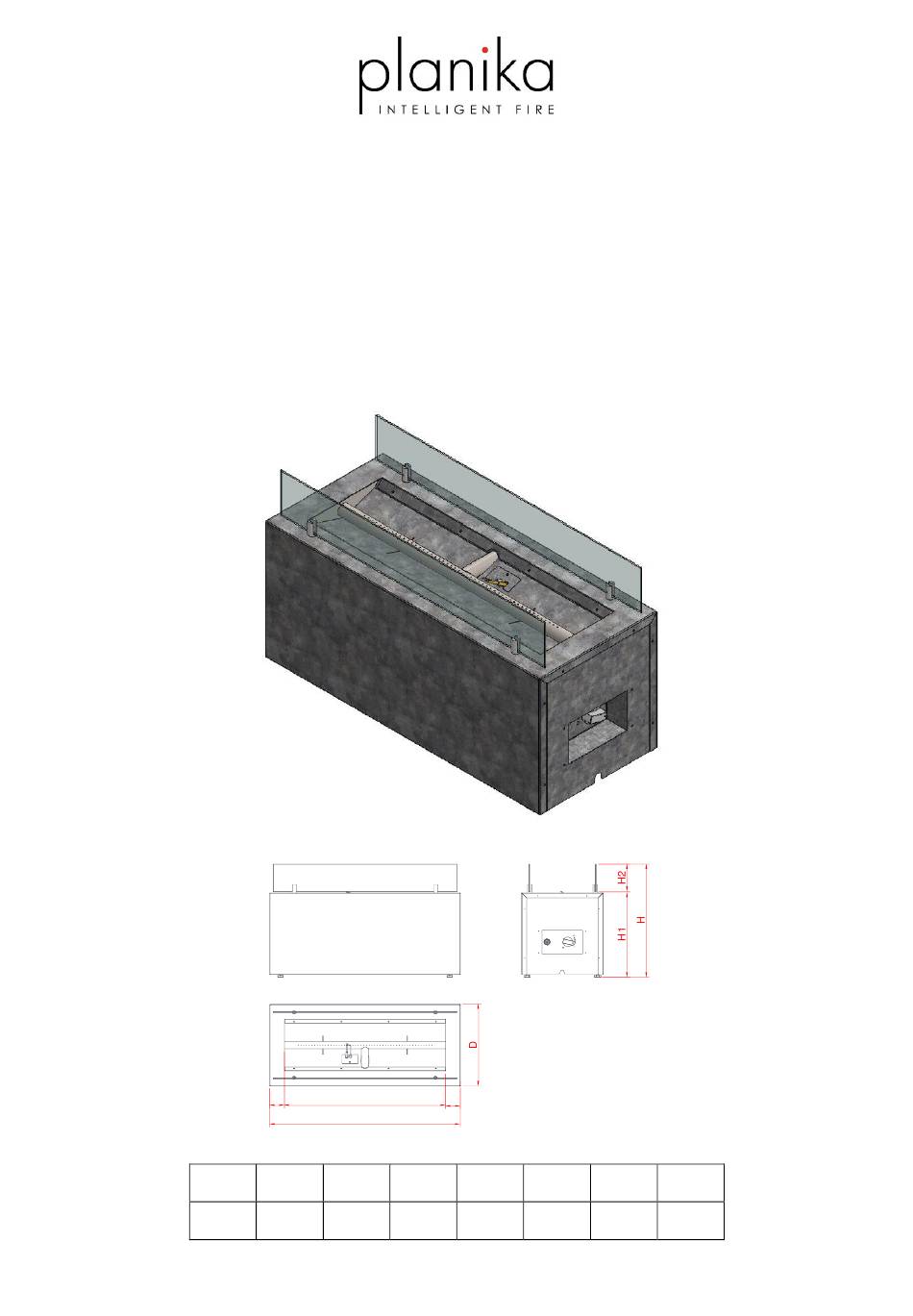

- Page 1 INSTALLATION and USER’S MANUAL KL21 Rio G30/G31 (Propane-Butane/Propane) [mm] Copyright Planika Sp. z o.o. www.planikafires.com IG0287#02 18.05.2021...
-
Page 2: Table Of Contents
T IS OBLIGATORY TO READ AND KEEP THIS INSTRUCTION MANUAL TABLE OF CONTENTS INTRODUCTION ................................. 3 SAFETY INSTRUCTIONS .............................. 3 Safety instruction regarding the use of the gas cylinders................. 4 INSTALLATION ................................5 3.1. Box contents ..............................5 3.2. Unboxing and installation .......................... -
Page 3: Introduction

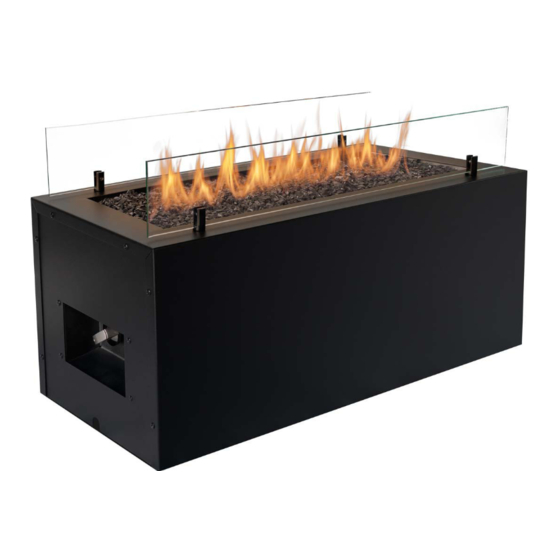

INTRODUCTION The Rio fireplace is a decorative fuel-effect gas appliances destined only for outdoor use. It is obligatory to acquaint oneself with the below installation manual and user’s manual before committing to the installation and use of The Rio fireplace. This manual is to be kept safe for the lifetime of the device. WARNING! The device must be installed by the installer who is certified and qualified specialist in gas heating and should have all the qualifications required by local law. -
Page 4: Safety Instruction Regarding The Use Of The Gas Cylinders
• The Rio fireplace’s parts are made of stain resistant material. • Never leave a turned on Rio without supervision. • The Rio fireplace needs to be installed in a place inaccessible for children, unauthorised persons or animals for the direct contact with the flame or hot parts of the device to be impossible. •... -
Page 5: Installation
INSTALLATION 3.1. Box contents • 1x complete Rio gas fireplace • 2x Tempered glass screen • 4x small glass holders • 4x adjustable legs • 1x AAA Batteries (placed under the ignition button) • 1x box of decorative stones • 1x 4 metre rubber gas linkage –... -
Page 6: Installation Of Glass Screens And Adjustable Legs
3.3. Installation of glass screens and adjustable legs • Carefully remove cardboard and foam foil from the glass screens. • Remove all contaminations from the glass shields which could burn out on the glass during operation of The Rio (in particular fingerprints). •... -
Page 7: Installation Of The Gas Linkage
3.5. Installation of the gas linkage WARNING!!! The montage and service needs to be conducted by a qualified professional, a company or the gas supplier. Before proceeding with the connection of the gas cylinder to the fireplace all activity regarding the correct placement and installation of The Rio needs to be already performed. - Page 8 Gas cylinder connection Twist-on connection Quick-release 1. Check if the bottle valve is TURNED OFF turning it Remove the protection tip. Do not use any clockwise tools, leave the tip hanging freely. 2. Remove the protection tip and store it for later use. 3.
- Page 9 Disconnection of the gas cylinder Twist-on connection Quick-release Turn off the Rio -– put it into the OFF position. The main and pilot burner need to be turned off. 2. Turn the bottle valve into the OFF position 2. Turn the switch into the OFF position. (clockwise).
-
Page 10: Regulator Replacement
3.5.3. Regulator replacement You always need to use a pressure regulator between the gas bottle and the device. Replace the pressure regulator every 5 years. Allowed pressures: 30 mbar, 37 mbar (recommended), 50 mbar. Use only the regulators that comply with the EN16129 European Norm. Turn off The Rio -–... -
Page 11: Operating Instructions
4. OPERATING INSTRUCTIONS 4.1. General Notes The Rio fireplace has a control valve with a built-in ignition for the main burner (without pilot flame). The flame height of the main burner may be appropriately regulated with by turning the knob. Next to the knob is placed elective ignition button (powered by AAA battery). -
Page 12: Regulation Of The Flame Size
• While keeping the knob still pressed start the flame by pressing the ignition button (3). Fig. 8 – Ignition sequence • A spark will appear which ignites the main burner on the minimum flame height. If the flame did not ignite repeat this process 2-3 times. -
Page 13: Testing
4.5 Replacing the battery If the battery is inserted incorrectly, the electronic ignitor may be irreparably damaged. Only replace the battery when the appliance has been completely switched off. The battery is placed in the container located on the control pane next to the flame regulation knob •... -
Page 14: Maintenance And Upkeep
6. MAINTENANCE AND UPKEEP 6.1. Testing and cleaning Please check and clean if necessary: • The main burner - if necessary, remove broken parts of stones and the existing dust. • Thermo-couple (if necessary, remove the existing sediment). In the event of visible damage contact your dealer. -
Page 15: Manufacturer's Contact Details
8. MANUFACTURER’S CONTACT DETAILS Company Name: Planika Sp. z o.o. Address: Bydgoskich Przemysłowców 10 Telephone: + 48 52 364 11 60 TECHNICAL SPECIFICATION Applianace Category I3B/P Reference gas Inlet pressure [mbar] 28-30 Injector diamater [mm] Gas consumption [kg/h] 0.55 0,65... - Page 16 SELLER Name: Address: Tel/fax: Date of sale: Seller’s seal and signature BUYER Name: Address: Tel/fax: Date of purchase: The gas fireplace should be installed by a qualified Installer in accordance with the applicable national building regulations and in accordance with the guidelines contained in the Installation and User's Manuals. I hereby declare that having read the User's Manual and the Guarantee Conditions.
