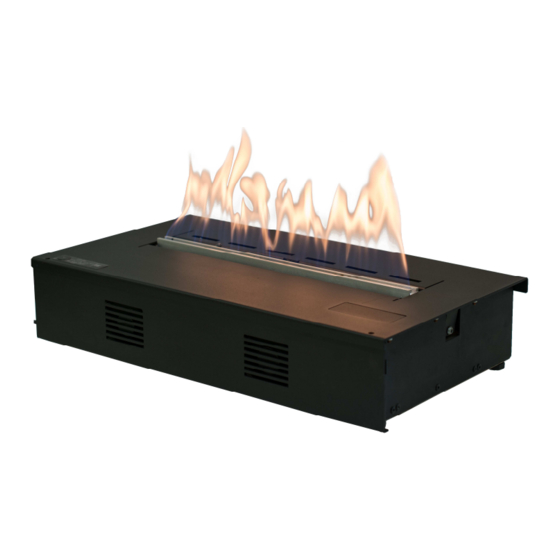

Planika Hot Box REMOTE Installation Manual

INSTALLATION MANUAL
Planika
N E W S E N S O F F I R E
ECO ST AR T
ST O P
HO T FUEL READY
PA T . P E ND.
ERRO R
L2
• Do not install the device in areas with a capacity of less than 118 m
2 2
m / 484 ft
• Do not install the device in areas of large drafts of air, near fans, vents, etc.
• Do not place the device in close proximity to sources of humidity.
• It is obligatory to have a carbon-dioxide (CO
nearby the device.
• Installation of the device must provide an easy removal of the device for service.
• The room in which the device will be installed must have efficient ventilation to
ensure air exchange in the room at least once per hour.
• Do not start the device before a complete and proper installation.
• Do not fill the fuel container before placing the product into its final position.
• Do not obstruct the ventilation slots and/or ventilators.
Copyright Planika Sp. z o.o.
Hot Box REMOTE
L1 L2
L
with a height of 2.6 m / 8.53 ft).
www.planikafires.com
A
x 1
) or dry chemical extinguisher placed
2
i0936#01
B C
x 1
D E
x 1
[mm] [in]
H 111 4
L 540 21
L1 400 15
L2 70 2
D 303 11
3 3
/ 4167 ft
31.08.2015 1
x 1
x 1
3
/
8
1 /
4
3
/
4
3
/
4
15
/
16
(45
