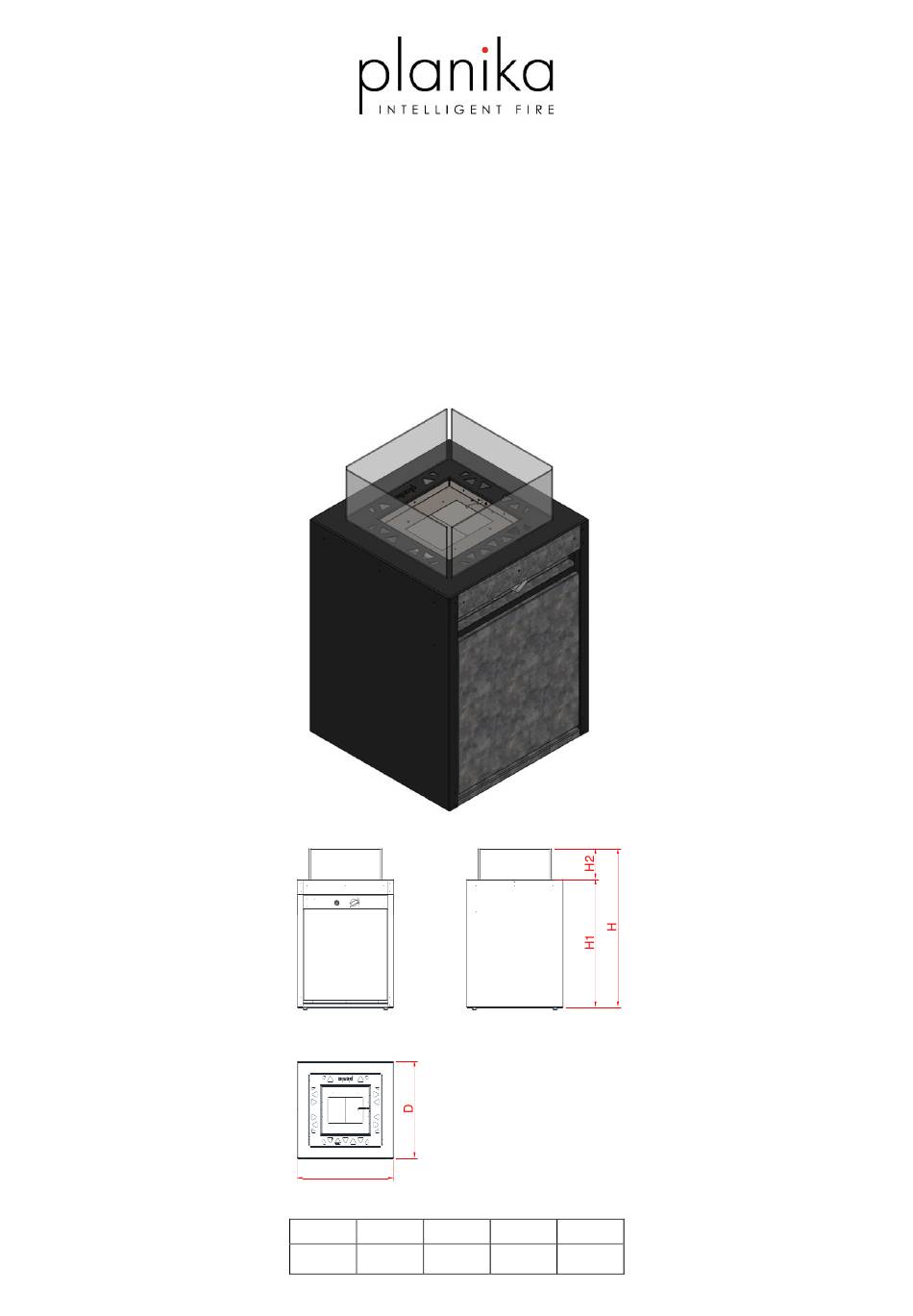

- Page 1 INSTALLATION and USER’S MANUAL KL21 Square G30/G31 (Propane-Butane/Propane) [mm] Copyright Planika Sp. z o.o. www.planikafires.com IG0290#00 12.05.2021...
-
Page 2: Table Of Contents
T IS OBLIGATORY TO READ AND KEEP THIS INSTRUCTION MANUAL TABLE OF CONTENTS INTRODUCTION ................................. 3 SAFETY INSTRUCTIONS .............................. 3 Safety instruction regarding the use of the gas cylinders................. 4 INSTALLATION ................................5 3.1. Box contents ..............................5 3.2. Unboxing and installation .......................... -
Page 3: Introduction

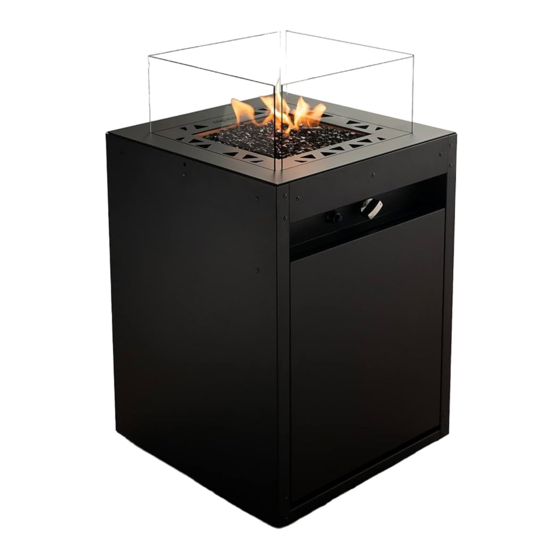

INTRODUCTION The Square fireplace is a decorative fuel-effect gas appliances destined only for outdoor use. It is obligatory to acquaint oneself with the below installation manual and user’s manual before committing to the installation and use of The Square fireplace. This manual is to be kept safe for the lifetime of the device. WARNING! The device must be installed by the installer who is certified and qualified specialist in gas heating and should have all the qualifications required by local law. -
Page 4: Safety Instruction Regarding The Use Of The Gas Cylinders
• If The Square is not in use for a longer period Squared of time (e.g. winter time), we advise you to store it inside. • The Square fireplace’s parts are made of stain resistant material. • Never leave a turned on Square without supervision. •... -
Page 5: Installation
INSTALLATION 3.1. Box contents • 1x complete Square gas fireplace • 4x Tempered glass screen • 4x adjustable legs • 1x AAA Batteries (placed under the ignition button) • 1x box of decorative stones • 1x 4 metre rubber gas linkage – installed •... -
Page 6: Installation Of Glass Screens And Adjustable Legs
3.3. Installation of glass screens and adjustable legs • Carefully remove cardboard and foam foil from the glass screens. • Remove all contaminations from the glass shields which could burn out on the glass during operation of The Square (in particular fingerprints). •... -
Page 7: Installation Of The Gas Linkage
Fig. 4 – Housing for gas cylinder • The optional housing for the gas bottle cannot be airtight and has to be correctly ventilated. The housing needs to have an upper ventilation slot above the top of the bottle (of an area min 1/100 of the area of the base of the housing) and a lower ventilation slot (of an area min 1/50 of the area of the base of the housing). - Page 8 Gas cylinder connection Twist-on connection Quick-release 1. Check if the bottle valve is TURNED OFF turning it Remove the protection tip. Do not use any clockwise tools, leave the tip hanging freely. 2. Remove the protection tip and store it for later use. 3.
- Page 9 Disconnection of the gas cylinder Twist-on connection Quick-release Turn off The Square -– put it into the OFF position. The main and pilot burner need to be turned off. 2. Turn the bottle valve into the OFF position 2. Turn the switch into the OFF position. (clockwise).
-
Page 10: Regulator Replacement
3.5.3. Regulator replacement You always need to use a pressure regulator between the gas bottle and the device. Replace the pressure regulator every 5 years. Allowed pressures: 30 mbar, 37 mbar (recommended), 50 mbar. Use only the regulators that comply with the EN16129 European Norm. Turn off The Square -–... -
Page 11: Operating Instructions
4. OPERATING INSTRUCTIONS 4.1. General Notes The Square fireplace has a control valve with a built-in ignition for the main burner (without pilot flame). The flame height of the main burner may be appropriately regulated with by turning the knob. Next to the knob is placed elective ignition button (powered by AAA battery). -
Page 12: Regulation Of The Flame Size
• A spark will appear which ignites the main burner on the minimum flame height. If the flame did not ignite repeat this process 2-3 times. This will be required especially when you have replaced and installed a new LPG gas cylinder. -
Page 13: Testing
4.5 Replacing the battery If the battery is inserted incorrectly, the electronic ignitor may be irreparably damaged. Only replace the battery when the appliance has been completely switched off. The battery is placed in the container located on the control pane next to the flame regulation knob •... -
Page 14: Maintenance And Upkeep
6. MAINTENANCE AND UPKEEP 6.1. Testing and cleaning Please check and clean if necessary: • The main burner - if necessary, remove broken parts of stones and the existing dust. • Thermo-couple (if necessary, remove the existing sediment). In the event of visible damage contact your dealer. -
Page 15: Manufacturer's Contact Details
8. MANUFACTURER’S CONTACT DETAILS Company Name: Planika Sp. z o.o. Address: Bydgoskich Przemysłowców 10 Telephone: + 48 52 364 11 60 TECHNICAL SPECIFICATION Applianace Category I3B/P Reference gas Inlet pressure [mbar] 28-30 Injector diamater [mm] Gas consumption [kg/h] 0.55 0,65...
