- Page 1 Installation manual...

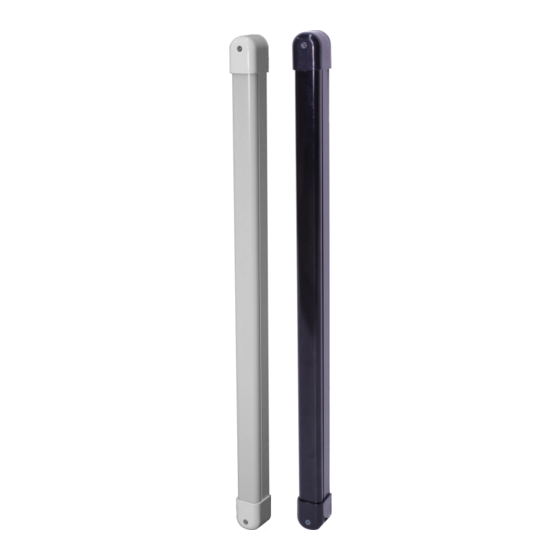

- Page 2 SADRIN barrier is designed to be immune to any disturb given by cell phones used in proximity of it, not generating false alarms and maintaining its operating characteristics. SADRIN is protected by blinding sunlight up to 300,000 lux, and at any case it is suggested to check solar rotation in horizon to avoid direct sunlight.
- Page 3 3. Insert square gasket in base cap; 4. Insert the cable gland gasket into groove; 5. Cut cable gland gasket at desired diameter; 6. Insert base cap in aluminum profile, paying attention that gasket is attached to metal; Politec S.r.l. | Manual SADRIN – Ver. 3.3...
- Page 4 7. Open holes present on base cap and/or on cover, to allow cable insertion from outside barrier; BUILT-IN CABLE PASSAGE Round grooves on base cap for cable passage VISIBLE CABLE PASSAGE Grooves on base cap walls for cables passage Grooves on cover cap walls for cables passage Politec S.r.l. | Manual SADRIN – Ver. 3.3...
- Page 5 9. Fix to wall all structure (it is possible to adjust position of column, horizontally and vertically, through slots on base caps) Adjustment slots 10. After installation and alignment, hang IR profile to aluminum and close top caps with the supplied screws. Politec S.r.l. | Manual SADRIN – Ver. 3.3...
-
Page 6: Installation
(time delay 500 msec) FAST : single-beam detection (with faster time delay 100 msec) Board fixing screw LED SYNC : indicates the operation of the synchronism Make sure that expansions are properly connected (OUT>IN). Politec S.r.l. | Manual SADRIN – Ver. 3.3... - Page 7 After programming, if desired, is possible to turn off LED ALARM on mother boards by a jumper. Close barriers hanging plastic IR profile on aluminum and closing the top caps. LED ALARM ON LED ALARM OFF Politec S.r.l. | Manual SADRIN – Ver. 3.3...
- Page 8 Use screened cables for connection, linking screen to negative of supply -12VDC (GND) on terminal block. In addition to ordinary supply cables, tamper and alarm relay, you MUST connect transmitter side to receiver SADRIN TX - SADRIN RX with a two-wire for the synchronization (+sync TX to + SincRX) (-sync TX to, - sync RX).
-
Page 9: Technical Features
Alarm output Free contact relay (on RX side) Tamper output On both columns Protection degree IP54 Dimensions 25mm x 22 mm from 500 to 4000mm Weight per column 250g 500g 750g 1000g Politec S.r.l. | Manual SADRIN – Ver. 3.3... - Page 10 Install columns in “stellar” configuration avoiding “cascade” one; Use where possible a “linear” power supply, avoiding switching one; For installation distance under 1,5m remove lenses to get a more accurate signal. Politec S.r.l. | Manual SADRIN – Ver. 3.3...
- Page 11 Politec S.r.l. | Manual SADRIN – Ver. 3.3...
- Page 12 Politec S.r.l. | Manual SADRIN – Ver. 3.3...
