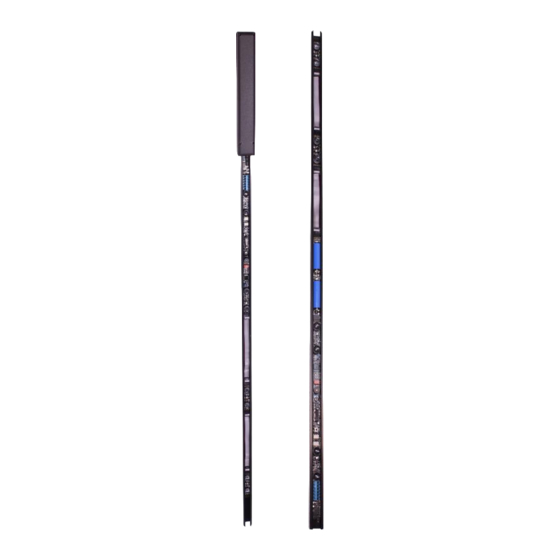

- Page 1 PRODUCT Sadrin WS Product code Sadrin WSI SMA Sadrin WSE SMA SADRIN WS SMA Self-powered Wireless Mini-barrier INSTALLATION AND MOUNTING MANUAL VERSION 2.1...
-
Page 2: Table Of Contents
8.1 Type of cable 8.2 Connections 8.3 Expansion board wiring 9.Programming and commissioning …………………………………………………………………..………..…………….… 13 9.1 Powering the barriers 9.2 Checking alignment and operation 10.Configuration…………………………………………..…………….………………………………………………………….…..14 11.Technical specifications…………………………………………………………………………………….…………………………14 12.FAQ………………………………………………………………….……………………………………………..…………………………..15 13.Product disposal…………………………………………………………….……………………………....………….……15 SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1... -
Page 3: Introduction
The system has been designed to detect intrusions and activate the alarm; it is not a device that prevents intrusion.Politec is not responsible for damage, injury or loss caused by accidents, theft, force majeure (including momentary lightning-induced overcurrent), abuse, improper or incorrect use, faulty installation or inadequate maintenance. -
Page 4: General Warnings
• Manufacturer's liability:Politec assumes no liability for failures resulting from incorrect installation; lack of maintenance, incorrect assembly or use. • Politec is also not liable for incorrect or incomplete operation of the product or failure to detect intrusion. •... -
Page 5: List Of Main Components
IP Optic rating for it to stay outdoors. CPU WS TX/RX motherboard Batteries Flat cable for board connection ESP WS TX/RX expansion board SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1... -
Page 6: Wse Version
An adequate space is also available to house the majority of radio Black polycarbonate cover transmitters on the market. Flat cable for board connection CPU WS TX/RX motherboard ESP WS TX/RX expansion board Standard cap SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1... -
Page 7: Preparation For Installation
• Check that the surface chosen for the installation of the product is sturdy so as to ensure stable fixing and that it is adequately protected against possible impacts or the elements. SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1... -
Page 8: Mounting/Fixing Instructions
Make a hole in the concentric gasket, of the lower or upper cap, so that the conical wall exerts a sealing pressure on the sheath of the connection cable that will pass inside it. • Insert the cap into the aluminium profile until the gasket matches the metal. SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1... - Page 9 Open the special grooves on the cap and on the cover to allow the cable to pass from outside the barrier. RECESSED CABLE Round grooves ROUTING on the bottom for cable routing EXPOSED CABLE ROUTING Grooves on the walls for cable routing Grooves on the cover walls for cable routing SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1...
- Page 10 However, it is possible to move the box from the column, for example it can be put inside the shutter box and arrange the height of the columns in full view for aesthetic reasons, taking care to extend all the connections inside and close the columns with the top cap. SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1...
-
Page 11: Batteries
N.B.:The barrier is capable of operating with power up to 2.8V; if the voltage on the battery measured under load is <3.4V, it means that the lithium battery is almost flat. SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1... -
Page 12: Wiring
The tamper output in the terminal board is closed if both columns have their own microswitches closed. The tamper opening information of the transmitter column is sent optically to the receiver column after 40 ''; as well as low battery information. SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1... -
Page 13: Expansion Board Wiring
At the end of this phase, the BLUE TEST LED will light up and the RED LED will flash until the TEST DIP 1 on the TX motherboard is set to OFF. SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1... -
Page 14: Configuration
Dimensions with caps WxD 29.5mm x 26.6 Box dimensions (WSE) 40mm x 39mm x 225mm (H to be added) Usable space x TX (WSE) 35mm x 35mm x 100mm Warranty 2 years SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1... -
Page 15: Faq
Warning!- Local regulations can impose heavy penalties for incorrect disposal of these products. SADRIN WS SMA POLITEC | INSTALLATION MANUAL - VER.2.1... - Page 16 For technical support, contact your security systems distributor POLITEC | INSTALLATION MANUAL - VER.2.1...
