AJAX WallSwitch Manual

1. PURPOSE

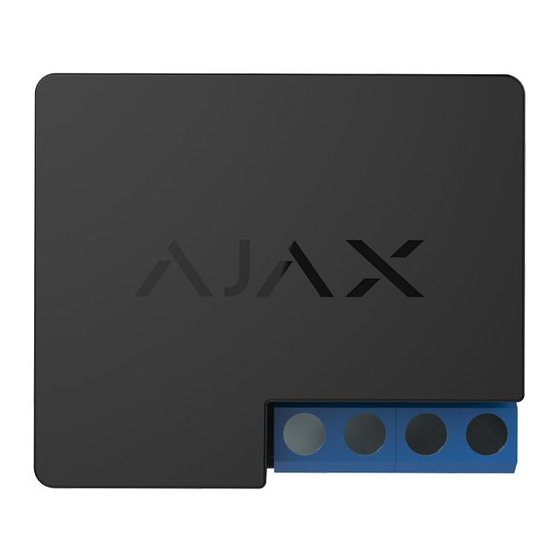

WallSwitch remote controller is used to switch on and off appliances maximum power of
less than 3 kW. Wallswitch housing is designed for installation in a standard european wall
mounted junction box. The switch operates as a part of Ajax system.
IMPORTANT!
The switch works only with the Ajax Hub.

2. SPECIFICATIONS

SPECIFICATION
Use
Actuator
Relay service life
Power supply voltage
Voltage protection for 230 V electrical
network
Voltage protection for 110 V electrical
network
Load maximum current
Maximum current protection
Allowed power (resistive load at 230 V):
Allowed power (resistive load at 110 V):
Electric meter option
Monitoring of power consumption param-
eters
Allowed operating ambient temperature
Maximum temperature protection
Communication protocol
Radio signal power
Command response time
Maximum distance between detector and
Hub
Power consumption in standby mode
Ingress protection
Operating humidity
Dimensions
Dimenstions for mounting in the wall plate
Weight
IMPORTANT!
In case of inductive or capacitive load use the output permissible power is lowered to
2 kW!
WallSwitch
MEANING
Indoor
Relay
200 000 switchings
110-240 V AC±10% 50/60 Hz
Max 264 V, min 161 V
Max 126 V, min 77 V
13 А
Yes (13 А)
Up to 3 kW
Up to 1.5 kW
Yes (statistics available)
Yes (current, voltage, power consump-
tion)
From 0°С (+32°F) to +64°С (+147.2°F)
Yes (65°С (+149°F) inside the wall box)
Jeweller (868 or 915 MHz depending on
the country of distribution)
25 mW
Less than a second
Up to 1000 m (3300 ft) (in open area)
Less than 1 W
IP20
Less than 75%
38х25х18 mm (1.49x0.98x0.70 in)
Ø ≥ 50 mm (1.97 in), depth 55 mm
(2.17 in)
32 g

3. PACKAGE CONTENTS

WallSwitch switch, 2 connecting wires, manual.
IMPORTANT!
Comply with safety standards when operating electrical appliances! All switch installation
works should be performed only by a qualified electrician. To avoid the risk of electric
shock during installation, disconnect the electrical network leading to the plug-switch
prior to installation, make sure that there is no voltage on the wires, having checked it with
a multitester or a multimeter. It is strictly prohibited to disassemble switch under voltage,
even if the relay is switched off! During installing comply with the state requirements and
regulations.

4. GETTING STARTED

4.1 Before switch installing the power must be switched off! Remove the safety device
or switch off automaton which supplies socket with electricity, to which WallSwitch will
be installed!
IMPORTANT!
When mounting WallSwitch into wall mounted junction box place it's antenna as far as
possible from the metal objects (wires, fasteners, etc.). It is recommended to install
antenna under the external plastic decorative panel. Do not shorten or cut the antenna
in any case.
Do not use WallSwitch with a damaged body and/or antenna, it may cause a short circuit
or an electric shock!
4.2 Connect WallSwitch as in diagram (PICTURE 1).
AJAX
L N
PICTURE 1. Wiring diagram of
WallSwitch switch
IMPORTANT!
Do not connect to WallSwitch load more than 3 kW. When connecting the load, please
carefully learn the wiring diagram (PICTURE 1), as incorrect wiring can cause damage to
the device and / or destruction of property.
PICTURE 2. Recommended WallSwitch antenna
placement (under the front panel)
