Summary of Contents for Mahindra 700676

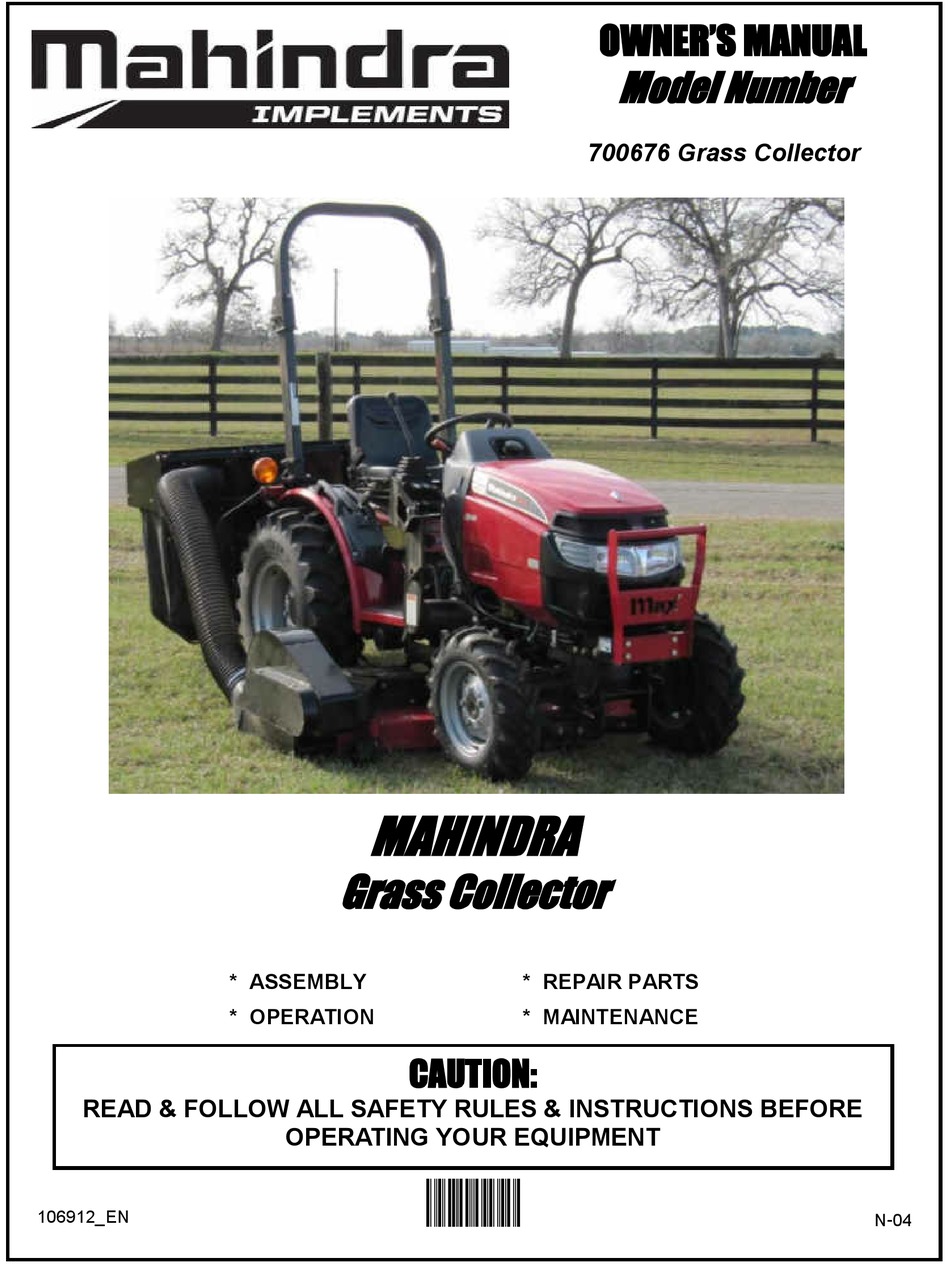

- Page 1 700676 Grass Collector * ASSEMBLY * REPAIR PARTS * OPERATION * MAINTENANCE READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE OPERATING YOUR EQUIPMENT 106912 106912_EN N-04...
- Page 2 Instructions for Obtaining Warranty Services: Contact the Mahindra dealer where equipment was purchased or any other Mahindra service dealer to arrange service at their dealership. To locate a dealer convenient to you, access our website at Don't forget to bring your proof of purchase (sales receipt) to the Mahindra dealer.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE INTRODUCTION ..............................SAFETY PRECAUTIONS ............................SAFETY DECALS ..............................ASSEMBLY Tools required ............................... Step 1 Preparing the grass collector ......................Step 2 Installing the accessories ........................ OPERATION Operating the grass collector ........................MAINTENANCE Lubrication ..............................Replacing the belt ............................DISMOUNTING AND STORAGE .......................... -
Page 4: Introduction
INTRODUCTION TO THE PURCHASER This new accessory was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but are intended for reference only and are based on the latest product information available at the time of publication. -
Page 7: Safety Decals
SAFETY DECALS REPLACE IF DECALS ARE DAMAGED SEE PARTS BREAKDOWN FOR DECAL LOCATION Symbol Description Decal #105127 To avoid serious injury: Keep hands out of this discharge chute while the vehicle's engine is running. Decal #105128 To avoid serious injury: Keep hands, feet &... -
Page 8: Assembly
Rubber seal Belt guard Flexible tube Frame Chute Note : This grass collector was designed to be used on a standard category 1 three-point hitch or the Mahindra Express hitch. TOOLS REQUIRED: Ratchet Socket: 7/16’’, 1/2’’, 5/8’’ Wrench: 7/16’’, 5/8’’, 1 1/4”... -
Page 9: Step 1 Preparing The Grass Collector
ASSEMBLY STEP 1 PREPARING THE GRASS COLLECTOR THE BLOWER: Install the chute (item 1) on the blower (item 2), as shown, with four carriage bolts 5/16’’ x 3/4’’ (item 3), four flat washer 7/16’’ (item 4) (between blower and chute), four flat washer 3/8’’ (item 5) and four nylon- insert lock nut 5/16’’... -
Page 10: Step 2 Installing The Accessories
With the Without the The length of the tube has to be adjusted according Express hitch Express hitch to the tractor model and the use of a Mahindra Express hitch or not. Max 22 et 25 71’’ 69’’ Max 28 XL 72’’... - Page 11 ASSEMBLY THE BAG SUPPORT Attach the bag support on the tractor’s 3 point hitch. Remove the sleeve (item 1) from the upper pin if installed on a conventional 3 point hitch. If it is installed on the Express hitch, leave the sleeve in place. CAUTION: To avoid damage to the vehicle or to the accessory, once the frame is installed and secured on the vehicle hitch, place the parking stands (item 2) in...
-
Page 12: Operation
OPERATION WARNING DANGER Read the tractor’s owner’s manual carefully. Be -Do not try to unblock the fan or the chute when thoroughly familiar with the controls & proper the vehicle's engine is in operation. use of the accessory. Know how to stop the -Disengage the P.T.O. -
Page 13: Maintenance
MAINTENANCE LUBRICATION CAUTION Always clean the grease fitting before inserting any grease. TO AVOID INJURIES: Lubricate the tensioner’s pivot every 50 hours of use Stop the vehicle's engine. with an all purpose SAE lithium based grease. Apply the parking brakes. Lubricate all the other pivoting points. -
Page 14: Dismounting And Storage
DISMOUNTING & STORAGE WARNING CAUTION Remove grass and leaves from the grass TO PREVENT INJURIES: collector after each use to eliminate the risk of Park the vehicle on a flat surface in a well spontaneous combustion. ventilated area. Disengage the PTO. Apply parking brake. -
Page 15: Troubleshooting
TROUBLESHOOTING * Please refer to parts breakdown section for parts identification PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Blower vibrates or is Damaged pulley Replace pulley abnormally noisy . Damaged bearing Replace the bearing Fan is damaged Remove and straighten or replace the fan. Belt is damaged Replace the belt. -
Page 16: Grass Collector
PARTS BREAKDOWN GRASS COLLECTOR... - Page 17 PARTS LIST GRASS COLLECTOR Ref. Qty. Part # English description Description française Réf. Qté. Pièce # Frame with safety decals Châssis avec décalques de sécurité 106893 Blower hitch Attache de la souffleuse 106872 Éventail 106873 Tensioner Tensionneur 106874 Belt guard with safety decal Garde-courroie avec décalque de sécurité...
- Page 18 PARTS LIST GRASS COLLECTOR Ref. Qty. Part # English description Description française Réf. Qté. Pièce # Nylon Insert lock Nut 3/8" n.c. Écrou à garniture de nylon 3/8" n.c. Nylon insert lock nut 5/16" n.c. (thin) Écrou à garniture de nylon 5/16" n.c. (mince) Flat washer #10 hole Rondelle plate #10 trou Flat washer 1/4"...
- Page 19 PARTS BREAKDOWN GRASS COLLECTOR...
- Page 20 PARTS LIST GRASS COLLECTOR Ref. Qty. Part # English description Description française Réf. Qté. Pièce # Frame Châssis 106889 Cover frame Châssis du couvercle 106890 Cover with safety decal Couvercle avec décalque de sécurité 106910 Retaining strip Bande de rétention 106888 Rubber seal Join d'étanchéité...
- Page 21 Description française Réf. Qté. Pièce # Flat washer 5/16" hole Rondelle plate 5/16" trou Pop-rivet 3/16" no AD-66BS Rivet pop 3/16 no.AD-66BS Mahindra decal Décalque Mahindra 106379 Caution decal projection Décalque attention projection 106859 Serial number Numéro de série Made in Canada decal Décalque Fabriqué...
-
Page 22: Torque Specification Table
TORQUE SPECIFICATION TABLE GENERAL TORQUE SPECIFICATION TABLE USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used. This applies to both UNF and UNC threads. -
Page 23: Options & Accessories
Mahindra 30-3616 deck adaptor #700677 adaptor #700678 adaptor #700679 adaptor #700680 Adaptor for grass collector #700676. Adaptor for grass collector #700676. Adaptor for grass collector #700676. Adaptor for grass collector #700676. Allows installation on deck mower Allows installation on deck mower...
