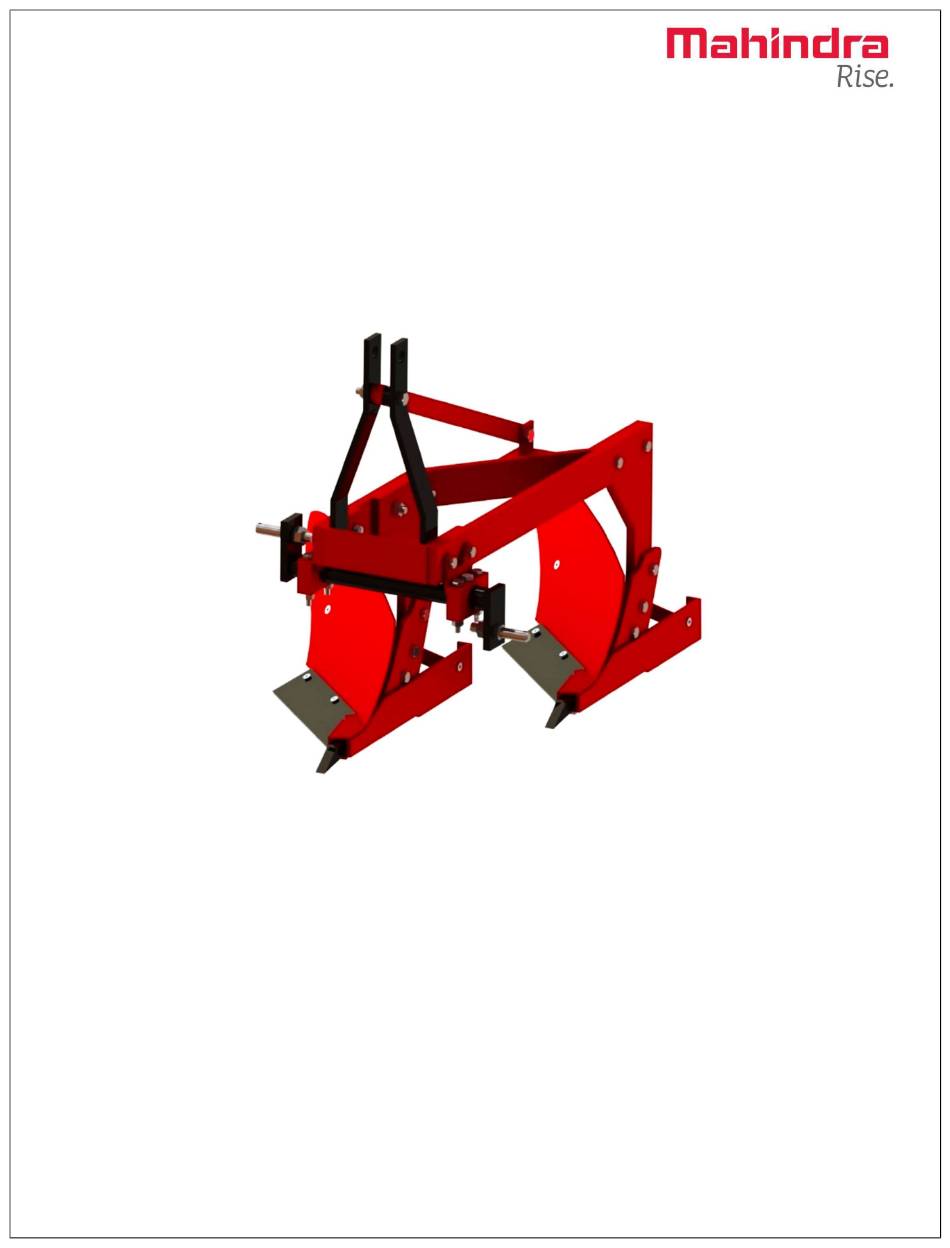

- Page 1 MAHINDRA APPLITRAC MAHINDRA MB Plough Part Catalogue -Cum- Service Manual Mahindra & Mahindra Ltd, Farm Equipment Sector, AppliTrac Department SAS Nagar, Mohali (Punjab) 140307. India...
- Page 2 MAHINDRA APPLITRAC Introduction A Message to Our Customers We appreciate the confidence placed in us by your purchase of this machine. Before this machine was brought to market, countless hours were spent designing and testing to ensure that its performance would be at the highest level. To achieve maximum performance, it is imperative this machine be operated in accordance with the procedures outlined in this manual.
- Page 3 MAHINDRA APPLITRAC INSTRUCTIONS Instructions to use the implement To check the fastener are properly inspected and properly tight according to suitable torque. Draft control used suitable HP tractor for operation and during taking turn always lift implement. Proper use of tractors DC & PC lever.
- Page 4 MAHINDRA APPLITRAC PRECAUTIONS Keep all safety shields in place and in good repair. Rotating shafts cause severe injury in a matter of seconds by entangling loose or dangling clothing. Keep a safe distance from all cutting or moving parts. Do not allow anyone to lean, push or stand on diggers to aid in penetration.
- Page 5 MAHINDRA APPLITRAC PREPARATION ON TRACTOR 2.1 Fuel and Lubrication Fuel oil should be checked in the fuel tank. If it is not adequate, fuel oil should be added to the tank. Transmission oil should and Lubricating oil should be checked by a dipstick and if necessary it should be topped up.
- Page 6 MAHINDRA APPLITRAC 2.6 Top Link Where there are alternative fitting positions at the tractor for the top link, fit the top link tractor-sided as high as possible. 2.7 Chain and stabilizer of the three-way linkage The chain or stabilizers must be adjusted so that they ensure adequate lateral moments at the lower link of the tractors during work ...
- Page 7 Lift the plow while turning the tractor and engage again once the turn is completed. Do not make sharp turns or attempt to back up while MB Plough is in the ground. Periodically check the weeds or soil or trash is blocked in between the scrapers and remove them after stopping the tractor and removing ignition key.
- Page 8 Always lower the implement to ground level before stopping the tractor. Do not use Draft control lever to lift implement to its uppermost position. Adjustments for MB Plough Adjusting the Width of Cut This adjustment should be used for increasing or decreasing the width of cut.
- Page 9 MAHINDRA APPLITRAC Adjustments for deeper ploughing: The depth of the plough can be obtained by the position and draft control levers of the tractor hydraulic system. However more depth can be obtained by: a. Adding extra weight to the plough.
-
Page 10: Lubrication And Maintenance Chart
MAHINDRA APPLITRAC Lubrication and Maintenance Chart MAINTENANCE INSTRUCTIONS If you work the M.B. Plough on stony land then maintenance also increases. Please follow these rules to get the best results: 1. If M.B. plough is new then after first two hours of working tightened all nut bolts. - Page 11 MAHINDRA APPLITRAC Lubrication and Maintenance Torque chart...
- Page 12 MAHINDRA APPLITRAC...
- Page 13 MAHINDRA APPLITRAC Assembly...
-
Page 14: Final Assembly
MAHINDRA APPLITRAC Final Assembly... -
Page 15: Troubleshooting
MAHINDRA APPLITRAC Trouble Shooting Description Cases Remedies Fastener Due to improper Daily all bolt are properly fastenings of bolt, MB inspected & properly tight Plough not work according to suitable properly during field torque. work & some time lot of vibration happened during working in field. - Page 16 MAHINDRA APPLITRAC PART CATALOGE SR.NO. DISCRIPTION Part Number FRONT FLAT U BKT MBPL0001 FRONT TYNE MBPL0002 REAR TYNE MBPL0003 Z FLAT WITH MBPL0004 3 POINT LINK MBPL0005 BOTTOM ASEEMBLY FRONT MBPL0006 BOTTOM ASEEMBLY REAR MBPL0007 POINT BAR MBPL0008 CROSS SHAFT...
