Summary of Contents for Clarion FX109
- Page 1 FX109 User's Manual Bluetooth USB/MP3/WMA RECEIVER...
-
Page 2: Table Of Contents
CONTENTS 1. FUNCTIONS......................3 Functions of the Buttons on the Head Unit............3 Home Screen Descriptions..................3 GETTING STARTED ...................4 LISTENING TO THE RADIO ................5 USB PLAYBACK ....................6 USB PLAYBACK....................7 5. BLUETOOTH......................8 6. BLUETOOTH PHONE..................9 7. 24BIT DSP AUDIO OPERATION..............10 24BIT DSP AUDIO OPERATION..............11 8. -
Page 3: Functions

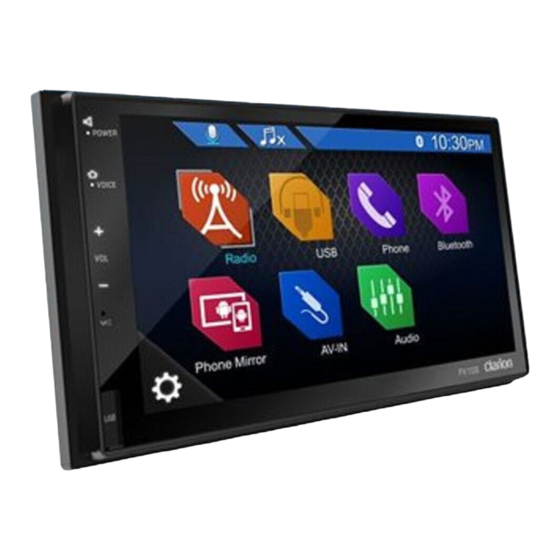

1. FUNCTIONS Functions of the Buttons on the Head Unit Power Hold: Mute Press: Voice Assistant Hold: Home Press: Volume Up/Down Microphone USB Jack Home Screen Descriptions Bluetooth Phone USB Playback Bluetooth Tuner Radio Audio Phone Mirroring Setting Menu AV IN Audio Setting... -
Page 4: Getting Started
2. GETTING STARTED Press the [ ] button on front panel to Press the [ ] button on the front panel turn on the unit. to mute or restore volume. Tap [ Press the [ ] buttons on the front panel to Tap the corresponding key and set the value. -
Page 5: Listening To The Radio
3. LISTENING TO THE RADIO Radio Setup Tap on [ ] button to access the Radio Setup Menu. Selecting The Radio Band Tap on buttons to select one radio band among FM/AM. Auto Store Automatically searches and stores the Auto Seek 6 stations with the strongest signals for Tap on [ ] buttons to automatically... -
Page 6: Usb Playback
4. USB PLAYBACK Alblum Art Wallpaper You can set the Album Art to the background image. Tap [ON] or [OFF] to enable/disable this function. Play / Pause Tap on buttons to Play or Pause audio playback. Selecting a Track 1. Tap on buttons to move to the beginning of the previous/next track. -
Page 7: Usb Playback
4. USB PLAYBACK Selecting a Track In a List Tap on [ ] button to display the Playback List. Select whether you search by audio files [ ] / video files [ Tap [ ] to moves to the upper hierarchy Touch the desired folder. -
Page 8: Bluetooth
5. BLUETOOTH Alblum Art Wallpaper You can set the Album Art to the background image. Tap [ON] or [OFF] to enable/disable this function. Play / Pause Tap on buttons to Play or Pause audio playback. Selecting a Track 1. Tap on buttons to move to the beginning of the previous/next track. -
Page 9: Bluetooth Phone
6. BLUETOOTH PHONE Making a Call Voice Assistant You can access the voice recognition function of the phone connected to this Car AV System. 0123456789 Enter a phone number with number keys. Tap [ ] to make a call • : To delete the last entry •... -
Page 10: Bit Dsp Audio Operation
7. 24BIT DSP AUDIO OPERATION Cross Over to access into the Audio Settings Mode adjustthe various settings. to set the virtual tweeter Front Speaker when you are selecting front speakers. to switch Front/Rear Rear Speaker 13 Band Equalizer high pass filter function to switch Subwoofer Subwoofer low pass filter transfer function... -
Page 11: 24Bit Dsp Audio Operation
7. 24BIT DSP AUDIO OPERATION Music Zone Select the preset listening zone to fit with prefect listening position Bass Boost [Bass Boost]: Set the amount of bass boost [Loudness]: Set the amount of boost of low and high tones... -
Page 12: Wiring Diagram
8. WIRING DIAGRAM Reverse Wire Brake Switch Parking Wire Ground External Microphone SWC Key 1 Steering SWC Key 2 Wheel SWC Ground Subwoofer IR SWC IN Steering OE adaptor Wheel (Not Include) Dash DVR Remote FM/AM Antenna 1 3 5 7 Connector B 2 4 6 8 1 3 5 7... -
Page 13: Specification
9. SPECIFICATIONS Monitor section Audio section Screen Size 6.8 Inches Maximum Power 5 Wx4 Display Resolution 800x480 dots Continuous Power 22Wx4 Contrast Ratio Output (RMS) Preout Level V ( ) 2V/10kΩ Preout Impedance 1.3kΩ USB interface section Speaker Impedance 4-8 Ω USB Standard USB 2.0 Full Speed Output Frequency... - Page 14 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 15 Clarion Co., Ltd. Copyright © 2020 Clarion Co., Ltd. Printed in China 03/2020 FX109...
