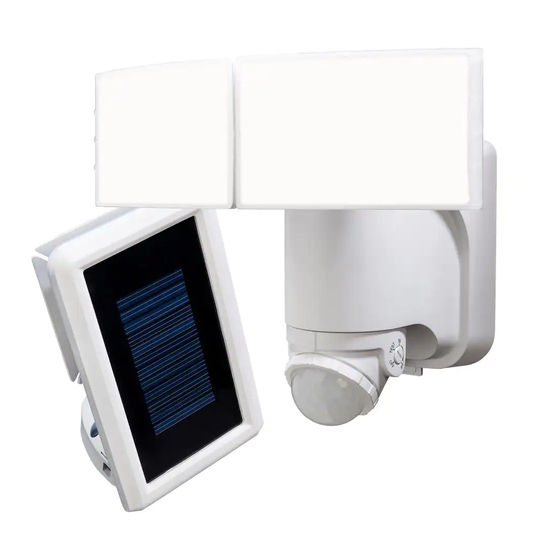

Defiant DFI-7005-WH-G Quick Start Manual

The solar panel requires full, direct sunlight to charge the battery. Clouds, rain, snow, and other weather conditions may not allow
the solar panel to completely recharge the battery. Other obstructions such as buildings or trees may block the sun as well.
When installing the solar panel, make sure it is aimed toward the sun with a minimum amount of obstructions. If possible,
mount the panel facing toward the southern sky.
Refer to the included full instruction manual "Use and Care Guide" for installation, safety, and additional information.

Operation

1

Setting the sensor for wall or eave mounting

□ For wall mounting, turn the ring around the sensor
clockwise until the "W" and the single indicator are
aligned with the mark on the front of the sensor.
□ For eave mounting, turn the ring around the sensor
counterclockwise until the "E" and the double
indicator are aligned with the mark on the front of the
sensor.
2

Activating the rechargeable battery

The light fixture has an ON/OFF switch located on the back
of the light to disconnect the battery during shipping.
□ Press the "I" indicator on the switch to activate the
rechargeable battery.
3

Adjusting the light timer

□ OFF – turns light off.
□ TEST – light operates day or night for 5 seconds after
all motion has stopped. Used for setup.
□ 5S - 60S – motion activated. Light can be set to
stay on between 5 seconds and 60 seconds after all
motion has stopped.
4

Adjusting the lamp heads

The lamp heads may be adjusted left or right and up and
down.
HOMEDEPOT.com
Quick Start Guide
MOTION SOLAR SECURITY LIGHT
W
W
Wall Mount
W
5

Connecting the solar panel to the light fixture

□ Adjust solar panel toward the sun for maximum sun
exposure.
□ Plug solar panel connector into light fixture connector.
Please contact 1-866-308-3976 for further assistance.
Item # 1005414982
Model # DFI-7005-WH-G
E
W
Eave Mount
O
I
