Refer to the included full instruction manual "Use and Care Guide" for installation, safety, and additional information.

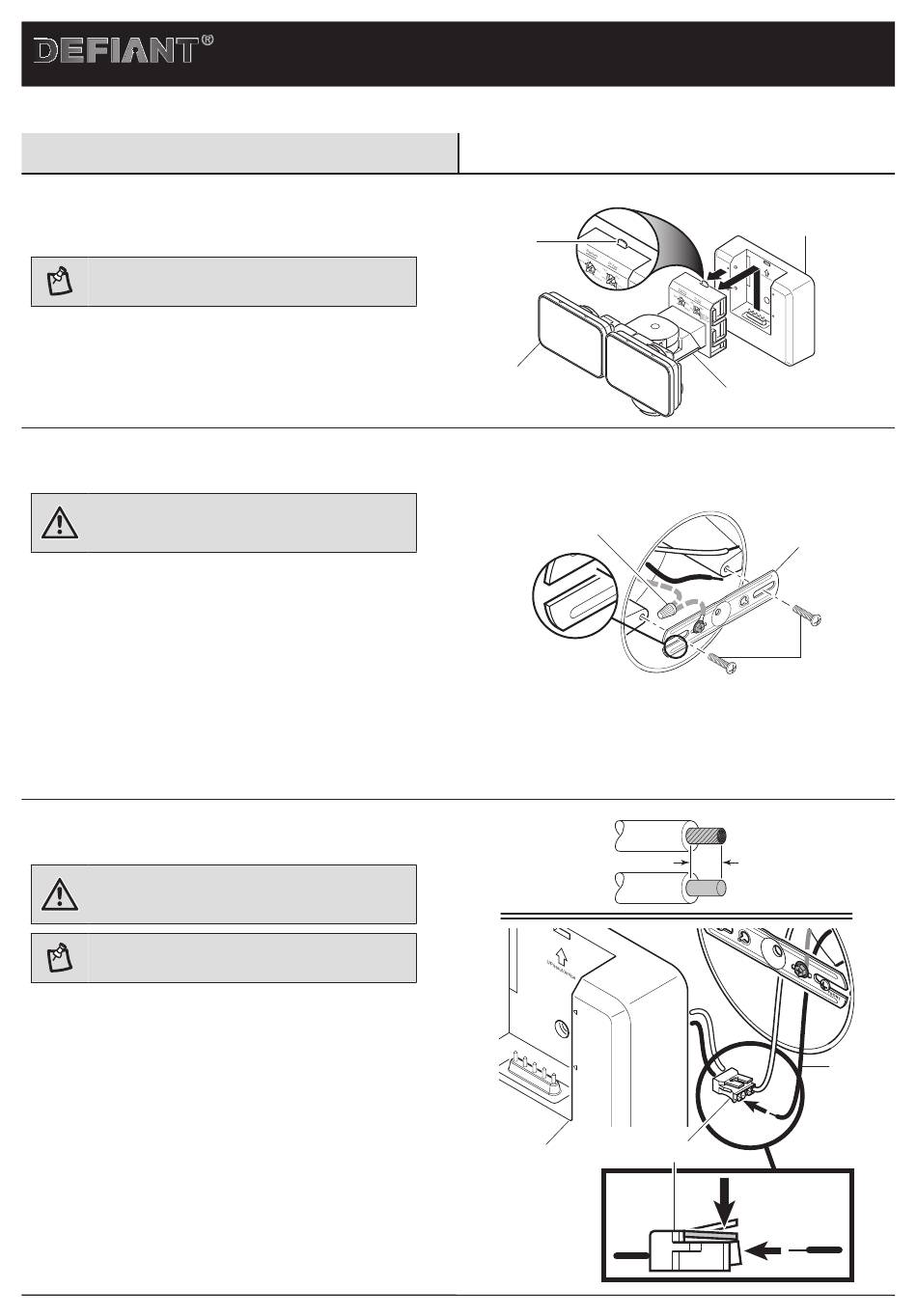

Installation
1
Removing the mounting base
NOTE: This fixture comes with a mounting base. It is
pre-assembled on the light fixture for shipping.
□
Press the tab (1) on the top of the fixture toward the
lamp heads (A).
□
Slide the light fixture (B) up and out of the mounting
base (D).
2
Installing the mounting bracket
WARNING: Turn the power off at the circuit breaker or
fuse. Place tape over the circuit breaker switch and verify
power is off at the light fixture.
□
Remove the existing light fixture.
□
Connect the ground wire on the mounting
bracket (EE) to the house ground wire using a wire
connector (AA).
□
Install the mounting bracket (EE) with the stamped
word "FRONT" facing away from the junction box.
Use the mounting bracket screws (BB or CC) that
best fit the junction box. If necessary, use the
screws that were removed from the existing light
fixture.
3
Wiring the mounting base
WARNING: Turn the power off at the circuit breaker or
fuse. Place tape over the circuit breaker switch and verify
power is off at the light fixture.
NOTE: If necessary, strip 3/8 in. of insulation from
junction box wires.
□
Hold down the "paddle" on the top of the pre-
installed quick connect (2) located on the back of
the mounting base (D).
□
Insert the junction box wires (3) into the quick
connect (2). Ensure the white (N – Neutral) wire is
across from the pre-installed white wire and the
black (L – Line) wire is across from the pre-installed
black wire.
□
Release the "paddle" and gently tug on the wires (2)
to ensure that they are securely connected.
HOMEDEPOT.com
Quick Start Guide

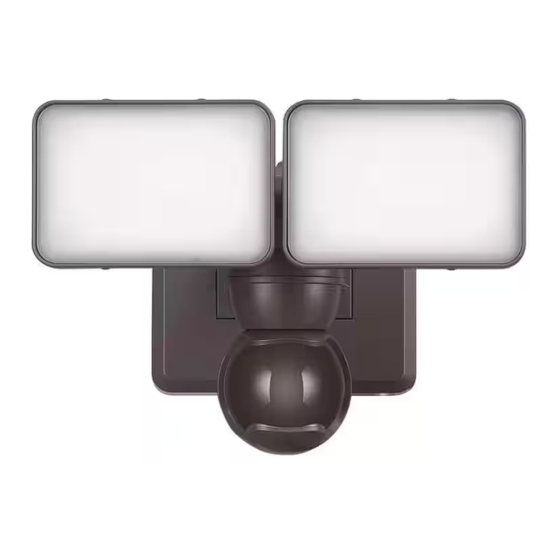

MOTION SECURITY LIGHT
□
1
A
Firmly pull on the mounting bracket (EE) to verify it
is securely mounted to the junction box.
AA
T
O N
F R
O N
F R
2
D
Please contact 1-866-308-3976 for further assistance.
Item #
1007129399
1007129810
Model # DFI-8852-BZ-G
DFI-8852-WH-G
D
B
EE
T
BB or CC
3/8"
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Defiant DFI-8852-BZ-G
Summary of Contents for Defiant DFI-8852-BZ-G
- Page 1 Quick Start Guide Item # 1007129399 1007129810 MOTION SECURITY LIGHT Model # DFI-8852-BZ-G DFI-8852-WH-G Refer to the included full instruction manual “Use and Care Guide” for installation, safety, and additional information. Installation Removing the mounting base NOTE: This fixture comes with a mounting base. It is pre-assembled on the light fixture for shipping.
- Page 2 Installation (continued) Installing the mounting base □ Place the mounting base (D) against the junction box. Ensure the wires are pushed up into the junction box. □ When mounting to a wall, the “UP” arrow must point upward. □ When mounting to an eave, the “UP” arrow must point toward the building.
- Page 3 Installation (continued) 180° Eave Mount IMPORTANT: The light fixture and control module will only rotate one direction. Do NOT FORCE the control module if it does not turn. NOTICE: The light fixture must fully snap into place for the light to operate properly.
- Page 4 Operation Adjusting the lamp heads WARNING: Risk of fire. Keep the lamp heads at least 2 in. (51 mm) from combustible materials. CAUTION: Keep lamp heads 30° below horizontal to avoid water damage and electrical shock. □ Ensure the power is turned on for the light (B). □...
- Page 5 Operation (continued) □ If needed, gently grasp the motion sensor (C) and Adjusting the motion sensor detection zone move it from side to side or up and down to adjust □ the detection zone. Perform a “walk test”: walk in an arc across the front of the motion sensor (C).
- Page 6 Troubleshooting Problem Possible Cause Solution □ □ The light will not come The light fixture is not properly attached to the Re-install the light fixture to the mounting base, if this is a new installation. base. □ □ Daylight turn-off (photocell) is in effect. Recheck after dark.
