KMART 42333753 Owner's Manual

30cm girls star the unicorn bike
Hide thumbs

Advertisement

Quick Links

Download this manual
Item No.:
42333753
Item Name:
30CM GIRLS STAR THE UNICORN BIKE

Advertisement

loading
Need help?

Need help?

Do you have a question about the 42333753 and is the answer not in the manual?

Questions and answers

Related Manuals for KMART 42333753

Summary of Contents for KMART 42333753

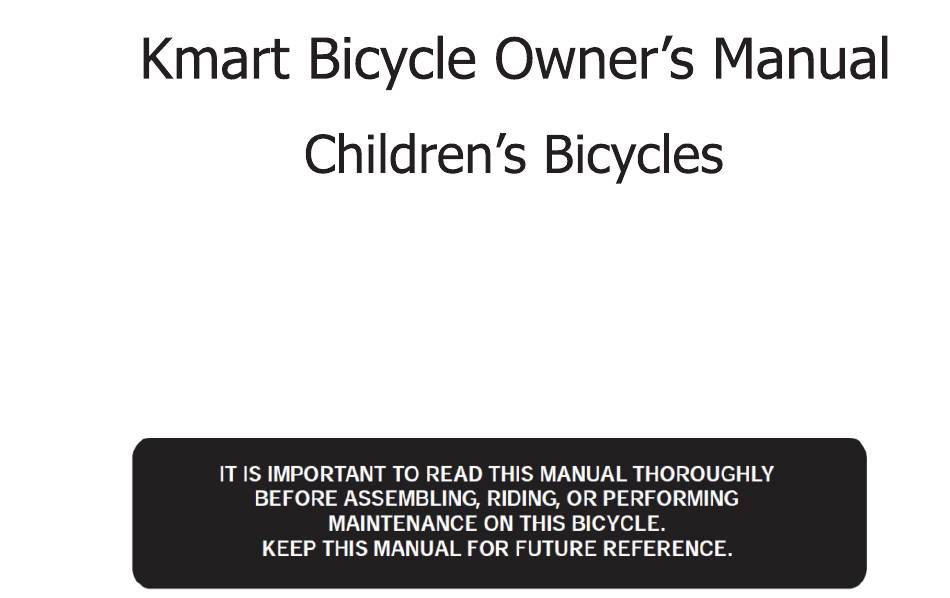

  • Page 1 Item No.: 42333753 Item Name: 30CM GIRLS STAR THE UNICORN BIKE...

  • Page 3: Parts Identification

    Contents Parts identification Safety precautions Check list Assembly Adjustment Repair and Service Warranty...
  • Page 4 28 push bar 9 bell 24 crash pad 8 grip 26 basket 25 streamer 19 saddle 7 stem 6 handle bar 1 head tube 5 head set 20 seat post 2 top tube 27 wheel cover 21 qucik release 14 tyre 4 fork 3 down tube 18 spoke...
  • Page 6 Always ensure that appropriate footwear is worn whilst riding this bike. If there is front brake,apply the rear brake first, and then apply the front brake. The front brake is strong and if not used correctly you may lose control and fall.
  • Page 9 Tighten them so they do not move and are horizontal. Check the handlebar is in good condition and the ends of the handlebar are plugged. Check the bell is fitted and working well. Warning : Handlebar grips and tube end plugs should be replaced if damaged, as bare ends have been know to cause injury. Please check the condition of grips and bar ends before rdie.
  • Page 13 Stem Diagram MINIMUM INSERTION MARK WARNING: do not over tighten the stem bolt. Over tightening the stem bolt can damage the steering and cause loss of control. Make sure the stem is aligned with the front wheel and tighten stem bolt.
  • Page 14 Stem and headset Diagram Handlebar and Stem (continued) Put the handlebar in a comfortable position for the rider WARNING: If the handlebar clamp is mot tight enough, the handlebar can ship in the stem. This can cause loss of the control. Tighten the bolts of the handlebar clamp.
  • Page 15 2. Streamers Assemble a streamer to each grip. Push the arrowhead or the plug of a streamer fully into the end of each grip. 3. Bell The bell is attach to the handlebar. Adjust the bell ring into a comfortable place that is easy to use when riding.
  • Page 16 4. Basket Insert the plastic clips onto the basket, then wrap the clips around the front pad and secure as shown. 5. Push bar Slide the end of the push bar onto the seat post, tighten securely with the collar and nut provided. 6.
  • Page 17 by your dealer before you ride it.

  • Page 19: Tyre Removal

    TYRE REMOVAL FIGURE A Press wih thumbs to separete tyre bead. 1. Let the air out of the tyre by depressing the valve core (the little Continue around entire pin in the centre of the valve stem opening). rim until the bead is completely separated.
  • Page 20 Frequently check the tyre inflation pressure because all tyres lose air slowly over time. For extended storage,keep the weigh of the biycle off the tyres. WARNING: Do not ride or sit on the bicycle if either inner tube is under inflated. This can damage the tyre and inner tube.

  • Page 21: Lubrication/Maintenance

    Inspection of Bearings Maintenance: Frequently check the bearings of the bicycle. Have a bicycle service shop lubricate the bearings once a year or any time they do not pass the following tests. Head Tube Bearings: The fork should turn freely and smoothly at all times. With the front wheel off the ground, you should not be able to move the fork up, down, or side-to-side in the head tube.
  • Page 22 excess Normal Repair Kits Some parts of the bicycle will be easily worn down, Below is the normal repair kits for future use. 1.Spare inner tube ; 2.Patch kits 3.Pump 4.Tire levers It is recommended that significant mechanical repairs should be carried out by a skilled bicycle mechanic.
  • Page 23 WHEELS Wheel inspec on It is most important that wheels are kept in top condi on. Properly maintaining your bicycle’s wheels will help braking performance and stability when riding. Beware of the following poten al problems: Dirty or greasy rims: Cau on: these can render your brakes ine ec ve.
  • Page 25 Australian Consumer Law. Kmart will provide you with your choice of a refund, repair or exchange (where possible) for this product if it becomes defective within the warranty period. Kmart will bear the reasonable expense of claiming the warranty.
