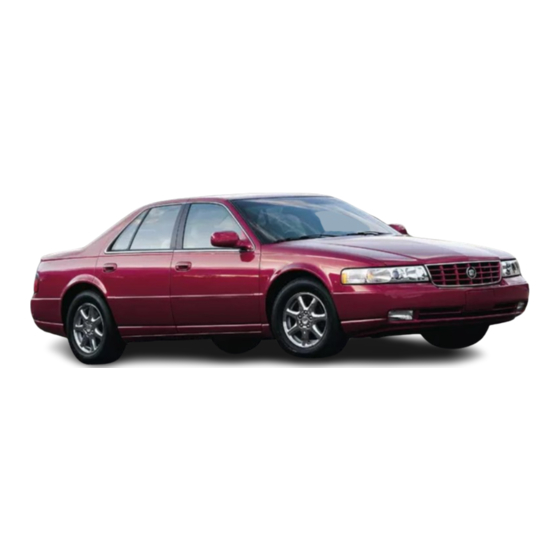

Cadillac 2000 Seville Owner's Manual

Hide thumbs


Quick Links

Table of Contents


Table of Contents

  Related Manuals for Cadillac 2000 Seville

  Summary of Contents for Cadillac 2000 Seville

  • Page 2: Emergency Towing

    Every 2000 Seville under warranty is backed with the following services: Courtesy Transportation Deluxe Trip Routing Bumper-to-Bumper 4-years/50,000 miles (80 000 km) Limited Warranty 1-800-882-1112 1-800-882-1112 that provides in an emergency: Free lockout assistance Free dead-battery assistance Free out-of-fuel assistance...
  • Page 3 2000 Cadillac Seville Owner's Manual Litho in U.S.A. © Copyright General Motors Corporation 1999 Part Number 25695352 A First Edition All Rights Reserved...
  • Page 4: Table Of Contents

    Seats and Seat Controls Section Safety Belts Keys and Door Locks Section Remote Keyless Entry (RKE) System Trunk Release Automatic Transmission Parking Brake Windows Tilt Wheel Turn Signal/Multifunction Lever Windshield Wipers Cruise Control Interior and Exterior Lamps Table of Contents Seats and Restraint Systems Air Bag Systems Child Restraints...
  • Page 5 Heating and Air Conditioning Section Setting the Radio Clock Radio/Cassette Player/CD Player Defensive Driving Section Drunken Driving Control of a Vehicle Braking Hazard Warning Flashers Section Jump Starting Towing Your Vehicle Table of Contents (cont'd) Comfort Controls and Audio Systems Radio Theft-Deterrent Feature Steering Wheel Controls (If Equipped) Your Driving and the Road...
  • Page 6 Fuel Section Checking Fluids and Lubricants GM Oil Life System™ Engine Air Cleaner/Filter Brakes Bulb Replacement Scheduled Maintenance Owner Checks and Services Periodic Maintenance Inspections Table of Contents (cont'd) Service and Appearance Care Windshield Wiper Blade Replacement Tires and Wheels Appearance Care Electrical System/Fuses and Circuit Breakers Capacities and Specifications...
  • Page 7 Customer Satisfaction Procedures Section Customer Assistance Offices Roadside Assistance and Courtesy Transportation In the Index you will find an alphabetical listing of almost every subject in this manual. Section Please refer to the last page of this manual for your Table of Contents (cont'd) Customer Assistance Information Warranty Information (See Warranty Manual)
  • Page 8 GENERAL MOTORS, GM and the GM Emblem, CADILLAC, the CADILLAC Crest & Wreath and the name SEVILLE are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes in the product after that time without further notice.
  • Page 9: How To Use This Manual

    How to Use this Manual Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly.
  • Page 10: Vehicle Damage Warnings

    Vehicle Damage Warnings Also, in this book you will find these notices: NOTICE: These mean there is something that could damage your vehicle. viii In the notice area, we tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly.
  • Page 11: Vehicle Symbols

    Vehicle Symbols These are some of the symbols you may find on your vehicle. For example, These symbols these symbols are important are used on an for you and original battery: your passengers whenever your vehicle is CAUTION driven: POSSIBLE INJURY DOOR LOCK PROTECT...
  • Page 12 Battery a More See Section 6 Detailed Look at What's Under the Hood See Section 6 Hood Release See Section 6 Windshield Washer Fluid See Section 6 Service Station Guide Cooling System Tire Pressure See Section 5 See Section 6 Engine Oil Dipstick Remote Fuel See Section 6...
  • Page 13 Section 1 Seats and Restraint System Here you’ll find information about the seats in your vehicle and how to use your safety belts properly. You can also learn about some things you should not do with air bags and safety belts. Seats and Seat Controls Safety Belts: They’re For Everyone Here are Questions Many People Ask About...
  • Page 14: Section 1 Seats And Seat Controls

    Seats and Seat Controls This section tells you about the power seats adjust them, and also about reclining front seatbacks, lumbar adjustments, heated seats and head restraints. Power Seats The power seat controls are located on the outboard side of the front seat cushions. Move the front of the seat control up or down to adjust the front portion of the cushion.
  • Page 15 Massaging Lumbar (If Equipped) Push or tap the lumbar control, where it is marked AUTO, located on the outboard side of each front seat, up for half a second to activate the massage feature. The massage cycle will run for 10 minutes and can be turned off by pushing the lumbar control down briefly.
  • Page 16 Memory Seat, Mirrors and Steering Wheel (Option) The controls for these features are located on the driver’s door panel, and are used to program and recall memory settings. Adjust the driver’s seat (including the recliner, lumbar, and head restraint adjustments), both the outside mirrors and steering wheel to a comfortable position and then press the MEMORY SET button.
  • Page 17: Reclining Front Seatbacks

    Heated Seats (Option) This option is only available if your vehicle is equipped with the power lumbar control feature. The front seat controls are located in the center console. The rear seat controls are located on the rear door. (Note that only the outboard positions in the rear seats are heated.) Push the button once for a high setting, twice for a...
  • Page 18 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job. In a crash you could go into it, receiving neck or other injuries.
  • Page 19: Safety Belts: They're For Everyone

    Head Restraints The switches to move your head restraints are located on the outboard side of each front seat. Use this switch to move a front head restraint up or down. Lift up on the switch to move the head restraint up.
  • Page 20 CAUTION: Don’t let anyone ride where he or she can’t wear a safety belt properly. If you are in a crash and you’re not wearing a safety belt, your injuries can be much worse. You can hit things inside the vehicle or be ejected from it.
  • Page 21: Why Safety Belts Work

    Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it’s just a seat on wheels.
  • Page 22 Get it up to speed. Then stop the vehicle. The rider doesn’t stop. 1-10 The person keeps going until stopped by something. In a real vehicle, it could be the windshield ...
  • Page 23 or the instrument panel ... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense. 1-11...
  • Page 24: Here Are Questions Many People Ask About

    Here Are Questions Many People Ask About Safety Belts and the Answers Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
  • Page 25: How To Wear Safety Belts Properly

    How to Wear Safety Belts Properly Adults This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see the part of this manual called “Children.”...
  • Page 26 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
  • Page 27 What’s wrong with this? The shoulder belt is too loose. It won’t give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.
  • Page 28 What’s wrong with this? The belt is buckled in the wrong place. 1-16 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
  • Page 29 What’s wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
  • Page 30 What’s wrong with this? The belt is twisted across the body. 1-18 CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
  • Page 31: Safety Belt Use During Pregnancy

    To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
  • Page 32: Right Front Passenger Position

    The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.
  • Page 33 CAUTION: (Continued) Frontal air bags for the driver and right front passenger are designed to work only in moderate to severe crashes where the front of your vehicle hits something. They aren’t designed to inflate at all in rollover, rear, side or low crashes.
  • Page 34 CAUTION: Anyone who is up against, or very close to, any air bag when it inflates can be seriously injured or killed. Air bags plus lap shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them.
  • Page 35 How the Air Bag Systems Work Where are the air bags? The driver’s frontal air bag is in the middle of the steering wheel. The right front passenger’s frontal air bag is in the instrument panel on the passenger’s side. 1-23...
  • Page 36 The driver’s side impact air bag is in the side of the driver’s seatback closest to the door. 1-24 The right front passenger’s side impact air bag is in the side of the passenger’s seatback closest to the door.
  • Page 37 CAUTION: If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person. The path of an inflating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any other air bag covering and don’t let seat covers block the...
  • Page 38 What makes an air bag inflate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. For both frontal and side impact air bags, the sensing system triggers a release of gas from the inflator, which inflates the air bag.
  • Page 39 CAUTION: When an air bag inflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can’t get out of the vehicle after an air bag inflates, then get fresh air by opening a window or a door.
  • Page 40 NOTICE: If you damage the covering for the driver’s or the right front passenger’s air bag, or the air bag covering on the driver’s and right front passenger’s seatback, the bag may not work properly. You may have to replace the air bag module in the steering wheel, both the air bag module and the instrument panel for the right front passenger’s air bag, or both the air bag...
  • Page 41: Safety Belt Pretensioners

    Safety Belt Pretensioners Your vehicle has safety belt pretensioners. You’ll find them on the buckle end of the safety belts for the driver and right front passenger. They help the safety belts reduce a person’s forward movement in a moderate to severe crash in which the front of the vehicle hits something.
  • Page 42 1. Pick up the latch plate and pull the belt across you. Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
  • Page 43 3. To make the lap part tight, pull down on the buckle The lap part of the belt should be worn low and snug on end of the belt as you pull up on the shoulder part. the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones.
  • Page 44: Children

    CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body. To unlatch the belt, just push the button on the buckle. 1-32 Children Everyone in a vehicle needs protection! That includes...
  • Page 45 CAUTION: Smaller children and babies should always be restrained in a child or infant restraint. The instructions for the restraint will say whether it is the right type and size for your child. A very young child’s hip bones are so small that a regular belt might not stay low on the hips, as it should.
  • Page 46 CAUTION: Never hold a baby in your arms while riding in a vehicle. A baby doesn’t weigh much crash. During a crash a baby will become so heavy you can’t hold it. For example, in a crash CAUTION: (Continued) 1-34 CAUTION: (Continued) at only 25 mph (40 km/h), a 12 will suddenly become a 240...
  • Page 47: Child Restraints

    Child Restraints Every time infants and young children ride in vehicles, they should have protection provided by appropriate restraints. What are the different types of add child restraints? on child restraints are available in four basic types. When selecting a child restraint, take into consideration not only the child’s weight and size, but also whether or not the restraint will be compatible with the motor vehicle in which it...
  • Page 48 A rear facing infant restraint (B) positions an infant to face the rear of the vehicle. Rear facing infant restraints are designed for infants of up to about 20 lbs. (9 kg) and about one year of age. This type of restraint faces the rear so that the infant’s head, neck and body can have the support they need in a frontal crash.
  • Page 49 A forward facing child restraint (C E) positions a child upright to face forward in the vehicle. These forward facing restraints are designed to help protect children who are from 20 to 40 lbs. (9 to 18 kg) and about 26 to 40 inches (66 to 102 cm) in height, or up to around four years of age.
  • Page 50: Where To Put The Restraint

    A booster seat (F) is designed for children who are about 40 to 60 lbs., or even up to 80 lbs. (18 to 27 kg, or even up to 36 kg), and about four to eight years of age. A booster seat is designed to improve the fit of the vehicle’s safety belt system.
  • Page 51: Top Strap

    CAUTION: A child in a rear facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates. This is because the back of the rear facing child restraint would be very close to the inflating air bag. Always secure a rear facing child restraint in a rear seat.
  • Page 52 In order to get to one of these brackets, you’ll have to open the trim cover. When using a top strap child restraint in a rear outboard position, be sure to route the top strap under the head restraint. The top strap anchor for the center rear seating position is located at the top of the seat.
  • Page 53 Tilt the latch plate to adjust the belt if needed. If the shoulder belt goes in front of the child’s face or neck, put it behind the child restraint. 3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
  • Page 54: Securing A Child Restraint In The

    4. To tighten the belt, pull up on the shoulder belt while you push down on the child restraint. If you’re using a forward facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
  • Page 55 CAUTION: A child in a rear facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates. This is because the back of the rear facing child restraint would be very close to the inflating air bag. Always secure a rear facing child restraint in the rear seat.
  • Page 56 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the lap belt all the way out of the positioned so you would be able to unbuckle the retractor to set the lock. safety belt quickly if you ever had to. 1-44...
  • Page 57: Larger Children

    6. To tighten the belt, feed the lap belt back into the retractor while you push down on the child restraint. You may find it helpful to use your knee to push down on the child restraint as you tighten the belt. 7.
  • Page 58: Safety Belts

    Accident statistics show that children are safer if they are restrained in the rear seat. But they need to use the safety belts properly. Children who aren’t buckled up can be thrown out in a crash. Children who aren’t buckled up can strike other people who are.
  • Page 59 CAUTION: Never do this. Here a child is sitting in a seat that has a shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen.
  • Page 60: Safety Belt Extender

    Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
  • Page 61 Section 2 Features and Controls Here you can learn about the many standard and optional features on your vehicle, and information on starting, shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly and what to do if you have a problem.
  • Page 62 Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. If they turned the ignition to ACC or ON and moved the shift lever out of PARK (P), that would release the parking brake.
  • Page 63 Master Key There is a master key that works in all of the lock cylinders (driver’s door, trunk, ignition and glove box). There is also a valet key which only operates the driver’s door and the ignition. Both the master and valet keys have a transponder embedded into the key for security and theft deterrence.
  • Page 64: Door Locks

    Door Locks CAUTION: Unlocked doors can be dangerous. Passengers especially children open the doors and fall out. When a door is locked, the inside handle won’t open it. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. This may not be so obvious: You increase the chance of being thrown out of the vehicle in a crash if the doors aren’t locked.
  • Page 65: Central Door Unlocking System

    Central Door Unlocking System When unlocking the driver’s door, you can unlock the other doors by holding the key in the turned position for a few seconds or by quickly turning the key twice in the lock cylinder. Power Door Locks The power door lock switch is located on each front door.
  • Page 66: Rear Door Security Lock

    Rear Door Security Lock Your vehicle is equipped with rear door security locks that help prevent passengers from opening the rear doors of your vehicle from the inside. The locks are located on the inside edge of each rear door. To Use One of These Locks 1.
  • Page 67: Remote Keyless Entry (Rke) System

    Remote Keyless Entry (RKE) System With this feature, you can lock and unlock the doors, unlock the trunk, open the fuel door and turn on your vehicle’s interior lamps from about 3 feet (1 m) up to 30 feet (9 m) away using the RKE transmitter supplied with your vehicle.
  • Page 68: Battery Replacement

    Operation When you press this button to unlock the driver’s door, the parking lamps on your vehicle will flash twice. (You can program your vehicle so the parking lamps will not flash. For more information, see “Vehicle Programming and Personalization Features” in the Index.) Pressing this button again within one to five seconds will unlock the other doors.
  • Page 69 NOTICE: When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter. 1. Use a coin (or a similar object) to pry open the transmitter. 2. Once the transmitter is separated, use a pencil (or a similar object) to remove the old battery.
  • Page 70 Resynchronization Pressing the transmitter buttons numerous times (approximately 250 times) out of the vehicle’s operating range may cause the transmitter not to work. Replacing the battery and pressing the transmitter buttons out of range will also cause the transmitter not to work. If only the fuel door button works, the transmitter needs to be resynchronized to the receiver.
  • Page 71: Trunk Lock Release

    Trunk Lock Release The trunk lock release button is located on the left side of the instrument panel below the lamp controls. To use this feature, your vehicle must be in PARK (P) or NEUTRAL (N) (if the ignition is on) and the VALET lockout button must be in the OFF position.
  • Page 72 Trunk Lid Tie Down (If Equipped) CAUTION: Driving with the trunk lid open can allow dangerous CO (carbon monoxide) gas to come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death. If you ever need to drive with your trunk lid open, then: Make sure all windows, the rear seat pass...
  • Page 73 Theft Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft features, we know that nothing we put on it can make it impossible to steal. However, there are ways you can help. Key in the Ignition If you leave your vehicle with the keys inside, it’s an easy target for joy riders or professional thieves...
  • Page 74: Theft Deterrent System

    Theft Deterrent System If the ignition is off and any door is open, the SECURITY light will flash, reminding you to arm the system. To arm the system, do the following: 1. Open the door. 2. Lock the door using the power door lock switch with the door open or the Remote Keyless Entry (RKE) system.
  • Page 75: Testing The Alarm

    Testing the Alarm 1. From inside the vehicle, roll down the window, then get out of the vehicle, keeping the door open. 2. From outside of the vehicle, with the door open, lock the vehicle using the power door lock or the RKE system and close the door.
  • Page 76 PASS Your vehicle is equipped with the PASS (Personalized Automotive Security System) theft deterrent system. PASS Key III is a passive theft deterrent system. This means you don’t have to do anything different to arm or disarm the system. It works when you insert or remove the key from the ignition.
  • Page 77 If the engine does not start and the key appears to be undamaged, try another ignition key. At this time, you may also want to check the fuse (see “Fuses and Circuit Breakers” in the Index). If the engine still does not start with the other key, your vehicle needs service.
  • Page 78: Ignition Positions

    New Vehicle “Break In” NOTICE: Your vehicle doesn’t need an elaborate “break But it will perform better in the long run if you follow these guidelines: Don’t drive at any one speed slow for the first 500 miles (805 km). Don’t make full throttle starts.
  • Page 79: Starting Your Engine

    ACC: This position lets you use things like the radio, windshield wipers, power windows and sunroof (option) when the engine is off. Use ACC if you must have your vehicle in motion while the engine is off (for example, if your vehicle is being pushed). ON: This is the position for driving.
  • Page 80 Starting Your Northstar V8 Engine 1. Without pushing the accelerator pedal, turn your ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm. NOTICE: Holding your key in START for longer than 15 seconds at a time will cause your battery to be drained much sooner.
  • Page 81 Engine Coolant Heater (If Equipped) A. Engine Oil Dipstick Location B. Engine Coolant Heater Cord C. Transaxle Dipstick/Fluid Fill Location In very cold weather, 0 _ F ( 18 _ C) or colder, the engine coolant heater can help. You’ll get easier starting and better fuel economy during engine warm the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
  • Page 82: Automatic Transaxle Operation

    CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a fire. You could be seriously injured. Plug the cord into a properly grounded three volt AC outlet. If the cord won’t reach, use a heavy duty three prong extension cord rated...
  • Page 83 CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. Don’t leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly.
  • Page 84 Also use this gear to rock your vehicle back and forth to get out of snow, ice or sand without damaging your transaxle. See “If You’re Stuck in Sand, Mud, Ice or Snow” in the Index for additional information. NEUTRAL (N): In this position, the engine doesn’t connect with the wheels.
  • Page 85 THIRD (3): This position is also used for normal driving, however, it offers more power and lower fuel economy than OVERDRIVE (D). Here are examples for using THIRD (3) instead of OVERDRIVE (D): When driving on hilly, winding roads. When going down a steep hill. SECOND (2): This position gives you more power.
  • Page 86: Parking Brake

    Performance Shift Display (STS Only) When your vehicle detects a change in driving conditions, it will automatically initiate the appropriate performance shift mode. When this occurs, the gear display on the instrument panel cluster will change to indicate that the transmission has shifted to a different gear.
  • Page 87 Reach under the driver’s side of the instrument panel and pull down on the manual release lever, which is located behind the parking brake pedal. Pull down on the yellow tab as shown by the arrow in the illustration. If the parking brake does not release, you should have your vehicle towed to your dealer for service.
  • Page 88: Console Shift Lever

    Console Shift Lever 1. Hold the brake pedal down with your right foot. 2. Move the shift lever into PARK (P) by pushing the lever all the way toward the front of your vehicle. 3. With your right foot still holding the brake pedal down, set the parking brake.
  • Page 89: Torque Lock

    Torque Lock If you are parking on a hill and you don’t shift your transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may find it difficult to pull the shift lever out of PARK (P).
  • Page 90: Ultrasonic Rear Parking Assist

    Ultrasonic Rear Parking Assist (URPA)(Option) Ultrasonic rear parking assist can help you to determine how close an object is to your rear bumper within a given area, making parking easier. The URPA display is located inside the vehicle, above the rear window. It has three color coded lights that can be seen through the rearview mirror.
  • Page 91: Parking Over Things That Burn

    If the URPA system is not functioning properly, the display will flash red, indicating that there is a problem. The light will also flash red when you are driving if a trailer is attached to your vehicle, or if you have a bicycle or an object hanging out of your trunk.
  • Page 92: Engine Exhaust

    Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can’t see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: Your exhaust system sounds strange or different. Your vehicle gets rusty underneath.
  • Page 93: Windows

    CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. Don’t leave your vehicle when the engine is running unless you have to. If you’ve left the engine running, the vehicle can move suddenly.
  • Page 94: Tilt Wheel

    Express Down Window This feature is on all power windows. Press the down arrow to the second position to activate the express feature. If you want to stop the window as it is lowering, press the control again. Rear Window Lockout Press the LOCK button down to disable the rear passenger’s window...
  • Page 95 Tilt steering allows you to adjust the steering wheel before you drive. Raising the steering wheel to the highest level gives your legs more room when you enter and exit the vehicle. Hold the steering wheel and pull the lever toward you to bring the steering wheel close to you.
  • Page 96: Turn Signal/Multifunction Lever

    Turn Signal/Multifunction Lever Turn and Lane Change Signals To signal a turn, move the lever on the left side of the steering wheel all the way up or down. The lever returns automatically when the turn is complete. An arrow located on the instrument panel cluster will flash in the direction of the turn or lane change.
  • Page 97: Windshield Wipers

    Flash-To-Pass This feature lets you use the high beam headlamps to signal the driver in front of you that you want to pass. Pull the turn signal lever toward you briefly to flash pass. When you do: If the headlamps are either off or in the Daytime Running Lamps (DRL) mode, the high headlamps will turn on.
  • Page 98 LO or HI: Move the lever up to LO for steady wiping at a slow speed. Move the lever higher to HI for steady wiping at a high speed. INT (DELAY): Move the lever up to the INT position, then turn the INT ADJ band, which is located on the lever, to adjust the delay time.
  • Page 99: Windshield Washer

    The Rainsense wipers operate in a delay mode as well as a continuous low or high speed depending on the amount of moisture and the sensitivity setting. The MIST and “wash” cycles operate as normal and are not affected by the Rainsense function. NOTICE: The wipers must be turned off when going through a car wash to avoid damage.
  • Page 100: Cruise Control

    Cruise Control The cruise control lever is located on the lower right side of the steering column. With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h).
  • Page 101 Setting Cruise Control CAUTION: If you leave your cruise control switch on when you’re not using cruise, you might hit a button and go into cruise when you don’t want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
  • Page 102 Reducing Speed While Using Cruise Control There are two ways to reduce your speed while using cruise control: Move the cruise lever down to SET/CST and hold it there until you reach a desired lower speed, then release it. To slow down in very small amounts, move the cruise lever to SET/CST briefly.
  • Page 103: Exterior Lamps

    Exterior Lamps The control located on the left side of the instrument panel operates these lamp systems: Parking Lamps Headlamps Taillamps Sidemarker Lamps License Plate Lamp Underhood Lamp Fog Lamps (STS Only) Instrument Panel Lights Instrument panel backlighting will dim only when it is dark outside.
  • Page 104: Lamps On Reminder

    To operate the wiper activated headlamps, the Twilight Sentinel must be on. If the wiper activated headlamps are on and the ignition key is turned to ACC, the wiper activated headlamps will continue. When you turn the key to OFF or ACC, the wiper headlamps will immediately turn off.
  • Page 105 When the Twilight Sentinel switch is on and it’s dark enough outside, the high beam headlamps (at reduced intensity) will turn off and normal low operation will occur. When the Twilight Sentinel switch is on and it’s bright enough outside, the regular lamps will go off, and the high beam headlamps at reduced brightness will take over.
  • Page 106: Cornering Lamps

    Cornering Lamps The cornering lamps come on when the headlamps or parking lamps are on and you signal a turn. They provide more light for cornering. Twilight Sentinel This control is located below the exterior lamps control knob. It automatically turns the lamps on and off by sensing how dark it is outside.
  • Page 107: Exterior Lighting Battery Saver

    Light Sensor The light sensor for the Daytime Running Lamps (DRL) and the Twilight Sentinel is located on the driver’s side of the front defogger grille. If you cover the sensor, it will read “dark” and the lamps will come on. Exterior Lighting Battery Saver If the manual parking lamps or headlamps have been left on, the exterior lamps will turn off approximately...
  • Page 108: Interior Lamps

    Interior Lamps Instrument Panel Intensity/Brightness Control With the parking lamps on, the instrument panel lighting automatically dims when it becomes dark outside and brightens when it becomes light outside. When it’s dark, and if the parking lamps are on, the brightness control can be manually adjusted by using the instrument panel brightness control.
  • Page 109: Illuminated Entry

    Illuminated Entry The illuminated entry system turns on the courtesy lamps and the backlighting to the driver’s door switches and to the ignition key when a door is opened or if you press the Remote Keyless Entry (RKE) transmitter unlock button. The illuminated entry system works with the light sensor and it must be dark outside in order for the courtesy lamps or backlighting to turn on.
  • Page 110: Mirrors

    If the battery continues to discharge, even with the engine idling at a higher rpm setting, some electrical loads will automatically be reduced. When this occurs, the rear window defogger may take slightly longer to clear the glass, the heated seats may not get as warm as they usually do and the fan blower may cut back to a lower speed.
  • Page 111 The mirror also includes an eight point compass display in the upper right corner of the mirror face. When on, the compass automatically calibrates as the vehicle is driven. When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing.
  • Page 112 The mirror can be calibrated in one of two ways: Drive the vehicle in circles at 5 mph (8 km/h) or less until the display reads a direction, or Drive the vehicle on your everyday routine. Compass Variance The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if you live outside zone eight.
  • Page 113 Power Remote Control Mirror (Heated) This feature is located on the driver’s door armrest. Move the L/R select switch located under the power mirror control to choose the left or right mirror. To adjust the mirror, move the arrow control in the direction you want the mirror to go.
  • Page 114: Storage Compartments

    Convex Outside Mirror Your passenger’s side mirror is convex. A convex mirror’s surface is curved so you can see more from the driver’s seat. This mirror does not have a dimming feature. CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are.
  • Page 115: Center Console Storage

    Center Console Storage The center console comes with a storage tray, a storage compartment for CDs or tapes, a dual cupholder that unfolds, a coinholder, an optional phone and an armrest. The cupholder can be opened by pressing on the surface panel located in front of the armrest and unfolding it.
  • Page 116: Ashtrays And Cigarette Lighter

    Ashtrays and Cigarette Lighter (Option) The ashtrays and cigarette lighters may be ordered through your dealer. NOTICE: Don’t put papers or other flammable items into your ashtrays. Hot cigarettes or other smoking materials could ignite them, causing a damaging fire. Front Ashtray Press on the lower edge of the cover of the console located below the climate control system to reveal the...
  • Page 117: Sun Visors

    Cellular Telephone (Option) Your vehicle has been prewired for dealer installation of a Cadillac Communiport integrated portable cellular telephone system. If your vehicle is already equipped from the factory with this option, your vehicle is prepared to receive a completion kit to finalize the installation at the dealer.
  • Page 118: Onstar System (If Equipped)

    OnStar System (If Equipped) OnStar is a vehicle communications service. The following services are available through subscription with OnStar and are available 24 hours a day: Emergency Services Automatic Notification of Air Bag Deployment Theft Notification and Stolen Vehicle Tracking Roadside Assistance with Location Remote Diagnostics OnStar MED...
  • Page 119: Sunroof (Option)

    Sunroof (Option) There are two control switches to operate the sunroof to open/close or express open the sunroof and the other for vent open/close. The control switches work only when the ignition is on or when the ignition is off and the Retained Accessory Power (RAP) is active.
  • Page 120: Homelink Transmitter

    HomeLink Transmitter This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 121 1. If you have previously programmed a transmitter channel, proceed to Step 2. Otherwise, hold down the two outside buttons on the HomeLink Transmitter until the indicator light begins to flash rapidly (after 20 seconds). Then release the buttons. This procedure initializes the memory and erases any previous settings for all three channels.
  • Page 122 Operating the HomeLink Transmitter Press and release the appropriate button on the HomeLink Transmitter. The indicator light comes on while the signal is being transmitted. The HomeLink Transmitter is disabled when the valet lock switch inside the glove box is activated. For more information, see “Valet Lock”...
  • Page 123 3. Return to the HomeLink Transmitter in your vehicle and firmly press and release the HomeLink Transmitter button you have already programmed for two to three seconds. Press and release the button again (you may need to do this step up to three times) to make sure that the HomeLink Transmitter has been trained to the garage door opener motor head unit.
  • Page 124 The Instrument Panel Your Information System 2-64...
  • Page 125 The main components of the instrument panel are: 1. Air Outlets 2. Driver Information Center Control Buttons 3. Turn Signal/Multifunction Lever 4. Instrument Panel Cluster 5. Windshield Wiper/Washer Lever 6. Cruise Control Lever 7. Ignition Switch 8. Air Vent Control Dial 9.
  • Page 126: Instrument Panel Cluster

    Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, how much fuel you’re using and many other things you’ll need to drive safely and economically. United States version shown, Canada similar 2-66...
  • Page 127: Speedometer And Odometer

    Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). The odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada).
  • Page 128 English/Metric Display You can go back and forth from English (miles) to metric (kilometers) by pressing this button. Other readings such as temperature, fuel and trip odometer also go back and forth between English and metric. Vehicle Speed Limiter This feature prevents your vehicle from exceeding speeds that the tires are not rated for.
  • Page 129: Safety Belt Reminder Light

    Warning Lights, Gages and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
  • Page 130: Air Bag Readiness Light

    Air Bag Readiness Light There is an air bag readiness light on the instrument panel, which shows AIR BAG (United States) or the air bag symbol (Canada). The system checks the air bag’s electrical system for malfunctions. The light tells you if there is an electrical problem.
  • Page 131: Charging System Light

    Charging System Light This light goes on when you turn your key to ON or START. It goes off once you start your engine. That’s a check to be sure the light works. If it doesn’t come on, be sure to have it fixed so it will be there to warn you if something goes wrong.
  • Page 132: Anti-Lock Brake System Warning Light

    When the ignition is on, the brake system warning light will also come on when you set your parking brake. The light will stay on if your parking brake doesn’t release fully. If it stays on after your parking brake is fully released, it means you have a brake problem.
  • Page 133: Engine Coolant Temperature Gage

    The traction control system warning light may come on for the following reasons: If there’s a brake system problem that is specifically related to traction control, the traction control system will turn off and the warning light will come on. If the traction control system is affected by an engine related problem, the system will turn off...
  • Page 134: Malfunction Indicator Lamp

    Malfunction Indicator Lamp (Service Engine Soon Light in the United States or Check Engine Light in Canada) United States Your vehicle is equipped with a computer which monitors operation of the fuel, ignition and emission control systems. This system is called OBD II (On Board Diagnostics Second Generation) and is intended to...
  • Page 135 This light should come on, as a check to show you it is working, when the ignition is on and the engine is not running. If the light doesn’t come on, have it repaired. This light will also come on during a malfunction in one of two ways: Light Flashing A misfire condition has been...
  • Page 136 Are you low on fuel? As your engine starts to run out of fuel, your engine may not run as efficiently as designed since small amounts of air are sucked into the fuel line causing a misfire. The system can detect this. Adding fuel should correct this condition.
  • Page 137: Security Light

    Oil Pressure Light This light tells you if there could be a problem with your engine oil pressure. The light goes on when you turn your key to ON or START. It goes off once you start your engine. That’s a check to be sure the light works.
  • Page 138: Fuel Gage

    Fog Lamp Light (STS Only) This light will come on when the fog lamp button is pressed. For more information about the fog lamps, see “Fog Lamps” in the Index. Lights On Reminder Light United States This telltale comes on whenever the parking lamps are on, so that you know your lights are on.
  • Page 139: Driver Information Center

    Driver Information Center (DIC) This display gives you the status of many of your vehicle’s systems. The DIC is also used to display driver personalization features and warning/status messages. DIC Controls and Displays INFO: Pressing this button up or down will display the OUTSIDE TEMP, MILES RANGE, MPG AVG, MPG INST, GAL FUEL USED, AVG MPH, TIMER, BATTERY VOLTS OK, ENGINE OIL LIFE,...
  • Page 140 GAL FUEL USED (Reset): Press the INFO button to display the GAL FUEL USED on the DIC, then press and hold the INFO RESET button until 0.0 GAL FUEL USED is displayed. AVG MPH (Reset): This message shows the average speed you have traveled at since the last time you reset the value.
  • Page 141 Most messages can be removed from the display by pressing the INFO or INFO RESET button while the message is being displayed. DIC messages can also be displayed in French, German, Spanish and Japanese. Contact your dealer to have the language display adjusted for your vehicle.
  • Page 142 CHANGE ENGINE OIL 82: This means that the life of the engine oil has expired and it should be changed within 200 miles. See “Engine Oil” and “Filter Recommendations” in the Maintenance Schedule booklet. After an oil change, the Oil Life Indicator must be reset.
  • Page 143 DRIVER NO. X (1 OR 2) : This message will be displayed with the key in ON and while entering FEATURE PROGRAMMING, but only if the vehicle is equipped with memory seats. The message will show which driver is activating the personalization feature. It will only stay on for five seconds.
  • Page 144 HEADLAMPS SUGGESTED 23: If it’s dark enough outside and the headlamps and Twilight Sentinel controls are off, a HEADLAMPS SUGGESTED message will display on the DIC. This message informs the driver that turning on the exterior lamps is recommended even though the Daytime Running Lamps (DRL) are still illuminated.
  • Page 145 SERVICE ELECTRICAL SYS will display if an electrical problem has occurred within the Powertrain Control Module (PCM) or the ignition switch. Have your vehicle serviced by your dealership. SERVICE FUEL SYSTEM 101: The Powertrain Control Module (PCM) has detected a problem within the fuel system when this message appears.
  • Page 146 SERVICE SUSPENSION SYS 84: This message is displayed to indicate that the suspension system is not operating properly. To correct this problem, have your vehicle serviced at your dealership. SERVICE THEFT SYSTEM 34: This message means there is a problem in the Personalized Automotive Security System (PASS III).
  • Page 147 TRACTION OFF 89: This message will be displayed after the traction control has been turned off by the button on the center console. TRACTION READY 90: This message informs the driver that the traction control system is available. This occurs when the traction control switch on the console has been returned to ON (pressing the button once turns the traction control system off: pressing the button again turns the system back on).
  • Page 148 Vehicle Programming and Personalization Features (If Equipped) If your vehicle is equipped with personalization, you can program certain features to a preferred setting for up to two people. If your vehicle does not have personalization, then some of the features on your vehicle have been programmed for all drivers.
  • Page 149 Key in Recall (If Equipped) Enter FEATURE PROGRAMMING by following the previous instructions and then press the down arrow on the INFO button one or more times until the KEY IN RECALL prompt appears on the DIC display. To turn the feature on, press the ON/OFF button until ON appears.
  • Page 150 Lights Flash at Lock Enter FEATURE PROGRAMMING by following the previous instructions and then press the down arrow on the INFO button one or more times until the LIGHTS FLASH AT LOCK prompt appears on the DIC display. To turn the feature on, press the ON/OFF button until ON appears.
  • Page 151 Doors Lock in Gear Enter FEATURE PROGRAMMING by following the previous instructions and then press the down arrow on the INFO button one or more times until the DOORS LOCK IN GEAR prompt appears. This feature will automatically lock all doors when the vehicle is shifted out of PARK (P) and all the doors are closed.
  • Page 152 Mirror To Curb In Reverse (If Equipped) Press the down arrow on the INFO button one or more times until the MIRROR TO CURB IN REV prompts appears on the DIC display. This feature will move the passenger’s outside rearview mirror to a curb view position when the console shifter is placed in REVERSE (R) and it will return the mirror to the last known driving position when the console shifter is...
  • Page 153 The electronic sensor can be affected by road or engine heat during idling, slow driving or when the engine is first stared after a short trip. To ensure proper automatic climate control operation, the outside air temperature display may not update as quickly as expected. This is to allow the air surrounding the outside temperature sensor to be as close to the actual outside conditions as possible.
  • Page 154 Navigation (Option) Navigation Display and Controls 2-94 This display screen is located in the center of the instrument panel. There are eight “hard” buttons and a touch sensitive screen. Your vehicle may be equipped with a turn navigation guidance system that includes a CD ROM map media covering nine regional areas throughout the contiguous United States.
  • Page 155 Section 3 Comfort Controls and Audio Systems In this section, you’ll find out how to operate the comfort control and audio systems offered with your vehicle. Be sure to read about the particular systems supplied with your vehicle. Comfort Controls Climate Control Panel Air Conditioning Heating...
  • Page 156: Comfort Controls

    Comfort Controls This section tells you how to make your air system work for you. Climate Control Panel Your vehicle is equipped with a dual climate control system. This system can automatically adjust and control temperature, fan speed, air delivery mode, air conditioning operation and air intake.
  • Page 157 Passenger’s Side Temperature Knob The right front passenger can control the temperature of air for both the front passenger and rear seat area. (The passenger’s and driver’s knob adjust from 60 _ F (16 _ C) to 90 _ F (32 _ C) independent of each other. It is suggested, however, that the passenger’s setting stay no more than four degrees warmer or cooler in temperature from the driver’s setting.) To turn the...
  • Page 158 If your vehicle is sitting out on a hot day and you have it set on AUTO, the air will first flow out the floor outlets for a few seconds. This is normal. This is to remove hot air from the air outlets. As the air is cooled, the airflow will move through the air conditioning outlets.
  • Page 159 A/C: Press this button to turn the air conditioning compressor on and off. When you press the button, an A/C OFF message appears on the climate control panel’s display. Press the button again and the air conditioner will return to automatic control. The system will cool and dehumidify the air inside the vehicle.
  • Page 160: Air Conditioning

    Electronic Solar Sensor The sensor monitors the sun’s solar radiation and is located near the end of the instrument panel near the windshield. The climate control panel uses this information to automatically make the necessary temperature and airflow adjustments to maintain your comfort. The climate control system may supply cooler air to one side of your vehicle, if that side is facing the sun.
  • Page 161 Defrosting and Defogging Use defrost (front) on cool and humid days to keep the windshield and side windows clear. This setting will remove fog or ice from the windshield quickly in extremely humid or cold conditions. If you desire to have more air on your feet, turn the control to the defog mode.
  • Page 162: Ventilation System

    Ventilation System Your vehicle’s flow through ventilation system supplies outside air into the vehicle when it is moving. Outside air will also enter the vehicle when the heater or the air conditioning fan is running. The front outlets are located in the center and at each side of the instrument panel.
  • Page 163 Ventilation Tips Keep the hood and front air inlet free of ice, snow or any other obstruction (such as leaves). The heater and defroster will work far better, reducing the chance of fogging the inside of the windows. Keep the air path under the front seats clear of objects.
  • Page 164 HVAC Steering Wheel Controls Some heating and cooling controls can be adjusted at the steering wheel. Other touch controls operate some audio controls. See “Audio Steering Wheel Controls” in the Index. TEMP: Press the up arrow on the control to increase the temperature and the down arrow to decrease temperature.
  • Page 165: Setting The Radio Clock

    Audio Systems Your audio system has been designed to operate easily and give years of listening pleasure. You will get the most enjoyment out of it if you acquaint yourself with it first. Find out what your audio system can do and how to operate all its controls, to be sure you’re getting the most out of the advanced engineering that went into it.
  • Page 166 SOURCE: Press this button to select a source. Sources include cassette and compact disc. The audio source must be loaded to play. Available loaded sources are shown on the display. If a source is being used, it will be underlined on the display. If none of the audio sources are loaded, NO SOURCE LOADED will appear on the display.
  • Page 167 Setting the Tone TONE: Press and release this button until the desired tone control (BASS, TREBLE or MIDRANGE) is found. The radio keeps separate tone settings for each band, each preset and each source. LEVEL: After selecting the desired tone control, press the plus (+) or minus ( ) symbol on this button to select the desired level.
  • Page 168 RW: Press the left arrow to rewind the tape rapidly. The radio will play while the tape rewinds. You may use your station pushbuttons to tune to another radio station while in RW mode. Press the left arrow again to return to playing speed.
  • Page 169 Playing a Compact Disc Insert a disc partway into the slot, label side up. The player will pull it in. If the ignition and the radio are on and the underlined compact disc symbol appears on the display, the disc will begin playing. Compact discs may be loaded with the radio off but they will not start playing until the radio is on.
  • Page 170 AM-FM Stereo with Cassette Tape and Compact Disc Player with Radio Data Systems (RDS) and Digital Signal Processing (DSP) (If Equipped) Playing the Radio PWR/VOL: Press this knob lightly to turn the system on. Press the knob again to turn the system off. To increase volume, turn the knob clockwise.
  • Page 171 Finding a Station BAND: Press this button to select AM, FM1, FM2 or weather. TUNE SEEK: When this button is pressed it has two positions. Press this button to the first position to manually tune to higher or lower stations. If this button is held at the first position for a few seconds, the radio will continue tuning until this button is released.
  • Page 172 Using RDS Mode Your audio system is equipped with Radio Data Systems (RDS). RDS mode gives you many useful new features. When RDS is on, the radio can: seek only to stations with the types of programs you want to listen to, seek to stations with traffic announcements, receive announcements concerning local and national emergencies,...
  • Page 173 REGION: You can also use the RDS button to access the region function. When an RDS station becomes weak, this function searches for a stronger station within the same network. A network can span a great distance. One network can have stations spread across a country or continent.
  • Page 174 MSG (3): When RDS is on, if the current station has a message, MSG will appear on the display. Press the RDS SELECT button, followed by this button to see the message. If the whole message does not appear on the display, parts of the message will appear every three seconds until the message is completed.
  • Page 175 3. Tune in an RDS station with the PTY you desire. 4. Press and hold one of the six numbered buttons for more than two seconds until you hear a beep. Whenever you press that numbered button for less than two seconds, the PTY you set will return. 5.
  • Page 176 LEVEL: After selecting the desired tone control, press the plus (+) or minus ( ) symbol on this button to select the desired level. To save the tone settings for your presets, press and hold the numbered button for the desired preset for more than two seconds until you hear a beep.
  • Page 177 Playing a Cassette Tape With the radio on, insert a cassette tape. The tape will begin playing as soon as it is inserted. When one side of your cassette tape is done playing, auto reverse plays the other side of your cassette tape. Cassette tapes may be loaded with the radio off but they will not start playing until the radio is on.
  • Page 178 EJECT: Press the upward triangle button to the right of the cassette tape player to remove a tape. The radio will play. Eject may be activated with the radio off and/or the ignition off. CLEAN TAPE: If this message appears on the display, the cassette tape player needs to be cleaned.
  • Page 179 RW: Press and hold the left arrow to reverse the compact disc. Release it to return to playing speed. FF: Press and hold the right arrow to fast forward to another part of the compact disc. Release it to return to playing speed.
  • Page 180 AVC: Your system has a feature called Automatic Volume Control (AVC). With AVC, your audio system monitors the noise in the vehicle. Then, AVC automatically adjusts the volume level so that it always sounds the same to you. To use AVC, press and hold the TONE button until AUTO VOLUME CONTROL OFF appears on the display.
  • Page 181 4. Press and hold one of the six numbered buttons for more than two seconds until you hear a beep. Whenever you press that numbered button for less than two seconds, the station you set will return. 5. Repeat the steps for each pushbutton. When battery power is removed and later applied, you will not have to reset your radio presets because the radio remembers them.
  • Page 182 If the radio is tuned to a station that is not broadcasting RDS information, the station’s frequency will remain on the display. While RDS is on, the radio will search for a stronger station in the network when a station gets too weak for listening.
  • Page 183 to the original station when the announcement is finished. If the cassette tape or MiniDisc player was being used, the tape or MiniDisc will stay in the player and resume play at the point where it stopped. Press the RDS SELECT button, followed by this button again to turn TA off.
  • Page 184 PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite Program Types (PTYs). These buttons have factory PTY presets. See “Radio Data Systems (RDS) Program Type (PTY) Selections” in the Index. You can set up to 12 PTYs (six FM1 and six FM2).
  • Page 185 Setting the Tone TONE: Press and release this button until the desired tone control (BASS, TREBLE or MIDRANGE) is found. The radio keeps separate tone settings for each band, preset (except weather band presets) and source. LEVEL: After selecting the desired tone control, press the plus (+) or minus ( ) symbol on this button to select the desired level.
  • Page 186 Playing a Cassette Tape With the radio on, insert a cassette tape. The tape will begin playing as soon as it is inserted. When one side of your cassette tape is done playing, auto reverse plays the other side of your cassette tape. Cassette tapes may be loaded with the radio off but they will not start playing until the radio is on.
  • Page 187 SIDE: Press this button to change the side of the tape that is playing. EJECT: Press the upward triangle button to the right of the cassette tape player to remove a tape. The radio will play. Eject may be activated with the radio off and/or the ignition off.
  • Page 188 RW: Press and hold the left arrow to reverse the MiniDisc. Release it to return to playing speed. FF: Press and hold the right arrow to fast forward to another part of the MiniDisc. Release it to return to playing speed. TUNE SEEK: When this button is pressed, it has two positions.
  • Page 189 AVC: Your system has a feature called Automatic Volume Control (AVC). With AVC, your audio system monitors the noise in the vehicle. Then, AVC automatically adjusts the volume level so that it always sounds the same to you. To use AVC, press and hold the TONE button until AUTO VOLUME CONTROL OFF appears on the display.
  • Page 190 4. Press and hold one of the six numbered buttons for more than two seconds until you hear a beep. Whenever you press that numbered button for less than two seconds, the station you set will return. 5. Repeat the steps for each pushbutton. When battery power is removed and later applied, you will not have to reset your radio presets because the radio remembers them.
  • Page 191 be the same or different. Press BAND to recall the frequency and program type displays. If the radio is tuned to a station that is not broadcasting RDS information, the station’s frequency will remain on the display. While RDS is on, the radio will search for a stronger station in the network when a station gets too weak for listening.
  • Page 192 When a traffic announcement comes on the tuned radio station or a related network station, you will hear it, even if the volume is muted or a cassette tape or MiniDisc is playing. If the radio tunes to a related network station for a traffic announcement, it will return to the original station when the announcement is finished.
  • Page 193 PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite Program Types (PTYs). These buttons have factory PTY presets. See “Radio Data Systems (RDS) Program Type (PTY) Selections” in the Index. You can set up to 12 PTYs (six FM1 and six FM2).
  • Page 194 Setting the Tone TONE: Press and release this button until the desired tone control (BASS, TREBLE or MIDRANGE) is found. The radio keeps separate tone settings for each band, preset (except weather band presets) and source. LEVEL: After selecting the desired tone control, press the plus (+) or minus ( ) symbol on this button to select the desired level.
  • Page 195 Playing a Cassette Tape With the radio on, insert a cassette tape. The tape will begin playing as soon as it is inserted. When one side of your cassette tape is done playing, auto reverse plays the other side of your cassette tape. Cassette tapes may be loaded with the radio off but they will not start playing until the radio is on.
  • Page 196 SIDE: Press this button to change the side of the tape that is playing. EJECT: Press the upward triangle button to the right of the cassette tape player to remove a tape. The radio will play. Eject may be activated with the radio off and/or the ignition off.
  • Page 197 Use the network panel to configure your PDA to work with your Internet Service Provider (ISP). Consult the information provided with your PDA and mail/browser applications for details. You may need to contact your ISP for your Domain Name Service (DNS). The e mail application you choose will require a POP3 and SMTP host, user identification and password.
  • Page 198 The Setup Wizard will guide you through the steps to create an e mail service. You may need to contact your ISP for the information required to complete the setup. Receiving and Sending E-Mail Your radio uses the cellular phone to connect to your ISP.
  • Page 199 Programming for News/Information Updates Your vehicle is delivered with the Communiport Infotainment radio programmable updates off. You can program the radio to provide two daily updates. To program the update times follow these steps: 1. Press and hold the INFO button for approximately two seconds.
  • Page 200 While performing the information update, the radio will temporarily disable the RDS buttons. The RDS buttons will be enabled again once the update is completed. When the radio begins an update, the information contained in the radio’s memory is cleared. If you perform an immediate update and then quickly cancel it, NO TEXT AVAILABLE will appear on the display.
  • Page 201 Radio Data Systems (RDS) Program Type (PTY) Selections PTY List ......Adlt Hit ......
  • Page 202: Cd Adapter Kits

    Navigation/Radio System (Option) Navigation/Radio Display and Controls The display screen is located in the center of the instrument panel. There are eight “hard” buttons and a touch sensitive screen. 3-48 Your vehicle may be equipped with an AM navigation radio system that includes digital sound processing (DSP), a Radio Data System (RDS) with program “type”...
  • Page 203 Console-Mounted CD Changer (Option) With the compact disc changer, you can play up to six discs continuously. Normal size discs may be played using the slots supplied in the magazine. You must first load the magazine with discs before you can play a compact disc.
  • Page 204 PUSHBUTTONS: Press buttons one through six to select compact discs one through six. These pushbuttons represent the order of the discs loaded in the changer. RW: Press and hold this button to reverse quickly through a track selection. FF: Press and hold this button to advance quickly through a track selection.
  • Page 205 Compact Disc Changer Errors CD CHANGER ERROR could be displayed for the following: The road is too rough. The disc should play when the road is smoother. The disc is dirty, scratched, wet or loaded label side down. The air is very humid. If so, wait about an hour and try again.
  • Page 206: Audio Steering Wheel Controls

    Theft-Deterrent Feature THEFTLOCK is designed to discourage theft of your radio. Your vehicle has a “built in” theft feature on each radio that is automatic no programming required. The radio in your vehicle cannot be used in any other vehicle. When the radio was originally installed in your vehicle at the factory, it stored the Vehicle Identification Number (VIN).
  • Page 207: Understanding Radio Reception

    SEL: When listening to the radio, press the up or down arrow button to tune to the next or previous preset radio station. When listening to a cassette tape, the up or down arrow button can be used to SEEK forward and rearward through the tape.
  • Page 208: Care Of Your Cassette Tape Player

    To help avoid hearing loss or damage: Adjust the volume control to the lowest setting. Increase volume slowly until you hear comfortably and clearly. NOTICE: Before you add any sound equipment to your vehicle like a tape player, CB radio, mobile telephone or two way radio be sure you...
  • Page 209: Care Of Your Compact Discs

    When using a scrubbing action, non cassette, it is normal for the cassette to eject because your unit is equipped with a cut tape detection feature and a cleaning cassette may appear as a broken tape. To prevent the cleaning cassette from being ejected, use the following steps.
  • Page 210: Diversity Antenna System

    Diversity Antenna System Your AM FM antennas are located in the front windshield and rear window. Be sure that the inside surfaces of the front windshield and rear window are not scratched and that the lines on the glass are not damaged.
  • Page 211 Section 4 Your Driving and the Road Here you’ll find information about driving on different kinds of roads and in varying weather conditions. We’ve also included many other useful tips on driving. Defensive Driving Drunken Driving Control of a Vehicle Braking Steering Road Recovery...
  • Page 212: Section 4 Defensive Driving

    Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. (See “Safety Belts” in the Index.) Defensive driving really means “be ready for anything.” On city streets, rural roads or freeways, it means “always expect the unexpected.”...
  • Page 213: Drunken Driving

    Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It’s the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: Judgment Muscular Coordination Vision...
  • Page 214 It’s the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml of liquor each) within an hour, the person’s BAC would be close to 0.12 percent. A person who consumes food just before or during drinking will have a somewhat lower BAC level.
  • Page 215 The body takes about an hour to rid itself of the alcohol in one drink. No amount of coffee or number of cold showers will speed that up. “I’ll be careful” isn’t the right answer. What if there’s an emergency, a need to take sudden action, as when a child darts into the street? A person with even a moderate BAC might not be able to react quickly enough to avoid the collision.
  • Page 216: Control Of A Vehicle

    Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you’re driving on snow or ice, it’s easy to ask more of those control systems than the tires and road can provide.
  • Page 217: Anti-Lock Brakes (Abs)

    Avoid needless heavy braking. Some people drive in spurts heavy acceleration followed by heavy braking rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
  • Page 218 Here’s how anti lock works. Let’s say the road is wet. You’re driving safely. Suddenly an animal jumps out in front of you. You slam on the brakes. Here’s what happens with ABS. A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
  • Page 219: Traction Control System

    Remember: Anti lock doesn’t change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you won’t have time to apply your brakes if that vehicle suddenly slows or stops.
  • Page 220 United States This warning light will come on to let you know if there’s a problem with your traction control system. See “Traction Control System Warning Light” in the Index. When this warning light is on, the system will not limit wheel spin. Adjust your driving accordingly. The traction control system automatically comes on whenever you start your vehicle.
  • Page 221: Steering

    Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Magnasteer (If Equipped) Your vehicle may be equipped with GM Magnasteer, a system that continuously adjusts the effort you feel when steering at all vehicle speeds.
  • Page 222: Steering In Emergencies

    Try to adjust your speed so you can “drive” through the curve. Maintain a reasonable, steady speed. Wait to accelerate until you are out of the curve, and then accelerate gently into the straightaway. To help you steer in the direction you want to go, during certain sharp or sudden cornering maneuvers, gear selection is controlled.
  • Page 223: Off - Road Recovery

    Road Recovery You may find that your right wheels have dropped off the edge of a road onto the shoulder while you’re driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
  • Page 224 Do not get too close to the vehicle you want to pass while you’re awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you’re following a larger vehicle. Also, you won’t have adequate space if the vehicle ahead suddenly slows or stops.
  • Page 225: Loss Of Control

    Loss of Control Let’s review what driving experts say about what happens when the three control systems (brakes, steering and acceleration) don’t have enough friction where the tires meet the road to do what the driver has asked. In any emergency, don’t give up. Keep trying to steer and constantly seek an escape route or area of less danger.
  • Page 226: Driving At Night

    Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired alcohol or drugs, with night vision problems, or by fatigue. 4-16 Here are some tips on night driving. Drive defensively.
  • Page 227: Driving In Rain And On Wet Roads

    You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to readjust to the dark. When you are faced with severe glare (as from a driver who doesn’t lower the high beams, or a vehicle with misaimed headlamps), slow down a little.
  • Page 228 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road and even people walking.
  • Page 229: Driving Through Flowing Water

    Hydroplaning doesn’t happen often. But it can if your tires do not have much tread or if the pressure in one or more is low. It can happen if a lot of water is standing on the road. If you can see reflections from trees, telephone poles or other vehicles, and raindrops “dimple”...
  • Page 230: City Driving

    City Driving One of the biggest problems with city streets is the amount of traffic on them. You’ll want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-20 Here are ways to increase your safety in city driving: Know the best way to get to where you are going.
  • Page 231: Freeway Driving

    Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
  • Page 232: Before Leaving On A Long Trip

    Of course, you’ll find experienced and able service experts in Cadillac dealerships all across North America. They’ll be ready and willing to help if you need it. Here are some things you can check before a trip:...
  • Page 233: Highway Hypnosis

    Highway Hypnosis Is there actually such a condition as “highway hypnosis”? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
  • Page 234 If you drive regularly in steep country, or if you’re planning to visit there, here are some tips that can make your trips safer and more enjoyable. Keep your vehicle in good shape. Check all fluid levels and also the brakes, tires, cooling system and transaxle.
  • Page 235: Winter Driving

    Winter Driving Here are some tips for winter driving: Have your vehicle in good shape for winter. You may want to put winter emergency supplies in your trunk. Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth and a couple of reflective warning triangles.
  • Page 236: Driving On Snow Or Ice

    Driving on Snow or Ice Most of the time, those places where your tires meet the road probably have good traction. However, if there is snow or ice between your tires and the road, you can have a very slippery situation. You’ll have a lot less traction or “grip”...
  • Page 237 Your anti lock brakes improve your vehicle’s stability when you make a hard stop on a slippery road. Even though you have the anti lock braking system, you’ll want to begin stopping sooner than you would on dry pavement. See “Anti Lock”...
  • Page 238 Tie a red cloth to your vehicle to alert police that you’ve been stopped by the snow. Put on extra clothing or wrap a blanket around you. If you have no blankets or extra clothing, make body insulators from newspapers, burlap bags, rags, floor mats anything you can wrap around yourself or tuck under your clothing to keep warm.
  • Page 239: Recreational Vehicle Towing

    Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can.
  • Page 240 The other label is the Certification label, found on the rear edge of the driver’s door. It tells you the gross weight capacity of your vehicle, called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel and cargo. Never exceed the GVWR for your vehicle, or the Gross Axle Weight Rating (GAWR) for either the front or rear axle.
  • Page 241: Towing A Trailer

    If you put things inside your vehicle tools, packages, or anything else as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they’ll keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or in a crash.
  • Page 242: If You Do Decide To Pull A Trailer

    Your vehicle can tow a trailer if it is equipped with the proper trailer towing equipment. To identify what the vehicle trailering capacity is for your vehicle, you should read the information in “Weight of the Trailer” that appears later in this section. But trailering is different than just driving your vehicle by itself.
  • Page 243: Weight Of The Trailer

    And, it can also depend on any special equipment that you have on your vehicle. You can ask your dealer for our trailering information or advice, or you can write us at: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 436004 Pontiac, MI 48343...
  • Page 244 If you’re using a weight carrying hitch, the trailer tongue (A) should weigh 10 percent of the total loaded trailer weight (B). If you have a weight hitch, the trailer tongue (A) should weigh 12 percent of the total loaded trailer weight (B). After you’ve loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
  • Page 245: Driving With A Trailer

    Will you have to make any holes in the body of your vehicle when you install a trailer hitch? If you do, then be sure to seal the holes later when you remove the hitch. If you don’t seal them, deadly carbon monoxide (CO) from your exhaust can get into your vehicle (see “Carbon Monoxide”...
  • Page 246: Making Turns

    Before you start, check the trailer hitch and platform (and attachments), safety chains, electrical connector, lamps, tires and mirror adjustment. If the trailer has electric brakes, start your vehicle and trailer moving and then apply the trailer brake controller by hand to be sure the brakes are working.
  • Page 247: Turn Signals When Towing A Trailer

    Turn Signals When Towing a Trailer When you tow a trailer, your vehicle may need a different turn signal flasher and/or extra wiring. Check with your dealer. The arrows on your instrument panel will flash whenever you signal a turn or lane change. Properly hooked up, the trailer lamps will also flash, telling other drivers you’re about to turn, change lanes or stop.
  • Page 248: Maintenance When Trailer Towing

    When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: Start your engine; Shift into a gear; and Be sure the parking brake has released. 2. Let up on the brake pedal. 3.
  • Page 249 Section 5 Problems on the Road Here you’ll find what to do about some problems that can occur on the road. Hazard Warning Flashers Other Warning Devices Jump Starting Towing Your Vehicle Engine Overheating Cooling System If a Tire Goes Flat Changing a Flat Tire Compact Spare Tire If You’re Stuck: In Sand, Mud, Ice or Snow...
  • Page 250: Section 5 Hazard Warning Flashers

    Hazard Warning Flashers Your hazard warning flashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will flash on and off. The hazard warning button is located in the center of the instrument panel, between the two air vents.
  • Page 251: Jump Starting

    Other Warning Devices If you carry reflective triangles, you can set one up at the side of the road about 300 feet (100 m) behind your vehicle. Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle.
  • Page 252 1. Check the other vehicle. It must have a 12 battery with a negative ground system. NOTICE: If the other system isn’t a 12 volt system with a negative ground, both vehicles can be damaged. 2. Get the vehicles close enough so the jumper cables can reach, but be sure the vehicles aren’t touching each other.
  • Page 253 CAUTION: An electric fan can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. 6. Start by lifting and moving the red positive (+) remote terminal cover away from the relay center.
  • Page 254 7. Check that the jumper cables don’t have loose or missing insulation. If they do, you could get a shock. The vehicles could also be damaged. Before you connect the cables, here are some basic things you should know. Positive (+) will go to positive (+) and negative ( ) will go to a heavy, unpainted metal engine part.
  • Page 255 9. Don’t let the other end of the positive (+) cable touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one. 10. Now connect the black negative ( ) cable to the good battery’s...
  • Page 256: Towing Your Vehicle

    13. Try to start the vehicle with the dead battery. If it won’t start after a few tries, it probably needs service. 14. Remove the cables in reverse order to prevent electrical shorting. Take care that they don’t touch each other or any other metal.
  • Page 257: Engine Overheating

    With current trends in automotive styles and design, it is essential that the correct towing equipment is used to tow a vehicle. Your vehicle can be towed with wheel or car carrier equipment. Consult your dealer or a professional towing service if you need to have your vehicle towed.
  • Page 258 If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming CAUTION: (Continued) 5-10 CAUTION: (Continued) from it.
  • Page 259: If No Steam Is Coming From Your Engine

    If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: Climb a long hill on a hot day. Stop after high speed driving.
  • Page 260: Cooling System

    Cooling System When you decide it’s safe to lift the hood, here’s what you’ll see: A. Coolant Surge Tank with Pressure Cap B. Electric Engine Cooling Fans 5-12 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
  • Page 261 A low coolant level should be indicated by a CHECK COOLANT LEVEL message on the Driver Information Center. If it is, you may have a leak in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
  • Page 262 How to Add Coolant to the Coolant Surge Tank If you haven’t found a problem yet, but the coolant level isn’t at or above the fill mark at the forward edge of the surge tank, add a 50/50 mixture of clean, drinkable water and DEX COOL coolant surge tank, but be sure the cooling system,...
  • Page 263 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid like alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you wouldn’t get the overheat warning.
  • Page 264 1. You can remove the coolant surge tank pressure cap when the cooling system, including the coolant surge tank pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise (left) about one and then stop. If you hear a hiss, wait for that to stop.
  • Page 265: If A Tire Goes Flat

    4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fans. By this time, the coolant level inside the coolant surge tank may be lower.
  • Page 266: Changing A Flat Tire

    Changing a Flat Tire If a tire goes flat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning flashers. CAUTION: Changing a tire can cause an injury. The vehicle can slip off the jack and roll over you or other people.
  • Page 267: Removing The Spare Tire And Tools

    Removing the Spare Tire and Tools The equipment you’ll need is in the trunk. (Instructions for changing your tires are on the inside of the tire cover.) 1. Lift the tire cover to gain access to the spare tire and jacking equipment. To do this: Press the area at the front of the handle so that the back edge raises.
  • Page 268 2. Unscrew the wing nuts to remove the container that holds the wrench and jack. 3. Remove the wheel wrench, jack and the spare tire from the trunk. See “Compact Spare Tire” later in this section for more information about the compact spare. The tools you’ll be using include the jack (A) and the wheel wrench (B).
  • Page 269 Removing the Flat Tire and Installing the Spare Tire STS Wheel Shown 1. Using the wheel wrench, loosen all the wheel nuts. Don’t remove them yet. 5-21...
  • Page 270 2. Find the jacking location from the diagrams above and corresponding cutouts in the plastic molding. 5-22 CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack, you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack.
  • Page 271 3. Turn the jack handle counterclockwise to lower the jack lift head until the jack fits under the car. 4. Raise the jack until the metal flange fits firmly into the channel of the jack head. 5. Put the compact spare near you. 6.
  • Page 272 CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 9. Place the spare on the wheel 5-24 mounting surface. 11. Lower the vehicle by turning the jack handle counterclockwise.
  • Page 273 12. Tighten the wheel nuts firmly in a crisscross sequence as shown. On the STS, screw on the wheel nut covers with your fingers, then tighten one with the wheel wrench. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to become loose and even come off.
  • Page 274 Storing the Flat Tire and Tools CAUTION: Storing a jack, a tire or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. After you’ve put the compact spare tire on your vehicle, you’ll need to store the flat tire in your trunk.
  • Page 275: Compact Spare Tire

    Compact Spare Tire Although the compact spare tire was fully inflated when your vehicle was new, it can lose air after a time. Check the inflation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare on your vehicle, you should stop as soon as possible and make sure your spare tire is correctly inflated.
  • Page 276: If You're Stuck: In Sand, Mud, Ice Or Snow

    If You’re Stuck: In Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you don’t want to spin your wheels too fast. The method known as “rocking” can help you get out when you’re stuck, but you must use caution.
  • Page 277 Section 6 Service and Appearance Care Here you will find information about the care of your vehicle. This section begins with service and fuel information, and then it shows how to check important fluid and lubricant levels. There is also technical information about your vehicle, and a part devoted to its appearance care.
  • Page 278: Doing Your Own Service Work

    Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you’ll go to your dealer for all your service needs. You’ll get genuine GM parts and trained and supported service people. We hope you’ll want to keep your GM vehicle all GM. Genuine GM parts have one of these marks: Doing Your Own Service Work If you want to do some of your own service work, you’ll...
  • Page 279: Section 6 Fuel

    CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. Be sure you have sufficient knowledge, experience, the proper replacement parts and tools before you attempt any vehicle maintenance task.
  • Page 280 (See “Malfunction Indicator Lamp” in the Index.) If this occurs, return to your authorized Cadillac dealer for diagnosis to determine the cause of failure. In the event it is determined that the cause of the condition is the type of fuels used, repairs may not be covered by your warranty.
  • Page 281: Fuels In Foreign Countries

    Fuels in Foreign Countries If you plan on driving in another country outside the United States or Canada, the proper fuel may be hard to find. Never use leaded gasoline or any other fuel not recommended in the previous text on fuel. Costly repairs caused by use of improper fuel wouldn’t be covered by your warranty.
  • Page 282 The fuel door release button is located on the left side of the instrument panel below the lamp controls. To open the fuel door, press the fuel door release button upward. The vehicle must be in PARK (P) or NEUTRAL (N) and the VALET lockout button must be in the OFF position.
  • Page 283 CAUTION: If you get gasoline on yourself and then something ignites it, you could be badly burned. Gasoline can spray out on you if you open the fuel filler cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
  • Page 284: Checking Things Under The Hood

    Filling a Portable Fuel Container CAUTION: Never fill a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs.
  • Page 285: Hood Release

    Hood Release Pull the lever inside the vehicle to open the hood. It is located on the lower left side of the instrument panel. Then go to the front of the vehicle and find the secondary hood release which is located below the front grille.
  • Page 286 When you open the hood, you’ll see: A. Windshield Washer Fluid B. Power Steering Fluid C. Engine Oil Fill Location D. Engine Oil Dipstick Location Before closing the hood, be sure all filler caps are on properly. Then pull the hood down and close it firmly. 6-10 E.
  • Page 287: Engine Oil

    Underhood Lamp Turn the parking lamps on to operate the underhood lamp. The underhood lamp will come on when the hood is opened. Engine Oil If the CHECK OIL LEVEL message appears on the instrument panel, it means you need to check your engine oil level right away.
  • Page 288: When To Add Engine Oil

    When to Add Engine Oil If the oil is at or below the ADD line, then you’ll need to add at least one quart of oil. But you must use the right kind. This part explains what kind of oil to use. For crankcase capacity, see “Capacities and Specifications”...
  • Page 289: What Kind Of Engine Oil To Use

    What Kind of Engine Oil to Use Oils recommended for your vehicle can be identified by looking for the starburst symbol. This symbol indicates that the oil has been certified by the American Petroleum Institute (API). Do not use any oil which does not carry this starburst symbol.
  • Page 290: When To Change Engine Oil

    As shown in the chart, SAE 5W 30 is best for your vehicle. However, you can use SAE 10W to be 0 C) or above. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils, such as SAE 20W NOTICE: Use only engine oil with the American Petroleum Institute Certified For Gasoline Engines starburst...
  • Page 291: What To Do With Used Oil

    The system won’t detect dust in the oil. So, if you drive in a dusty area, be sure to change your oil and filter every 3,000 miles (5 000 km) or sooner. Remember to reset the Oil Life Indicator whenever the oil is changed. How to Reset the Oil Life Indicator After the oil has been changed, display the ENGINE OIL LIFE message by pressing the INFO button.
  • Page 292: Engine Air Cleaner/Filter

    Engine Air Cleaner/Filter The air cleaner is located next to the coolant surge tank on the driver’s side of the engine. Be sure the engine has cooled before following these steps to replace the air cleaner filter: 6-16 1. With a screwdriver, loosen the air duct clamp, which is located at the mass...
  • Page 293 3. Unhook both air cleaner cover latches. 4. Move the air cleaner lid out of the way. 5. Take out the air cleaner filter and remove any loose debris that may be found lying in the air cleaner base. 6. Install a new air filter element. See “Normal Maintenance Replacement Parts”...
  • Page 294 Follow these steps to reinstall the air cleaner assembly: 1. Slide the air cleaner lid into the slots in the bottom of the air cleaner base. 2. Close the cover and make sure that both latches are secure and fully engaged. 3.
  • Page 295: Automatic Transaxle Fluid

    Automatic Transaxle Fluid When to Check and Change A good time to check your automatic transaxle fluid level is when the engine oil is changed. Change both the fluid and filter every 50,000 miles (83 000 km) if the vehicle is mainly driven under one or more of these conditions: In heavy city traffic where the outside temperature regularly reaches 90...
  • Page 296 To get the right reading, the fluid should be at normal operating temperature, which is 180 C to 93 Get the vehicle warmed up by driving about 15 miles (24 km) when outside temperatures are above 50 C). If it’s colder than 50 F (10 have to drive longer.
  • Page 297: How To Add Fluid

    4. Check both sides of the dipstick, and read the lower level. The fluid level must be in the cross hatched area. 5. If the fluid level is in the acceptable range, push the dipstick back in all the way. Replace the air cleaner/filter assembly.
  • Page 298: Engine Coolant

    How to Reset the Transaxle Fluid Change Indicator After the transaxle fluid has been changed, display the TRANS FLUID LIFE message by pressing the INFO button. Then press and hold the INFO RESET button until the display shows “100.” This resets the transaxle fluid life index.
  • Page 299 What to Use Use a mixture of one half clean, drinkable water and half DEX COOL coolant which won’t damage aluminum parts. If you use this coolant mixture, you don’t need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
  • Page 300: Checking Coolant

    Checking Coolant The engine coolant surge tank is located on the driver’s side of the engine. The cooling system is under a lot of pressure when it is hot. If the CHECK COOLANT LEVEL message appears on the Driver Information Center, you will need to add coolant.
  • Page 301 Adding Coolant If you need more coolant, add the proper DEX coolant mixture at the surge tank, but only when the engine is cool. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
  • Page 302: Power Steering Fluid

    Power Steering Fluid The power steering fluid reservoir is located next to the fuse relay center on the passenger’s side of the engine. When to Check Power Steering Fluid It is not necessary to regularly check power steering fluid unless you suspect there is a leak in the system or you hear an unusual noise.
  • Page 303: Windshield Washer Fluid

    Windshield Washer Fluid What to Use When you need windshield washer fluid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a fluid that has sufficient protection against freezing.
  • Page 304: Brake Fluid

    NOTICE: When using concentrated washer fluid, follow the manufacturer’s instructions for adding water. Don’t mix water with ready fluid. Water can cause the solution to freeze and damage your washer fluid tank and other parts of the washer system. Also, water doesn’t clean as well as washer fluid.
  • Page 305 There are only two reasons why the brake fluid level in the reservoir might go down. The first is that the brake fluid goes down to an acceptable level during normal brake lining wear. When new linings are put in, the fluid level goes back up.
  • Page 306: Brake Wear

    NOTICE: Using the wrong fluid can badly damage brake system parts. For example, just a few drops of mineral based oil, such as engine oil, in your brake system can damage brake system parts so badly that they’ll have to be replaced.
  • Page 307: Brake Adjustment

    CAUTION: The CHANGE BRAKE PADS message or the high pitched warning sound means that soon your brakes won’t work well. That could lead to an accident. When the CHANGE BRAKE PADS message comes on and stays on, have your vehicle serviced. NOTICE: Continuing to drive with worn could result in costly brake repair.
  • Page 308 Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top brake parts.
  • Page 309: Vehicle Storage

    To be sure the vent hose (A) is properly attached, the vent hose connectors (B) must be securely reattached to the vent outlets (C) on each side of the battery, and the vent assembly grommet (D) must be secured to the floor pan (E). Vehicle Storage If you’re not going to drive your vehicle for 25 days or more, remove the black, negative (...
  • Page 310: Bulb Replacement

    Bulb Replacement For any bulb changing procedure not listed in this section, contact your dealer service department. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured. Be sure to read and follow the instructions on the bulb package.
  • Page 311 4. To replace the low beam bulb, first remove the 5. Then, turn the bulb socket counterclockwise to rubber housing cover on the rear of the lamp. unlock the socket from the lamp housing. 6-35...
  • Page 312 6. Remove the headlamp bulb socket. 6-36 7. After removing the wiring harness connector from the headlamp bulb socket, replace the bulb assembly. Reconnect it to the wiring harness and reinstall the headlamp bulb assembly back into the headlamp housing. 8.
  • Page 313 Headlamp Aiming Your vehicle has a visual optical headlamp aiming system equipped with horizontal aim indicators. The aim has been pre set at the factory and should need no further adjustment. This is true even though your horizontal aim indicators may not fall exactly on the “0”...
  • Page 314 The vehicle should be properly prepared as follows: The vehicle should be placed so the headlamps are 25 ft. (7.6 m) from a light colored wall or other flat surface. The vehicle must have all four tires on a perfectly level surface which is level all the way to the wall or other flat surface.
  • Page 315 Headlamp Horizontal Aiming Turn the horizontal aiming screw (A) until the indicator (B) is lined up with zero. Once the horizontal aim is adjusted, then adjust the vertical aim. Headlamp Vertical Aiming 1. Find the aim dot on the lens of the lamps. 2.
  • Page 316 4. Turn on the low beam headlamps and cover the lamp not being evaluated. The ambient light should allow the beam cut off to be seen on the wall. 6-40 5. Turn the vertical aiming screw (C) until the headlamp beam is aimed to the horizontal line. It is recommended to cover the lamp that is not being evaluated to better see the beam being aimed.
  • Page 317: Front Turn Signal Lamps

    Front Turn Signal Lamps 1. The turn signal lamps are located on the outboard side of the headlamps. To access, remove the headlamp, (see Steps 1, 2 and 3 under “Headlamps”). 2. Press the bulb socket tab and turn the bulb socket counterclockwise to unlock the socket from the lamp housing.
  • Page 318 5. Remove the three wing nuts that fasten the taillamp to the body. 6. Gently remove the taillamp from the body. The taillamp is on the bottom of the housing and the rear turn signal lamp is on the upper part of the housing. 6-42 7.
  • Page 319: Windshield Wiper Blade Replacement

    Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking. See “Wiper Blade Check” in your Maintenance Schedule booklet under Part B “Owner Checks and Services” for more information. It’s a good idea to clean or replace the wiper blade assembly on a regular basis or when worn.
  • Page 320 Your new vehicle comes with high a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your Cadillac Warranty booklet for details. CAUTION: Poorly maintained and improperly used tires are dangerous.
  • Page 321 Inflation -- Tire Pressure The Tire Loading Information label, which is located on the rear edge of the driver’s door, shows the correct inflation pressures for your tires when they’re cold. “Cold” means your vehicle has been sitting for at least three hours or driven no more than 1 mile (1.6 km).
  • Page 322: Tire Inspection And Rotation

    When to Check Check your tires once a month or more. Don’t forget your compact spare tire. It should be at 60 psi (420 kPa). How to Check Use a good quality pocket type gage to check tire pressure. You can’t tell if your tires are properly inflated simply by looking at them.
  • Page 323 After the tires have been rotated, adjust the front and rear inflation pressures as shown on the Tire Information label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” in the Index. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after a time.
  • Page 324: Buying New Tires

    Buying New Tires To find out what kind and size of tires you need, look at the Tire Loading Information label. The tires installed on your vehicle when it was new had a Tire Performance Criteria Specification (TPC Spec) number on each tire’s sidewall. When you get new tires, get ones with that same TPC Spec number.
  • Page 325: Uniform Tire Quality Grading

    Uniform Tire Quality Grading The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance. (This applies only to vehicles sold in the United States.) The grades are molded on the sidewalls of most passenger car tires.
  • Page 326: Wheel Replacement

    Temperature A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
  • Page 327 Each new wheel should have the same load capacity, diameter, width, offset and be mounted the same way as the one it replaces. If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts.
  • Page 328: Tire Chains

    Tire Chains NOTICE: Use tire chains only where legal and only when you must. Use only SAE Class “S” type chains that are the proper size for your tires. Install them on the front tires and tighten them as tightly as possible with the ends securely fastened.
  • Page 329: Cleaning The Inside Of Your Vehicle

    Don’t use any of these unless this manual says you can. In many uses, these will damage your vehicle: Alcohol Laundry Soap Bleach Reducing Agents Cleaning the Inside of Your Vehicle Use a vacuum cleaner often to get rid of dust and loose dirt.
  • Page 330: Cleaning Leather

    Cleaning Leather Use a soft cloth with lukewarm water and a mild soap or saddle soap and wipe dry with a soft cloth. Then, let the leather dry naturally. Do not use heat to dry. For stubborn stains, use a leather cleaner. See your dealer for this product.
  • Page 331: Cleaning Glass Surfaces

    Cleaning Glass Surfaces Glass should be cleaned often. GM Glass Cleaner or a liquid household glass cleaner will remove normal tobacco smoke and dust films on interior glass. (See “Appearance Care and Materials” in the Index.) Don’t use abrasive cleaners on glass, because they may cause scratches.
  • Page 332: Finish Care

    Don’t wash your vehicle in the direct rays of the sun. Use a car washing soap. Don’t use strong soaps or chemical detergents. Be sure to rinse the vehicle well, removing all soap residue completely. You can get approved cleaning products from your dealer. (See “Appearance Care and Materials”...
  • Page 333: Cleaning Tires

    Cleaning Aluminum or Chrome Plated Wheels (If Equipped) Keep your wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied. The surface of these wheels is similar to the painted surface of your vehicle.
  • Page 334: Chemical Paint Spotting

    Although no defect in the paint job causes this, Cadillac will repair, at no charge to the owner, the surfaces of new vehicles damaged by this fallout condition within 12 months or 12,000 miles (20 000 km) of purchase, whichever occurs first.
  • Page 335 GM Vehicle Care/Appearance Materials PART NUMBER SIZE 994954 23 in. x 25 in. 1050172 16 oz. (0.473 L) 1050173 16 oz. (0.473 L) 1050174 16 oz. (0.473 L) 1050214 32 oz. (0.946 L) 1050427 23 oz. (0.680 L) 1052918** 8 oz. (0.237 L) 1052925 16 oz.
  • Page 336: Engine Identification

    Vehicle Identification Number (VIN) This is the legal identifier for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Vehicle Certification and Service Parts labels and the certificates of title and registration.
  • Page 337: Electrical System

    Electrical System Add-On Electrical Equipment NOTICE: Don’t add anything electrical to your vehicle unless you check with your dealer first. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add on electrical equipment can keep other components from working as they should.
  • Page 338: Fuses And Circuit Breakers

    Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of fires caused by electrical problems. Look at the silver colored band inside the fuse. If the band is broken or melted, replace the fuse.
  • Page 339 Minifuses Fuse Usage ALDL Accessory Windshield Wipers Not Used Headlamp Low Beam Left Headlamp Low Beam Right Fuse Usage Instrument Panel Powertrain Control Module Battery Headlamp High Beam Right Headlamp High Beam Left Ignition 1 Fog Lamps Transmission Cruise Control Coil MDL Injector Bank #2 Not Used...
  • Page 340 Micro Relays Relay Usage Headlamp High Beam Headlamp Low Beam Fog Lamps Daytime Running Lamps Horn Air Conditioner Clutch Mini Relays Relay Usage Not Used Accessory Not Used Starter 1 Cooling Fan Secondary Ignition 1 Cooling Fan Series/Parallel Cooling Fan Primary 6-64 Maxibreaker Circuit...
  • Page 341 Rear Underseat Bussed Electrical Center (BEC) The rear BEC is located under the rear seat on the driver’s side. The rear seat cushion must be removed to access the BEC. See “Removing the Rear Seat Cushion” in the Index. Minifuses Fuse Usage Fuel Pump...
  • Page 342 Fuse Usage Heated Seat Left Rear Power Tilt and Telescoping Steering Supplemental Inflation Restraint Not Used Lamps Park Right Fuel Tank Ventilation Solenoid Ignition 1 Lamps, Parking Left Interior Lamp Dimmer Module Navigation Heated Seat Left Front Export Lighting Rear Door Modules Stoplamps Neutral Safety Back Audio...
  • Page 343 Micro Relays Relay Usage Fuel Pump Parking Lamps Ignition 1 Park Brake A Park Brake B Park Shift Interlock Reverse Lamps Retained Accessory Power for Sunroof Rear HVAC Blower CVRSS Dampers Ignition 3 Fuel Tank Door Release Interior Lamps Trunk Release Front Courtesy Lamps Rear Courtesy Lamps Electronic Level Control Compressor...
  • Page 344 Removing the Rear Seat Cushion NOTICE: The battery and main fuse boxes are located under the rear seat cushion. The battery’s ground terminal and some relay wires are exposed. To help avoid damage to the battery and wires, be careful when removing or reinstalling the seat cushion.
  • Page 345: Capacities And Specifications

    CAUTION: (Continued) hasn’t been routed through the seat cushion at all, it won’t be there to work for the next passenger. The person sitting in that position could be badly injured. After reinstalling the seat cushion, always check to be sure that the safety belts are properly routed and are not twisted.
  • Page 346: Normal Maintenance Replacement Parts

    Horsepower ....275 (bhp) @ 5600 rpm 205 (kW) @ 5600 rpm ....300 (bhp) @ 6000 rpm 224 (kW) @ 6000 rpm Torque...
  • Page 347 Section 7 Customer Assistance Information Here you will find out how to contact Cadillac if you need assistance. This section also tells you how to obtain service publications and how to report any safety defects. Customer Satisfaction Procedure Customer Assistance for Text Telephone...
  • Page 348: Customer Satisfaction Procedure

    Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Cadillac. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
  • Page 349: Customer Assistance For Text Telephone

    To assist customers who are deaf, hard of hearing, or speech impaired and who use Text Telephones (TTYs), Cadillac has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with Cadillac by dialing: 1 (TTY users in Canada can dial 1 free telephone CMCC (2622).
  • Page 350: Customer Assistance Offices

    Customer Assistance Offices Cadillac encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Cadillac, the letter should be addressed to Cadillac’s Customer Assistance Center. United States Cadillac Customer Assistance Center Cadillac Motor Car Division P.O.
  • Page 351: Gm Mobility Program For Persons With Disabilities

    All TTY users call 1 3830. Roadside Service Cadillac’s exceptional Roadside Service is more than an auto club or towing service. It provides every Cadillac owner with the advantage of contacting a Cadillac 9935. advisor and, when appropriate, a Cadillac trained dealer 9935.
  • Page 352 1112, 24 hours a day, 365 days a year. This service is provided at no charge for any warranty covered situation and for a nominal charge if the Cadillac is no longer under warranty. Roadside Service is available only in the United States and Canada. Cadillac Owner Privileges...
  • Page 353: Roadside Service For The Hearing Or

    Text Telephone (TTY) in the Roadside Service Center. Any customer who has access to a (TTY) or a conventional teletypewriter can communicate with Cadillac by dialing from the United States or Canada CMCC daily, 24 hours.
  • Page 354: Courtesy Transportation

    Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait Cadillac helps minimize your inconvenience by providing several transportation options. Depending on the circumstances,...
  • Page 355: Additional Program Information

    Courtesy Rental Vehicle When your vehicle is unavailable due to warranty repairs, your dealer may arrange to provide you with a courtesy rental vehicle or reimburse you for a rental vehicle you obtained, at actual cost, up to a maximum of $35.00 per day supported by receipts.
  • Page 356: Warranty Information

    General Motors reserves the right to unilaterally modify, change or discontinue Courtesy Transportation at any time and to resolve all questions of claim eligibility pursuant to the terms and conditions described herein at its sole discretion. Warranty Information Your vehicle comes with a separate warranty booklet that contains detailed warranty information.
  • Page 357: Ordering Owner Publications In Canada

    In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1 8006, or write: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 436004 Pontiac, MI 48343...
  • Page 358 2000 CADILLAC SERVICE PUBLICATIONS ORDERING INFORMATION The following publications covering the operation and servicing of your vehicle can be purchased by filling out the Service Publication Order Form in this book and mailing it in with your check, money order, or credit card information to Helm, Incorporated (address below.)
  • Page 359 ORDER TOLL FREE (NOTE: For Credit Card Holders Only) 1-800-551-4123 (Monday-Friday 8:00 AM – 6:00 PM EST) FAX Orders Only 1-313-865-5927 PUBLICATION FORM PUBLICATION FORM NUMBER NUMBER Service Manual Car & Light Truck Transmission Unit Repair Owner’s Manual NOTE: Dealers and Companies please provide dealer or company name, and also the name of the person to whose attention the shipment should be sent.

This manual is also suitable for:
