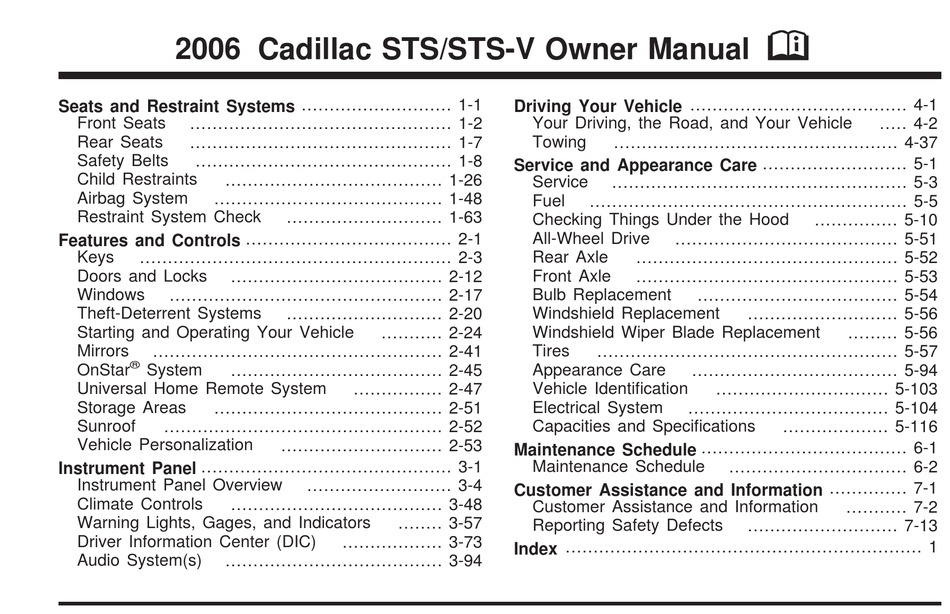

Page 1 2006 Cadillac STS/STS-V Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-7 Safety Belts ... 1-8 Child Restraints ... 1-26 Airbag System ... 1-48 Restraint System Check ... 1-63 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
GENERAL MOTORS, GM, the GM Emblem, CADILLAC, the CADILLAC Crest & Wreath, and the name STS are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes in the product after that time without notice.
Page 3 Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4: Vehicle Symbols
Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Table Of Contents
Section 1 Front Seats ...1-2 Power Seats ...1-2 Power Lumbar ...1-2 Heated Seats ...1-3 Heated and Ventilated Seats ...1-4 Power Reclining Seatback ...1-5 Head Restraints ...1-6 Rear Seats ...1-7 Heated Seats ...1-7 Rear Seat Pass-Through Door ...1-7 Safety Belts ...1-8 Safety Belts: They Are for Everyone ...1-8 Questions and Answers About Safety Belts ...1-12 How to Wear Safety Belts Properly ...1-13...
Page 8: Front Seats
Front Seats Power Seats The power seat controls are located on the outboard sides of the front seat cushions. • Move the front of the horizontal control up or down to adjust the front portion of the cushion. • Move the rear of the horizontal control up or down to adjust the rear portion of the cushion.
Page 9 To raise the position of the lumbar support, press and hold the top of the control. To lower the position of lumbar support, press and hold the bottom of the control. Let go of the control when the lower seatback reaches the desired level of support.
Page 10: Heated And Ventilated Seats
Heated and Ventilated Seats Your vehicle may have heated and ventilated front seats. The buttons are located on the climate control panel. (Heated Seat and Seatback): This part of the button is for the heated seat and seatback. (Ventilated Seat): This part of the button is for the ventilated seat.
Page 11: Power Reclining Seatback
Power Reclining Seatback The vertical power seat control described earlier allows the seatback to recline. See Power Seats on page 1-2 for more information. Do no have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous.
Page 12: Head Restraints
Head Restraints The front and rear head restraints lock into place when raised. To release the head restraint and lower it, press the tab located at the base of the restraint. The front head restraints also tilt forward and rearward. Adjust your head restraint so that the top of the restraint is closest to the top of your head.
Page 13: Rear Seats
Rear Seats Heated Seats Your vehicle may have this feature. The buttons used to control the heated rear seats are located on the back of the center console. The engine must be running for the heated seat feature to work. (Heated Seat and Seatback): Press this button to turn the heated seat feature on.
Page 14 Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 15: Why Safety Belts Work
You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive.
Page 16 Put someone on it. 1-10 Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 17 The person keeps going until stopped by something. or the instrument panel... In a real vehicle, it could be the windshield... 1-11...
Page 18 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-12 Questions and Answers About Safety Belts...
Page 19 If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt.
Page 20 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 21 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 22 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. 1-16 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 23 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 24 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-18 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 25 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 26 Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle. Shoulder Belt Height Adjustment Before you begin to drive, move the shoulder belt height adjuster to the height that is right for you.
Page 27 Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see Driver Position on page 1-13. The right front passenger’s safety belt works the same way as the driver’s safety belt — except for one thing.
Page 28 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again.
Page 29 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body. To unlatch the belt, push the button on the buckle. Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown...
Page 30 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 1-24 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top.
Page 31 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 32: Child Restraints
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt is not long enough, your dealer will order you an extender. It is free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 33: Safety Belts
What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 34 What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck? If the child is sitting in a seat next to a window, move the child toward the center of the vehicle.
Page 35: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 36 1-30 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 37 For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.
Page 38: Child Restraint Systems
Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.
Page 39 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness.
Page 40 How Should I Use a Child Restraint? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 41: Securing The Child Within The Child Restraint
When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.
Page 42: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. General Motors recommends that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 43: Lower Anchors And Tethers For Children (Latch)
Wherever you install a child restraint, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle —...
Page 44: Top Tether Anchor
Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). 1-38 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle.
Page 45 Your child restraint may have a single tether (A) or a dual tether (C). Either will have a single attachment (B) to secure the top tether to the anchor. Some top tether-equipped child restraints are designed for use with or without the top tether being attached. Others require the top tether always to be attached.
Page 46 To assist you in locating the top tether anchors, the top tether anchor symbol is located on the trim cover. The top tether anchors are located under the trim covers on the rear seatback ﬁller panel. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 47: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure the...
Page 48 5. If the child restraint is forward-facing, attach and tighten the top tether to the top tether anchor. Refer to the child restraint instructions and the following steps: 5.1. Find the top tether anchor. 5.2. Open the top tether anchor trim cover to expose the anchor.
Page 49: Securing A Child Restraint In A
Securing a Child Restraint in a Rear Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-37. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position.
Page 50 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 1-44 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 51: Securing A Child Restraint In The Right Front Seat Position
To remove the child restraint, if the top tether is attached to the top tether anchor, disconnect it. Unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.
Page 52 There is no top tether anchor in the right front passenger’s position. Do not secure a child seat in this position if a national or local law requires that the top tether be anchored, or if the instructions that come with the child restraint say that the top tether must be anchored.
Page 53 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 54: Airbag System
If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint. If after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion.
Page 55 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 56 CAUTION: Both frontal and side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inﬂation before and during a crash.
Page 57: Where Are The Airbags
There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 3-60 for more information.
Page 58 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. 1-52 The seat-mounted side impact airbag for the driver is in the side of the driver’s seatback closest to the door.
Page 59 The seat-mounted side impact airbag for the right front passenger is in the side of the passenger’s seatback closest to the door. The roof-mounted side impact airbag for the driver and the person seated directly behind the driver is in the ceiling above the side windows.
Page 60 The roof-mounted side impact airbag for the right front passenger and the person seated directly behind that passenger is in the ceiling above the side windows. 1-54 CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 61: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inﬂate and help...
Page 62: What Makes An Airbag Inﬂate
The side impact airbags are intended to inﬂate in moderate to severe side crashes. A side impact airbag will inﬂate if the crash severity is above the system’s designed “threshold level.” The threshold level can vary with speciﬁc vehicle design. Side impact airbags are not intended to inﬂate in frontal or near-frontal impacts, rollovers or rear impacts.
Page 63: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the frontal and seat-mounted side impact airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize the airbags inﬂated. Roof-mounted side impact airbags are designed to deﬂate more slowly and may still be at least partially inﬂated minutes after the vehicle comes to rest.
Page 64: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system.
Page 65 The passenger sensing system works with sensors that are part of the right front passenger’s seat. The sensors are designed to detect the presence of a properly-seated occupant and determine if the passenger’s frontal airbag should be enabled (may inﬂate) or not. Accident statistics show that children are safer if they are restrained in the rear rather than the front seat.
Page 66 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: • the right front passenger seat is unoccupied • the system determines that an infant is present in a rear-facing infant seat • the system determines that a small child is present in a forward-facing child restraint •...
Page 67 If a person of adult-size is sitting in the right front passenger’s seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. If this happens, turn the vehicle off and ask the person to place the seatback in the fully upright position, then sit upright in the seat, centered on the seat cushion, with the person’s legs comfortably extended.
Page 68: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 7-14.
Page 69: Restraint System Check
Because I have a disability, I have to get my vehicle modiﬁed. How can I ﬁnd out whether this will affect my airbag system? Changing or moving any parts of the front seats, safety belts, the airbag sensing and diagnostic module (located under the center console), or the overhead console can affect the operation of the airbag system.
Page 70: Replacing Restraint System
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 71: Features And Controls
Section 2 Keys ...2-3 Keyless Access System ...2-4 Keyless Access System Operation ...2-5 Doors and Locks ...2-12 Door Locks ...2-12 Power Door Locks ...2-12 Programmable Automatic Door Locks ...2-13 Rear Door Security Locks ...2-13 Lockout Protection ...2-14 Trunk ...2-14 Windows ...2-17 Power Windows ...2-18 Sun Visors ...2-20 Theft-Deterrent Systems ...2-20...
Page 72 Section 2 ® OnStar System ...2-45 Universal Home Remote System ...2-47 Universal Home Remote System Operation ...2-48 Storage Areas ...2-51 Glove Box ...2-51 Cupholder(s) ...2-51 Features and Controls Center Console Storage Area ...2-51 Convenience Net ...2-51 Sunroof ...2-52 Vehicle Personalization ...2-53 Memory Seat, Mirrors and Steering Wheel ...2-70...
Page 73: Keys
Keys CAUTION: Leaving children unattended in a vehicle is dangerous, but it is even more dangerous if the keyless access transmitter is also left in the vehicle. A child or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move.
Page 74: Keyless Access System
Be sure you have a spare transmitter and/or key. In an emergency, contact Cadillac Roadside Assistance. See Roadside Service on page 7-5. If your vehicle is equipped with the OnStar ®...
Page 75: Keyless Access System Operation
If you ever notice a decrease in the keyless access transmitter range, try doing one of the following: • Check the distance. You may be too far from your vehicle. You may need to stand closer during rainy or snowy weather. •...
Page 76 (Lock): Press this button to lock the doors. The lock status light on the front doors will turn on for ﬁve seconds and the turn signal indicators will ﬂash. If this button is pressed twice, the doors will lock, the status light on the door will turn on for ﬁve seconds, the turn signal indicators will ﬂash twice, and the horn will sound once.
Page 77: Matching Transmitter(S) To Your Vehicle
Matching Transmitter(s) to Your Vehicle Each Keyless Access System is coded to allow only transmitters programmed to your vehicle to work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your GM dealer. Your GM dealer can reprogram your vehicle so lost or stolen transmitters no longer work with your vehicle.
Page 78 The Canadian immobilizer standard requires Canadian owners to see their GM dealer for matching new transmitters when a recognized transmitter is not available. United States Owners are permitted to match a new transmitter to their vehicle when a recognized transmitter is not available. The procedure will require three, ten minute cycles to complete the matching process.
Page 79: Battery Replacement
If you have additional transmitters to program, this process can be repeated until four transmitters have been programmed. The DIC will then display MAX # FOBS LEARNED and will exit the programming mode. When you are done programming transmitters, press the unlock button on each keyless access transmitter twice.
Page 80: Remote Vehicle Start
3. Put the new battery in the transmitter, positive (+) side down. Use a battery type CR2032 or equivalent. 4. Reassemble the transmitter. Make sure to put it together so water will not get inside the transmitter. 5. Test the transmitter. Remote Vehicle Start This feature allows you to start the engine from outside the vehicle.
Page 81 Laws in some local communities may restrict the use of remote starters, for example, requiring a person using remote start to have the vehicle in view when doing so. Check local regulations for any requirements on remote starting of vehicles. Do not use the remote start feature if your vehicle is low on fuel.
Page 82: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 83: Programmable Automatic Door Locks
Programmable Automatic Door Locks Your vehicle was programmed from the factory so that when the doors are closed, the ignition is on and the shift lever is moved out of PARK (P), all the doors will lock. The front doors can still be opened from the inside while the doors are locked.
Page 84: Lockout Protection
When you want to open a rear door when the security lock is on, do the following: 1. Unlock the door using the remote keyless entry transmitter, the front door power lock switch or by lifting the rear door manual lock. 2.
Page 85: Trunk Lid Release
Trunk Lid Release There are several ways to release the trunk lid. • (Trunk Lid Release): Press this button located on the driver’s door. The vehicle must be in PARK (P) or NEUTRAL (N) and the valet mode turned off. To disable valet mode, see Valet Lockout Switch on page 2-23.
Page 86: Emergency Trunk Release Handle
Rear Seat Pass-Through Door This feature allows you to access the trunk without opening the trunk lid. If the vehicle ever loses power, the trunk can be accessed and opened through this door. To open the door, do the following: 1.
Page 87: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 88: Power Windows
Power Windows The power window switches are located on the armrest near each window. Press the front of the switch to the ﬁrst position to open the window to the desired level. Lift up the front of the switch to the ﬁrst position to close the window.
Page 89: Programming The Power Windows
Programming the Power Windows If the battery on your vehicle has been recharged, disconnected, or is not working, you will need to reprogram each window for the express-up feature to work. To program each window, follow these steps: 1. With the ignition on or in ACC, or while RAP is active, close all doors.
Page 90: Sun Visors
Window Lockout (Window Lockout): The rear window lockout button is located on the driver’s door armrest near the window switches. Press this button to disable the rear window controls. The light on the button will illuminate, indicating that the feature is in use. The rear windows can be raised or lowered using the driver’s window switches when the lockout feature is on.
Page 91: Theft-Deterrent System
Theft-Deterrent System Your vehicle has a theft-deterrent alarm system. The security light is located on the instrument panel cluster. If the ignition is off and a door is open, the security light will ﬂash, reminding you to arm the theft-deterrent system.
Page 92: Testing The Alarm
If a door, hood, or the trunk is opened without the keyless access transmitter, the horn will sound for 30 seconds and the lamps will ﬂash for two minutes. The vehicle cannot be started without a keyless access transmitter. The Theft-Deterrent system will not arm if: •...
Page 93: Valet Lockout Switch
If the alarm does not sound when it should, check to see if the horn works. The horn fuse may be blown. To replace the fuse, see Fuses and Circuit Breakers on page 5-105. If the fuse does not need to be replaced, you may need to have your vehicle serviced.
Page 94: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Do not drive at any one constant speed, fast or slow, for the ﬁrst 500 miles (805 km).
Page 95: Retained Accessory Power (Rap)
ACC (OFF/ACCESSORY): When this button is pressed, the engine will turn off even if the shifter is not in PARK (P). If the shifter is in PARK (P), the ignition mode will change to RAP, if all doors are closed. The ignition mode will change to OFF, if a front door is opened.
Page 96 Notice: Do not try to shift to PARK (P) if your vehicle is moving. If you do, you could damage the transmission. Shift to PARK (P) only when your vehicle is stopped. 1. With your foot on the brake pedal, press the START button located on the instrument panel.
Page 97: Engine Coolant Heater
Engine Coolant Heater Your vehicle may be equipped with an engine coolant heater. In very cold weather, 0°F ( 18°C) or colder, the engine coolant heater can help. You will get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 98: Automatic Transmission Operation (Sts)
Automatic Transmission Operation (STS) The shift lever is located on the center console between the front seats. There are several different positions for the shift lever. PARK (P): This position locks the rear wheels. It is the best position to use when you start the engine because your vehicle cannot move easily.
Page 99 Ensure the shift lever is fully in PARK (P) before starting the engine. Your vehicle has an automatic transmission shift lock control system. You must fully apply your regular brakes before you can shift from PARK (P) when the ignition is on. If you cannot shift out of PARK (P), ease pressure on the shift lever.
Page 100 AUTOMATIC OVERDRIVE (D): This position is for normal driving. If you need more power for passing, and you are: • Going less than 35 mph (55 km/h), push the accelerator pedal about halfway down. • Going about 35 mph (55 km/h) or more, push the accelerator all the way down.
Page 101 If you do not move the shift lever forward or rearward, the vehicle will be in sport mode. When you are in the sport mode the vehicle will still shift automatically. While driving in sport mode, the transmission may remain in a gear longer than it would in normal driving mode based on braking, throttle input and vehicle lateral acceleration.
Page 102: Automatic Transmission Operation (Sts-V)
Automatic Transmission Operation (STS-V) The shift lever is located on the center console between the front seats. There are several different positions for the shift lever. PARK (P): This position locks the rear wheels. It is the best position to use when you start the engine because your vehicle cannot move easily.
Page 103 Ensure the shift lever is fully in PARK (P) before starting the engine. Your vehicle has an automatic transmission shift lock control system. You must fully apply your regular brakes before you can shift from PARK (P) when the vehicle is running. If you cannot shift out of PARK (P), ease pressure on the shift lever.
Page 104 Driver Shift Control (DSC) Notice: If you drive your vehicle at high RPMs without upshifting while using Driver Shift Control (DSC), you could damage your vehicle. Always upshift when necessary while using DSC. Your automatic transmission has a Driver Shift Control (DSC) feature that allows you to change gears similar to a manual transmission.
Page 105: Parking Brake
While using the DSC feature the vehicle will have ﬁrmer shifting and increased performance. You can use this for sport driving or when climbing/descending hills to stay in gear longer or to down shift for more power or engine braking. The transmission will only allow you to shift into gears appropriate for the vehicle speed and engine Revolutions Per Minute (RPM).
Page 106: Shifting Into Park (P)
To release the parking brake, hold the brake pedal down with your right foot and push the parking brake pedal with your left foot. When you lift your left foot, the parking brake pedal will follow it to the released position.
Page 107: Leaving Your Vehicle With The Engine Running
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 108: Shifting Out Of Park (P)
Shifting Out of Park (P) Your vehicle has an automatic transmission shift lock control system. You have to fully apply your regular brake before you can shift from PARK (P) when the vehicle is running. See Automatic Transmission Operation (STS) on page 2-28 or Automatic Transmission Operation (STS-V) on page 2-32.
Page 109: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different. •...
Page 110: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 111: Mirrors
Mirrors Automatic Dimming Rearview Mirror with Intellibeam™ and OnStar Your vehicle may have an Intellibeam™ inside rearview ® mirror with OnStar controls. For more information ® ® about OnStar , see OnStar System on page 2-45. To turn on and enable Intellibeam™, press and release the Intellibeam™...
Page 112: Automatic Dimming Rearview Mirror With Onstar And Compass
Automatic Dimming Rearview Mirror ® with OnStar and Compass Your vehicle may have an automatic dimming rearview mirror with a compass display. The mirror also ® contains OnStar controls. For more information see ® OnStar System on page 2-45. The mirror includes an eight-point compass display in the upper right corner of the mirror face.
Page 113: Outside Power Heated Mirrors
To adjust for compass variance do the following: 1. Find the current location and variance zone number on the following zone map. 2. Press and hold the on/off button until a zone number appears in the display. 3. Once the zone number appears in the display, press the on/off button quickly until the correct zone number appears in the display.
Page 114: Outside Automatic Dimming Mirror
Return the selector switch to the center position when ﬁnished adjusting. This will prevent unwanted mirror movement in case the control pad is accidentally bumped while driving. The preferred mirror positions can be stored with the memory option. See Memory Seat, Mirrors and Steering Wheel on page 2-70.
Page 115: Onstar System
If further mirror adjustment is needed press the arrows located on the outside mirror control pad. If the outside mirror selector switch is in the middle position, neither outside mirror will move. When the vehicle is shifted out of REVERSE (R), and a ﬁve-second delay has occurred, the mirror will return to its original position.
Page 116: Steering Wheel Controls
Directions and Connections Plan • Advanced Automatic Collision Notiﬁcation • Automatic Notiﬁcation of Airbag Deployment • Emergency Services • Roadside Assistance • Stolen Vehicle Tracking • AccidentAssist • Remote Door Unlock/Vehicle Alert • Remote Diagnostics • Online Concierge • Driving Directions •...
Page 117: Universal Home Remote System
Universal Home Remote System The Universal Home Remote System, a combined universal transmitter and receiver, provides a way to replace up to three hand-held transmitters used to activate devices such as gate operators, garage door openers, entry door locks, security systems, and home lighting.
Page 118: Universal Home Remote System Operation
Universal Home Remote System Operation Do not use the Universal Home Remote with any garage door opener that does not have the “stop and reverse” feature. This includes any garage door opener model manufactured before April 1, 1982. If you have a newer garage door opener with rolling codes, please be sure to follow Steps 6 through 8 to complete the programming of your Universal Home Remote Transmitter.
Page 119 5. Press and hold the newly-trained Universal Home Remote button and observe the indicator light. If the indicator light stays on constantly, programming is complete and your device should activate when the Universal Home Remote button is pressed and released. To program the remaining two Universal Home Remote buttons, begin with Step 2 under “Programming Universal Home Remote.”...
Page 120: Gate Operator And Canadian Programming
Gate Operator and Canadian Programming Canadian radio-frequency laws require transmitter signals to time out or quit after several seconds of transmission. This may not be long enough for Universal Home Remote to pick up the signal during programming. Similarly, some U.S. gate operators are manufactured to time out in the same manner.
Page 121: Storage Areas
Reprogramming a Single Universal Home Remote Button To program a device to Universal Home Remote using a Universal Home Remote button previously trained, follow these steps: 1. Press and hold the desired Universal Home Remote button. Do not release the button. 2.
Page 122: Sunroof
Sunroof The vehicle may have a power sunroof. The switches that operate the sunroof are located on the overhead console. To open or close the sunroof, the ignition must be ON or Retained Accessory Power (RAP) must be active. See Retained Accessory Power (RAP) on page 2-25. Express Open: The express open feature will operate from the closed or partially open position.
Page 123: Vehicle Personalization
Vehicle Personalization Your vehicle has personalization that allows you to program certain features to a preferred setting for up to two drivers. The back of the keyless access transmitters are labelled 1 or 2. Additional keyless access transmitters programmed to the vehicle, as 3 and/or 4, do not have a number on the back and are not capable of being personalized.
Page 124 3. Turn on the radio by pressing the power/volume knob. 4. Press the CNFG radio button or the tune/select knob located on the right side of the radio to enter the radio’s main menu. 5. Turn the tune/select knob and scroll to SETUP. 6.
Page 125 3. Press the tune/select knob to turn on the DRIVER GREETING feature. You will see a cursor on the screen. 4. Turn the tune/select knob until you reach the ﬁrst letter you want; the letter will be highlighted. There is a complete alphabet with both upper and lower case letters and the numbers zero through nine.
Page 126: Remote Start
KEY FOB REMINDER This feature chirps the horn three times when the driver’s door is closed and there is a keyless access transmitter left inside of the vehicle. This will only occur when the vehicle is off. Programmable Modes Mode 1: ON Mode 2: OFF Before your vehicle was shipped from the factory, it was programmed to Mode 1.
Page 127 When REMOTE START is on, a check mark will appear next to the feature name. You can then choose to activate any or all of the following features by turning the tune/select knob to highlight the feature, then pressing the knob to turn it on. CLIMATE CONTROL: The climate control system will engage when the vehicle is started using the remote start feature.
Page 128 If this feature is selected, START BUTTON RECALL cannot be selected. The mode you selected is now set. You can either exit the programming mode by following the instructions later in this section or program the next feature available on your vehicle. START BUTTON RECALL If your vehicle has the optional memory package, you will have this feature.
Page 129 To program the vehicle to a different mode, use the following procedure: 1. Enter the PERSONAL SETTINGS MENU by following the instructions listed previously under “Entering the Personal Settings Menu.” 2. Turn the tune/select knob until AUTO EXIT SEAT is highlighted.
Page 130 LIGHTS FLASH AT UNLOCK This feature allows the exterior lamps to ﬂash when the keyless access transmitter is used to unlock the vehicle. All doors must be closed for this feature to work, and the lamps will not ﬂash if the parking lamps or headlamps are on.
Page 131 To program the vehicle to a different mode, use the following procedure: 1. Enter the PERSONAL SETTINGS MENU by following the instructions listed previously under “Entering the Personal Settings Menu.” 2. Turn the tune/select knob until LIGHTS FLASH AT LOCK is highlighted. 3.
Page 132 HORN CHIRPS AT LOCK This feature sounds the horn once when the keyless access transmitter is used to lock the vehicle. All doors must be closed for this feature to work. Programmable Modes Mode 1: ON Mode 2: OFF Before your vehicle was shipped from the factory, it was programmed to Mode 2.
Page 133 To determine the mode to which the vehicle is programmed or to program the vehicle to a different mode, use the following procedure: 1. Enter the PERSONAL SETTINGS MENU by following the instructions listed previously under “Entering the Personal Settings Menu.” 2.
Page 134 DOORS UNLOCK AT OFF This feature allows all of the doors to automatically unlock when the ignition is turned off. Programmable Modes Mode 1: ON Mode 2: OFF Before your vehicle was shipped from the factory, it was programmed to Mode 2. The mode to which the vehicle was programmed may have been changed since it left the factory.
Page 135 DOORS UNLOCK IN PARK The feature allows all of the doors to automatically unlock when the transmission is shifted into PARK (P). Programmable Modes Mode 1: ON Mode 2: OFF Before your vehicle was shipped from the factory, it was programmed to Mode 1.
Page 136 KEYLESS DOORS UNLOCK This feature automatically unlocks all of the doors when you approach the vehicle with your keyless access transmitter and pull either front door handle. See Door Locks on page 2-12 for more information. Programmable Modes Mode 1: ON Mode 2: OFF Before your vehicle was shipped from the factory, it was programmed to Mode 1.
Page 137 3. Press the tune/select knob to switch back and forth between on and off. When the mode is turned on, a check mark will appear next to the feature name. The mode you selected is now set. You can either exit the programming mode by following the instructions later in this section or program the next feature available on your vehicle.
Page 138 Programmable Modes Mode 1: ON Mode 2: OFF Before your vehicle was shipped from the factory, it was programmed to Mode 2. The mode to which the vehicle was programmed may have been changed since it left the factory. To program the vehicle to a different mode, use the following procedure: 1.
Page 139 SUSPENSION MODE If your vehicle has this feature, you can select between performance or touring modes. Performance mode is used where road conditions or personal preference demand more control. This setting provides more “feel” or response to road conditions. Touring mode is used for normal city and highway driving.
Page 140: Memory Seat, Mirrors And Steering Wheel
Memory Seat, Mirrors and Steering Wheel If your vehicle has the memory feature, you can program and recall memory settings for the following features for up to two drivers: • The driver’s seat position • The outside rearview mirrors position •...
Page 141 Entering the Driver Selection Submenu To enter the memory programming mode for your driver settings, use the following procedure: 1. Be sure the ignition is either on, in ACC position, or in RAP and place the transmission in PARK (P) or the vehicle speed is less than 6 mph (9 km/h).
Page 142 RECALL DRIVER SETTINGS To recall driver settings, use the following procedure: 1. Enter the memory programming mode for your driver settings by following the instructions listed previously under “Entering the Driver Selection Submenu.” 2. From the DRIVER SELECTION submenu, turn the tune/select knob to scroll to RECALL DRIVER SETTINGS and press in the knob.
Page 143 Entering the Driver Exit Settings Submenu To enter the memory programming mode for your exit settings, use the following procedure: 1. Be sure the ignition is either on, in ACC position, or in RAP and place the transmission in PARK (P) or the vehicle speed is less than 6 mph (9 km/h).
Page 144 STORE EXIT SETTINGS To store exit settings, use the following procedure: 1. Adjust your settings for the driver’s seat, the outside rearview mirrors, and the steering column to a comfortable exit position. 2. Enter the memory programming mode for your exit settings by following the instructions listed previously under “Entering the Driver Exit Settings Submenu.”...
Page 145 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Power Tilt Wheel and Telescopic Steering Column ...3-6 Heated Steering Wheel ...3-7 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-8 Headlamp High/Low-Beam Changer ...3-8 Forward Collision Alert (FCA) System ...3-9 Flash-to-Pass ...3-12 Windshield Wipers ...3-13...
Page 146 Section 3 Passenger Safety Belt Reminder Light ...3-60 Airbag Readiness Light ...3-60 Passenger Airbag Status Indicator ...3-61 Charging System Light ...3-63 Brake System Warning Light ...3-64 Anti-Lock Brake System Warning Light ...3-65 Low Tire Pressure Warning Light ...3-65 Traction Control System (TCS) Warning Light ...3-66 Engine Coolant Temperature Warning Light ...3-66 Engine Coolant Temperature Gage ...3-67...
Page 147 NOTES...
Page 148: Instrument Panel Overview
Instrument Panel Overview...
Page 149 The main components of your instrument panel are the following: A. Instrument Panel Brightness Control. See Instrument Panel Brightness on page 3-39. Driver Information Center (DIC) Buttons. See DIC Controls and Displays on page 3-74. HUD Controls (If Equipped). See Head-Up Display (HUD) on page 3-40. B.
Page 150: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located on the console, near the shift lever.
Page 151: Heated Steering Wheel
Push the control forward and the steering wheel moves toward the front of the vehicle. Push the control rearward and the steering wheel moves toward the rear of the vehicle. To set the memory position, see Vehicle Personalization on page 2-53 and Memory Seat, Mirrors and Steering Wheel on page 2-70.
Page 152: Turn And Lane-Change Signals
Turn and Lane-Change Signals To signal a turn, move the lever all the way up or down. The lever returns automatically when the turn is complete. An arrow on the instrument panel cluster will ﬂash in the direction of the turn or lane change.
Page 153: Forward Collision Alert (Fca) System
Forward Collision Alert (FCA) System If your vehicle has this feature, be sure to read this entire section before using it. The system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 154 The Forward Collision Alert (FCA) controls are located on the end of the multifunction lever. (Off): This position turns the system off. (On): This position turns the system on. To enable FCA, move the Adaptive Cruise Control switch to on. To disable FCA, move the switch to off. Make sure the Head-Up Display is on and properly adjusted.
Page 155 Warning the Driver The alert symbol will ﬂash on the HUD and a warning beep will sound when driver action may be required. The driver warning is active when: • You are approaching a vehicle too quickly. • You are following a vehicle ahead much too closely. See Defensive Driving on page 4-2 for more information.
Page 156: Flash-To-Pass
Unnecessary Warnings FCA may occasionally provide an unnecessary warning to guard rails, signs, and other stationary objects. This is normal operation, your vehicle does not need service. Other Messages There are three messages that may appear on the Driver Information Center (DIC). They are CLEAN RADAR, RADAR CRUISE NOT READY and SERVICE RADAR CRUISE.
Page 157: Windshield Wipers
Windshield Wipers The lever on the right side of the steering column operates the windshield wipers. (Mist): Pull the lever down and release it for a single wiping cycle. The lever will return to its original position. For more cycles, hold the lever down before releasing it.
Page 158: Rainsense™ Ii Wipers
Rainsense™ II Wipers If your vehicle has this feature, the moisture sensor is mounted on the interior side of the windshield behind the rearview mirror. It is used to automatically operate the wipers by monitoring the amount of moisture build-up on the windshield.
Page 159: Windshield Washer
Windshield Washer (Washer Fluid): The lever on the right side of the steering column also controls the windshield washer. There is a button at the end of the lever. To spray washer ﬂuid on the windshield, press the button and hold it.
Page 160: Cruise Control
The headlamps must be on to be washed. If the headlamps are off, only the windshield will be washed when the washer button is pressed. If the washer ﬂuid is low, the headlamp washers will not work. See Windshield Washer on page 3-15 for additional information.
Page 161: Setting Cruise Control
Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 162 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed: • Use the accelerator pedal to get to the higher speed. Press the set button at the end of the lever, then release the button and the accelerator pedal.
Page 163: Adaptive Cruise Control
Ending Cruise Control To end a cruise control session, step lightly on the brake pedal. Stepping on the brake pedal will end the current cruise control session only. Move the cruise control switch to off to turn off the system completely. Erasing Speed Memory When you turn off the cruise control or the ignition, your cruise control set speed memory is erased.
Page 164 To disengage Adaptive Cruise Control, apply the brake. If no vehicle is in your path, your vehicle will react like traditional cruise control. CAUTION: Adaptive Cruise Control will not apply hard braking or bring the vehicle to a complete stop. It will not respond to stopped vehicles, pedestrians or animals.
Page 165 CAUTION: (Continued) • On slippery roads, fast changes in tire traction can cause needless wheel spinning, and you could lose control. Do not use cruise control on slippery roads. • When weather limits visibility, such as when in fog, rain, or snow conditions, Adaptive Cruise Control performance is limited.
Page 166 Engaging Adaptive Cruise Control With the Set Button CAUTION: If you leave your Adaptive Cruise Control switch on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control.
Page 167 This symbol will appear on the Head-Up Display (HUD) to indicate that Adaptive Cruise Control is active. The number indicates the set speed. United States version shown, Canada similar See Head-Up Display (HUD) on page 3-40 for more information. Make sure the set speed is visible on the HUD so you know the speed your vehicle will accelerate to if a vehicle is not detected in your path.
Page 168 Resuming a Set Speed Suppose you set your Adaptive Cruise Control at a desired speed and then you apply the brake. This will disengage the Adaptive Cruise Control. But you do not need to reset it. Once you are going about 25 mph (40 km/h) or more, move the Adaptive Cruise Control switch brieﬂy from on to resume/increase.
Page 169 United States version shown, Canada similar A graphic on the HUD indicates the selected follow distance. This picture shows a maximum follow distance. The vehicles will move closer together as you select a smaller follow distance. Alerting the Driver The alert symbol will ﬂash on the HUD and a warning beep will sound when driver action is required.
Page 170 Approaching and Following a Vehicle The vehicle ahead symbol will only appear on the HUD when a vehicle ahead is detected in your path. If this symbol does not appear, or disappears brieﬂy, Adaptive Cruise Control will not respond to vehicles you may see ahead.
Page 171 CAUTION: Adaptive Cruise Control may not detect and react to stationary or slow-moving vehicles or other objects ahead of you. Your vehicle may accelerate toward objects, such as a stopped vehicle that suddenly appears after the lead vehicle changes lanes. Your complete attention is always required while driving and you should be ready to take action and apply the brakes.
Page 172 Curves in the Road CAUTION: Due to Adaptive Cruise Control limitations in curves, it may respond to a vehicle in another lane, or may not have time to react to a vehicle in your lane. You could crash into a vehicle ahead of you, or lose control of your vehicle.
Page 173 Adaptive Cruise Control may detect a vehicle that is not in your lane and apply the brakes. Adaptive Cruise Control may, occasionally, provide a driver alert and/or braking that you consider unnecessary. It could respond to signs, guardrails and other stationary objects when entering or exiting a curve.
Page 174 Using Adaptive Cruise Controls on Hills and When Towing a Trailer How well Adaptive Cruise Control will work on hills and when towing a trailer depends on your speed, vehicle load, traffic conditions and the steepness of the hills. It may not detect a vehicle in your lane while driving on hills.
Page 175: Headlamps
Headlamps The exterior lamp control is located in the middle of the turn signal/multifunction lever. (Exterior Lamp Control): Turn the control with this symbol on it to operate the exterior lamps. The exterior lamp control has four positions: (On/Off): Turn the control to this position to turn off all lamps and automatic lighting features including Daytime Running Lamps and Intellibeam™.
Page 176 (Parking Lamps): Turn the control to this position to turn on the parking lamps together with the following: • Sidemarker Lamps • Taillamps • License Plate Lamps • Instrument Panel Lights (Headlamps): Turn the control to this position to turn on the headlamps, together with the previously listed lamps and lights.
Page 177 Driving with Intellibeam™ Intellibeam™ will only activate your high-beams when driving over 20 mph (32 km/h). The high-beam headlamps will remain on, under the control of Intellibeam™, until any of the following situations occur: • The system detects an approaching vehicle’s headlamps.
Page 178 • Your vehicle’s windshield is covered with ice, dirt, haze or other obstructions. • Your vehicle is loaded such that the front end of the vehicle points upward, causing the Intellibeam™ sensor to aim high and not detect headlamps and taillamps. •...
Page 179: Wiper Activated Headlamps
Wiper Activated Headlamps This feature activates the headlamps and parking lamps after the windshield wipers have been in use for about six seconds. For this feature to work, automatic lighting must be enabled. See Headlamps on page 3-31 for additional information. When the ignition is turned off, the wiper-activated headlamps will immediately turn off.
Page 180: Light Sensor
When the automatic lights are enabled and it is dark enough outside, the DRL will turn off and the low-beam headlamps will turn on. When it is bright enough outside, the low-beam headlamps will go off, and the DRL will turn back on. If you start your vehicle in a dark garage, the automatic headlamp system will come on immediately.
Page 181: Fog Lamps
Fog Lamps Use the fog lamps for better vision in foggy or misty conditions. The fog lamp controls are located on the turn signal/multifunction lever. (Fog Lamps): The band with this symbol is used to turn the front fog lamps on and off. The parking lamps must be on for the fog lamps to work.
Page 182: Exterior Lighting Battery Saver
® With Twilight Sentinel you will see the following happen: • When it is dark enough outside, the front turn signal lamps (DRL) will go off, and the headlamps and parking lamps will come on. The other lamps that come on with headlamps will also come on. •...
Page 183: Instrument Panel Brightness
Instrument Panel Brightness This feature controls the brightness of the instrument panel lights. Base Level Shown, Uplevel Similar Press in the center knob on the DIC control panel until the knob pops out. Then turn the knob clockwise to brighten the lights or counterclockwise to dim them. If you turn the knob completely clockwise, the interior lamps will turn on.
Page 184: Reading Lamps
Reading Lamps The reading lamps are located on the overhead console. These lamps come on automatically when any door is opened. For manual operation, press the button next to each lamp to turn it on. Press it again to turn the lamp off. If the reading lamps are left on, they automatically shut off 10 minutes after the ignition has been turned off.
Page 185 The information may be displayed in English or metric units and appears as an image focused out toward the front of your vehicle. To change from English to metric units, see DIC Controls and Displays on page 3-74. The HUD consists of the following information: •...
Page 186 The HUD controls are located to the left of the steering wheel on the DIC control panel. (Head-Up Display): Press this button to change the position of the HUD on the windshield. Press the top part of the button to move the HUD image up. Press the bottom part of the button to move the HUD image down.
Page 187 As light shines out from the HUD, it is possible for light to shine back in. In rare occurrences, when the sun is at a speciﬁc angle and position, the sun’s rays can shine back into the HUD. When this occurs, the display device within the HUD will be temporarily illuminated.
Page 188: Ultrasonic Rear Parking Assist (Urpa)
Ultrasonic Rear Parking Assist (URPA) The Ultrasonic Rear Parking Assist (URPA) system is designed to help you park while the vehicle is in REVERSE (R). It operates only at very low speeds, less than 3 mph (5 km/h). URPA can help make parking easier and help you avoid colliding with objects such as parked vehicles.
Page 189: How The System Works
How the System Works URPA comes on automatically when the shift lever is moved into REVERSE (R) and the vehicle speed is less than 3 mph (5 km/h). When the system turns on, the three lights on the display will illuminate for one and a half seconds to let you know that the system is working.
Page 190: Accessory Power Outlet(S)
Accessory Power Outlet(s) Your vehicle is equipped with accessory power outlets. The outlets can be used to plug in electrical equipment such as a cellular telephone, CB radio, etc. Your vehicle has one outlet in front of the center console, one in the center console lid and there may be an additional outlet in the rear of the center console.
Page 191: Ashtray(S) And Cigarette Lighter
Ashtray(s) and Cigarette Lighter Your vehicle may have an ashtray and cigarette lighter. Notice: If you put papers, pins, or other ﬂammable items in the ashtray, hot cigarettes or other smoking materials could ignite them and possibly damage your vehicle. Never put ﬂammable items in the ashtray.
Page 192: Climate Controls
Climate Controls Dual Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. Automatic Operation Vehicles With Heated and Ventilated Seats Shown, Vehicles Without Similar AUTO (Automatic): When this button is pressed and the temperature is set, the system will automatically control the inside temperature, the air delivery mode, the air conditioning compressor, and the fan speed.
Page 193: Manual Operation
You can switch from English to metric units through the Driver Information Center (DIC). See DIC Controls and Displays on page 3-74. The air-conditioning system removes moisture from the air, so you may notice water dripping underneath your vehicle while idling or after turning off the engine. This is normal.
Page 194 Recirculation is not available in the defrost mode and will shut off when defog mode is selected. Both of these features are designed to limit fogging in your vehicle. If recirculation is selected during defog mode, it will automatically turn off after 10 minutes to limit problems with fogging.
Page 195 The air quality sensor will not activate due to organic odors, like skunk, and may not activate on many chemical-related odors. If you wish to limit these types of odors, you may choose to manually select recirculation. Your vehicle may also be equipped with a charcoal ﬁlter that can limit many odors from being pulled into your vehicle.
Page 196: Defogging And Defrosting
Sensors There is a solar sensor located on the instrument panel, near the windshield. There is also an interior temperature sensor located next to the steering wheel on the instrument panel. These sensors monitor the solar radiation and the air inside your vehicle, then use the information to maintain the selected temperature by initiating needed adjustments to the temperature, the fan speed and the...
Page 197: Rear Window Defogger
(Defrost): Pressing the defrost button directs most of the air to the windshield, with some air directed to the side windows and outboard panel outlets. In this mode, the system will automatically turn off recirculation and run the air-conditioning compressor, unless the outside temperature is at or below freezing.
Page 198: Outlet Adjustment
Outlet Adjustment Use the lever located in the center of each outlet to change the direction of the airﬂow, either side-to-side or up and down. Use the thumbwheels to open or close the outlets to adjust the airﬂow. Turn the thumbwheel to the right to open the outlets completely and allow the maximum amount of air to enter your vehicle.
Page 199: Passenger Compartment Air Filter
(Off): This is the off position. (Vent): This mode directs all the rear passenger airﬂow to the outlets in the console. This is the normal position for cool down conditions. (Bi-Level): This mode directs airﬂow to the console outlets and the ﬂoor. (Floor): This mode directs all of the airﬂow to the ﬂoor.
Page 200 The access panel for the passenger compartment air ﬁlter is located under the hood near the windshield, on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. See Doing Your Own Service Work on page 5-4 for information on doing your own service work.
Page 201: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 202: Instrument Panel Cluster
Instrument Panel Cluster The instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, how much fuel you are using and many of the other things you will need to know to drive safely and economically.
Page 203: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). See “MPH (km)” under DIC Controls and Displays on page 3-74 for more information. The odometer mileage can be checked without the vehicle running.
Page 204: Passenger Safety Belt Reminder Light
Passenger Safety Belt Reminder Light Several seconds after the ignition button is pressed to START, a chime will sound for several seconds to remind the front passenger to buckle their safety belt. This would only occur if the passenger airbag is enabled.
Page 205: Passenger Airbag Status Indicator
CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly. The airbags in your vehicle may not inﬂate in a crash, or they could even inﬂate without a crash. To help avoid injury to yourself or others, have your vehicle serviced right away if the airbag readiness light stays on after you start your vehicle.
Page 206 If the word ON or the on symbol is lit on the passenger airbag status indicator, it means that the right front passenger’s frontal airbag is enabled (may inﬂate). CAUTION: If the on indicator comes on when you have a rear-facing child restraint installed in the right front passenger’s seat, it means that the passenger sensing system has not turned off...
Page 207: Charging System Light
If, after several seconds, all status indicator lights remain on, or if there are no lights at all, there may be a problem with the lights or the passenger sensing system. See your dealer for service. CAUTION: If the off indicator and the airbag readiness light ever come on together, it means that something may be wrong with the airbag system.
Page 208: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part isn’t working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the warning light comes on, there is a brake problem. Have your brake system inspected right away.
Page 209: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light With the anti-lock brake system, the light will come on when your engine is started and may stay on for several seconds. That is normal. If the ABS warning light comes on and stays on, there may be a problem with the antilock portion of the brake system.
Page 210: Engine Coolant Temperature Warning Light
Traction Control System (TCS) Warning Light If the TC (traction control) warning light comes on and stays on, there may be a problem with the traction control system. The TC (traction control) warning light will come on brieﬂy when you turn the engine on. If it does not come on then, have it ﬁxed so it will be ready to warn you if there is a problem.
Page 211: Malfunction Indicator Lamp
Engine Coolant Temperature Gage This gage shows the engine coolant temperature. It can be used to see when your engine has warmed up and to make sure your cooling system is operating properly. If the gage pointer moves into the shaded area, the engine coolant is too hot and the engine coolant temperature warning light will come on.
Page 212: If The Light Is Flashing
Notice: Modiﬁcations made to the engine, transmission, exhaust, intake, or fuel system of your vehicle or the replacement of the original tires with other than those of the same Tire Performance Criteria (TPC) can affect your vehicle’s emission controls and may cause this light to come on. Modiﬁcations to these systems could lead to costly repairs not covered by your warranty.
Page 213: If The Light Is On Steady
If the Light Is On Steady You also may be able to correct the emission system malfunction by considering the following: Did you recently put fuel into your vehicle? If so, reinstall the fuel cap, making sure to fully install the cap.
Page 214: Oil Pressure Light
Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the Check Engine light is on or not working properly. To perform a Check Engine light bulb check with the keyless ignition, make sure the transmitter fob is in the passenger compartment.
Page 215: Security Light
If equipped, this light tells you if there could be a problem with your engine oil pressure. This light will come on brieﬂy when you start your engine. That is a check to be sure the light works. If it does not come on, be sure to have it ﬁxed so it will be there to warn you if something goes wrong.
Page 216: Cruise Control Light
Cruise Control Light This light comes on whenever you set your cruise control. The light will go out when the cruise control is turned off. See Cruise Control on page 3-16 and Adaptive Cruise Control on page 3-19 for more information. Highbeam On Light This light comes on whenever the high-beam...
Page 217: Driver Information Center (Dic)
Driver Information Center (DIC) The Driver Information Center (DIC) gives you the status of many of your vehicle’s systems. The DIC is also used to display warning/status messages. All messages will appear in the DIC display located at the bottom of the instrument panel cluster, below the tachometer and speedometer.
Page 218: Dic Controls And Displays
DIC Controls and Displays The Driver Information Center (DIC) has different modes which can be accessed by pressing the four DIC buttons located on the instrument panel, to the left of the steering wheel. DIC Buttons (Base Level) If your vehicle does not have a Head-Up Display (HUD), these are the buttons for your DIC.
Page 219 DIC Buttons (Uplevel) If your vehicle has a HUD, these are the buttons for your DIC. «4ª (Information): Press the top or bottom of this button to scroll through the available vehicle information displays which include digital speed display, if your vehicle has this feature, fuel range, fuel economy, fuel used, average speed, timer, battery voltage, tire pressure, if your vehicle has a tire pressure monitor...
Page 220 Information Display Menu Items The following display menu items can be displayed by pressing the information button. MPH (km/h) If your vehicle has this display, it shows the vehicle’s speed digitally in either miles per hour (mph) or kilometers per hour (km/h). MILES RANGE (km RANGE) This display shows the approximate number of remaining miles (mi) or kilometers (km) you can drive...
Page 221: Tire Pressure
TIMER OFF This display can be used like a stopwatch. You can record the time it takes to travel from one point to another. To access the timer, press the information button until 00:00:00 TIMER OFF displays. To turn on the timer, press the reset button until TIMER ON displays.
Page 222 ENGINE OIL LIFE If your vehicle has this display, it shows the estimated oil life remaining. If you see 99% ENGINE OIL LIFE on the display, that means that 99% of the current oil life remains. When the oil life is depleted, the CHANGE ENGINE OIL SOON message will appear on the display.
Page 223: Trip Odometer
Trip Odometer Press the trip information button until trip odometer A or B appears on the DIC display. The trip odometer shows the current distance traveled since the last reset for each trip odometer in either miles (mi) or kilometers (km). Both odometers can be used at the same time.
Page 224: Battery Voltage High
BATTERY SAVER ACTIVE This message will display when the system detects that the battery voltage is dropping beyond a reasonable level. The battery saver system will start reducing certain features of the vehicle that you may not be able to notice.
Page 225: Check Brake Fluid
If this message appears immediately after starting the engine, it is possible that the generator can still recharge the battery. The battery should recharge while driving but may take a few hours to do so. Consider using an auxiliary charger to boost the battery after returning home or to a ﬁnal destination.
Page 226: Check Tire Pressure
CHECK TIRE PRESSURE This symbol appears with the CHECK TIRE PRESSURE message. If your vehicle has a Tire Pressure Monitor (TPM) system, this message will display when one or more of the vehicle’s tires are low or high. See DIC Controls and Displays on page 3-74 for information on checking your vehicle’s tire pressures.
Page 227 COMPETITIVE DRIVING (STS-V Only) When this message displays, it means that the competitive driving mode is turned on with the traction control button. The TC (traction control) light will be on when the competitive driving mode is on. The traction control system will not operate while in competitive driving mode.
Page 228: Engine Overheated Stop Engine
ENGINE HOT – AC (Air Conditioning) OFF This message will display when the engine coolant becomes hotter than the normal operating temperature. See Engine Coolant Temperature Gage on page 3-67. To avoid added strain on a hot engine, the air conditioning compressor is automatically turned off.
Page 229: Fuel Level Low
FUEL LEVEL LOW This symbol appears with the FUEL LEVEL LOW message. When this message displays, it means that your vehicle is low on fuel. You should reﬁll the tank as soon as possible. A single chime will sound when this message is displayed.
Page 230 NO FOBS DETECTED This message is displayed if the vehicle does not detect the presence of a keyless access transmitter when you have attempted to start the vehicle or a vehicle door has just closed. The following conditions may cause this message to appear: •...
Page 231: Passenger Door Ajar
NO FOB OFF OR RUN? When this message displays, it means that the keyless access transmitter is not detected inside the vehicle while you are trying to turn the ignition off. Your vehicle may be near a strong radio antenna signal causing the keyless access system to be jammed.
Page 232 RADAR CRUISE NOT READY When this message displays, it means that the Adaptive Cruise Control system will not activate due to a temporary condition. Your vehicle does not require service. This message will also display when either of the following conditions occurs: •...
Page 233: Service Tire Monitor
SERVICE STABILITY SYS (System) Your vehicle may have a vehicle stability enhancement ® system called StabiliTrak ® See StabiliTrak System on page 4-11. The SERVICE STABILITY SYS message will display if there has been a problem detected with StabiliTrak If the SERVICE STABILITY SYS message comes on while you are driving, pull off the road as soon as possible and stop carefully.
Page 234: Service Vehicle Soon
SERVICE VEHICLE SOON This message will display when a non-emissions related malfunction occurs. Have your vehicle serviced by your GM dealer as soon as possible. SPEED LIMITED TO XXX This message will display when your vehicle speed is limited to XXX, mph in English mode and km/h in Metric mode, because the vehicle detects a problem in the suspension system.
Page 235: Theft Attempted
STABILITY SYS (System) OFF The STABILITY SYS OFF message will display any ® time you turn off StabiliTrak using the TC (traction control) on/off button. See Traction Control System (TCS) on page 4-9 for more information. When this message has been displayed, StabiliTrak longer available to assist you with directional control of the vehicle.
Page 236: Trunk Open
TRACTION ACTIVE This message will display when the traction control system is actively limiting wheel spin. Slippery road conditions may exist if this message is displayed, so adjust your driving accordingly. The message will stay on for a few seconds after the traction control system stops limiting wheel spin.
Page 237: Other Messages
Other Messages Here are more messages that you can receive on your Driver Information Center (DIC). To acknowledge a message and read another message that may have come on at the same time, press the reset button. • ACCESSORY ACTIVE See Ignition Positions on page 2-24.
Page 238: Audio System(S)
Audio System(s) Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 4-2. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 239: Setting The Time
Notice: The chime signals related to seat belts, parking brake, and other functions of your vehicle operate through the GM radio/entertainment system. If that equipment is replaced or additional equipment is added to your vehicle, the chimes may not work. Make sure that replacement or additional equipment is compatible with your vehicle before installing it.
Page 240: Radio With Cd
Radio with CD Radio with CD shown, Radio with Six-Disc CD similar Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: •...
Page 241: Playing The Radio
(Information): Press this button while in XM mode to retrieve three different categories of information related to the current song or channel: Artist, Song Title, Category or PTY. To view this information, perform the following: 1. Press the tune/select knob to enter the main menu. 2.
Page 242: Setting Preset Stations
LOCAL/DISTANT Selection: With this feature you can set the radio to search for local stations or stations that are further away for a larger selection. To set this feature to LOCAL or DISTANT, perform the following steps: 1. Press the tune/select knob to enter the main menu. 2.
Page 243 5. Press the tune/select knob to select. AUTOSTORE will appear on the display. The radio will automatically search the band and select and store the six radio stations with the strongest signal. The stations will be stored by signal strength, not sequential order.
Page 244: Rds Messages
AUDIO EQUALIZER: This feature allows you to select customized equalization settings. To choose an equalization setting (EQ0 through EQ5), perform the following steps: 1. Press the tune/select knob to enter the main menu. 2. Turn the tune/select knob until EQUALIZER appears on the display.
Page 245 MSG (Message): If the current RDS station has a message, MSG will appear on the display. The message may display the artist, song title, call in phone numbers, etc. If the entire message does not appear on the display, parts of the message will appear every three seconds until the message is completed.
Page 246: Radio Message
Activating Program Type (PTY) Stations (RDS and XM™) PTY allows you to search for stations with speciﬁc types of music. The selectable PTYs are POP, EASY, TALK, CNTRY (Country), CLASS (Classical), and JAZZ. To activate program types, perform the following steps: 1.
Page 247 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. XM Updating Updating encryption code No XM Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) Channel Off Air Channel not in service Channel Unavail...
Page 248 Radio Display Message No Title Info Song/Program Title not available No CAT Info Category Name not available Not Found No channel available for the chosen category No Information No Text/Informational message available XM Lock Theft lock active XM Radio ID Radio ID label (channel 0) Unknown...
Page 249: Using The Single Cd Player
Using the Single CD Player Insert a CD partway into the slot, label side up. The player will pull it in. If the ignition and the radio are on, the CD will begin playing. A CD may be loaded with the radio off, but it will not start playing until the radio is on.
Page 250: Using The Six-Disc Cd Changer
F3 RDM (Random): Press this pushbutton to listen to the tracks in random, rather than sequential, order. RANDOM will appear on the display. Press RDM again to turn off random play. RANDOM will disappear from the display. F4 RPT (Repeat): Press this pushbutton to hear a track over again.
Page 251 If an error appears on the display, see “CD Messages” later in this section. When a CD is inserted, the CD functions will appear on the display above the pushbuttons, in place of the preset stations (if programmed). (Load): Press this button to load CDs into the CD player.
Page 252 F5 MODE: Press this pushbutton to select from NORMAL, RPT TRCK (Repeat Track), RPT DISC (Repeat CD), RDM TRCK (Random Track), and RDM ALL (Random All CDs). • NORMAL: Sets the system for normal play of the CD(s). NORMAL will not appear on the display when in this mode.
Page 253: Using An Mp3 Cd
Using an MP3 CD MP3 Format If you burn your own MP3 disc on a personal computer: • Make sure the MP3 ﬁles are recorded on a CD-R disc. • Make sure to ﬁnalize the disc when burning an MP3 disc, using multiple sessions.
Page 254 No Folder When the CD contains only compressed ﬁles, the ﬁles will be located under the root folder. The next and previous folder functions will have no function on a CD that was recorded without folders or playlists. When displaying the name of the folder the radio will display ROOT.
Page 255 Preprogrammed Playlists You can access preprogrammed playlists which were created by WinAmp™, MusicMatch™, or Real Jukebox™ software, however, you will not have editing capability. These playlists will be treated as special folders containing compressed audio song ﬁles. Playing an MP3 Insert a CD partway into the slot, label side up.
Page 256 (Previous Folder): Press this pushbutton to go to the ﬁrst track in the previous folder. Press and hold this pushbutton to reverse quickly within a track. Release this pushbutton to play the passage. REV and the elapsed time of the track will appear on the display.
Page 257 © ¨ (Seek): Press the left arrow to go to the start of the previous track. Press the right arrow to go to the start of the next track. Pressing either arrow for more than two seconds will search the previous or next tracks at two tracks per second.
Page 258 CD Messages If the CD comes out, it could be for one of the following reasons: • If it is very hot. When the temperature returns to normal, the CD should play. • If you are driving on a very rough road. When the road becomes smoother, the CD should play.
Page 259: Navigation/Radio System
8. Turn the tune/select knob to ﬁnd the feature that you would like to store to the key. 9. Press the tune/select knob when you have found the feature to be stored. The display will update, by showing the symbol of the feature that you selected next to the conﬁgurable key.
Page 260: Base Audio System
The main menu for the Base audio system consists of the following menu items: • BASS - MID - TREBLE • BALANCE - FADER • EQ EQUALIZER • H/A (HOME/AWAY) PRESETS • AUTOSTORE PRESETS • CAT CATEGORY • TA TRAFFIC ANNOUNCE •...
Page 261 H/A (Home/Away) PRESETS: This menu item allows you to switch back and forth between your home and away preset radio stations. See “Presets Home/Away” under Radio with CD on page 3-96 for more information. AUTOSTORE PRESETS: This menu item allows you to automatically store radio stations with the strongest signals as presets.
Page 262 LANG (Language): To change the language displayed on the radio, select LANGUAGE by pressing the tune/select knob. Turn the tune/select knob to scroll through the following available languages: • ENGLISH • GERMAN • FRENCH • SPANISH • JAPANESE To make your selection, press the tune/select knob. If you accidentally select a language that you did not want, ENGLISH is always at the top of the language list.
Page 263: Theft-Deterrent Feature
DRIVER EXIT SETTINGS When you select this item, the following submenu appears: • RECALL EXIT SETTINGS • STORE EXIT SETTINGS For more information on the DRIVER EXIT SETTINGS submenu item, see “Recalling Exit Settings” and “Storing Exit Settings” under Memory Seat, Mirrors and Steering Wheel on page 2-70.
Page 264: Radio Reception
® (OnStar /Voice Recognition): If your vehicle has the Radio with CD or Radio with Six-Disc CD audio system, press this button to interact with the OnStar ® system. See the OnStar System on page 2-45 in this manual for more information. If your vehicle has the navigation system, press this button to initiate voice recognition.
Page 265: Care Of Your Cds
The range for most AM stations is greater than for FM, especially at night. The longer range can cause station frequencies to interfere with each other. For better radio reception, most AM radio stations will boost the power levels during the day, and then reduce these levels during the night.
Page 266: Care Of The Cd Player
Care of the CD Player The use of CD lens cleaners for CD players is not advised, due to the risk of contaminating the internal lens of the CD optics with lubricants. Diversity Antenna System The AM-FM antenna is integrated with the rear window defogger, located in the rear window.
Page 267: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-3 Control of a Vehicle ...4-6 Braking ...4-6 Anti-Lock Brake System (ABS) ...4-7 Braking in Emergencies ...4-9 Traction Control System (TCS) ...4-9 Competitive Driving Mode (STS-V) ...4-10 Magnetic Ride Control ...4-11 Limited-Slip Rear Axle ...4-11 ®...
Page 268: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-8. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 269: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 270 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 271 Statistics show that the chance of being in a collision increases sharply for drivers who have a BAC of 0.05 percent or above. A driver with a BAC level of 0.06 percent has doubled his or her chance of having a collision.
Page 272: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road.
Page 273: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 274 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
Page 275: Braking In Emergencies
Using Anti-Lock Do not pump the brakes. Just hold the brake pedal down ﬁrmly and let anti-lock work for you. You may hear the anti-lock pump or motor operate, and feel the brake pedal pulsate, but this is normal. Braking in Emergencies With anti-lock brakes, you can steer and brake at the same time.
Page 276: Competitive Driving Mode (Sts-V)
You should turn the system off if your vehicle ever gets stuck in sand, mud or snow and rocking the vehicle is required. See Rocking Your Vehicle to Get It Out on page 4-32 and If Your Vehicle is Stuck in Sand, Mud, Ice or Snow on page 4-31 for more information.
Page 277: Magnetic Ride Control
Magnetic Ride Control Your vehicle may have Magnetic Ride Control that automatically adjusts the ride of your vehicle. Automatic ride control is achieved through a computer used to control and monitor the suspension system. The controller receives input from various sensors to determine the proper system response.
Page 278: Power Steering
® StabiliTrak comes on automatically whenever you start your vehicle. To help assist you with directional control of the vehicle, you should always leave the system on. You can turn StabiliTrak to through the TC (traction control) on/off button. See Traction Control System (TCS) on page 4-9.
Page 279: Steering Tips
Steering Tips It is important to take curves at a reasonable speed. A lot of the “driver lost control” accidents mentioned on the news happen on curves. Here is why: Experienced driver or beginner, each of us is subject to the same laws of physics when driving on curves.
Page 280: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 281: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 282 • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 283: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked.
Page 284: Competitive Driving
While driving on a surface with reduced traction, try your best to avoid sudden steering, acceleration, or braking, including engine braking by shifting to a lower gear. Any sudden changes could cause the tires to slide. You may not realize the surface is slippery until your vehicle is skidding.
Page 285 No one can see as well at night as in the daytime. But as we get older these differences increase. A 50-year-old driver may require at least twice as much light to see the same thing at night as a 20-year-old. What you do in the daytime can also affect your night vision.
Page 286: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 287: Driving Through Flowing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
Page 288: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-22 Here are ways to increase your safety in city driving: •...
Page 289: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 290: Before Leaving On A Long Trip
Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up.
Page 291: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 292 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all ﬂuid levels and also the brakes, tires, cooling system, and transmission.
Page 293: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your trunk. Also see Tires on page 5-57. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles.
Page 294: Driving On Snow Or Ice
Driving on Snow or Ice Most of the time, those places where the tires meet the road probably have good traction. However, if there is snow or ice between the tires and the road, you can have a very slippery situation. You will have a lot less traction, or grip, and will need to be very careful.
Page 295: If You Are Caught In A Blizzard
Your Anti-Lock Brake System (ABS) improves your vehicle’s stability when you make a hard stop on a slippery road. Even though you have ABS, you will want to begin stopping sooner than you would on dry pavement. See Anti-Lock Brake System (ABS) on page 4-7.
Page 296 You can run the engine to keep warm, but be careful. 4-30 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 297: If Your Vehicle Is Stuck In Sand, Mud, Ice Or Snow
Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
Page 298: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn your steering wheel left and right. That will clear the area around your front wheels. You should turn your traction control system off. See Traction Control System (TCS) on page 4-9. Then shift back and forth between REVERSE (R) and a forward gear, spinning the wheels as little as possible.
Page 299: Steps For Determining Correct Load Limit
Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 300 4. The resulting ﬁgure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs and there will be ﬁve 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1400 750 (5 x 150) = 650 lbs).
Page 301 Example 2 Item Description Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Cargo Weight Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 302 Certiﬁcation Label A vehicle speciﬁc Certiﬁcation label is attached to the rear edge of the driver’s door, and tells you the gross weight capacity of your vehicle, called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel, cargo, and tongue weight, if pulling a trailer.
Page 303: Towing
If you put things inside your vehicle, like suitcases, tools, packages, or anything else, they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or...
Page 304: Recreational Vehicle Towing
Recreational Vehicle Towing Recreational vehicle towing means towing your vehicle behind another vehicle – such as behind a motorhome. The two most common types of recreational vehicle towing are known as “dinghy towing” (towing your vehicle with all four wheels on the ground) and “dolly towing” (towing your vehicle with two wheels on the ground and two wheels up on a device known as a “dolly”).
Page 305 Dolly Towing (Rear-Wheel-Drive Vehicles) (STS Only) Notice: Dolly towing or dinghy towing your vehicle may cause damage because of reduced ground clearance. Always tow your vehicle using the dolly towing or dinghy towing procedure listed in this section or put your vehicle on a ﬂatbed truck. If your vehicle is a rear-wheel drive, it can be towed using a dolly.
Page 306: Towing A Trailer (Sts Only)
Towing a Trailer (STS Only) CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 307: Weight Of The Trailer
• Do not tow a trailer at all during the ﬁrst 1,000 miles (1 600 km) your new vehicle is driven. Your engine, axle or other parts could be damaged. • Then, during the ﬁrst 500 miles (800 km) that you tow a trailer, do not drive over 50 mph (80 km/h) and do not make starts at full throttle.
Page 308: Weight Of The Trailer Tongue
You can ask your dealer for our trailering information or advice, or you can write us at: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 33169 Detroit, MI 48232-5169 In Canada, write to: General Motors of Canada Limited...
Page 309: Driving With A Trailer
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You will ﬁnd these numbers on the Tire and Loading Information. See Loading Your Vehicle on page 4-32. Then be sure you do not go over the GVW limit for your vehicle, including the weight of the trailer tongue.
Page 310: Following Distance
Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving your vehicle without a trailer. This can help you avoid situations that require heavy braking and sudden turns. Passing You will need more passing distance up ahead when you are towing a trailer.
Page 311: Driving On Grades
Driving on Grades Reduce speed and shift to a lower gear before you start down a long or steep downgrade. If you do not shift down, you might have to use your brakes so much that they would get hot and no longer work well. Climbing grades steeper than four percent at temperatures above 90°...
Page 312: Maintenance When Trailer Towing
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • start your engine • shift into a gear, and • release the parking brake. 2. Let up on the brake pedal. 3.
Page 313: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-6 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling the Tank ...5-8 Filling a Portable Fuel Container ...5-10...
Page 314 Section 5 Uniform Tire Quality Grading ...5-75 Wheel Alignment and Tire Balance ...5-76 Wheel Replacement ...5-76 Tire Chains ...5-78 Lifting Your Vehicle (STS-V) ...5-79 If a Tire Goes Flat ...5-81 Changing a Flat Tire (STS Only) ...5-83 Removing the Spare Tire and Tools (STS Only) ...5-85 Removing the Flat Tire and Installing the Spare Tire (STS Only) ...5-86...
Page 315: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 316: Doing Your Own Service Work
Doing Your Own Service Work CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
Page 317: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle.
Page 318: Gasoline Speciﬁcations
If your vehicle has the 4.4L V8 engine (VIN Code D), use premium unleaded gasoline with a posted octane rating of 91 or higher. For best performance, use premium unleaded gasoline with a posted octane rating of 93. In an emergency, you can use regular unleaded gasoline with an octane rating of 87 or higher.
Page 319: Fuels In Foreign Countries
To help keep fuel injectors and intake valves clean, or if your vehicle experiences problems due to dirty injectors or valves, look for gasoline that is advertised as TOP TIER Detergent Gasoline. Also, your GM dealer has additives that will help correct and prevent most deposit-related problems.
Page 320: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 321 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 322: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 323: Hood Release
Hood Release To open the hood, do the following: 1. Pull the hood release lever with this symbol on it. It is located inside the vehicle on the lower left side of the instrument panel. 2. Then go to the front of the vehicle and ﬁnd the secondary hood release lever.
Page 324: Engine Compartment Overview
Engine Compartment Overview Your vehicle may be equipped with front compartment underhood sight shields, which surround the vehicle’s engine cover. These sight shields will need to be removed in order to access some of the underhood components in your vehicle. To remove the sight shields, turn the fasteners on each shield to the left until they pop out. Then remove the fasteners and lift the shields up and away from the tower to tower brace.
Page 325 After you have removed the sight shields (if equipped) on the 3.6L V6 engine, here is what you will see: A. Underhood Fuse Block. See Underhood Fuse Block on page 5-106. B. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-41.
Page 326 4.6L V8 Engine 5-14...
Page 327 After you have removed the sight shields (if equipped) on the 4.6L V8 engine, here is what you will see: A. Underhood Fuse Block. See Underhood Fuse Block on page 5-106. B. Battery. See Battery on page 5-45. C. Passenger Compartment Air Filter. See Passenger Compartment Air Filter on page 3-55.
Page 328 4.4L V8 STS-V Engine 5-16...
Page 329 After you have removed the sight shields (if equipped) on the 4.4L V8 STS-V engine, here is what you will see: A. Battery. See Battery on page 5-45. B. Underhood Fuse Block. See Underhood Fuse Block on page 5-106. C. Passenger Compartment Air Filter. See Passenger Compartment Air Filter on page 3-55.
Page 330: Engine Oil
Engine Oil Checking Engine Oil It is a good idea to check your engine oil every time you get fuel. In order to get an accurate reading, the oil must be warm and the vehicle must be on level ground. The engine oil dipstick handle is a yellow loop.
Page 331 If the oil is below the cross-hatched area at the tip of the dipstick, you will need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-116.
Page 332: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use For V6 Engine Vehicles Only 5-20 Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. •...
Page 333 Oils meeting these requirements should also have the starburst symbol on the container. This symbol indicates that the oil has been certiﬁed by the American Petroleum Institute (API). You should look for this information on the oil container, and use only those oils that are identiﬁed as meeting GM Standard GM6094M and have the starburst symbol on the front of the oil container.
Page 334 For V8 Engine Vehicles Only 5-22 Look for two things: • GM4718M Your vehicle’s engine requires a special oil meeting GM Standard GM4718M. Oils meeting this standard may be identiﬁed as synthetic. However, not all synthetic oils will meet this GM standard. You should look for and use only an oil that meets GM Standard GM4718M.
Page 335: Engine Oil Additives
Oils meeting these requirements should also have the starburst symbol on the container. This symbol indicates that the oil has been certiﬁed by the American Petroleum Institute (API). You should look for this on the oil container, and use only those oils that are identiﬁed as meeting GM Standard GM4718M and have the starburst symbol on the front of the oil container.
Page 336: Engine Oil Life System
Engine Oil Life System When to Change Engine Oil Your vehicle has a computer system that lets you know when to change the engine oil and ﬁlter. This is based on engine revolutions and engine temperature, and not on mileage. Based on driving conditions, the mileage at which an oil change will be indicated can vary considerably.
Page 337: Engine Air Cleaner/Filter
After the oil has been changed, the CHANGE ENGINE OIL SOON message must be reset. To reset the message use the following procedure: 1. Press the up or down arrow to scroll the DIC to show OIL LIFE. 2. Once the XXX% ENGINE OIL LIFE menu item is highlighted, press and hold the RESET button until the percentage shows 100%.
Page 338 When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (83 000 km) interval. See Scheduled Maintenance on page 6-4 for more information. If you are driving in dusty/dirty conditions, inspect the ﬁlter at each engine oil change.
Page 339: Automatic Transmission Fluid
CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop ﬂames if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 340: What To Use
A 50/50 mixture of clean, drinkable water and ® DEX-COOL coolant will: • Give freezing protection down to 34°F ( 37°C). • Give boiling protection up to 265°F (129°C). • Protect against rust and corrosion. • Help keep the proper engine temperature. •...
Page 341: Checking Coolant
If you have to add coolant more than once or twice a year, have your dealer check your cooling system. Notice: If you use extra inhibitors and/or additives in your vehicle’s cooling system, you could damage your vehicle. Use only the proper mixture of the engine coolant listed in this manual for the cooling system.
Page 342: Adding Coolant
Checking Intercooler System Coolant (4.4L V8 STS-V Engine Only) See Engine Compartment Overview on page 5-12 for the location of the intercooler system pressure cap. Notice: This vehicle has a speciﬁc coolant ﬁll procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged.
Page 343: Coolant Surge Tank Pressure Cap
Coolant Surge Tank Pressure Cap Notice: If the pressure cap is not tightly installed, coolant loss and possible engine damage may occur. Be sure the cap is properly and tightly secured. The coolant surge tank pressure cap must be fully installed on the coolant surge tank.
Page 344: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine An overheat warning, along with a CHECK COOLANT LEVEL message, can indicate a serious problem. If you get an engine overheat warning with no CHECK COOLANT LEVEL message, but see or hear no steam, the problem may not be too serious.
Page 345: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: 3.6L V6 Engine shown, 4.6L V8 and 4.4L V8 STS-V Engines similar A. Electric Engine Cooling Fans B. Coolant Surge Tank and Pressure Cap Some vehicles may be equipped with an engine driven fan, as well as the electric pusher fans (A) which are located behind the vehicle’s grille.
Page 346 When the engine is cold, the coolant level should be at or slightly above the FULL COLD/FROID line on the side of the coolant surge tank. If it is not, you may have a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump, or somewhere else in the cooling system.
Page 347: How To Add Coolant To The Coolant Surge Tank
How to Add Coolant to the Coolant Surge Tank If you have not found a problem yet, check to see if coolant is visible in the surge tank. If coolant is visible but the coolant level is not at the FULL COLD/FROID line on the side of the coolant surge tank, add a 50/50 mixture of clean, drinkable water and DEX-COOL coolant at the coolant surge tank, but be sure the...
Page 348 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. If no coolant is visible in the surge tank, add coolant as follows: 1.
Page 349 3. Fill the coolant surge tank with the proper ® DEX-COOL coolant mixture, to slightly above the FULL COLD/FROID line on the side of the coolant surge tank. 4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot.
Page 350: Engine Only
How to Add Coolant to the Intercooler System Fill Neck (4.4L V8 STS-V Engine Only) If you have not found a problem yet, turn the engine off and allow it to cool down, then check to see if coolant is visible within the horizontal tube section of the ﬁll neck.
Page 351 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. 1. You can remove the Intercooler System pressure cap when the Intercooler System, including the upper intercooler hoses, are no longer hot.
Page 352: Power Steering Fluid
Power Steering Fluid See Engine Compartment Overview on page 5-12 for reservoir location. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 353: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 354: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for reservoir location and access. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 355 What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Recommended Fluids and Lubricants on page 6-12. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it.
Page 356: Brake Adjustment
Brake Wear Your vehicle has four-wheel disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 357: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts.
Page 358: Vehicle Storage
Vehicle Storage If you are not going to drive your vehicle for 25 days or more, remove the black, negative ( ) cable from the battery. This will help keep your battery from running down. CAUTION: Batteries have acid that can burn you and gas that can explode.
Page 359 Notice: If the other vehicle’s system is not a 12-volt system with a negative ground, both vehicles can be damaged. Only use vehicles with 12-volt systems with negative grounds to jump start your vehicle. 2. Get the vehicles close enough so the jumper cables can reach, but be sure the vehicles are not touching each other.
Page 360 Your vehicle has a remote negative ( ) ground location, as shown in the illustration. It is located between the battery and the underhood fuse block. You should always use this remote ground location, instead of the terminal on the battery. 5-48 Notice: If you connect a negative cable to the ECM, ECM mounting bracket, or any cables that attach...
Page 361 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a ﬂashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the battery installed in your new vehicle.
Page 362 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one.
Page 363: All-Wheel Drive
Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 364: Rear Axle
How to Check Lubricant A. Drain Plug B. Fill Plug To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, located on the transfer case, you’ll need to add some lubricant.
Page 365: Front Axle
If the level is below the bottom of the ﬁller plug hole, located on the rear axle, you’ll need to add some lubricant. Add enough lubricant to raise the level to the bottom of the ﬁller plug hole. What to Use Refer to the Maintenance Schedule to determine what kind of lubricant to use.
Page 366: Bulb Replacement
Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 5-55. For any bulb changing procedure not listed in this section, contact your dealer. High Intensity Discharge (HID) Lighting CAUTION: The low beam high intensity discharge lighting system operates at a very high voltage.
Page 367: Replacement Bulbs
2. Pull out the push pins holding down the top portion of the cloth cover. 3. Fold the cover down slightly and locate the lamp assembly. 4. Turn the socket counterclockwise and pull it straight out to remove it from the lamp assembly. 5.
Page 368: Windshield Replacement
Windshield Replacement Keep in mind that your windshield is part of the Head-Up Display (HUD) system. If you ever have to get your windshield replaced, be sure to get one that is designed for HUD or your HUD image may look blurred or out of focus.
Page 369: Tires
3. Replace the blade assembly with a new one. Allowing the wiper blade arm to touch the windshield when no wiper blade is installed could damage the windshield. Any damage that occurs would not be covered by your warranty. Do not allow the wiper blade arm to touch the windshield.
Page 370: Winter Tires
Low-Proﬁle Performance Tires If your vehicle has P255/45R18 99Y size tires on the front wheels and P275/40R19 100Y size tires on the rear wheels, they are classiﬁed as low-proﬁle performance tires. These tires are designed for very responsive driving on wet or dry pavement. You may also notice more road noise with low-proﬁle performance tires and that they tend to wear faster.
Page 371: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 372 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 373: Tire Size
Tire Size The following illustration shows an example of a typical passenger vehicle tire size. (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 374 Belt: A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead: The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim. Bias Ply Tire: A pneumatic tire in which the plies are laid at alternate angles less than 90 degrees to the centerline of the tread.
Page 375 Occupant Distribution: Designated seating positions. Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle. The side of the tire that contains a whitewall, bears white lettering or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same moldings on the other sidewall of the tire.
Page 376: Run-Flat Tires (Sts-V)
Run-Flat Tires (STS-V) If your vehicle has run-ﬂat tires, there is no spare tire and no tire changing equipment. Your vehicle also has a Tire Pressure Monitor System (TPMS) which will alert you if there is a loss of tire pressure in any of the tires. See Tire Pressure Monitor System on page 5-67.
Page 377: Inﬂation - Tire Pressure
CAUTION: Run-ﬂat tires are constructed differently than other tires and could explode during improper service. You or others could be injured or killed if you attempt to repair, replace, dismount, or mount a run-ﬂat tire. Let only an authorized run-ﬂat service center repair, replace, dismount, and mount run-ﬂat tires.
Page 378: How To Check
A Tire and Loading Information label is attached to the vehicle’s center pillar, below the driver’s door latch. This label lists your vehicle’s original equipment tires and shows the correct inﬂation pressures for your tires when they are cold. The recommended cold tire inﬂation pressure, shown on the label, is the minimum amount of air pressure needed to support your vehicle’s maximum load carrying capacity.
Page 379: Tire Pressure Monitor System
High Speed Operation CAUTION: Driving at high speeds, 100 mph (160 km/h) or higher, puts an additional strain on tires. Sustained high-speed driving causes excessive heat build up and can cause sudden tire failure. You could have a crash and you or others could be killed.
Page 380 If a low tire pressure condition is detected, the TPM system will display the CHECK TIRE PRESSURE warning message on the DIC and, at the same time, illuminate the low tire pressure warning symbol, on the instrument panel cluster. Each tire, including the spare (if provided), should be checked monthly when cold and inﬂated to the inﬂation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inﬂation pressure label.
Page 381 You will have one minute to match the ﬁrst tire/wheel position, and ﬁve minutes overall, to match all four tire/wheel positions. If it takes longer than one minute, to match the ﬁrst tire and wheel, or more than ﬁve minutes to match all four tire/wheel positions the matching process stops and you will need to start over.
Page 382: Tire Inspection And Rotation
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This device complies with RSS-210 of Industry Canada.
Page 383 The purpose of regular rotation is to achieve more uniform wear for all tires on the vehicle. The ﬁrst rotation is the most important. See Scheduled Maintenance on page 6-4. When rotating P235/50R17 size tires or 255/45ZR18 size tires, always use the correct rotation pattern shown here.
Page 384: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining.
Page 385 Your GM dealer can order these tires by part number. This way, your vehicle will continue to give the proper endurance, handling, traction, and ride as the original tires. Winter tires with the same speed rating as your original equipment tires may not be available for H, V, W, Y and ZR speed rated tires.
Page 386: Different Size Tires And Wheels
Vehicles that have a tire pressure monitoring system may give an inaccurate low-pressure warning if non-TPC Spec rated tires are installed on it. Non-TPC Spec rated tires may give a low-pressure warning that is higher or lower than the proper warning level you would get with TPC Spec rated tires.
Page 387: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 388: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 389: Used Replacement Wheels
If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle. CAUTION: Using the wrong replacement wheels, wheel bolts or wheel nuts on your vehicle can be...
Page 390: Tire Chains
Tire Chains CAUTION: If your vehicle has P255/45R17, P255/45R18, P275/40R19, or 255/45ZR18 size tires, do not use tire chains, as there is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension, or other vehicle parts.
Page 391: Lifting Your Vehicle (Sts-V)
Lifting Your Vehicle (STS-V) CAUTION: Lifting a vehicle can cause an injury. The vehicle can slip off the jack and roll over you or other people. You and they could be badly injured. Find a level place to lift your vehicle. To help prevent the vehicle from moving: 1.
Page 392: Lifting From The Front
Notice: Lifting your vehicle improperly can damage your vehicle and result in costly repairs not covered by your warranty. To lift your vehicle properly, follow the advice in this part. To help prevent vehicle damage: • Be sure the jack you are using meets the weight standards for your vehicle and is in good working order.
Page 393: If A Tire Goes Flat
Lifting From the Rear The rear lifting points can be accessed from either side of your vehicle, in front of the rear tires. 1. Locate the rear lifting points using the diagram above. The rear lifting location is about 7 inches (17 cm) from the front edge of the rear wheel well.
Page 394 If a tire goes ﬂat, and your vehicle has a spare tire, see Changing a Flat Tire (STS Only) on page 5-83. This information shows you how to use your vehicle’s tire changing equipment and how to change a ﬂat tire safely. CAUTION: Lifting a vehicle and getting under it to do maintenance or repairs is dangerous without...
Page 395: Changing A Flat Tire (Sts Only)
See Run-Flat Tires (STS-V) on page 5-64 and Tire Pressure Monitor System on page 5-67, for additional information. CAUTION: Special tools and procedures are required to service a run-ﬂat tire. If these special tools and procedures are not used you or others could be injured and your vehicle could be damaged.
Page 396 CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people. You and they could be badly injured or even killed. Find a level place to change your tire. To help prevent the vehicle from moving: 1.
Page 397: Removing The Spare Tire And Tools (Sts Only)
Removing the Spare Tire and Tools (STS Only) The equipment you will need is located in the trunk. To gain access to the compact spare tire and jacking equipment, do the following: 1. Open the trunk. See Trunk on page 2-14 for more information.
Page 398: Removing The Flat Tire And Installing The Spare Tire (Sts Only)
Removing the Flat Tire and Installing the Spare Tire (STS Only) 1. If your vehicle has wheel covers, use the ﬂat end of the wheel wrench to remove the covers. Turn the wheel wrench clockwise to gently pry off the wheel cover.
Page 399 3. Find the vehicle’s jacking location using the diagram above and corresponding hoisting notches located in the plastic molding on the vehicle’s frame. The notches in the plastic molding are marked with a triangle shape to help you ﬁnd them. 4.
Page 400 CAUTION: Lifting a vehicle and getting under it to do maintenance or repairs is dangerous without the appropriate safety equipment and training. The jack provided with your vehicle is designed only for changing a ﬂat tire. If it is used for anything else, you or others could be badly injured or killed if the vehicle slips off the jack.
Page 401 8. Raise the vehicle by turning the wheel wrench clockwise. Raise the vehicle far enough off the ground for the compact spare tire to ﬁt under the vehicle. 9. Remove all the wheel nuts and take off the ﬂat tire. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts...
Page 402 CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 10. Remove any rust or dirt from the wheel bolts, mounting surfaces, and spare wheel.
Page 403 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 404: Storing A Flat Or Spare Tire And Tools (Sts Only)
Storing a Flat or Spare Tire and Tools (STS Only) CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place.
Page 405: Compact Spare Tire (Sts Only)
Compact Spare Tire and Tools Use the following diagram as a guide for storing the compact spare tire and tools in the trunk: A. Compact Spare Tire Cover B. Plastic Wing Nut C. Retainer D. Jack Container with Wheel Wrench and Jack 1.
Page 406: Appearance Care
After installing the compact spare on the vehicle, you should stop as soon as possible and make sure the spare tire is correctly inﬂated. The compact spare is made to perform well at speeds up to 65 mph (105 km/h) for distances up to 3,000 miles (5 000 km), so you can ﬁnish your trip and have the full-size tire repaired or replaced where you want.
Page 407 Notice: If you use abrasive cleaners when cleaning glass surfaces on your vehicle, you could scratch the glass and/or cause damage to the integrated radio antenna and the rear window defogger. When cleaning the glass on your vehicle, use only a soft cloth and glass cleaner.
Page 408: Fabric/Carpet
Fabric/Carpet Use a vacuum cleaner with a soft brush attachment frequently to remove dust and loose dirt. A canister vacuum with a beater bar in the nozzle may only be used on ﬂoor carpet and carpeted ﬂoor mats. For soils, always try to remove them ﬁrst with plain water or club soda.
Page 409: Instrument Panel, Vinyl, And Other Plastic Surfaces
Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt. Never use spot lifters or removers on plastic surfaces.
Page 410: Washing Your Vehicle
Washing Your Vehicle The paint ﬁnish on the vehicle provides beauty, depth of color, gloss retention, and durability. The best way to preserve the vehicle’s ﬁnish is to keep it clean by washing it often with lukewarm or cold water. Do not wash the vehicle in the direct rays of the sun.
Page 411: Windshield And Wiper Blades
Windshield and Wiper Blades If the windshield is not clear after using the windshield washer, or if the wiper blade chatters when running, wax, sap, or other material may be on the blade or windshield. Clean the outside of the windshield with a glass cleaning liquid or powder and water solution.
Page 412: Tires
Notice: Using chrome polish on aluminum wheels could damage the wheels. The repairs would not be covered by your warranty. Use chrome polish on chrome wheels only. Use chrome polish only on chrome-plated wheels, but avoid any painted surface of the wheel, and buff off immediately after application.
Page 413: Finish Damage
Finish Damage Any stone chips, fractures or deep scratches in the ﬁnish should be repaired right away. Bare metal will corrode quickly and may develop into major repair expense. Minor chips and scratches can be repaired with touch-up materials available from your GM dealer. Larger areas of ﬁnish damage can be corrected in your GM dealer’s body and paint shop.
Page 414: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Removes tar, road oil, Oil Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 415: Vehicle Identiﬁcation Number (Vin)
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 416: Electrical System
Electrical System Add-On Electrical Equipment Notice: Don’t add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 417: Power Windows And Other Power Options
Power Windows and Other Power Options Circuit breakers protect the power windows and power seats. When the current load is too heavy, the circuit breaker opens and closes, protecting the circuit until the problem is ﬁxed or goes away. Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses, circuit breakers and fusible thermal links.
Page 418: Underhood Fuse Block
Underhood Fuse Block 5-106...
Page 419 The underhood fuse block is located in the front of the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location, and removal procedure for the front compartment underhood sights shields.
Page 420 Fuses Engine Control Module, Transmission Control Module, ECM/TCM Easy Key Module, Instrument Panel Cluster SPARE Spare SPARE Spare Driver’s Side Park Lamp, Driver’s LT PARK Side Taillamp License Plate, Instrument LIC DIMMING Panel Dimming Instrument Panel Module Assembly IPM ALDL Line Data Link Connector Heads-Up Display, Column Lock Module...
Page 421 Relays Usage HDLP WASH RELAY Headlamp Washer JUMPER -OPT STARTER Starter RELAY MINI SPARE Spare FOG LAMP RELAY MICRO Fog Lamps CMP CLU RELAY MICRO Air Conditioning Compressor Clutch BLOWER Front Blower Motor RELAY MINI POWERTRAIN RELAY MICRO Engine Controls Ignition 1, Starter, Washer Nozzle, Air Quality, Anti-lock Brake System, RUN/CRANK...
Page 422: Rear Underseat Fuse Block
Rear Underseat Fuse Block Removing the Rear Seat Cushion Notice: If you touch the exposed wires with the metal on the seat cushion, you could cause a short that could damage the battery and or wires. Avoid contact between the rear seat and the fuse center whenever you remove or reinstall the rear seat.
Page 423 CAUTION: A safety belt that is not properly routed through the seat cushion or is twisted will not provide the protection needed in a crash. If the safety belt has not been routed through the seat cushion at all, it will not be there to work for the next passenger.
Page 424 Driver’s Side Fuses Ampliﬁer INTERCOOLER Intercooler Pump (Option) PUMP (OPT) THEFT/ Theft Sensors, Auto Shifter, SHIFTER Power Sounder MR-RTD Magnetic Ride Control MOD (OPT) Module (Option) REAR DR MOD Rear Door Modules ELC SOL Automatic Level Control, Exhaust (OPT) Solenoid (Option) DRIVER DR Driver Door Module TV/VICS...
Page 425 Fuses Usage AIR BAG Airbag POSITION Rear Taillamps LAMPS (OPT) JOINT Joint Connector CONNECTOR Relays Usage INTERCOOLER PUMP MICRO Intercooler Pump (Option) (OPT) ELC RELAY Automatic Level Control MINI (OPT) Compressor (Option) L POSITION Left Rear Taillamp, Position RELAY MICRO Lamps (Option) TRUNK DR REL RELAY...
Page 426 Passenger’s Side Fuses SPARE Spare CANISTER Canister Vent Solenoid VENT RT TURN-RIM Right Turn Signal SUNROOF Sunroof Module (Option) (OPT) STOP LAMPS Stoplamps FUEL PUMP Fuel Pump RF HTD Front Passenger Heated Seat, ST/S-BAND S-Band™ Antenna RADIO/ ® Radio/OnStar ONSTAR 5-114 Usage AIR BAG...
Page 427 Fuses Usage REAR FOG Rear Fog Lamps (Option) LAMP (OPT) AFTERBOIL/ After Boil, Rear Differential DIFF Cooling Pump PUMP (OPT) Ignition to Rear Integration Module JOINT Joint Connector CONNECTOR Relays Usage SPARE Spare REAR DEFOG Rear Defog RELAY MINI FUEL PUMP Fuel Pump RELAY MICRO REAR FOG...
Page 428: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Cooling System 3.6L V6 4.4L V8 (V-Series) 4.6L V8 Intercooler System 4.4L Engine Engine Oil with Filter 3.6L V6 4.4L V8 (V-Series) 4.6L V8...
Page 429 Engine 3.6L HFV6 4.4L DOHC V8 (V-Series) 4.6L DOHC V8 Engine Horsepower 440 hp (328 kW) @ 4.4L V8 (LC3) 6400 rpm Engine Speciﬁcations VIN Code Transmission Automatic Automatic Automatic STS-V Engine Data Torque 430 lb ft (583 Nm) @ 3600 rpm Spark Plug Gap 0.044 inches (1.1 mm)
Page 430 NOTES 5-118...
Page 431: Maintenance Schedule
Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-12...
Page 432: Introduction
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 433 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the tire and loading information label. See Loading Your Vehicle on page 4-32. • are driven on reasonable road surfaces within legal driving limits.
Page 434: Scheduled Maintenance
Scheduled Maintenance When the CHANGE ENGINE OIL SOON message in the Driver Information Center (DIC) comes on, it means that service is required for your vehicle. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 435 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 5-18. Reset oil life system. See Engine Oil Life System on page 5-24. An Emission Control Service. Visually check for any leaks or damage. See footnote (k). Inspect engine air cleaner ﬁlter.
Page 436: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 437: Maintenance Footnotes
Service and Miles (Kilometers) Engine cooling system service (or every ﬁve years, whichever occurs ﬁrst). An Emission Control Service. See footnote (j). Inspect engine accessory drive belt. An Emission Control Service. See footnote (n). Maintenance Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to...
Page 438: Owner Checks And Services
(e) Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors, and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 439: At Each Fuel Fill
At Each Fuel Fill It is important to perform these underhood checks at each fuel ﬁll. Engine Oil Level Check Check the engine oil level and add the proper oil if necessary. See Engine Oil on page 5-18 for further details. Notice: It is important to check your oil regularly and keep it at the proper level.
Page 440: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
Page 441: Underbody Flushing Service
Parking Brake and Automatic Transmission Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 442: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute (API) Certiﬁed for Gasoline Engines starburst symbol. Engine Oil GM Goodwrench (V6 Engine)
Page 443 Usage Fluid/Lubricant Multi-Purpose Lubricant, Superlube Key Lock (GM Part No. U.S. 12346241, in Cylinders Canada 10953474). SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. 12378261, in Rear Axle Canada 10953455) meeting GM Speciﬁcation 9986115. SAE 75W-90 Synthetic Axle Lubricant Front Axle (GM Part No.
Page 444: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your GM dealer. Part Engine Air Cleaner/Filter Element Engine Oil Filter 3.6L V6 4.4L V8 (V-Series) 4.6L V8 Passenger Compartment Air Filter Spark Plugs 3.6L V6 4.4L V8 (V-Series)
Page 445: Engine Drive Belt Routing (Sts-V)
Engine Drive Belt Routing (STS-V) 4.4L V8 Engine 6-15...
Page 446: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-8 can be added on the following record pages. You should retain all maintenance receipts.
Page 447 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 448 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 449: Customer Assistance And Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Reimbursement Program ...7-5 Roadside Service ...7-5 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-8 Collision Damage Repair ...7-10 Customer Assistance and Information...
Page 450: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Cadillac. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 451: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 452: Customer Assistance For Text Telephone (Tty) Users
Telephone (TTY) Users To assist customers who are deaf, hard of hearing, or speech-impaired and who use Text Telephones (TTYs), Cadillac has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with Cadillac by dialing: 1-800-833-CMCC (2622).
Page 453: Gm Mobility Reimbursement Program
This service is provided at no charge for any situation covered by the base warranty coverage and at a nominal charge if the Cadillac is no longer covered by the base warranty. Roadside Service is available only in the United States and Canada.
Page 454: Cadillac Owner Privileges
A dealer technician, if available, can travel to your location within a 30 mile (50 km) radius of a participating Cadillac dealership. If beyond this radius, we will arrange to have your car towed to the nearest Cadillac dealership.
Page 455: Courtesy Transportation
Courtesy Transportation To enhance your ownership experience, we and our participating dealers are proud to offer Courtesy Transportation, a customer support program for new vehicles. The Courtesy Transportation program is offered to customers in conjunction with the Bumper-to-Bumper coverage provided by the New Vehicle Limited Warranty. Several transportation options are available when warranty repairs are required.
Page 456: Vehicle Data Collection And Event Data Recorders
Courtesy Rental Vehicle Your dealer may arrange to provide you with a courtesy rental vehicle or reimburse you for a rental vehicle that you obtain if your vehicle is kept for a warranty repair. Reimbursement will be limited to a maximum amount per day and must be supported by receipts.
Page 457 Some information may be stored during regular operations to facilitate repair of detected malfunctions; other information is stored only in a crash event by computer systems, such as those commonly called event data recorders (EDR). In a crash event, computer systems, such as the Airbag Sensing and Diagnostic Module (SDM) in your vehicle may record information about the condition of the vehicle and how it was operated, such as data related to engine...
Page 458: Collision Damage Repair
Collision Damage Repair If your vehicle is involved in a collision and it is damaged, have the damage repaired by a qualiﬁed technician using the proper equipment and quality replacement parts. Poorly performed collision repairs will diminish your vehicle’s resale value, and safety performance can be compromised in subsequent collisions.
Page 459: Insuring Your Vehicle
Insuring Your Vehicle Protect your investment in your GM vehicle with comprehensive and collision insurance coverage. There are signiﬁcant differences in the quality of coverage afforded by various insurance policy terms. Many insurance policies provide reduced protection to your GM vehicle by limiting compensation for damage repairs by using aftermarket collision parts.
Page 460 • Gather the important information you will need from the other driver. Things like name, address, phone number, driver’s license number, vehicle license plate, vehicle make, model and model year, Vehicle Identiﬁcation Number (VIN), insurance company and policy number, and a general description of the damage to the other vehicle.
Page 461: Reporting Safety Defects
Reporting Safety Defects Reporting Safety Defects to the United States Government If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying General Motors.
Page 462: Service Manuals
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify us. Please call us at 1-800-458-8006, or write: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 33169 Detroit, MI 48232-5169 In Canada, please call us at 1-888-446-2000.
Page 463: Service Bulletins
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 464 NOTES 7-16...
Page 465 Accessories and Modiﬁcations ... 5-3 Accessory Power Outlet(s) ... 3-46 Adaptive Cruise Control ... 3-19 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-62 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-104 Air Cleaner/Filter, Engine ... 5-25 Air Conditioning ... 3-48 Airbag Passenger Status Indicator ...
Page 466 Audio System(s) ... 3-94 Audio Steering Wheel Controls ... 3-119 Care of Your CD Player ... 3-122 Care of Your CDs ... 3-121 Diversity Antenna System ... 3-122 Navigation/Radio System, see Navigation Manual ... 3-115 Audio Systems Radio Personalization ... 3-115 Audio System(s) Radio with CD ...
Page 467 Care of Safety Belts ... 5-97 Your CD Player ... 3-122 Your CDs ... 3-121 Center Console Storage Area ... 2-51 Chains, Tire ... 5-78 Charging System Light ... 3-63 Check Engine Light ... 3-67 Checking Things Under the Hood ... 5-10 Chemical Paint Spotting ...
Page 468 Coolant (cont.) Heater, Engine ... 2-27 Surge Tank Pressure Cap ... 5-31 Cooling System ... 5-33 Cruise Control ... 3-16 Cruise Control, Adaptive ... 3-19 Cruise Control, Forward Collision Alert (FAC) System ... 3-9 Cruise Control Light ... 3-72 Cupholder(s) ... 2-51 Customer Assistance Information Courtesy Transportation ...
Page 469 Electrical System Add-On Equipment ... 5-104 Fuses and Circuit Breakers ... 5-105 Headlamp Wiring ... 5-104 Power Windows and Other Power Options ... 5-105 Rear Underseat Fuse Block ... 5-110 Underhood Fuse Block ... 5-106 Windshield Wiper Fuses ... 5-104 Engine Air Cleaner/Filter ...
Page 470 Fuel (cont.) Filling Your Tank ... 5-8 Fuels in Foreign Countries ... 5-7 Gage ... 3-72 Gasoline Octane ... 5-5 Gasoline Speciﬁcations ... 5-6 Fuses Fuses and Circuit Breakers ... 5-105 Rear Underseat Fuse Block ... 5-110 Underhood Fuse Block ... 5-106 Windshield Wiper ...
Page 471 Ignition Positions ... 2-24 Inadvertent Power Battery Saver ... 3-40 Infants and Young Children, Restraints ... 1-29 Inﬂation -- Tire Pressure ... 5-65 Instrument Panel Overview ... 3-4 Instrument Panel (I/P) Brightness ... 3-39 Cluster ... 3-58 Jump Starting ... 5-46 Keyless Access System ...
Page 472 Lighting Entry ... 3-39 Parade Dimming ... 3-39 Limited-Slip Rear Axle ... 4-11 Loading Your Vehicle ... 4-32 Lockout Protection ... 2-14 Locks Door ... 2-12 Lockout Protection ... 2-14 Power Door ... 2-12 Programmable Automatic Door Locks ... 2-13 Rear Door Security Locks ...
Page 473 Navigation/Radio System, see Navigation Manual ... 3-115 New Vehicle Break-In ... 2-24 Normal Maintenance Replacement Parts ... 6-14 Odometer ... 3-59 Off-Road Recovery ... 4-15 Engine ... 5-18 Pressure Light ... 3-70 Oil, Engine Oil Life System ... 5-24 Older Children, Restraints ... 1-26 Online Owner Center ...
Page 474 Power (cont.) Tilt Wheel and Telescopic Steering Column ... 3-6 Windows ... 2-18 Pretensioners, Safety Belt ... 1-25 Programmable Automatic Door Locks ... 2-13 Questions and Answers About Safety Belts ... 1-12 Radios ... 3-94 Care of Your CD Player ... 3-122 Care of Your CDs ...
Page 475 Retained Accessory Power (RAP) ... 2-25 Right Front Passenger Position, Safety Belts ... 1-21 Roadside Service ... 7-5 Rocking Your Vehicle to Get it Out ... 4-32 Routing, Engine Drive Belt ... 6-15 Run-Flat Tires ... 5-64 Running the Engine While Parked ... 2-40 Safety Belt Passenger Reminder Light ...
Page 476 Shifting Out of Park (P) ... 2-38 Shoulder Belt Height Adjuster ... 1-20 Signals, Turn and Lane-Change ... 3-8 Spare Tire Compact ... 5-93 Installing ... 5-86 Removing ... 5-85 Storing ... 5-92 Speciﬁcations, Capacities ... 5-116 Speedometer ... 3-59 ®...
Page 477 Tires (cont.) Storing a Flat or Spare Tire and Tools ... 5-92 Tire Sidewall Labeling ... 5-59 Tire Terminology and Deﬁnitions ... 5-61 Uniform Tire Quality Grading ... 5-75 Wheel Alignment and Tire Balance ... 5-76 Wheel Replacement ... 5-76 When It Is Time for New Tires ...
Page 478 Warning Lights, Gages and Indicators ... 3-57 Warnings DIC Warnings and Messages ... 3-79 Hazard Warning Flashers ... 3-6 Other Warning Devices ... 3-6 Safety and Symbols ... iii Vehicle Damage ... iv Wheels Alignment and Tire Balance ... 5-76 Different Size ...
