16 Channel IO Panel Module
(S772) Information Guide
Version 1.00 |   March 2021 |   MAN-1420HA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S772 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hochiki S772

  • Page 1 16 Channel IO Panel Module (S772) Information Guide Version 1.00 |   March 2021 |   MAN-1420HA...
  • Page 2: Table Of Contents

    Overview Use Case Examples Package Contents Installation Before You Begin Setting the Address Placement Wiring Inputs Outputs Restrictions Testing the Installation Configuration Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 2...
  • Page 3 Panel Module Properties Channel Properties For channels set as Outputs For channels set as Inputs UL Compliance Limitations Specifications Electrical Operating Environment Physical Specifications Index Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 3...
  • Page 4: Compliance

    Any changes or modifications not expressly approved by Hochiki America Corporation could void the user's authority to operate this equipment under the rules and regulations of the FCC.
  • Page 5: Introduction

    Introduction INTRODUCTION Technical Support For technical support, contact Hochiki America at 800.845.6692 or technicalsupport@hochiki.com. Hochiki technical support is available Monday through Friday, 7:00AM to 5:00PM, PST. Prior to contacting technical support, have the following information available: Product part number Purchase order or order number...
  • Page 6: Warranty Service

    Products returned using the advanced replacement process must be received within 30 days of the RMA issue date. Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 6...
  • Page 7: Overview

    NAC or Voice Evacuation outputs. The 16 Channel I/O Interface can be used to interface the L@titude panel to a secondary panel or releasing panel, by providing Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 7...
  • Page 8: Package Contents

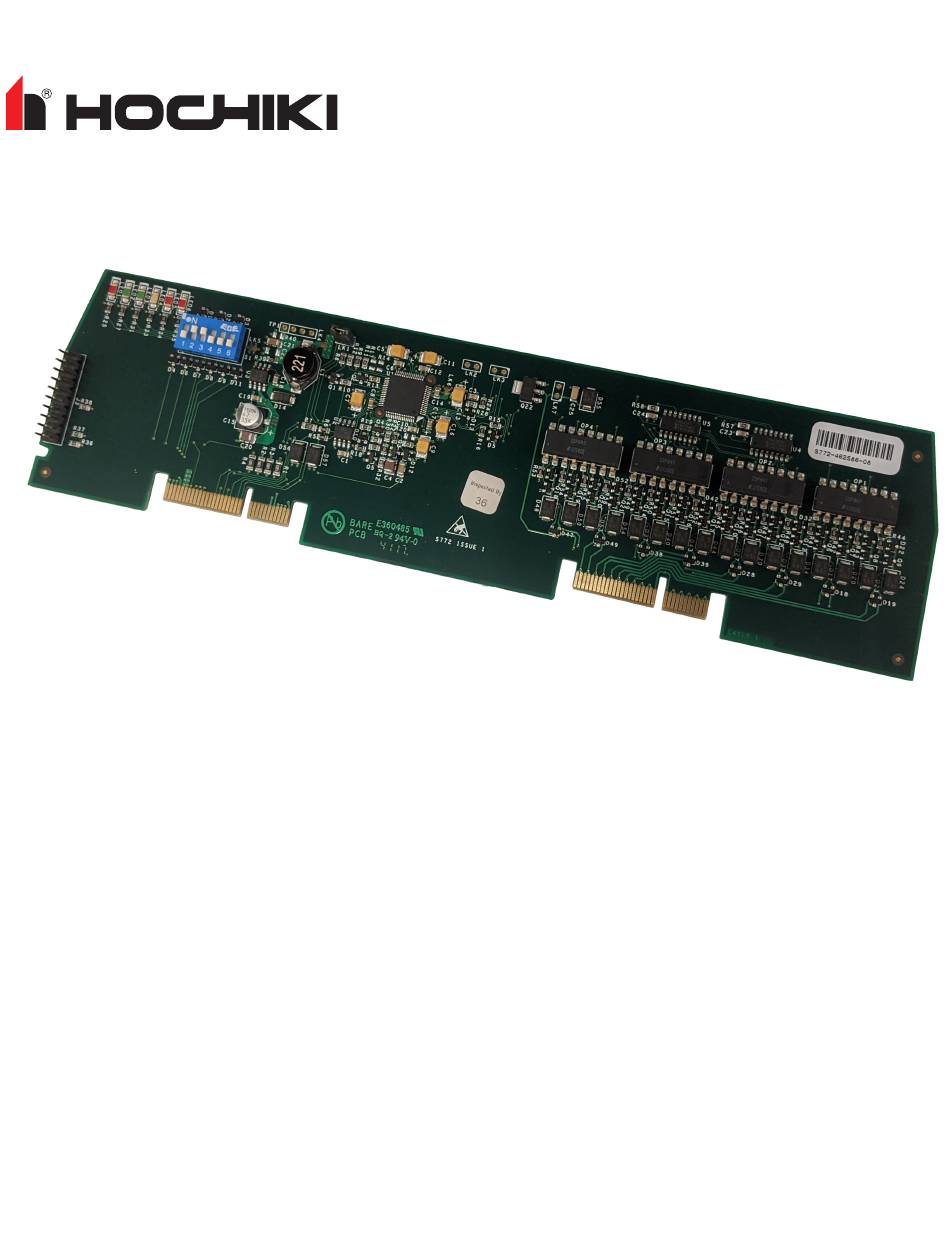

    16 Channel I/O Panel Module. Package Contents (1) Installation sheet (1) Wiring Terminal Labels (1) S772 16 Channel I/O Interface Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 8...
  • Page 9: Installation

    Resolve any troubles related to the new connections. Activate each circuit and verify that all connected devices function properly. Replace the black plastic cover. Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 9...
  • Page 10: Before You Begin

    The black portion of the DIP switch identifies the switch actuator. Placement To install modules on the FireNET L@titude Fire Alarm Control Panel: Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 10...
  • Page 11 5. Insert the notched end of the panel module in the metal guide notch of the backplate at an angle, as shown. Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 11...
  • Page 12 6. Rotate the panel module until all conductors are securely inserted into connectors of the Main Back Board. 7. Replace the cover onto the Main Back Board. 8. Reconnect the batteries and restore AC power. Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 12...
  • Page 13: Wiring

    Contacts must be suitably rated to handle 24VDC. The switch-current caused by contact closure is limited to a maximum of 3mA. Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 13...
  • Page 14: Outputs

    Outputs are intended to be connected to a 24VDC load. The other side of this load should be connected to a 24V power source, such as the panel's AUX24V+ terminal. Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 14...
  • Page 15: Restrictions

    (or equivalently protected against mechanical injury) and within 20 feet of equipment being interfaced. must not be used to control the release of extinguishants. Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 15...
  • Page 16: Testing The Installation

    Flashes every 2 seconds when one or more inputs are active. LED 6 Output Active LED  Flashes every 2 seconds when one or more outputs are active (low). Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 16...
  • Page 17: Configuration

    Set each of the 16 channels to be either an input or an output for each 16 Channel I/O Panel Module installed in the FireNET L@titude Fire Alarm Control Panel. Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 17...
  • Page 18: Channel Properties

    4. Ignore Global Delays. This setting controls the delay of the activation of the output. If unchecked, it will activate based on the Global Delay settings in the Panel Settings. If checked, it will activate based on the settings in the Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 18...
  • Page 19 6. Set the Location Text, up to 80 characters. 7. Use the Map to Zone field to set the zone number for the circuit. Allowable values are 0-2000. Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 19...
  • Page 20: For Channels Set As Inputs

    No activation will occur if the input state is reset to normal before time period expires. For UL compliance, this field must be set to 0. Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 20...
  • Page 21: Ul Compliance Limitations

    Input Delay 0-180 seconds 0 seconds Input Latch Latching or Non-Latching Latching, when Input Action is set to Fire or Carbon Monoxide Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 21...
  • Page 22: Specifications

    F - 120 Up to 95%, non-condensing Relative Humidity Physical Specifications Dimensions 234.6mm x 62.8mm or 9 ¼ " x 2 ½ " Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 22...
  • Page 23: Index

    General Trouble 7 Heartbeat 16 Loop Explorer 2 9, 17 Main Back Board 9 NAC 7 Standby Batteries 11 Terminals 9 Trouble 7 Hochiki America Corporation Version 1.00 |   March 2021 |   MAN-1420HA 16 Channel IO Panel Module (S772) Information Guide Page 23...
