INSTALLATION INSTRUCTIONS FOR CLIM CURRENT LOOP INPUT MODULE
The information contained in this installation instruction is a quick reference guide. For detailed system information refer to the panel
manufacturers' installation manual. This instruction is generic and will not address.

GENERAL DESCRIPTION:

This instruction applies to the 4 to 20mA Current Loop Input Module (CLIM) which is to be
connected to a DCP Signaling Line Circuit (SLC). The module allows analog panel to
interface or monitor sensor or detection device which transmits its output data as 4 to 20ma
output current. Examples of typical applications are temperature sensor, pressure sensor,
liquid level sensor and carbon monoxide transducer.

MOUNTING REQUIREMENTS:

The CLIM Current Loop Input Module is mounted as shown in Figure 3 on page 2 of this
instruction.

WIRING:

NOTE: All wiring must conform to local codes, ordinances and regulations.
1) Install module wiring in accordance with the job drawings and appropriate wiring
diagram (see Figure 2)
2) Secure the module to a U.L. listed electrical box (supplied by installer) as shown in
Figure 3.
3) The address must be set on the CLIM before the cover plate is attached (see Fig. 1)
CAUTION!
To ensure proper operation connect
this module to a compatible Fire
Control Panel only. Refer to panel
instructions for proper connection
and compatibility.
NOTE:
When installing fire alarm system devices, avoid placing devices or wiring close to potential Radio Frequency or Electro-Magnetic
noise sources. Avoid running SLC circuit in the same conduit as power lines. Utilize twisted pair and shielded wire in environment
where excessive noise is expected.
NOTE: An average of 6.75mA (communication current) per loop of SLC device, must be factored into the panel battery backup
calculations.
SLC Applied Voltage
SLC Current Consumption
Full Scale Input Range
Input Impedance
Visual Indicator (status LED)
Operating Temperature Range
Storage Temperature
Max Relative Humidity
Environment
Dimensions
Weight
HOCHIKI AMERICA CORPORATION
7051 VILLAGE DRIVE, SUITE 100
BUENA PARK, CA 90621-2268
CAUTION!
If this module will be installed in an
existing operation system, inform
the operator and local authority that
the system will be temporarily out of
service. Disconnect power to the
control panel before installing the
module.

SPECIFICATIONS

Maximum 39 VDC
Nominal 33 VDC
Maximum
400µA Surge Current: 30mA (in 5ms), Alarm & No Input: 30mA(in 20ms)
Nominal 400µA (Typical)
0 mA to +25 mA
Normal Input Range: +4 mA to +20 mA
250 Ω
Bi-color LED - Green and Red
Color and Mode - selected and programmed by Control Panel software
0°C (32°F) ~ 49°C (120°F)
-30°C (-22°F) ~ 70°C (158°F)
Up to 90% RH non-condensing
Indoor use only
4.2"W X 4.7"H X 0.85"D
Approximately 3.0 ounces
PLUG IS
NON-POLARIZED
TO PROGRAMMER
TCH-B100 P/N 0700-01330

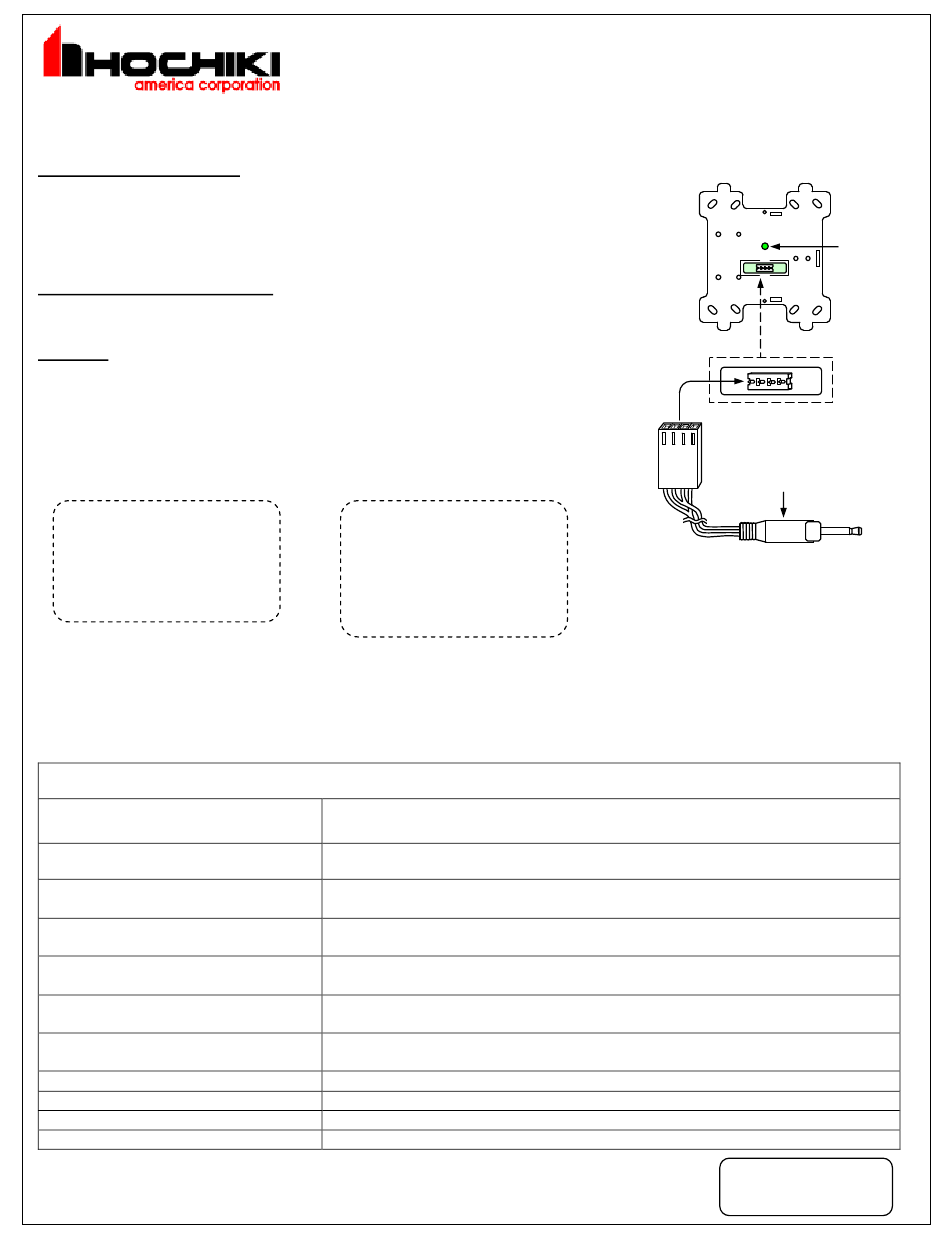

FIGURE 1.
EXPLODED VIEW OF ADDRESS
PROGRAMMING PLUG AND CONNECTOR
DWG.# HA-06-136
(PG 1 of 2, 3/13)
PART# 1700-10290
STATUS LED
