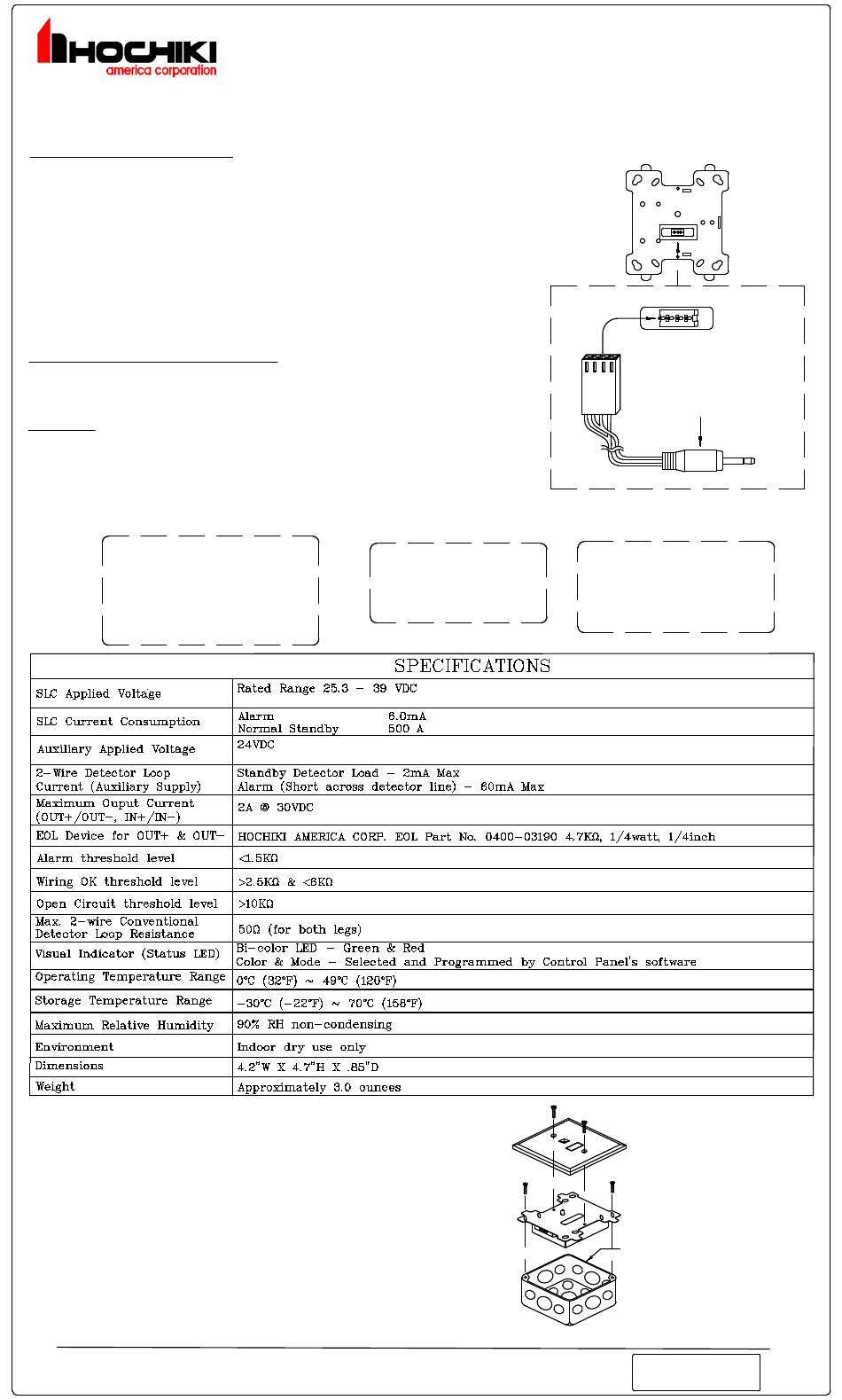

Hochiki DCP-CZM Installation Instructions

INSTALLATION INSTRUCTIONS FOR DCP-CZM CONVENTIONAL ZONE MODULE

The information contained in this installation instruction is to be used as quick reference guide. For detailed system
information, refer to the panel's installation manual.

GENERAL DESCRIPTION

This instruction applies to the Conventional Zone Module (DCP-CZM), which is
to be connected to a Signal Line Circuit (SLC). The module allows the analog panel
to interface and monitor dry contacts such as pull stations and two-wire
conventional smoke detectors. The "DCP-CZM" is addressed through the
communication line of the system and transmits the status of one zone of devices
to the panel. Status conditions are reported as normal, open or alarm. It supervises
the external power supply as well as the entire zone of devices.
NOTE: Please reference the 2 wire detector compatibility matrix on
the proceding page for a complete list of devices approved for use
with the "DCP-CZM"

MOUNTING REQUIREMENTS

The (DCP-CZM) Conventional Zone module is mounted as
shown in Figure 2 on page 1 of this instruction.

WIRING

NOTE: All wiring must conform to local codes,
ordinances and regulations.
1) Install module wiring in accordance with the job
drawings and appropriate wiring diagram (see Fig.3).
2) Secure the module to a U.L. listed electrical box
(supplied by installer), as shown in Figure 2.
CAUTION !
Install the modules in this instruction in
accordance with applicable NFPA
standards, local codes, and the authorities
having jurisdiction. Failure to follow these
instructions may result in failure of the
system to operate as intended.
Hochiki America is not responsible for
modules that have been improperly
installed, tested, or maintained.
NOTE: An average of 6.75mA (communication current)
per loop of SLC devices, must be factored into
the panel battery backup calculations.
NOTE: Maximum Ripple Voltage 2VDC P-P
HOCHIKI AMERICA CORPORATION
7051 VILLAGE DRIVE, SUITE 100
BUENA PARK, CA 90621-2268
CAUTION !
To ensure proper operation
connect this module to a
compatible Fire Control Panel
only. Refer to panel instructions
for proper connection and
compatibility.
μ
TYPICAL MOUNTING ARRANGEMENT
PLUG IS
NON-POLARIZED
TO PROGRAMMER
FIGURE 1.
EXPLODED VIEW OF ADDRESS
PROGRAMMING PLUG AND CONNECTOR
CAUTION !
If this module will be installed in an
existing operation system, inform the
operator and local authority that the
system will be temporarily out of
service. Disconnect power to the
control panel before installing the
module
STANDARD 4" SQ
ELECTRICAL BOX
FIGURE 2
HA-06-101
DWG. #
(PG 1 OF 2, 05/17)
PART# 1700-10170
