Summary of Contents for Hochiki FireNET L@titude S723

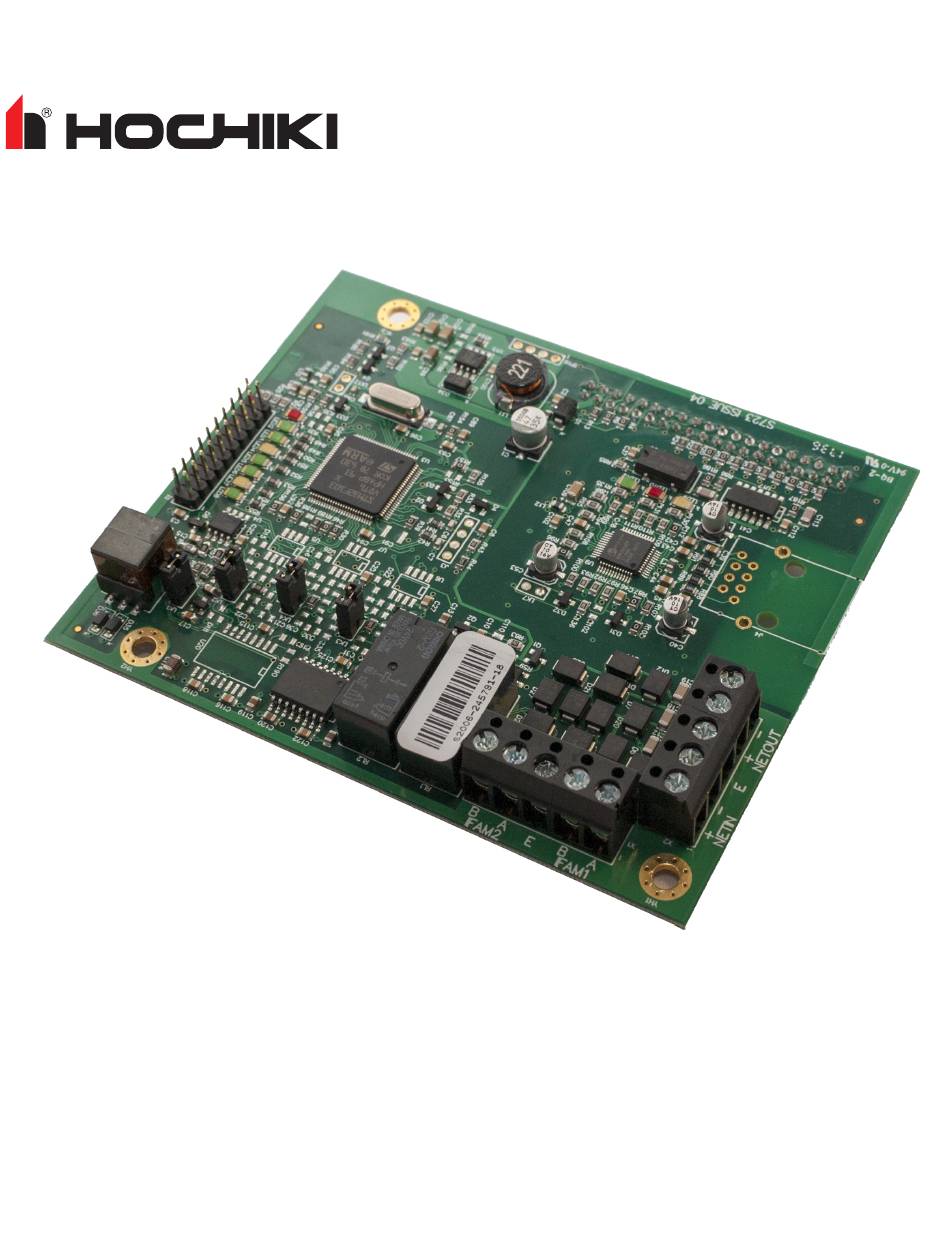

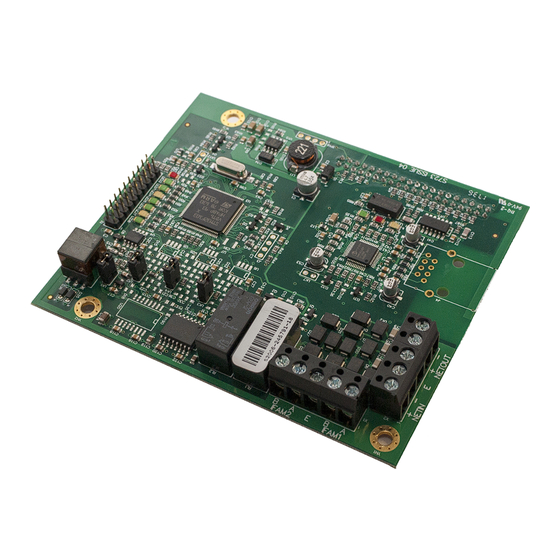

- Page 1 FireNET L@titude Network Module (S723) Information Guide Version 1.05 | May 2019 | MAN-1436HA...
-
Page 2: Table Of Contents
Return Material Authorization (RMA) Warranty Service Advanced Replacements Overview Installation Before You Begin Placement Network Connections Testing Troubleshooting Specifications Electrical Operating Environment Index Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information Page 2 Guide... -
Page 3: Compliance
Any changes or modifications not expressly approved by Hochiki America Corporation could void the user's authority to operate this equipment under the rules and regulations of the FCC. -
Page 4: Introduction
Introduction INTRODUCTION Technical Support For technical support, contact Hochiki America at 800.845.6692 or technicalsupport@hochiki.com. Hochiki technical support is available Monday through Friday, 7:00AM to 5:00PM, PST. Prior to contacting technical support, have the following information available: Product part number Purchase order or order number... -
Page 5: Warranty Service
Products returned using the advanced replacement process must be received within 30 days of the RMA issue date. Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information... -
Page 6: Overview
FireNET and FireNET Plus network can support up to 64 fire control panels, and has other limitations, such as more limited text-field lengths, zones, C&E relationships, etc. Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information... -
Page 7: Installation
Wait for the panel start-up process to complete. Refer to the FireNET L@titude Fire Alarm Control Panel Installation Manual (MAN-1431HA) for more information. Test communication from the panel via the LED Status Indicators. Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information Page 7 Guide... -
Page 8: Before You Begin
1. Switch off AC power and disconnect the battery . 2. Connect the 40 conductor connector of the Network Module to the 40 conductor connector of the LCD Main Processor Board as shown. Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information... -
Page 9: Network Connections
Provide network connections to NETWORK IN and NETWORK OUT terminals of the FireNET L@titude Fire Alarm Control Panel's Main Back Board after installing the Network Module. The following figure illustrates the typical network connections of a 3 panel, Class X network: Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information... - Page 10 IN and OUT network terminals must be connected together to prevent an OPEN CIRCUIT TROUBLE indication. Bridge networking is supported for FireNET and FireNET Plus panels. Advanced features are not available when using bridge networking. Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information Page 10...
-
Page 11: Testing
A blinking green light indicates that the module is receiving data. LED 4 Trouble Yellow A flashing yellow identifies an error condition. LED 5 Unused Green Unused Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information Page 11 Guide... - Page 12 Yellow Full duplex (on) half duplex (off) LED 10 Ethernet Speed 10MHz (off), 100MHz (on) LED 12 Communication Green Communication present when flashing Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information Page 12 Guide...
-
Page 13: Troubleshooting
This event indicates that the link impedance measurement has detected an Partial Open Circuit Trouble impedance above the normally expected range. Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information Page 13... -
Page 14: Specifications
L@titude Fire Alarm Control Panel: 24V DC Operating Environment Dry indoor use only. Temperature Range F (-5 C) - 120 F (49 Relative Humidity Up to 95%, non-condensing Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information Page 14 Guide... -
Page 15: Index
24V 14 Class A 3 Class X 6, 9 Heartbeat 11 LCD Main Processor Board 7 Network 6-7, 13-14 Terminals 9 Trouble 6, 10 Hochiki America Corporation Version 1.05 | May 2019 | MAN-1436HA FireNET L@titude Network Module (S723) Information Page 15 Guide...
