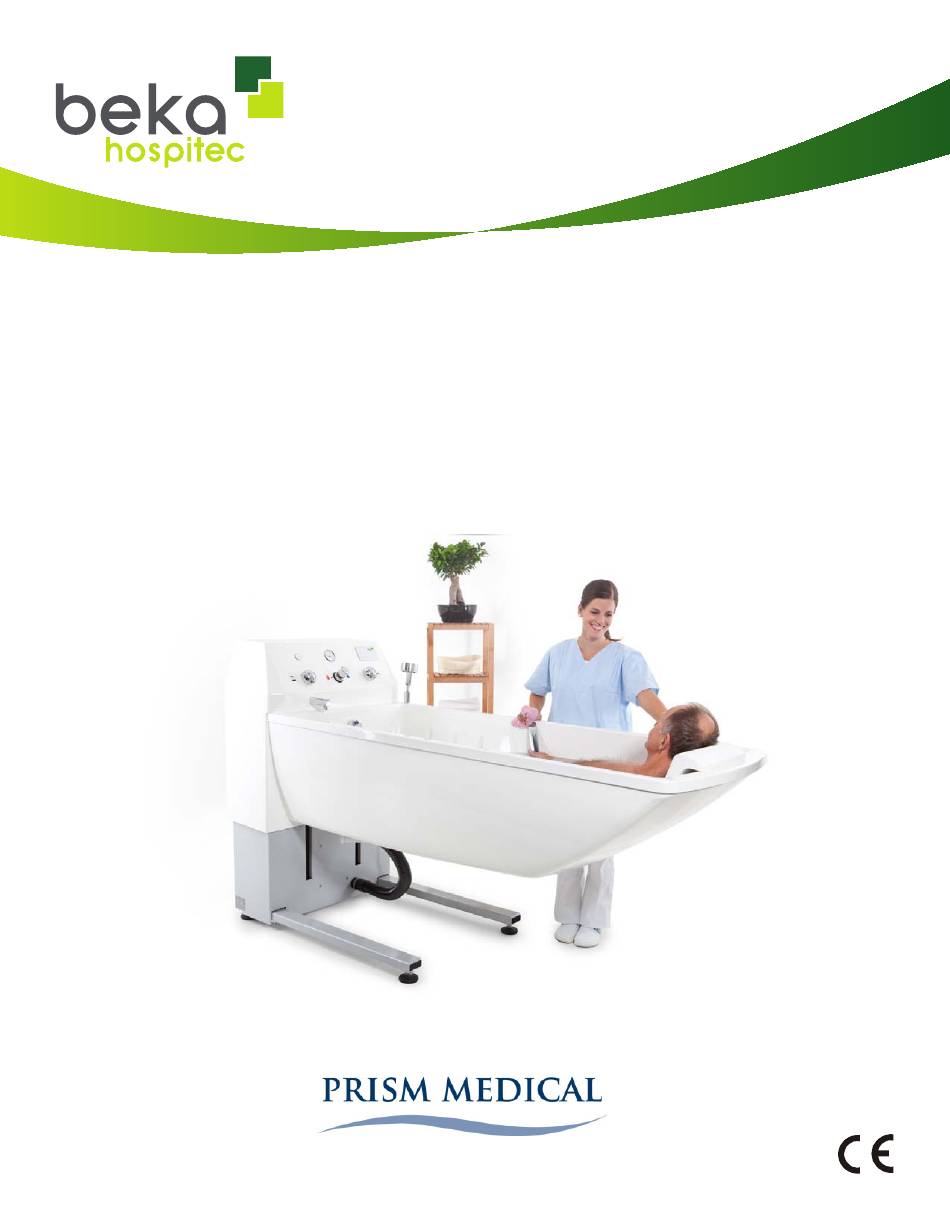

- Page 1 Service Manual AVERO Premium tub 190 Part No. 278400 AVERO Premium tub 175 Part No. 278300 Picture shows AVERO Premium 190 Part No. 278400 Edition V 1.6 EN Technical Changes reserved 09.09 .2014...
-
Page 2: Table Of Contents
Prism Medical Ltd. V1-2014 Contents 1. Preface 2. Care and Maintenance 2.1 Transport and Storage 2.2 Inspection 2.3 Service-Agreements 2.4 Recycling 3. Dimensions (mm) 3.1 AVERO Premium 190 3.2 AVERO Premium 175 4. Assemblies 5. Instructions 5.1 Roller (POM) 5.2 Main board control 5.3 Lifting actuator 5.4 Flow meter 5.5 Lifting frame water piping... - Page 3 Prism Medical Ltd. V1-2014 Contents 6. Periodic Inspection 7. Troubleshooting / Customer Service 7.1 Troubleshooting 7.2 Customer Service 8. Appendix 8.1 Technical Data 8.2 Icons and symbols used 8.3 Declaration of Conformity 8.4 Accessories lifting tub AVERO Premium...
-
Page 4: Preface
The manufacturer of the tub shall only be responsible for the safety and reliability of the device if: a. the installation has been done by an authorized BEKA Hospitec distributor, b. the respective space is in compliance with local regulatory guidelines i.e. CSA, c. -
Page 5: Care And Maintenance
The inspections or repairs must only be performed by the manufacturer or by technical personnel authorized by the manufacturer with the use of original parts. 2.3 Service-Agreements BEKA Hospitec and BEKA’s representatives provide you several variants on service agreements for regular safety checks of your BEKA product. 2.4 Recycling Recycling at the end of the product life must be done accordingly to the local regulations. -
Page 6: Dimensions (Mm)
Prism Medical Ltd. V1-2014 3. Dimensions 3.1 AVERO Premium 190 (mm) -
Page 7: Avero Premium 175
Prism Medical Ltd. V1-2014 3.2 AVERO Premium 175 (mm) -
Page 8: Assemblies
Prism Medical Ltd. V1-2014 4. Assemblies Number Description Number Description Blower motor Control unit Guide roller (POM C) Magnet valve for filling the tub Armored tube (cold water) Magnet valve for disinfection Armored tube (warm water) Injector Earthing Distributor / Mains supply Magnet valve for hand shower Hoist motor Sensor for mixed water (HB + WB) - Page 9 Prism Medical Ltd. V1-2014 Number Description Number Description Overflow Turning knob (open/close) Pushbutton for tub DOWN Grab bars (left/right) Automatic tub filling Tub water inlet Inlet temperature thermometer Concealed thermostat with scald Handheld shower protection Disinfection valve Disinfection spray nozzle Tub filling valve Disinfection injector Handheld shower valve...
- Page 10 Prism Medical Ltd. V1-2014 AVERO Premium Part. No. Pos. No. Article Unit Picture 278411 Control box 120volt 278412 Lifting Actuator 278413 Tub foot, rear 278414 Handheld shower wand 278415 Solenoid ½ 278416 Fitting 278417 Disinfection spray wand 278418 Bracket for handheld shower 278419 Bracket for handheld shower (Disinfection) 278420...
- Page 11 Prism Medical Ltd. V1-2014 AVERO Premium Part. No. Pos. No. Article Unit Picture 278421 Nozzles, complete 278422 Hose 278423 Hose clamps (10 pcs.) 278424 T-piece for hose (5 pcs.) 278425 Elbow connection (Set of 12) 278426 Air distributor incl. ear hose clips 278427 Overflow turning knob 278428...
- Page 12 Prism Medical Ltd. V1-2014 AVERO Premium Part. No. Pos. No. Article Unit Picture 278431 Cover for backflow preventer 278432 Connecting hose 12½” 278433 Connecting hose 20½” 278434 Connecting hose 36½” 278435 Roller for lifting column 278436 CSA injector 278437 CSA flow meter 278438 Clear glass tube 278410...
-
Page 13: Instructions
Prism Medical Ltd. V1-2014 5. Instructions 5.1 Roller (POM) Picture 1: Picture 2: Required tools: Additional parts: 1 x ratchet 4 x POM 1 x socket 17 mm 4 x screws 1 x open-end wrench 17 mm Picture 3: Picture 4: Loosen the nuts using Remove the nut the ratchet and the... -
Page 14: Main Board Control
Prism Medical Ltd. V1-2014 5.2 Main board control Picture 1: Picture 2: Required tools: Additional parts: 1 x battery-operated 1 x control screwdriver Main board 1 x bit AW 25 incl. screws Picture 3: Picture 4: Remove all cables Remove the from the control. -
Page 15: Lifting Actuator
Prism Medical Ltd. V1-2014 5.3 Lifting actuator Picture 2: Picture 1: Required tools: Required parts: 1 x lifting motor 1 x ratchet incl. accessories 1 x socket 17 mm 1 x open-end wrench 17 mm Picture 4: Picture 3: Disconnect all Disconnect the cables from the power supply. -
Page 16: Flow Meter
Prism Medical Ltd. V1-2014 Picture 10: Picture 9: Remove the Remove the screw, screw, incl. the incl. the washer, from washer, from the upper motor the lower motor mount. mount. Picture 12: Picture 11: Remove the screw Remove the from the lower connecting cable motor mount and from the lifting motor. -
Page 17: Lifting Frame Water Piping
Prism Medical Ltd. V1-2014 Picture 5: Picture 6: Remove the hose The illustration shows clamps from behind. the removed hose clamps. Picture 8: Picture 7: The illustration shows Remove the the connecting hoses 2 connecting removed from the flow hoses from the meter. - Page 18 Prism Medical Ltd. V1-2014 Picture 4: Picture 3: The illustration The illustration shows the shows the cold water piping completely and hot water attached on the lifting connections support of the AVERO of the AVERO Premium. Premium for the on-site connection.
-
Page 19: Fan Motor
Prism Medical Ltd. V1-2014 Picture 13: Picture 14: Remove the Remove the union nut from union nut from the thread of the the thread of the connection for connection for hot water. cold water. Picture 16: Picture 15: Loosen the nuts Loosen the nuts for the hot water for the cold water... - Page 20 Prism Medical Ltd. V1-2014 Picture 6: Picture 5: Loosen the screw The illustration shows from the mounting the fan motor fastened bracket and the to the mounting perforated metal bracket with perforated strap. metal strap. Picture 8: Picture 7: Remove the Remove the cable ties.
-
Page 21: Automatic Tub Filling Control
Prism Medical Ltd. V1-2014 5.7 Automatic tub filling control Picture 1: Picture 2: Required tools: The illustration shows 1 x Phillips screwdriver the control for automatic 1 x combination wrench 10 filling mounted on the disinfectant holder. To 1 x Allen wrench 4 mm open the rear wall, follow the instructions in point 5.18. -
Page 22: Solenoid
Prism Medical Ltd. V1-2014 5.8 Solenoid Picture 2: Picture 1: Additional parts: Required tools: 1 x solenoid valve 1 x pipe wrench, large 1 x pipe wrench, small 1 x screwdriver, small Picture 3: Picture 4: Open the back Using the wall of the AVERO screwdriver, Premium, see point... -
Page 23: Fittings
Prism Medical Ltd. V1-2014 5.9 Fittings Picture 1: Required tools: 1 x screwdriver 1 x pipe wrench, large Picture 2: The illustration shows the installed fitting group: - Handheld spray for disinfection (top left), Tub inlet (lower left), Normal handheld shower (lower right). Picture 3: Picture 4: Take off the knob... -
Page 24: Thermostat
Prism Medical Ltd. V1-2014 5.10 Thermostat Picture 2: Picture 1: Additional parts: Required tools: 1 x thermostat battery 1 x screwdriver 10 mm Picture 3: Picture 4: The illustration Take the cover off shows the the thermostat rotary completely mechanism. installed fittings and operating elements of... -
Page 25: Disinfectant Container
Prism Medical Ltd. V1-2014 Picture 10: Picture 9: The illustration Loosen and shows the remove the exposed left and right thermostat. screws from Now the inserts the thermostat (filter, etc.) can mounting plate. be taken out and replaced. 5.11 Disinfectant container Picture 1: Picture 2: Open the back... -
Page 26: Air Nozzles (Without Fan Hose)
Prism Medical Ltd. V1-2014 Picture 5: Take the suction hose out of the disinfectant container and take out the disinfectant container. 5.12 Air nozzles (without fan hose) Picture 2: Picture 1: Additional parts: Required tools: Hose clamps 1 x nipper pliers Air nozzle incl. - Page 27 Prism Medical Ltd. V1-2014 Picture 6: Picture 5: The illustration Disconnect the hose shows the air clamp from hose on the the hose. connecting valve (without hose clamp). Picture 8: Picture 7: The illustration Pull the air hose off the shows all the connecting connecting...
-
Page 28: Air Distributor
Prism Medical Ltd. V1-2014 Picture 13: Picture 14: Loosen and remove The illustration the connecting shows the valves by turning in connecting valve counter-clockwise removed from the direction. air nozzle. Picture 15: You can take out the air nozzle. 5.13 Air distributor Picture 2: Picture 1: Additional parts:... -
Page 29: Operating Element For Air Bubble Bathing System
Prism Medical Ltd. V1-2014 Picture 5: Picture 6: Loosen the air hose Cut the air hoses from the valves of the to the required air distributor. Take off length. the hose clamp using nipper pliers. 5.14 Operating element for air bubble bathing system Picture 1: Picture 2: Required tools:... -
Page 30: Operating Element For Automatic Water Stop
Prism Medical Ltd. V1-2014 Picture 7: Picture 8: Take the The illustration operating shows the element out operating element straight to with threaded the front. connection loosened (inside view). Picture 10: Picture 9: The illustration The illustration shows the shows the recess in which removal of the operating... -
Page 31: Removal Of The Bathtub From The Lifting Frame
Prism Medical Ltd. V1-2014 Picture 5: Picture 6: Unclamp the cable Press out lightly glued from the autom. operating element from water stop and the back. If necessary, remove the cable loosen somewhat with from the distributor carpet knife. unit. Pull the operating element, with the cable, out of the control panel. - Page 32 Prism Medical Ltd. V1-2014 Picture 5: Picture 6: Loosen the left Loosen and remove all and right adjusting fastening screws screws. (left and right). Picture 7: Picture 8: Loosen and Loosen and remove the upper remove the upper fastening screws fastening screws (right).
-
Page 33: Sensor For Automatic Water Stop
Prism Medical Ltd. V1-2014 Picture 15: Picture 16: Take the tub body out The illustration of the lifting frame. shows the tub body removed from the lifting frame. 5.17 Sensor for automatic water stop Picture 1: Required tools: 1 x slotted screw 1 x sensor for autom. -
Page 34: Opening And Closing The Rear Wall
Prism Medical Ltd. V1-2014 Picture 8: Picture 7: Guide the cable Affix the new through the PG sensor at the old threaded connection position. into the distributor unit and clamp the cable of the sensor. Then screw on PG threaded connection again. -
Page 35: Change Machine Feet
Prism Medical Ltd. V1-2014 5.19 Change machine feet Picture 2: Loosen and Picture 1: remove the Required tools: machine foot 1 x Open-end wrench 13 mm with the open- end wrench. 5.20 Change turning knob set Picture 1: Picture 2: Required tools: Additional parts: 1 x Screwdriver PH2... -
Page 36: Change Turning (Drain Plug)
Prism Medical Ltd. V1-2014 5.21 Change turning knob (drain plug) Picture 1: Required tools: Picture 2: 1 x Screwdriver PH2 Additional parts: 1 x turning knob Picture 3: The picture Picture 4: shows the Remove the drain plug. drain plug. Picture 5: Loosen and Picture 6:... -
Page 37: Change Hand Shower Holder
Prism Medical Ltd. V1-2014 5.22 Change hand shower holder Picture 1: Picture 2: Required tools: Additional parts: 1 x Ratchet 1 x Hand shower holder 1 x Socket 10 mm incl. accessories 1 x Extension bar 1 x Allen key 2.5 mm Picture 3: The picture Picture 4:... -
Page 38: Change Hand Shower And Hose
Prism Medical Ltd. V1-2014 5.22 Change hand shower holder /CONT… Picture 9: Remove the sub part of the hand shower holder. 5.23 Change hand shower and hose Picture 1: Additional parts: Picture 2: 1 x Hand shower The picture incl. hand shower shows the hose hand shower. -
Page 39: Change Disinfectant Wand, Hose & Holder
Prism Medical Ltd. V1-2014 5.24 Change disinfectant wand, hose & holder Picture 1: Required tools: Picture 2: 1 x Allen key 2.5 mm Additional parts: 1 x Hand shower (disinfection) Picture 3: Picture 4: The picture shows Remove the the disinfection two screws hand shower with with the Allen... -
Page 40: Temperature Indicator
Prism Medical Ltd. V1-2014 5.25 Temperature indicator Picture 2 to 3: Picture 1: Additional The pictures 2 and parts: 1 x 3 show the built-in Temperature temperature indicator incl. indicator of the accessories AVERO Premium new. Picture 4: Picture 5: You can insert The temperature the temperature... -
Page 41: Open The
Prism Medical Ltd. V1-2014 5.26 Open the back cover Picture 1: Picture 2: Required tools: The picture 1 x Screwdriver PH2 shows the back cover of the AVERO Premium new. Picture 4: Picture 3: Loosen and The picture shows remove all 9 the removed back screws of cover. -
Page 42: Periodic Inspection
Prism Medical Ltd. V1-2014 6. Periodic Inspection... -
Page 43: Troubleshooting / Customer Service
Prism Medical Ltd. V1-2014 8. Troubleshooting / User support 10.1 Troubleshooting Problem Solution The height adjustment of the tub does not work. a) Check the power supply. b) Check the connections between the PLC and operating unit. c) Check control unit for damage. d) Check cable for damage. -
Page 44: Customer Service
Prism Medical Ltd. V1-2014 Problem Relief Filling speed too fast. Water pressure too high (Install pressure reducer on site). Water drains during the bathing process. a) Check water plugs and if necessary, adjust the screw on the water plugs again. b) Check seal for dirt and damage. -
Page 45: Appendix
Prism Medical Ltd. V1-2014 8. Appendix 8.1 Technical data Dimensions and Weights Length 190: 223 cm Width 190: 82 cm Length 175: 208 cm Width 175: 82 cm Inside width (down) 190 / 175: 57.5 cm Inside width (up) 190 / 175: 72.0 cm Height 190 / 175: 96.0 –... - Page 46 Between -20° C and 70° C Relative humidity: Non-condensing between 10% and 80% Atmospheric pressure range: 500 – 1100 hPa Manufacturer: BEKA Hospitec GmbH Am Rübenmorgen 3 D-35582 Wetzlar Fon: +49(0)641-9 22 20 - 0 Fax: +49(0)641-9 22 20 - 20 info@beka-hospitec.de www.beka-hospitec.de...
-
Page 47: Icons And Symbols Used
Prism Medical Ltd. V1-2014 8.2 Icons and symbols used Observe accompanying documents / operating manual. Caution for a hazard area. Feet shall not be placed on the base frame. Application part “Type B” according to DIN EN 60601-1. No domestic waste. Do not put the treatment system, and packaging materials into the domestic waste. -
Page 48: Declaration Of Conformity
Prism Medical Ltd. V1-2014 8.3 Declaration of conformity The declaration of conformity of the lifting tub will be provided by the manufacturer BEKA Hospitec GmbH upon your request. 8.4 Accessories AVERO Premium tub Part No. Description 278401 Avero Premium Tub Shortener...
