Summary of Contents for McIntosh MHA200

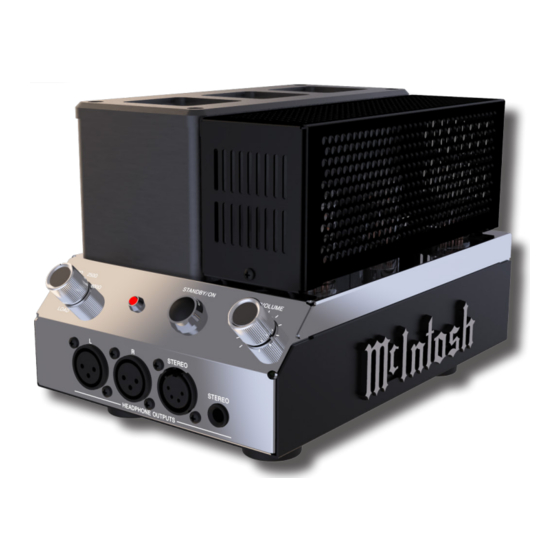

- Page 1 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com MHA200 Tube Headphone Amplifier Owner’s Manual...
- Page 2 REMOVE THE FOAM INSERTS OVER THE Taking it out of the Box VACUUM TUBES PRIOR TO CONNECTING The easiest way to remove the MHA200 from its THE A.C. POWER SUPPLY CORD shipping carton is to: • Open the top of the box •...
- Page 3 Removal of Foam Inserts over Vacuum Tubes ..2 the features and instructions to get the maximum Amplifier designed and crafted for one Thank you from all of us at McIntosh ....3 performance from your equipment. purpose- to power your headphones with Make a Note ............
- Page 4 In this case the Volume Knob of the The BALANCED INPUT allows a source to be • 32 ohms MHA200 can be left at unity gain with the notch at connected using Balanced (XLR) cables (see Figure • 100 ohms 12 o’clock (at the top).
- Page 5 MHA200 at a high volume. If the starting volume power the MHA200 on, press the Power Button. Tubes should be replaced by trained McIntosh is above unity gain, the MHA200 will ramp up to authorized technicians. The tube locations are this volume rather than starting suddenly.
- Page 6 Re-packing the MHA200 Dimensions When shipping the MHA200, it is highly recommended that the unit be packed as it was 9 1/8” originally shipped to avoid damage. Failure to 23.2cm properly pack the unit will likely result in damage. If you need any of the packing material, you can contact McIntosh Customer Service.
- Page 7 Technical Specifications Power Requirements Refer to the rear panel of the MHA200 for the Power Output correct Voltage. The MHA200 is factory configured 32 Ohm Load 500mW for one of the following AC Voltages: 100 Ohm Load 500mW 100 Volts, 50/60Hz at 50 watts...
- Page 8 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903 www.mcintoshlabs.com The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated who reserve the right to improve design without notice. Printed in the U.S.A. McIntosh Part No. 24102300...
