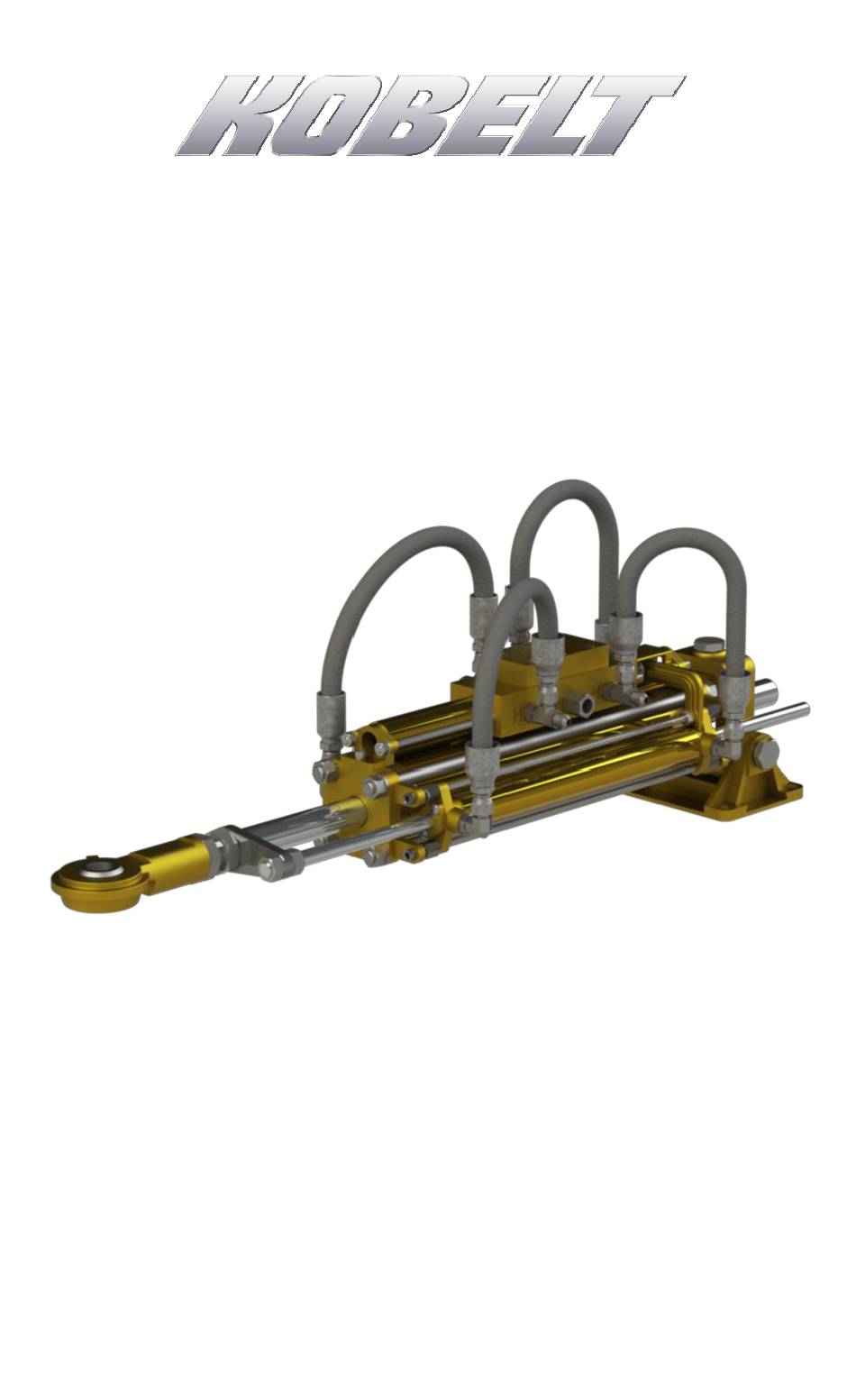

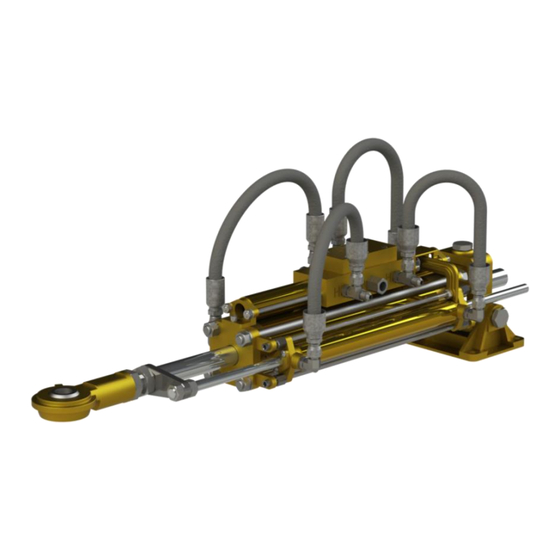

- Page 1 7065-SBXX Power Assist Cylinder Owner's Manual April 2021 Kobelt Manufacturing Co. Ltd...
- Page 2 7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd NOTES RECORD DATA BEFORE INSTALLATION FOR FUTURE REFERENCE Model #: Serial #: Date of purchase: Date of installation: Motor brand and part #: Rev A MNL-7065-SBXX 1 of 18...
-
Page 3: Table Of Contents
7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd ABLE OF ONTENTS Introduction ......................3 Contact ........................3 Safety ........................3 Product Description ....................5 Technical Data ......................6 Installation ......................7 Mechanical .......................7 Hydraulic ........................9 Commissioning ...................... 10 Flushing ........................10 Inspection and Function Test ..................10 Maintenance and Service.................. -
Page 4: Introduction
Kobelt reserves the right, without notice, to change the design, or construction, of any products and to discontinue or limit distribution of any products. Kobelt also reserves the right to change, or update, without notice, any technical information contained within this document. - Page 5 • Do not carry out any modifications to the product. • Only use authentic Kobelt spare parts. • Observe all local regulations, directives and laws during the installation of this product. • All installation, commissioning, and maintenance work must only be conducted by qualified personnel.
-
Page 6: Product Description
Contact you local Kobelt partner to review this information. Rev A MNL-7065-SBXX... -
Page 7: Technical Data
7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd ECHNICAL Table 1 - Cylinder technical specifications Model # 7065-SB7.5 7065-SB10 7065-SB12 7065-SB16 Stroke 7.50” 10.00” 12.00” 16.00” ± .02” [.05 cm] 19.05 cm 25.40 cm 30.48 cm 40.64 cm Design pressure... -
Page 8: Installation
7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd NSTALLATION Figure 2 - 7065-SBXX rotation extents and hydraulic connections ECHANICAL Ensure that the unit is mounted to a foundation that is capable of support the loads that it can generate. If this is not taken into consideration, then damage to the mounting structure can occur. - Page 9 7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd Figure 3 - 7065-SBXX installed dimensions Table 3 - 7065-SBXX dimensions for 35° (ϑ) rudders Model Stroke (S) 7065-SB7.5 7.5" 6.54" 5.36" 20.28" 26.06" 191 mm 166.1 mm 136 mm 515.1 mm...
-
Page 10: Hydraulic
7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd YDRAULIC Exercise safety precautions pertaining to hydraulics including: • Wearing safety glasses. • Exhausting pressure and locking out the pressure source. • Being qualified to work on hydraulics. • Never look for a leak by running your hand/fingers along a pressurized hydraulic line. -
Page 11: Commissioning
7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd OMMISSIONING LUSHING Before subjecting the steering system to full hydraulic pressure, the lines must be flushed to an ISO 4406 cleanliness rating of 20/18/15. NSPECTION AND UNCTION Prior to putting the vessel into service perform a quick inspection and function test of the unit: Check that the mounting bolts are properly installed. -
Page 12: Maintenance And Service
Inspect connections for leaks. • Quarterly (4 times per year) Verify adequate oil level. It is recommended that any required service work on a Kobelt product be performed by a qualified individual. Please contact the nearest Kobelt authorized distributor for assistance. ECOMMENDED... -
Page 13: Parts Lists
7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd ARTS ISTS EVEL SSEMBLY Figure 4 - 7065-SBXX top level assembly parts diagram Rev A MNL-7065-SBXX 12 of 18... - Page 14 7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd Table 6 - 7065-SBXX top level assembly parts list Quantities Item Part Number Description 7065-0004 Rod end assembly 7065-SUB-7.5 Control cylinder 7065-SUB-10 Control cylinder 7065-SUB-12 Control cylinder 7065-SUB-16 Control cylinder 7065-7506 Cylinder tube...
- Page 15 7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd Continued from previous page… Quantities Item Part Number Description 7065-7529 Tie rod, valve spacer 7065-1029 Tie rod, valve spacer 7065-1229 Tie rod, valve spacer 7065-1629 Tie rod, valve spacer 7065-1021 Linkage 7247-SAC...
-
Page 16: Control Cylinder Parts List
7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd ONTROL YLINDER ARTS Figure 5 - 7065-SUB-XX control cylinder parts diagram Table 7 - 7065-SUB-XX control cylinder parts list Quantities Item Part Number Description 7065-7524-SUB Piston-rod assembly 7065-1024-SUB Piston-rod assembly 7065-1224-SUB Piston-rod assembly... -
Page 17: Valve Assembly Parts List
7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd ALVE SSEMBLY ARTS Figure 6 - 7247-SAC valve parts diagram Table 8- 7247-SAC valve parts list Item Quantity Part Number Description 7247-0011 Spool housing block 7247-0010 Outlet port block 7147-0022 Outer spool... -
Page 18: Warranty
If any part is found to be defective, Kobelt will replace said part FOB the Kobelt factory provided that any such defective part is returned by the Buyer with freight and applicable forwarding charges prepaid by the Buyer. - Page 19 7065-SBXX Power Assist Cylinder Kobelt Manufacturing Co. Ltd Page Intentionally Left Blank Rev A MNL-7065-SBXX 18 of 18...
- Page 20 Kobelt Manufacturing Co. Ltd. 8238 129th Street Surrey, British Columbia, Canada, V3W 0A6 Sales Tel: +1-604-572-3935 Fax: +1-604-590-8313 Email: sales@kobelt.com Website: www.kobelt.com Made in Canada / Printed in Canada Keivan Digitally signed by Keivan Ashouei Ashouei Date: 2021.04.13 07:47:12 -07'00'...
