Step 3: Connect Your Microphone,
Loudspeaker, Hand- or Headset

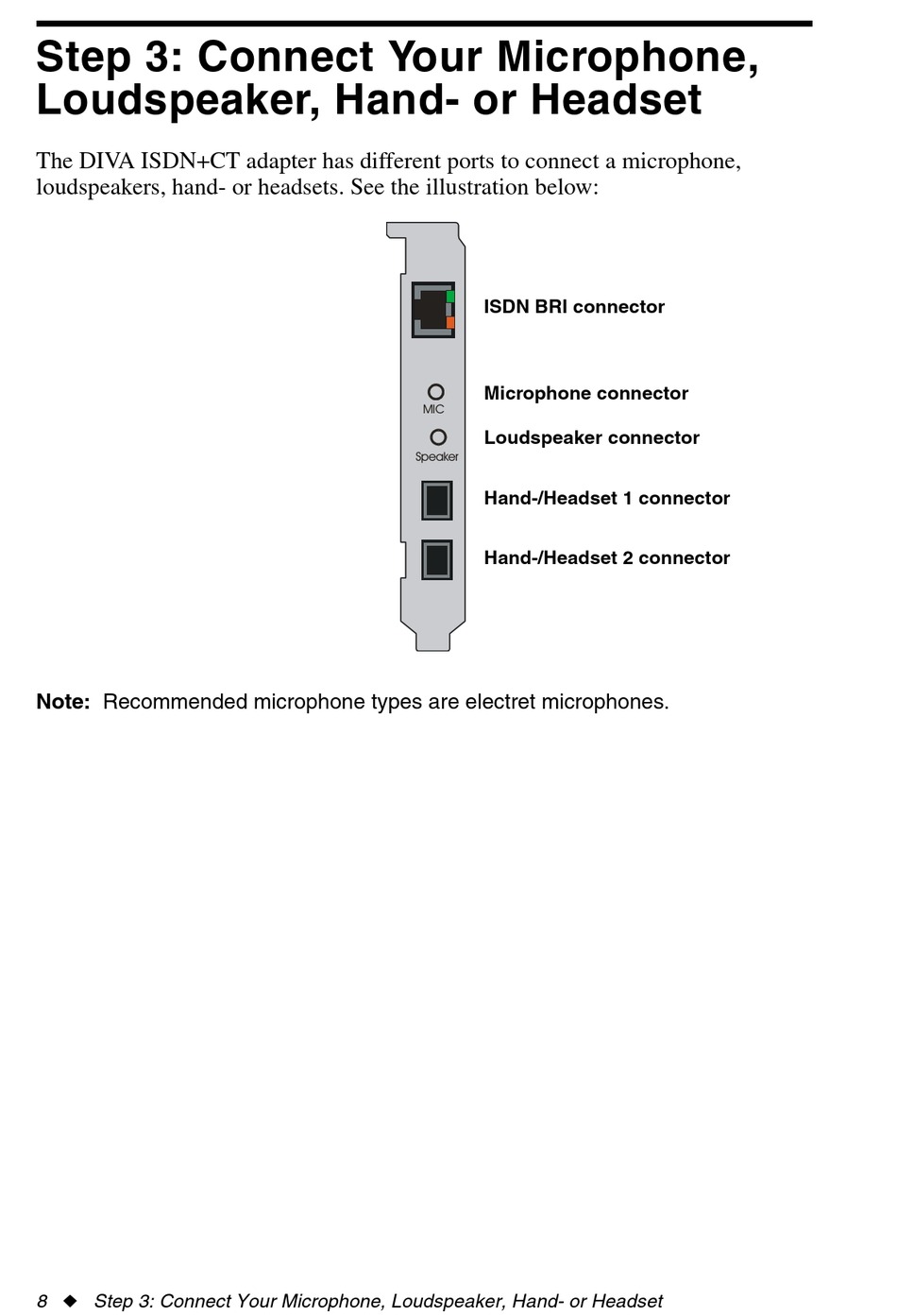

The DIVA ISDN+CT adapter has different ports to connect a microphone,
loudspeakers, hand- or headsets. See the illustration below:
Note: Recommended microphone types are electret microphones.
8 N Step 3: Connect Your Microphone, Loudspeaker, Hand- or Headset
ISDN BRI connector
Microphone connector
0,&
Loudspeaker connector
6SHDNHU
Hand-/Headset 1 connector
Hand-/Headset 2 connector
