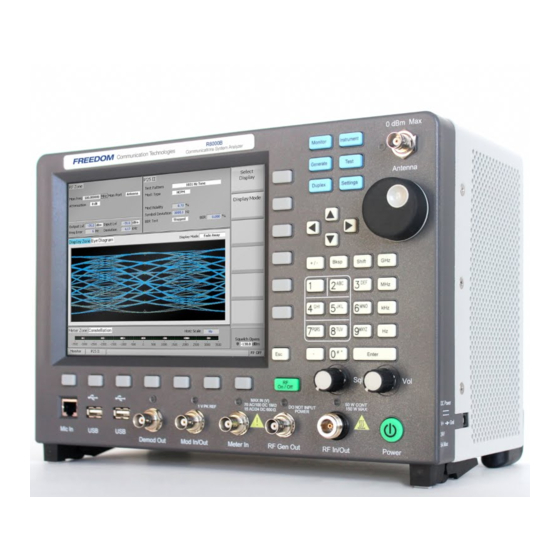

Freedom R8000 Testing
Testing motorola p25 phase 2 radios
Hide thumbs
Also See for R8000:
- User manual (61 pages) ,
- User manual (48 pages) ,
- User manual (72 pages)
Related Manuals for Freedom R8000
Summary of Contents for Freedom R8000
- Page 1 Application Note: Testing Motorola P25 Phase 2 Radios Using the Freedom Communications System Analyzers FCT-1009A...
- Page 2 This application note is focused on testing the P25 Phase 2 digital capabilities of the radio. For additional information on analog and Phase 1 conventional mode testing, please refer to the appropriate app note. For information on our AutoTune option for the R8000, please reference the Operator’s Manual and radio-specific User’s Guide available on our website (www.freedomcte.com).
- Page 3 Verify RF cable present from Radio to R8000 • In Tuner, select “PTT Toggle” to key the radio • If R8000 and Radio configured properly, Eye Diagram and Constellation Meter will update. • In “P25 II” Zone, record readings: •...
- Page 4 Decrease R8000 output power in 1dB increments until BER reads above 5% • Increase R8000 output power in 0.1dB increments until the BER is below 5% • Record output power as Digital Sensitivity of the radio. (should be < -116 dBm) •...
