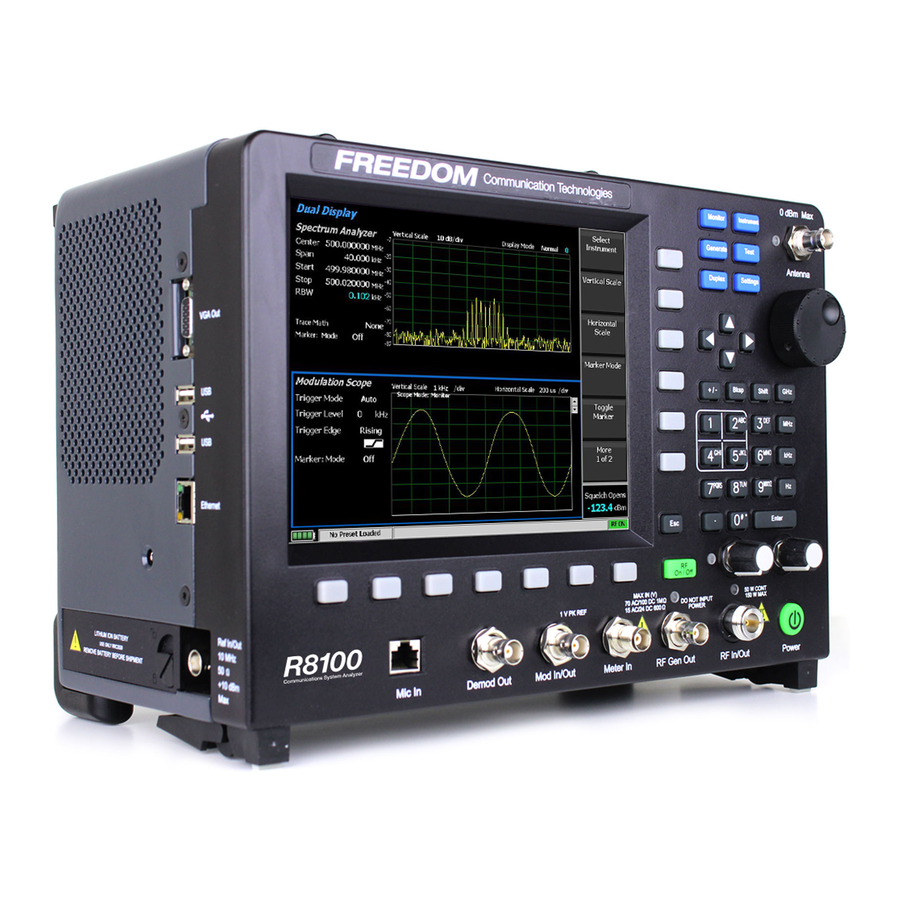

R8000 Series
Communications Systems Analyzer
AUTOTUNE USER GUIDE
Motorola APX Series Radios
Freedom Communication Technologies
2002 Synergy Blvd, Suite 200
Kilgore, Texas 75662
Copyright  2021 Freedom Communication Technologies
All Rights Reserved
Printed in U.S.A.
FCT-1215 Rev. C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R8000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Freedom R8000 Series

Summary of Contents for Freedom R8000 Series

  • Page 1 R8000 Series Communications Systems Analyzer AUTOTUNE USER GUIDE Motorola APX Series Radios Freedom Communication Technologies 2002 Synergy Blvd, Suite 200 Kilgore, Texas 75662 Copyright  2021 Freedom Communication Technologies All Rights Reserved Printed in U.S.A. FCT-1215 Rev. C...
  • Page 2 AutoTune for Motorola APX Series Radios User Guide AUTOTUNE™ SOFTWARE LICENSE AGREEMENT The software license agreement governing use of the R8000 Series Communications Systems Analyzer AutoTune software is located in FCT-1365 R8000 Series Communications Systems Analyzer Operator’s Manual. TRADEMARKS The Freedom logo and Freedom Communication Technologies are registered ®...
  • Page 3 ECCN 5E991. EXPORT CONTROL WARNING – Do not disclose or provide this document or item (including its contents) to non-U.S. Citizens or non-U.S. Permanent Residents, or transmit this document or item (including its contents) outside the U.S. without the written permission of Freedom Communication Technologies and required U.S. Government export approvals.

  • Page 4: Table Of Contents

    AutoTune for Motorola APX Series Radios User Guide TABLE OF CONTENTS Introduction ....................1 Scope ......................1 2.1. Supported Models ..................1 2.2. Required Options ..................1 Motorola APX Portable Radio Test Setup ............2 3.1. Cable Sweep ................... 2 3.2.
  • Page 5 AutoTune for Motorola APX Series Radios User Guide 6.6. Tx Deviation Balance ................41 6.7. Rx Front End Filter ................. 42 6.8. Rx Distortion ..................42 6.9. Rx Duty Cycle Adjustment ..............45 6.10. RF Power ................... 46 6.11. Rx Distortion ..................47 6.12.
  • Page 6 AutoTune for Motorola APX Series Radios User Guide LIST OF TABLES Table 4-2. Required R8x00 options for AutoTune for Motorola APX Series radios..........................1 Table 3-1. Portable Test Hardware Table ............. 3 Table 4-1. Analyzer Configuration for Tx PA Bias (Auto) alignment...... 5 Table 4-2.
  • Page 7 AutoTune for Motorola APX Series Radios User Guide Table 4-42. Analyzer Configuration for Voice Modulation (internal) test ..... 26 Table 4-43. Voice Modulation (internal) test results ..........27 Table 4-44. Analyzer Configuration for Voice Modulation (external) test .... 28 Table 4-45. Voice Modulation (external) test results ........... 28 Table 5-1.
  • Page 8 AutoTune for Motorola APX Series Radios User Guide...

  • Page 9: Introduction

    AutoTune for Motorola APX portable and mobile two-way radios. This document is restricted to radio-specific information. Please refer to the R8000 Series Communications System Analyzer Owner’s Manual (FCT-1365) for an overview and basic operating instructions for AutoTune itself.

  • Page 10: Motorola Apx Portable Radio Test Setup

    Cable Sweep feature in the analyzer System, System Settings… menu. Refer to Application Note FCT-1017 Utilizing Cable Sweep on the Freedom Communications System Analyzer for instructions on how to perform a cable sweep.

  • Page 11: Test Hardware

    AutoTune for Motorola APX Series Radios User Guide 3.2. Test Hardware Test Aid Recommended part Description USB radio programming Motorola PMKN4013_ USB cable for programming and cable servicing radio. Variable DC power supply Astron VS-50M DC power supply with sufficient current sourcing capability.

  • Page 12: Figure 3-1. Apx Portable Test Setup Diagram

    AutoTune for Motorola APX Series Radios User Guide Figure 3-1. APX Portable Test Setup Diagram...

  • Page 13: Motorola Apx Portable Alignment And Test Descriptions

    AutoTune for Motorola APX Series Radios User Guide 4. Motorola APX Portable Alignment and Test Descriptions Note: Throughout this section are references to Test Frequency. Test Frequencies are band- and mode -specific. A table of the frequencies used by each band may be found in the respective radio service manual.

  • Page 14: Reference Frequency

    AutoTune for Motorola APX Series Radios User Guide 4.2. Reference Frequency RF Control Port Frequency Modulation Attenuation Monitor RF IN/OUT Test Frequency 30 dB Table 4-3. Analyzer Configuration for Reference Frequency 4.2.1. Alignment The radio is placed into Test Mode at the highest TX Test Frequency and commanded to transmit.

  • Page 15: Tx Power Out

    AutoTune for Motorola APX Series Radios User Guide 4.3. TX Power Out Port Frequency Modulation Attenuation Control Monitor RF IN/OUT Test Frequency 40 dB Table 4-6. Analyzer Configuration for TX Power Out 4.3.1. Alignment The TX Power Out alignment is composed of two parts: Tx Power Characterization Points tuning and Tx Power Characterization tuning.

  • Page 16: Table 4-8. Tx Power Characterization Alignment Results

    AutoTune for Motorola APX Series Radios User Guide Name Description Result Pass or Fail. Measured Power within manufacturer limits Frequency Test Frequency Low Power Measured low radio output level High Power Measured high radio output level Diff (>1.5W) Difference between Low Power and High Power. If outside indicated limit, alignment is marked as Fail.

  • Page 17: Tx Attenuator Limit

    AutoTune for Motorola APX Series Radios User Guide 4.4. TX Attenuator Limit RF Control Port Frequency Modulation Attenuation Monitor RF IN/OUT Test Frequency 40 dB Table 4-9. Analyzer Configuration for Tx Attenuator Limit 4.4.1. Alignment Note: The Tx Attenuator Limit alignment applies to APX 8000 models only. The Tx Attenuator Limit alignment adjusts the attenuator limiting radio PA driver power.

  • Page 18: Tx Pa Saturation Reference

    AutoTune for Motorola APX Series Radios User Guide 4.5. TX PA Saturation Reference Port Frequency Modulation Attenuation Control Monitor RF IN/OUT Test Frequency 40 dB Table 4-11. Analyzer Configuration for Tx PA Saturation Reference 4.5.1. Alignment The Tx PA Saturation Reference alignment adjusts the radio for optimal TDMA F2 performance.

  • Page 19: Tx Deviation Balance

    AutoTune for Motorola APX Series Radios User Guide 4.6. Tx Deviation Balance Port Frequency Modulation Attenuation Control Monitor RF IN/OUT Test Frequency 20 dB Table 4-13. Analyzer Configuration for Tx Deviation Balance alignment 4.6.1. Alignment The radio is placed into Test Mode at the highest TX Test Frequency and commanded to transmit.

  • Page 20: Rx Front End Filter

    AutoTune for Motorola APX Series Radios User Guide 4.7. Rx Front End Filter RF Control Port Frequency Modulation Generate RF IN/OUT, RF GEN OUT Test Frequency FM Table 4-15. Analyzer Configuration for Rx Front End Filter alignment 4.7.1. Alignment Note: This alignment is only performed for UHF R1 and UHF R2 band models. The Rx Front End Filter adjusts the radio’s RF front end for optimal selectivity and sensitivity.

  • Page 21: Front End Gain

    AutoTune for Motorola APX Series Radios User Guide 4.8. Front End Gain RF Control Port Frequency Modulation Generate RF IN/OUT, RF GEN OUT Test Frequency FM Table 4-17. Analyzer Configuration for Front End Gain alignment 4.8.1. Alignment Note: This alignment is only performed for APX 900 models. The Rx Front End Gain adjusts the radio’s RF front end for RSSI value correction.

  • Page 22: Rx Vlif Dca Phase Error

    AutoTune for Motorola APX Series Radios User Guide 4.9. Rx VLIF DCA Phase Error RF Control Port Frequency Modulation Generate RF IN/OUT, RF GEN OUT Test Frequency FM Table 4-19. Analyzer Configuration for Rx VLIF DCA Phase Error alignment 4.9.1. Alignment Note: This alignment is only performed for APX 900 portable models.

  • Page 23: Rx Duty Cycle Adjustment

    AutoTune for Motorola APX Series Radios User Guide 4.10. Rx Duty Cycle Adjustment RF Control Port Frequency Modulation Generate RF IN/OUT Test Frequency FM Table 4-21. Analyzer Configuration for Rx Duty Cycle Adjustment alignment 4.10.1. Alignment Note: This alignment is only performed for APX 8000, APX 6000 Enhanced, APX NEXT, and APX 900 portable models.

  • Page 24: Rf Power

    AutoTune for Motorola APX Series Radios User Guide 4.11. RF Power This test verifies that previously aligned radio power meets rated power specifications. 4.11.1. Test The radio is placed into Test Mode and commanded to transmit. Beginning at the lowest Tx Test Frequency, the output level is measured at each TX Test Frequency and compared against test limits.

  • Page 25: Rx Distortion

    AutoTune for Motorola APX Series Radios User Guide 4.12. Rx Distortion This is a test only; there is no alignment. RF Control Port Frequency Modulation Level Generate RF IN/OUT Test Freq FM, 60% rated deviation -50 dBm Table 4-24. Analyzer Configuration for Rx Distortion Test 4.12.1.

  • Page 26: Rx Analog Sensitivity (Sinad)

    AutoTune for Motorola APX Series Radios User Guide 4.13. Rx Analog Sensitivity (SINAD) This is a test only; there is no alignment. RF Control Port Frequency Modulation Level Generate RF IN/OUT Test Freq FM, 60% rated deviation -50 dBm Table 4-26. Analyzer Configuration for Rx Analog Sensitivity (SINAD) test 4.13.1.

  • Page 27: Noise Squelch Threshold

    AutoTune for Motorola APX Series Radios User Guide 4.14. Noise Squelch Threshold This is a test only; there is no alignment. RF Control Port Frequency Modulation Level Generate RF IN/OUT Test Freq FM, 60% rated deviation -125 dBm Table 4-28. Analyzer Configuration for Noise Squelch Threshold test 4.14.1.

  • Page 28: Modulation Fidelity

    AutoTune for Motorola APX Series Radios User Guide 4.15. Modulation Fidelity NOTE: This test requires an analyzer with P25 Conventional test mode (R8-P25 option) capability. The purpose of this procedure is to measure the radio transmitter’s P25 Phase 1 Modulation Fidelity at a given frequency. Modulation Fidelity (FSK error) represents how accurately a P25 transmitter reproduces an ideal theoretical modulation waveform.

  • Page 29: Symbol Deviation

    AutoTune for Motorola APX Series Radios User Guide 4.16. Symbol Deviation NOTE: This test requires an analyzer with P25 Conventional test mode (R8-P25 option) capability. The purpose of this procedure is to measure the radio transmitter’s P25 Phase 1 Symbol Deviation at a given frequency. Symbol Deviation provides the deviation measurement at symbol decision times.

  • Page 30: P25 Phase Ii Modulation Fidelity

    AutoTune for Motorola APX Series Radios User Guide 4.17. P25 Phase II Modulation Fidelity NOTE: This test requires an analyzer with P25 Phase 2 Test Mode (R8-P25_II option) capability. The purpose of this procedure is to measure the radio transmitter’s P25 Phase 2 Modulation Fidelity at a given frequency.

  • Page 31: P25 Phase Ii Symbol Deviation

    AutoTune for Motorola APX Series Radios User Guide 4.18. P25 Phase II Symbol Deviation NOTE: This test requires an analyzer with P25 Phase 2 Test Mode (R8-P25_II option) capability. The purpose of this procedure is to measure the radio transmitter’s P25 Phase 2 Symbol Deviation at a given frequency.

  • Page 32: Rx Digital Sensitivity (P25 Ber)

    AutoTune for Motorola APX Series Radios User Guide 4.19. Rx Digital Sensitivity (P25 BER) NOTE: This test requires an analyzer with P25 Conventional test mode (R8-P25 option) capability. The purpose of this procedure is to measure the radio receiver’s Bit Error Rate at a given frequency.

  • Page 33: Rx Sensitivity (P25 Phase Ii Ber)

    AutoTune for Motorola APX Series Radios User Guide 4.20. Rx Sensitivity (P25 Phase II BER) NOTE: This test requires an analyzer with P25 Phase 2 Test Mode (R8-P25_II option) capability. The purpose of this procedure is to measure the radio receiver’s Bit Error Rate at a given frequency.

  • Page 34: Voice Modulation (Internal)

    AutoTune for Motorola APX Series Radios User Guide 4.21. Voice Modulation (internal) The purpose of this procedure is to test the ability of the radio’s internal microphone to accurately transfer the received signal. RF Control Port Frequency Modulation Attenuation Monitor RF IN/OUT Test Frequency 40 dB...

  • Page 35: Figure 4-2. Adjust Analyzer Volume Until About 60% Rated System Deviation Is

    AutoTune for Motorola APX Series Radios User Guide Figure 4-2. Adjust analyzer volume until about 60% rated system deviation is measured. Name Description Result Pass or Fail. Deviation within Min Limit, Max Limit Frequency Test Frequency Deviation Measured modulation deviation level Min Limit Minimum Limit (inclusive) for Deviation to Pass Max Limit...

  • Page 36: Voice Modulation (External)

    AutoTune for Motorola APX Series Radios User Guide 4.22. Voice Modulation (external) The purpose of this procedure is to test the ability of an external microphone attached to the radio to effectively transfer the received signal. RF Control Port Frequency Modulation Attenuation Monitor...

  • Page 37: Motorola Apx Mobile Radio Test Setup

    Cable Sweep feature in the analyzer System, System Settings… menu. Refer to Application Note FCT-1017 Utilizing Cable Sweep on the Freedom Communications System Analyzer for instructions on how to perform a cable sweep.

  • Page 38: Test Hardware

    USB radio programming Motorola HKN6163_ USB cable for programming and cable Motorola HKN6184_ servicing radio. Current Meter Freedom USB-CS For Tx PA Bias alignment Variable DC power supply Astron VS-50_ DC power supply with sufficient current sourcing capability. RF test cable Megaphase RF Orange Shielded RF cable with low loss.

  • Page 39: Motorola Apx Mobile High Power Test Setup

    AutoTune for Motorola APX Series Radios User Guide Figure 5-1. Motorola APX Mobile Test Setup Diagram 5.4. Motorola APX Mobile High Power Test Setup Refer to the diagram below for the proper test setup.

  • Page 40: Figure 5-2. Motorola Apx Mobile High Power Test Setup Diagram

    AutoTune for Motorola APX Series Radios User Guide Figure 5-2. Motorola APX Mobile High Power Test Setup Diagram...

  • Page 41: Motorola Apx Mobile Alignment And Test Descriptions

    AutoTune for Motorola APX Series Radios User Guide 6. Motorola APX Mobile Alignment and Test Descriptions Note: Throughout this section are references to Test Frequency that are band and mode specific. A table of the frequencies used by each band may be found in the respective radio service manual.

  • Page 42: Tx Pa Bias

    40 dB Table 6-1. Analyzer Configuration for Tx PA Bias alignment 6.1.1. Alignment Note: This alignment requires an external current meter (Freedom part # USB-CS) to perform. APX 8500 Mobiles: The Tx PA Bias alignment adjusts the radio power amplifier voltages.

  • Page 43: Reference Frequency

    AutoTune for Motorola APX Series Radios User Guide 6.2. Reference Frequency RF Control Port Frequency Modulation Attenuation Monitor RF IN/OUT Test Frequency 20 dB Table 6-3. Analyzer Configuration for Reference Frequency 6.2.1. Alignment The radio is placed into Test Mode at the highest TX Test Frequency and commanded to transmit.

  • Page 44: Table 6-5. Reference Frequency Test Results

    AutoTune for Motorola APX Series Radios User Guide Name Description Result Pass or Fail. Frequency Error within Max Limit, Min Limit Frequency Test Frequency Freq Error Measured frequency error Min Limit Minimum Limit (inclusive) for frequency error Max Limit Maximum Limit (inclusive) for frequency error Softpot Radio softpot which yields Freq Error Table 6-5.

  • Page 45: Tx Power Out

    AutoTune for Motorola APX Series Radios User Guide 6.3. TX Power Out Port Frequency Modulation Attenuation Control Monitor RF IN/OUT Test Frequency 40 dB Table 6-6. Analyzer Configuration for TX Power Out 6.3.1. Alignment The TX Power Out alignment is composed of two parts: Power Detection Calibration followed by Tx Power Characterization.
  • Page 46 AutoTune for Motorola APX Series Radios User Guide...

  • Page 47: Tx Current Limit

    AutoTune for Motorola APX Series Radios User Guide 6.4. TX Current Limit Port Frequency Modulation Attenuation Control Monitor RF IN/OUT Test Frequency 40 dB Table 6-9. Analyzer Configuration for Tx Current Limit 6.4.1. Alignment The Tx Current Limit alignment adjusts a current protection circuit. The radio is placed into Test Mode and commanded to transmit at the first Tx Test Frequency.

  • Page 48: Tx Voltage Limit

    AutoTune for Motorola APX Series Radios User Guide 6.5. TX Voltage Limit Port Frequency Modulation Attenuation Control Monitor RF IN/OUT Test Frequency 40 dB Table 6-11. Analyzer Configuration for Tx Voltage Limit 6.5.1. Alignment The Tx Current Limit alignment adjusts a voltage protection circuit. The radio is placed into Test Mode and commanded to transmit at the first Tx Test Frequency.

  • Page 49: Tx Deviation Balance

    AutoTune for Motorola APX Series Radios User Guide 6.6. Tx Deviation Balance Port Frequency Modulation Attenuation Control Monitor RF IN/OUT Test Frequency 20 dB Table 6-13. Analyzer Configuration for Tx Deviation Balance alignment 6.6.1. Alignment The radio is placed into Test Mode at the highest TX Test Frequency and commanded to transmit.

  • Page 50: Rx Front End Filter

    AutoTune for Motorola APX Series Radios User Guide 6.7. Rx Front End Filter RF Control Port Frequency Modulation Generate RF IN/OUT, RF GEN OUT Test Frequency FM Table 6-15. Analyzer Configuration for Rx Front End Filter alignment 6.7.1. Alignment Note: This alignment is only performed for UHF R1 and UHF R2 band models. The Rx Front End Filter adjusts the radio’s RF front end for optimal selectivity and sensitivity.
  • Page 51 AutoTune for Motorola APX Series Radios User Guide Name Description Result Pass or Fail. Distortion level within Max Limit, Min Limit Frequency Test Frequency Distortion Measured audio signal distortion level Max Limit Maximum Limit (inclusive) for Distortion to Pass Table 6-21. Rx Distortion test results...
  • Page 52 AutoTune for Motorola APX Series Radios User Guide for alignment verification test.

  • Page 53: Rx Duty Cycle Adjustment

    AutoTune for Motorola APX Series Radios User Guide 6.9. Rx Duty Cycle Adjustment RF Control Port Frequency Modulation Generate RF IN/OUT Test Frequency FM Table 6-17. Analyzer Configuration for Rx Duty Cycle Adjustment alignment 6.9.1. Alignment Note: This alignment is only performed for APX 8500 and APX Mobile Enhanced models.

  • Page 54: Rf Power

    AutoTune for Motorola APX Series Radios User Guide 6.10. RF Power This test verifies that previously aligned radio power meets rated power specifications. 6.10.1. Test The radio is placed into Test Mode and commanded to transmit. Beginning at the lowest Tx Test Frequency, the output level is measured at each TX Test Frequency and compared against test limits.

  • Page 55: Rx Distortion

    AutoTune for Motorola APX Series Radios User Guide 6.11. Rx Distortion This is a test only; there is no alignment. RF Control Port Frequency Modulation Level Generate RF IN/OUT Test Freq FM, 60% rated deviation -50 dBm Table 6-20. Analyzer Configuration for Rx Distortion Test 6.11.1.

  • Page 56: Rx Analog Sensitivity (Sinad)

    AutoTune for Motorola APX Series Radios User Guide 6.12. Rx Analog Sensitivity (SINAD) This is a test only; there is no alignment. RF Control Port Frequency Modulation Level Generate RF IN/OUT Test Freq FM, 60% rated deviation -50 dBm Table 6-22. Analyzer Configuration for Rx Analog Sensitivity (SINAD) test 6.12.1.

  • Page 57: Noise Squelch Threshold

    AutoTune for Motorola APX Series Radios User Guide 6.13. Noise Squelch Threshold This is a test only; there is no alignment. RF Control Port Frequency Modulation Level Generate RF IN/OUT Test Freq FM, 60% rated deviation -125 dBm Table 6-24. Analyzer Configuration for Noise Squelch Threshold test 6.13.1.

  • Page 58: Modulation Fidelity

    AutoTune for Motorola APX Series Radios User Guide 6.14. Modulation Fidelity NOTE: This test requires an analyzer with P25 Conventional test mode (R8-P25 option) capability. The purpose of this procedure is to measure the radio transmitter’s P25 Phase 1 Modulation Fidelity at a given frequency. Modulation Fidelity (FSK error) represents how accurately a P25 transmitter reproduces an ideal theoretical modulation waveform.

  • Page 59: Symbol Deviation

    AutoTune for Motorola APX Series Radios User Guide 6.15. Symbol Deviation NOTE: This test requires an analyzer with P25 Conventional test mode (R8-P25 option) capability. The purpose of this procedure is to measure the radio transmitter’s P25 Phase 1 Symbol Deviation at a given frequency. Symbol Deviation provides the deviation measurement at symbol decision times.

  • Page 60: P25 Phase Ii Modulation Fidelity

    AutoTune for Motorola APX Series Radios User Guide 6.16. P25 Phase II Modulation Fidelity NOTE: This test requires an analyzer with P25 Phase 2 Test Mode (R8-P25_II option) capability. The purpose of this procedure is to measure the radio transmitter’s P25 Phase 2 Modulation Fidelity at a given frequency.

  • Page 61: P25 Phase Ii Symbol Deviation

    AutoTune for Motorola APX Series Radios User Guide 6.17. P25 Phase II Symbol Deviation NOTE: This test requires an analyzer with P25 Phase 2 Test Mode (R8-P25_II option) capability. The purpose of this procedure is to measure the radio transmitter’s P25 Phase 2 Symbol Deviation at a given frequency.

  • Page 62: Rx Digital Sensitivity (P25 Ber)

    AutoTune for Motorola APX Series Radios User Guide 6.18. Rx Digital Sensitivity (P25 BER) NOTE: This test requires an analyzer with P25 Conventional test mode (R8-P25 option) capability. The purpose of this procedure is to measure the radio receiver’s Bit Error Rate at a given frequency.

  • Page 63: Rx Sensitivity (P25 Phase Ii Ber)

    AutoTune for Motorola APX Series Radios User Guide 6.19. Rx Sensitivity (P25 Phase II BER) NOTE: This test requires an analyzer with P25 Phase 2 Test Mode (R8-P25_II option) capability. The purpose of this procedure is to measure the radio receiver’s Bit Error Rate at a given frequency.

  • Page 64: Voice Modulation (Internal)

    AutoTune for Motorola APX Series Radios User Guide 6.20. Voice Modulation (internal) Note: Motorola APX Mobile High Power models are not supported for this test. The purpose of this procedure is to test the ability of the radio’s external microphone audio circuit to accurately transfer the received microphone signal.

  • Page 65: Figure 6-3. Adjust Analyzer Volume Until About 60% Rated System Deviation Is

    AutoTune for Motorola APX Series Radios User Guide Figure 6-3. Adjust analyzer volume until about 60% rated system deviation is measured. Dual-Band: This test is only performed for the lowest RX Test Frequency in the lowest frequency band. Name Description Result Pass or Fail.

  • Page 66: Basic Troubleshooting

    AutoTune for Motorola APX Series Radios User Guide 7. Basic Troubleshooting Symptom Possible Cause(s) Possible Solution(s) Radio repeatedly fails Serial link corruption. Retry communicating with the communication radio after each of the following initialization. steps: • Power cycle the radio. •...

  • Page 67: Support Information

    AutoTune for Motorola APX Series Radios User Guide 8. Support Information 8.1. Technical Support Document Library: freedomcte.com/library/ Video Library: freedomcte.com/videos/ Phone: 903.985.8999 Email: Freedom.TechnicalSupport@astronics.com 8.2. Sales Support Phone: 903.985.8999 Email: Freedom.Sales@astronics.com...

  • Page 68: References

    AutoTune for Motorola APX Series Radios User Guide 9. References R8000 Series Communications System Analyzer Operator’s Manual (FCT-1365_) Freedom Communications System Analyzer R8200 User’s Guide (FCT-1380_) APX 6500, APX7500, 03, 05 & 09 Basic Service Manual (6875964M01-C)

  • Page 69: Appendix A. Sample Test Result Report

    AutoTune for Motorola APX Series Radios User Guide APPENDIX A. Sample Test Result Report ================================================================================= Test Result Report ================================================================================= Date/Time: 5/20/2021 7:28 AM Operator ID: A.Technician Info ----------------------------------------------- Analyzer --------- Model #: R8100 Serial #: 810LSJ0013 Ref Clock Mode: Output Application: RF Level Offset: RF In/Out Offset:...
  • Page 70 AutoTune for Motorola APX Series Radios User Guide Pass 469.9875 MHz 5.3 W 5.0 W 5.6 W Pass 470.0125 MHz 5.2 W 5.0 W 5.6 W Pass 495.0125 MHz 5.3 W 5.0 W 5.6 W Pass 519.9875 MHz 5.3 W 5.0 W 5.6 W Pass...
  • Page 71 Result Frequency Deviation Min Limit Max Limit ------ ------------ --------- --------- --------- Pass 136.0250 MHz 2.2 kHz 2.1 kHz 2.5 kHz Tests performed by AutoTune © 2021 Freedom Communication Technologies, Inc. All Rights Reserved. Figure A-1. Sample Test Result Report...

  • Page 72: Appendix B. Revision History

    AutoTune for Motorola APX Series Radios User Guide APPENDIX B. Revision History See ECO – Rev C M/Mullins 9/8/2021 C. Cox 10/21/21 0384 1.18 Updates – Rev B L. Shirey 1/26/15 M. Mullins 1/26/15 14473 Original Release – Rev A B.
