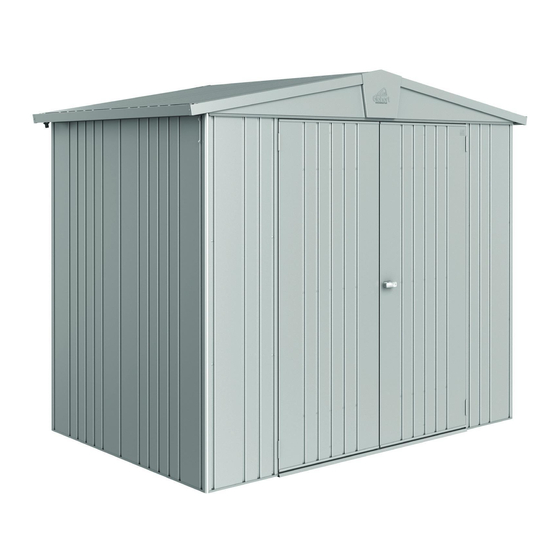

- Page 1 Assembly manual house extension Garden shed "Europa'' BIOHORT GmbH www.biohort.com...
- Page 2 ATTENTION: Please note our remarks regarding assembly and maintenance oft he garden shed as per standard assembly manual on page 2. Part list for house extension Article Description Colour quanity number X4000810 CROSSBEAM for house extension GHE 1,2 galvanised galvanised X4000811 CROSSBEAM for house extension GHE 3,4,6, galvanised X4000812 CROSSBEAM for house extension GHE 5,7,4A...
- Page 3 Crossbeam Q for house extension Stayer T for house extension Cover plate 51 for side wall Cover plate U for roof plate Assembly steps: This assembly manual shows the assembly of garden sheds 4A and 5. Any other house combinations can be assembled analogous to this assembly manual.
- Page 4 Combine the gable plates N preliminary only with the crown stayer H and on the corners. On those sides where the two sheds are screwed together, the screws/ fixings/nus, that connect the roof panel and the crown panel shall at the moment not be assembled. On the connection sections of the two sheds you use the galvanised, side stayers during...
- Page 5 Please align both sheds as accurate as possible Keep a distance of approx.. 10 cm between the two sheds to ease assembly. Then assemble the roof panels on the extension shed as described in the assembly manual. Tighten the srews gable support H and gable stayer J2/J3.
- Page 6 Now push the two sheds together and assemble the crossbeam Q. The side stayers can be used as support during the assembly. Fasten the cross beam with the head profiles and the gable panels (not accessible holes remain free). The side stayers are later (step 8) fastened with the cover plates from outside the shed.
- Page 7 Fasten the stayer T with the side cover plate S1. Move the cover plate U for the roof underneath the crown cover. Fasten the cover plate together with the roof and gable plates. To assemble the cover U1, drill 4 holes with 4.5mm diameter.
- Page 8 ATTENTION Please note the maximum roof load of 150kg/m Where necessary, support the crossbeam of the house extension during winter. Biohort GmbH Pürnstein 43, 4120 Neutelden Tel.: +43-7282-7788-0, Fax-DW: 190 E-Mail: office@biohort.at, www.biohort.com...
