INFOSEC E3 Pro RT User Manual page 23

15 Inverter voltage Calibration
Floating charger voltage
16
adjustment
Constant charger voltage
17
adjustment
18 Charger maximum current setting
Battery capacity and groups
19
setting
20 Backup time calibration
*Y (YES) means that this program can be set in this mode.


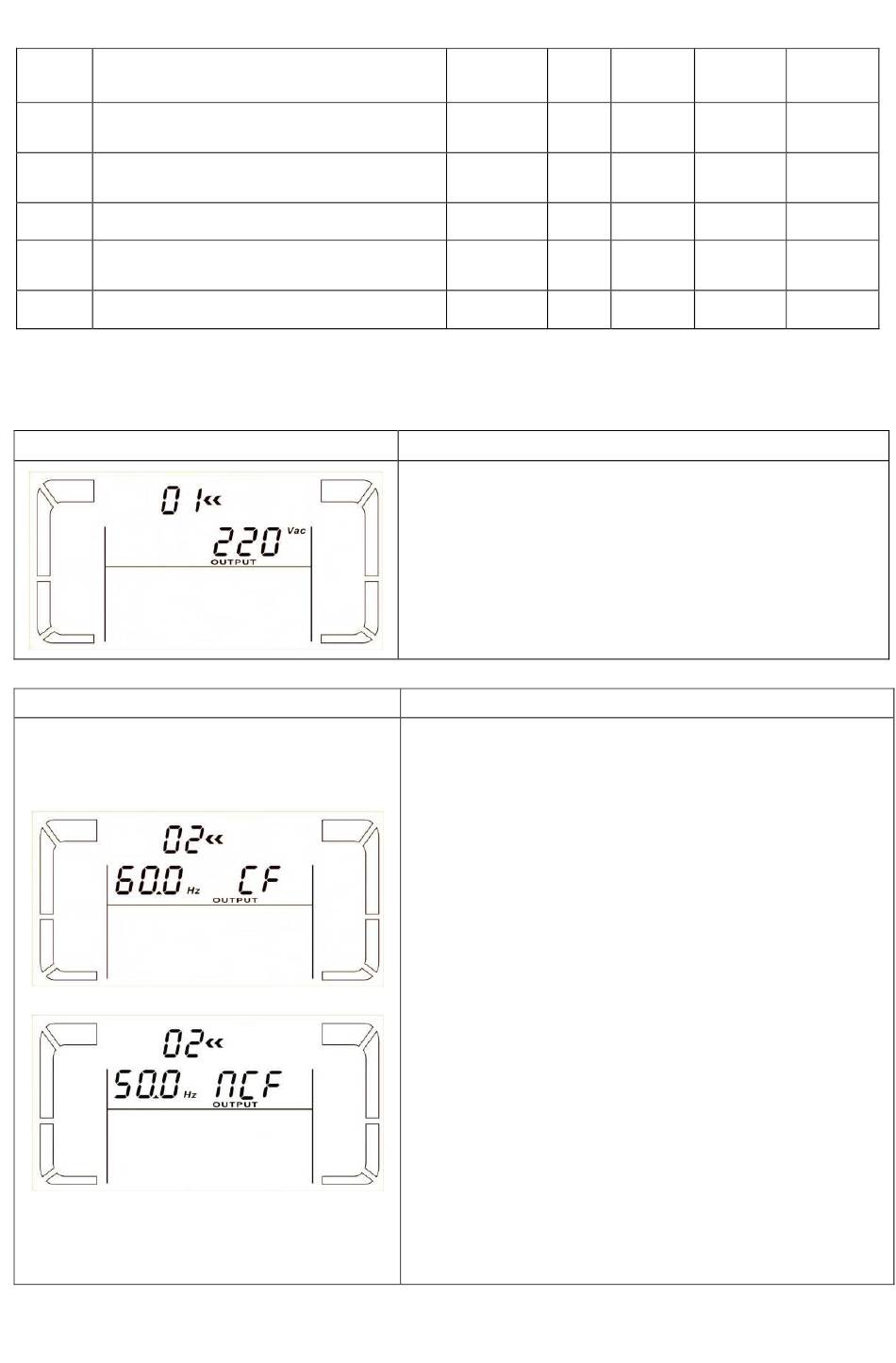

01: Output voltage
Interface

02: Output frequency
Interface
60 Hz, CVCF mode
50 Hz, Normal mode
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 11 17 AA 59 204 18
ATO
Y
Y Y
Y Y
Y Y
Y Y
Y Y
Setting
Parameter 3: Output voltage
You may choose the following output voltage in
parameter 3:
208: Presents output voltage is 208Vac
220: Presents output voltage is 220Vac
230: Presents output voltage is 230Vac
240: Presents output voltage is 240Vac
Setting
Parameter 2: Output Frequency
Setting the output frequency. You may choose
following three options in parameter 2:
50.0Hz: The output frequency is setting for
50.0Hz.
60.0Hz: The output frequency is setting for
60.0Hz.
ATO: If selected, output frequency will be
decided according to the latest normal utility
frequency. If it is from 46Hz to 54Hz, the output
frequency will be 50.0Hz. If it is from 56Hz to
64Hz, the output frequency will be 60.0Hz. ATO
is default setting.
Parameter 3: Frequency mode
Setting output frequency at CVCF mode or non-
CVCF mode. You may choose following two
options in parameter 3:
CF: Setting UPS to CVCF mode. If selected, the
output frequency will be fixed at 50Hz or 60Hz
according to setting in parameter 2. The input
Y Y
Y Y
Y Y
Y Y
Y Y
Y Y
Y
Y
Y
Y
Y
23
