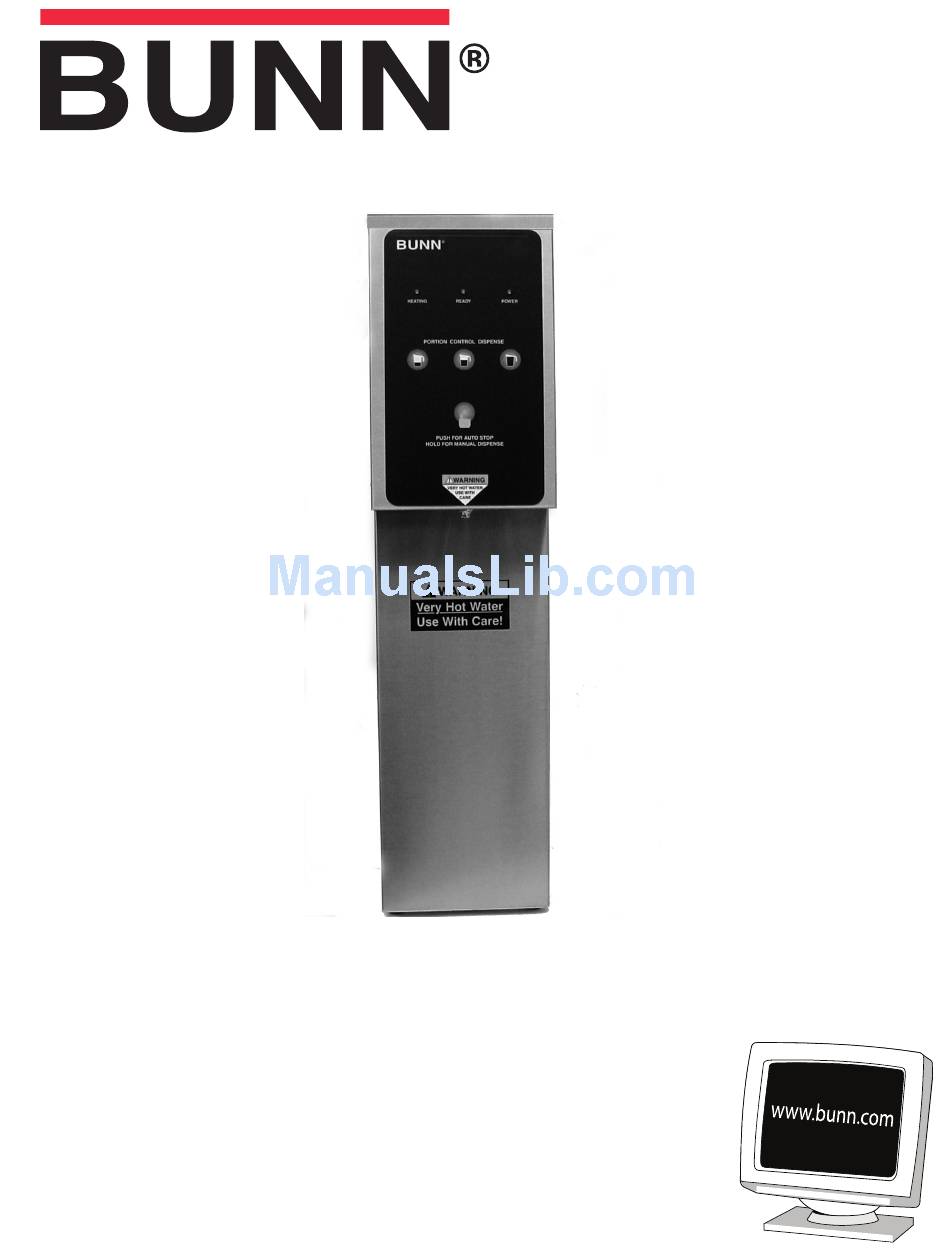

H5E-DV PC
H5EA PC
INSTALLATION & OPERATING GUIDE
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts
Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at
www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and
manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
39338.0000G 04/09 ©2006 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading

Related Manuals for Bunn H5E-DV PC

Summary of Contents for Bunn H5E-DV PC

  • Page 1 To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
  • Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: User Notices

    INTRODUCTION This equipment heats and dispenses water on demand for beverages and cooking purposes. It has a panel above the dispense valve that indicates the status of the dispenser. This equipment is for indoor use, either wall-mounted or on a sturdy counter or shelf. USER NOTICES The notices on this dispenser should be kept in good condition.

  • Page 4: Electrical Requirements

    ELECTRICAL REQUIREMENTS WARNING - The dispenser must be disconnected from the power source until specified in Initial Set-Up. Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements. GREEN 120/208 & 120/240V ac single phase models Note: This electrical service consists of 3 current carrying conductors (Neutral, L1 and...

  • Page 5: Plumbing Requirements

    " water supply line. At least 18 inches of an FDA approved flexible beverage tubing, such as reinforced braided polyethylene or silicone, before the dispenser will facilitate movement to clean the countertop. Bunn- O-Matic does not recommend the use of a saddle valve to install the dispenser. The size and shape of the hole made in the supply line by this type of device may restrict water flow.

  • Page 6: Initial Setup

    CLEANING The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. WALL MOUNTED INSTALLATION If the dispenser is wall mounted, the bottom of the dispenser should be at the same height as a counter or table top.

  • Page 7: Operating Controls

    OPERATING CONTROLS (a) VOLUME SELECTOR BUTTONS Press and release the button corresponding to the Small, Medium, or Large volume, to select the desired amount of water to be dispensed. Pressing a different button after a cycle has been initiated does not change the volume in progress.

  • Page 8: Level 1 Programming

    When power is applied to the dispenser, the display located on the bottom of the main circuit board will show the revision level of the software for 5 seconds, and then go to (-). While the tank is filling, the display will read (FIL).

  • Page 9: Restoring Factory Defaults

    NOTE: The dispenser should be at operating temperature before setting dispense volumes. 1. Press and hold the hidden programming button, located under the ® next to the BUNN logo on the front of the dispenser until the 3 LED's begin flashing from the left to the right. Release the button.

  • Page 10: Wiring Diagrams

    BLK-14 BLK-14 N.C. OVERFLOW PROTECTION SWITCH J5-1 J5-3 J2-1 J2-5 MAIN CONTROL BOARD J2-10 J3-1 J3-5 J3-8 39333.0000C 06/07 ©2006 BUNN-O-MATIC CORPORATION H5E-DV PC RED-14 RED-14 SELECTOR SWITCH TANK HEATER BRN-14 BLU-14 4000 W WHI/VIO-14 BLK-18 J7-1 VIO-18 WHI-18 WHI/BLU-18...
  • Page 11 N.C. OVERFLOW PROTECTION SWITCH J5-3 J5-1 J2-10 J2-5 MAIN CONTROL BOARD J2-1 J3-8 J3-5 J3-1 39333.0001A 03/09 ©2009 BUNN-O-MATIC CORPORATION SCHEMATIC WIRING DIAGRAM H5EA PC CE RED-14 THERMOSTAT TANK HEATER BLU-14 BLU-14 4000 W BLK-18 J7-1 VIO-18 WHI-18 WHI/BLU-18 J7-4...
