M81 Series Spool Adapter Instructions
General
The M81 Series spool adapter is used to store excess fiber to within 1/4 inch (6.4mm) of the end of the cable
jacket.
Ordering information is listed below:
Material ID
108562174
M81LC-MM SPOOL (BEIGE)
108623109
M81LC-LS SPOOL (AQUA)
700007420
M81LC-SM SPOOL (BLUE)
How to Contact Us
•
To find out more about CommScope
•
For technical assistance:
-
Within the United States, contact your local account representative or technical support at
1-800-344-0223. Outside the United States, contact your local account representative or
Authorized Business Partner.
-
Within the United States, report any missing/damaged parts or any other issues to
CommScope Customer Claims at 1-866-539-2795. Outside the United States, contact your
local account representative or Authorized Business Partner.

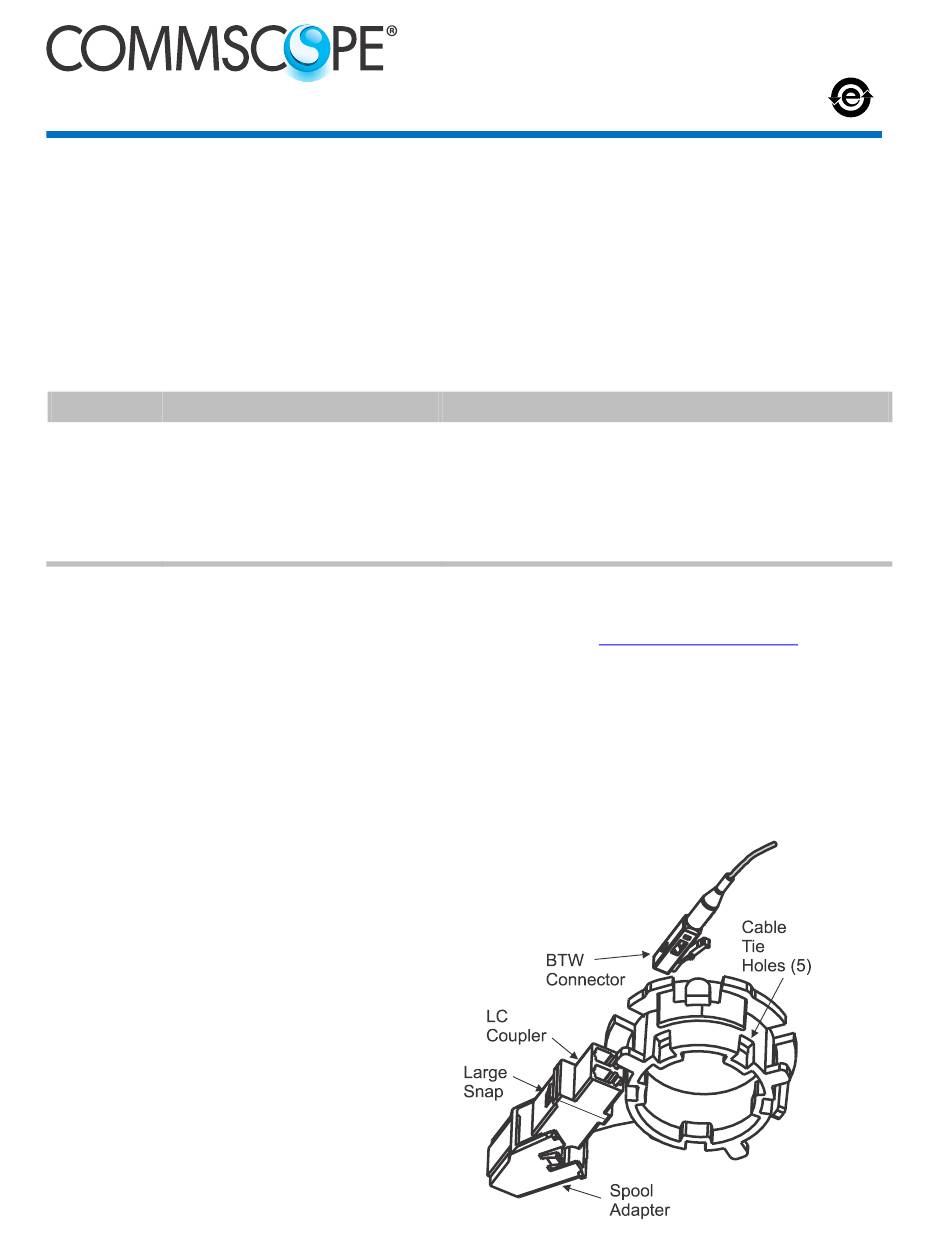

Assemble M81LC Spool Adapter
1. Snap the LC coupler into the opening at the
front end of the spool adapter (large snap
side up).
2. Insert the Behind the Wall (BTW)
connectors into the LC coupler.
www.commscope.com
Part No.
M81Series OptiSPEED
Spool (BEIGE)
M81Series LazrSPEED
Spool (AQUA)
M81Series TeraSPEED
Spool (BLUE)
®
products, visit us on the web at
© 2013 CommScope, Inc. All rights reserved
Instruction Sheet 848414058
Issue 6, July 2013
Description
®
LC Duplex Adapter with Fiber
®
LC Duplex Adapter with Fiber
®
LC Duplex Adapter with Fiber
http://www.commscope.com/
Page 1 of 2
