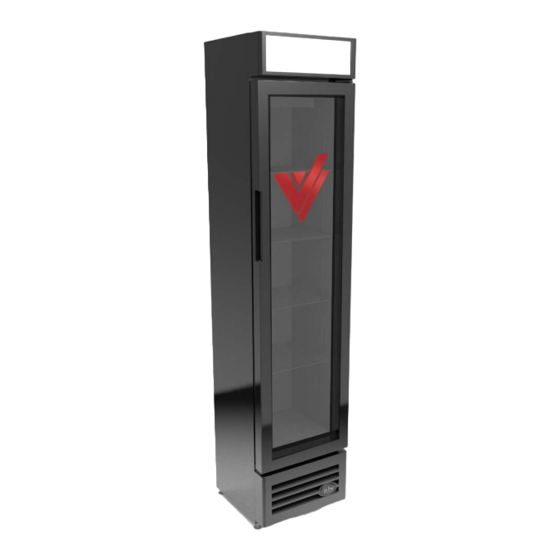

IDW G Series Instruction Manual
Upright cooler
Hide thumbs
Also See for G Series:
- Instruction manual (26 pages) ,
- Instruction manual (10 pages) ,
- Instruction manual (11 pages)
Table of Contents
Advertisement
G-11c/GCG-11c
UPRIGHT COOLER
Manual is for the following models:
G-11-C33EB, G-11-BC33EB
G-11-SC33EB, G-11-ZC33EB
G-11-PC33EB, G-11-WC33EB
GCG-11-C33EB, GCG-11-C233EB
G-11-C33EB-HC, GCG-11-BC33EB
GCG-11-AC33EB,G-11-SC33EB-HC
GCG-11-ZC33EB, GCG-11-ZC233EB
GCG-11-SC33EB, GCG-11-BC233EB
GCG-11-PC33EB, GCG-11-2SC33EB
GCG-11-WC33EB, GCG-11-WC233EB
GCG-11-C-C233EB-HC , GCG-11-SC33EB-HC
GCG-11-2SC33EB-HC, GCG-11-C33EB-HC
Instruction Manual
Advertisement
Table of Contents
Related Manuals for IDW G Series
Summary of Contents for IDW G Series

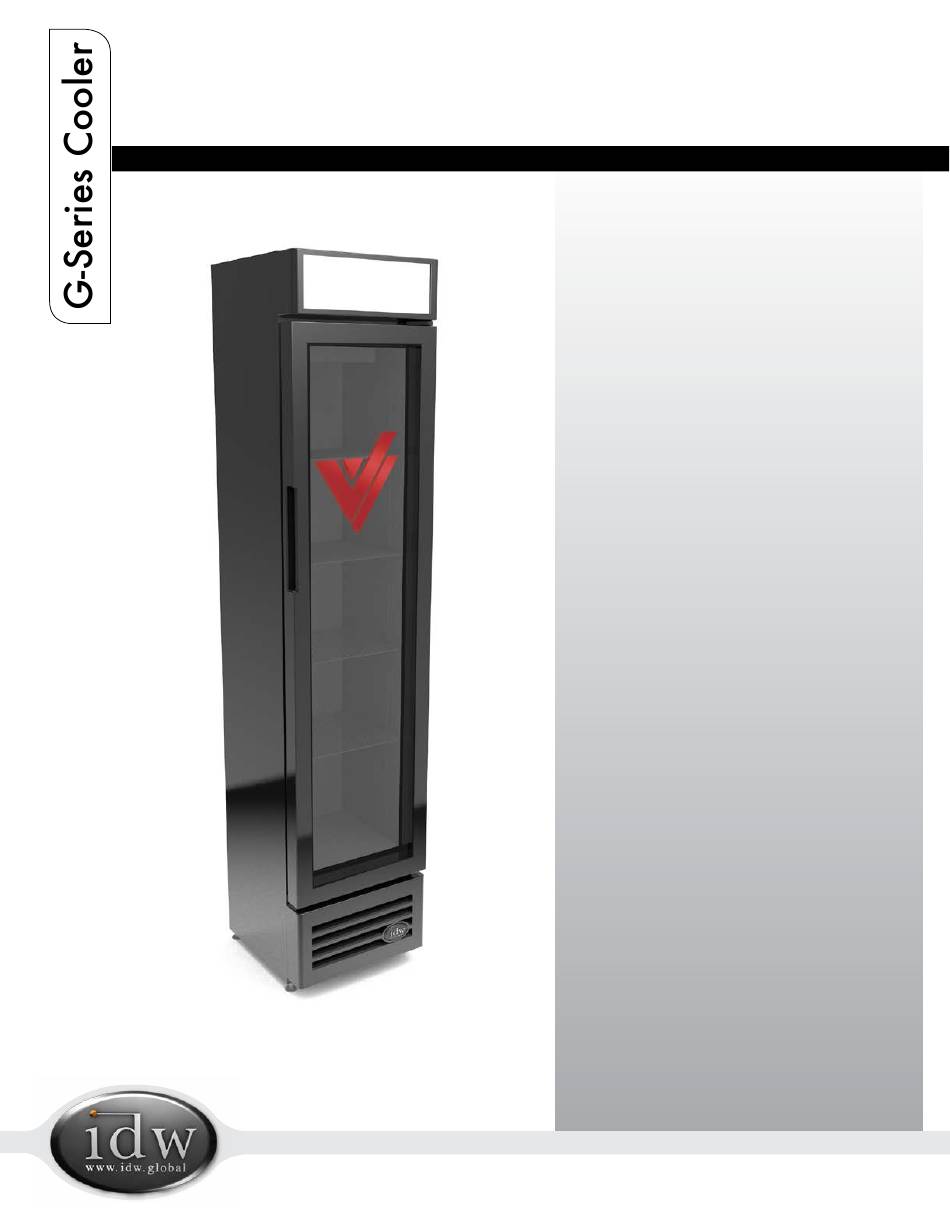

- Page 1 G-11c/GCG-11c UPRIGHT COOLER Manual is for the following models: G-11-C33EB, G-11-BC33EB G-11-SC33EB, G-11-ZC33EB G-11-PC33EB, G-11-WC33EB GCG-11-C33EB, GCG-11-C233EB G-11-C33EB-HC, GCG-11-BC33EB GCG-11-AC33EB,G-11-SC33EB-HC GCG-11-ZC33EB, GCG-11-ZC233EB GCG-11-SC33EB, GCG-11-BC233EB GCG-11-PC33EB, GCG-11-2SC33EB GCG-11-WC33EB, GCG-11-WC233EB GCG-11-C-C233EB-HC , GCG-11-SC33EB-HC GCG-11-2SC33EB-HC, GCG-11-C33EB-HC Instruction Manual...
-
Page 2: Table Of Contents
G-11c/GCG-11c FOR YOUR FUTURE REFERENCE • This easy-to-use manual will guide you in getting the best use of your cooler. • Remember to record the model number and the serial number. This information can be found on the inside of your cooler. •... -
Page 3: Parts & Identification
36. Light Switch (2) 55. Lower Hinge Axle 18. Return Pipe Switching Power Supply of LED Light 56. Plastic Fixation Column (2) 19. Muffl er Connecting Pipe 38. Fixing Board of LED Power Supply Grill Innovative DisplayWorks Innovative DisplayWorks offi ce 909.447.8254 • fax 909.305.8756 • toll free 877.307.2665 • www.idw.global... -
Page 4: Features
Keep cooler in an upright position for 30 minutes prior to use. Adjustable shelves allow for a wide variety of products to be stocked. • • IDW requires that a sole use circuit be dedicated for the unit. Failure to do so voids warranty. A built-in lock offers the ability to secure products. • WARNING: Do not use extension cords. The refrigeration unit is designed for easy access, allowing for fast and simple repairs. -
Page 5: Replacing The Interior Light
G-11c/GCG-11c Instruction Manual REPLACING THE INTERIOR LIGHT REPLACING THE DOOR LED LIGHTS Squeeze both sides of the plastic cover with your fingertips to remove. Unplug the cooler. Remove plastic cover. Disconnect the lights. Disconnect top light strand. Disconnect middle light strand. Unscrew light strand. Remove LED light strand. To install LED lights follow the above directions in reverse order. Remove entire light strand. To install LED lights follow the above instructions in reverse order. Notes: If there are any malfunctions with the main control panel of LED lights, please contact a professional for replacement. Innovative DisplayWorks... -
Page 6: Replacing The Canopy Light
G-11c/GCG-11c Instruction Manual REPLACING THE CANOPY LIGHT STARTUP, OPERATION AND TEMPERATURE ADJUSTMENT Operation • Prior to stocking cooler with product, it should be operated empty for half an hour. Unscrew the Graphics Holder on the Left Hand Side of the Top Canopy Temperature Adjustment • G-11c/GCG-11c performance testing position of the thermostat is around 4.5-6. Lit Door “Logo” Switch Operation Carefully slide out the entire Graphics piece. • The light switch located at the bottom left hand side on the rear of the cabinet is the ON/OFF switch for the Lit logo located on the door of cooler. 4 Page9 REPAIR AND MAINTENANCE FOR REFRIGERATION DRAWER Disconnect the LED light wiring. * A CERTIFIED TECHNICIAN IS REQUIRED TO REPAIR ALL REFRIGERATION COMPONENTS FOR WARRANTY PURPOSES. -
Page 7: Condenser Maintenance
G-11c/GCG-11c Instruction Manual CONDENSER MAINTENANCE CANOPY GRAPHICS REPLACEMENT It is essential to keep the condenser coils clean and free of dust and debris at all times. It is required to Unscrew the Graphics Holder on the Left Hand Side of the Top Canopy periodically clean the condenser coils with a soft bristle brush or vacuum-cleaner to properly maintain the refrigeration system. Failure to clean the condenser at regular intervals may Carefully slide out the entire Graphics piece. cause failure of the refrigeration system and could void the warranty. Replace with a new Graphics piece. Remove the rubber cap from the front grill. Carefully insert and slide in the new Graphics piece. Fix the Graphics Holder by fastening the screw. Using a small Phillips head screwdriver, remove the three screws as shown. The front plastic grill can now be removed by pulling it up. SETTING UP SPACER & POWER CORD HOLDERS The G-11c/GCG-11c is supplied with one set (2 pieces) of Spacers to hold the extra length of Power Cord (shown in picture below) Take out the two Spacers and screws supplied in the Using plastic bristle brush, carefully clean the coil being aware that coils can Accessory Pack shipped with the Cooler. bend or be damaged if too much force is used - shown left. Use a Philips screw driver to fix the two Spacers at positions as shown in picture below. Replace grill and utilize the Phillips screwdriver to tighten the screws into place, replace the rubber caps. MAINTENANCE Cleaning •... -
Page 8: Troubleshooting
G-11c/GCG-11c Instruction Manual TROUBLESHOOTING GCG-11c CIRCUIT DIAGRAM The following are not Malfunctions: For Models: GCG-11-C33EB, GCG-11-C233EB, GCG-11-BC33EB, GCG-11-AC33EB, GCG-11-ZC33EB, GCG-11-ZC233EB, GCG-11-SC33EB, GCG-11-BC233EB, GCG-11-PC33EB, GCG-11-2SC33EB, GCG-11-WC33EB, GCG-11-WC233EB, GCG-11-C-C233EB-HC , GCG-11-SC33EB-HC, Issues Solutions GCG-11-2S33EB-HC, GCG-11-2S33EB-HC Liquid fl owing noise within cooler This liquid is the sound of the cooling agent fl owing through the pipes. Refrigeration system is shutdown for This refrigerator has a strong level of heat preservation and can main- longer periods of time while temperature... - Page 9 G-11c/GCG-11c Instruction Manual GCG-11c WIRING DIAGRAM G-11c CIRCUIT DIAGRAM For Models: GCG-11-C33EB, GCG-11-C233EB, GCG-11-BC33EB, GCG-11-AC33EB, GCG-11-ZC33EB, GCG-11-ZC233EB, GCG-11-SC33EB, For Models: G-11-C33EB, G-11-BC33EB, G-11-SC33EB, G-11-ZC33EB, G-11-PC33EB, G-11-WC33EB, G-11-C33EB-HC, G-11-SC33EB-HC GCG-11-BC233EB, GCG-11-PC33EB, GCG-11-2SC33EB, GCG-11-WC33EB, GCG-11-WC233EB, GCG-11-C-C233EB-HC , GCG-11-SC33EB-HC, GCG-11-2S33EB-HC, GCG-11-2S33EB-HC A: Power Supply for LED Lights C2: Door Side LED Light G: Overload for Compressor B1: On/Off Switch for Interior...
- Page 10 G-11c/GCG-11c Instruction Manual G-11c WIRING DIAGRAM For Models: G-11-C33EB, G-11-BC33EB, G-11-SC33EB, G-11-ZC33EB, G-11-PC33EB, G-11-WC33EB, G-11-C33EB-HC, G-11-SC33EB-HC Innovative DisplayWorks...
- Page 11 Innovative DisplayWorks, Inc. To locate the distributor in your area go to: http://www.idw.global/contact/#distributors...
