IDW G-Series Instruction Manual
Hide thumbs
Also See for G-Series:
- Instruction manual (26 pages) ,
- Instruction manual (9 pages) ,
- Instruction manual (11 pages)
Subscribe to Our Youtube Channel
Related Manuals for IDW G-Series
Summary of Contents for IDW G-Series

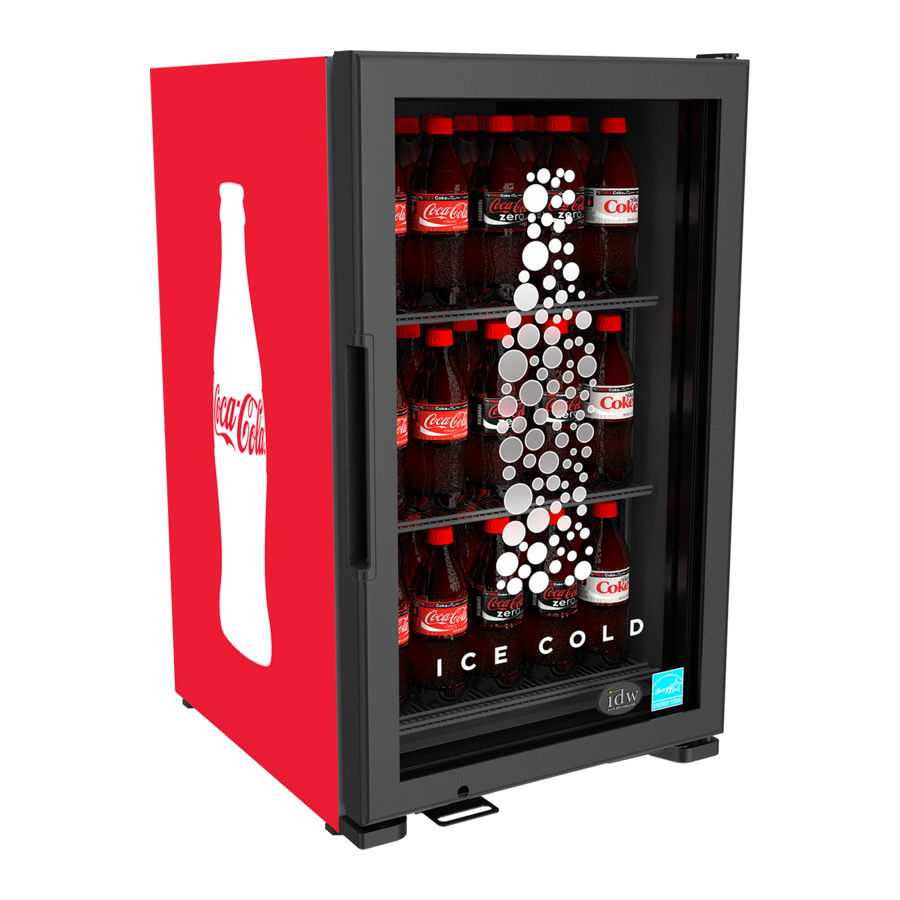

- Page 1 G-Series Cooler Instruction Manual G-7f/GCG-7f Models: Listed on Inside Cover NSF/ANSI7 SA44689 Models GCG-7-FA934B & GCG-7-FA934B-HC Pending Certifications...
-
Page 2: Table Of Contents
G-7f/GCG-7f G-Series Cooler Instruction Manual Table of Contents Models for G-7f/GCG-7f: G-7f Parts & Identification Lists......4 G-7-F33EB G-7f/GCG-7f Safety Instructions . -
Page 3: Parts & Identification Lists
GCG-7-FW2934B, GCG-7-F934B-HC, GCG-7-F2934B-HC, GCG-7-FP934B-HC, GCG-7-FA934B, GCG-7-FA934B-HC Innovative DisplayWorks Innovative DisplayWorks offi ce 909.447.8254 • fax 909.305.8756 • toll free 877.307.2665 • www.idw.global offi ce 909.447.8254 • fax 909.305.8756 • toll free 877.307.2665 • www.idw.global Innovative DisplayWorks, Inc. Last Revised: September 25, 2019 12:13 PM... -
Page 4: Safety Instructions
Immediately repair or replace all electrical 2. To remove the compressor • Remove plug and cord from inside the carrier if there is damage. IDW is not cords that have become frayed or other- or remove the oil from the lower rear of the cooler. -
Page 5: Interior Light Replacement
G-7f/GCG-7f Instruction Manual LEVELING INTERIOR LIGHT REPLACEMENT Instructions are as follows: • Set unit in its fi nal location making certain there is adequate ventilation in the room. WARNING: Warranty is void if ventilation is insuffi cient. • Proper leveling of the cooler is critical to it operating correctly. -
Page 6: Maintenance
G-7f/GCG-7f Instruction Manual SETTING UP SPACERS & POWER CORD HOLDERS MAINTENANCE These coolers are supplied with one set (2 pieces) of Spacers to hold the extra length of Power Cord. Cleaning Power Failure • Before cleaning the appliance, always • Please minimize the frequency of opening remember to unplug it. -
Page 7: Troubleshooting
G-7f/GCG-7f Instruction Manual SPECIFICATIONS TROUBLESHOOTING RATED RATED LAMP INPUT The following are NOT malfunctions: MODEL VOLUME(L) VOLTAGE CURRENT POWER REFRIGERANT G-7f Situation Causes G-7-F33EB G-7-FB R290/60g Liquid fl owing noise within cooler • This is the sound of the cooling agent fl owing through the pipes. G-7-FB33EB G-7-F33EB-HC Refrigeration system is shutdown for longer periods... - Page 8 G-7f/GCG-7f Instruction Manual G-7f CIRCUIT DIAGRAM G-7f ELECTRICAL WIRING DIAGRAM For models: For models: G-7F, G-7-F33EB, G-7FB, G-7-FB33EB, G-7-F934B, G-7-FB934B, G-7-FP934B, G-7-FW934B, G-7F, G-7-F33EB, G-7FB, G-7-FB33EB, G-7-F934B, G-7-FB934B, G-7-FP934B, G- G-7-FB33EB-HC, G-7-F934B-HC, G-7-FP934B-HC 7-FW934B, G-7-FB33EB-HC, G-7-F934B-HC, G-7-FP934B-HC A: Power Supply for LED Lights & D: Evaporator Fan H: Overload for Compressor Evaporator Fan...
- Page 9 G-7f/GCG-7f Instruction Manual GCG-7f ELECTRICAL WIRING DIAGRAM For models: GCG-7f, GCG-7-F33EB, GCG-7f2, GCG-7-F233EB, GCG-7FB, GCG-7-FB33EB, GCG-7-F934B, GCG-7-FB934B, GCG-7-F2934B, GCG-7-FB2934B, GCG-7-FP934B, GCG-7-FW934B, GCG-7-FW2934B, GCG-7-F33EB-HC, GCG-7-F233EB-HC, GCG-7-F934B-HC, GCG-7-F2934B-HC, GCG-7-FP934B-HC, GCG-7-FA934B, GCG-7-FA934B-HC Innovative DisplayWorks, Inc.
