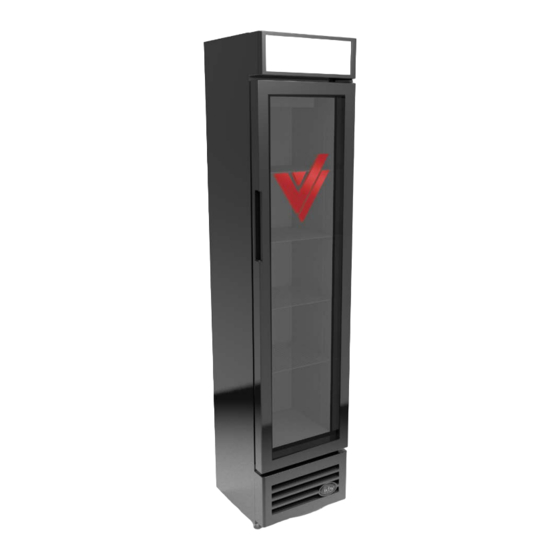

- Page 1 G-11c/GCG-11c UPRIGHT COOLER Manual is for the following models: G-11C, GCG-11C, G-11BC, GCG-11BC, G-11-C31N*, GCG-11-C31N* G-11-BC31N* GCG-11-BC31N* GCG-11-PC31N* GCG-11-WC31N* GCG-11-ZC31N* GCG-11-AC31N* GCG-11-SC31N* GCG-11-2SC31N* *G,I,M,7,J plug Instruction Manual...
-
Page 2: Table Of Contents
G-11/GCG-11c FOR YOUR FUTURE REFERENCE • This easy-to-use manual will guide you in getting the best use of your cooler. • Remember to record the model number and the serial number. This information can be found on the inside of your cooler. •... -
Page 3: Parts & Identification
G-11/GCG-11c Instruction Manual SAFETY PRECAUTIONS PARTS & IDENTIFICATION When using this appliance, always follow the basic safety precautions: 1. This appliance is intended for commercial only or similar use. 2. DO NOT use the appliance outside. For indoor use only 3. -
Page 4: Features
Inspect cooler for concealed damage. Immediately file a claim with the freight carrier if there is damage. • Transparent glass doors are built with hollow, toughened glass that provides a high level of heat insulation. Clear IDW is not responsible for damage incurred during shipping. doors allow for high product visibility. • For proper operation, place the cooler on a dry, level surface. -
Page 5: Replacing The Interior Light
G-11/GCG-11c Instruction Manual REPLACING THE INTERIOR LIGHT REPLACING THE DOOR LED LIGHTS Squeeze both sides of the plastic cover with your fingertips to remove. Unplug the cooler. Remove plastic cover. Disconnect the lights. Disconnect top light strand. Disconnect middle light strand. Unscrew light strand. Remove LED light strand. To install LED lights follow the above directions in reverse order. Remove entire light strand. To install LED lights follow the above instructions in reverse order. -
Page 6: Replacing The Canopy Light
G-11/GCG-11c Instruction Manual REPLACING THE CANOPY LIGHT STARTUP, OPERATION AND TEMPERATURE ADJUSTMENT Operation • Prior to stocking cooler with product, it should be operated empty for half an hour. Unscrew the Graphics Holder on the Left Hand Side of the Top Canopy Temperature Adjustment • G-11c/GCG-11c performance testing position of the thermostat is around 4.5-6. Lit Door “Logo” Switch Operation Carefully slide out the entire Graphics piece. • The light switch located at the bottom left hand side on the rear of the cabinet is the ON/OFF switch for the Lit logo located on the door of cooler. -
Page 7: Condenser Maintenance
G-11/GCG-11c Instruction Manual CONDENSER MAINTENANCE CANOPY GRAPHICS REPLACEMENT It is essential to keep the condenser coils clean and free of dust and debris at all times. It is required to Unscrew the Graphics Holder on the Left Hand Side of the Top Canopy periodically clean the condenser coils with a soft bristle brush or vacuum-cleaner to properly maintain the refrigeration system. Failure to clean the condenser at regular intervals may Carefully slide out the entire Graphics piece. -
Page 8: Troubleshooting
G-11/GCG-11c Instruction Manual TROUBLESHOOTING GCG-11c CIRCUIT DIAGRAM The following are not Malfunctions: For Models: GCG-11C, GCG-11BC, GCG-11-C31N*, GCG-11-BC31N*, GCG-11-PC31N*,GCG-11-WC31N*, GCG-11-ZC31N*, GCG-11-AC31N*, GCG-11-SC31N*, GCG-11-2SC31N* (*G,I,M,7, J plug) Issues Solutions Liquid fl owing noise within cooler This liquid is the sound of the cooling agent fl owing through the pipes. Refrigeration system is shutdown for This refrigerator has a strong level of heat preservation and can main- longer periods of time while temperature... -
Page 9: Gcg-11C Electrical Wiring Diagram
G-11/GCG-11c Instruction Manual GCG-11c ELECTRICAL WIRING DIAGRAM G-11c CIRCUIT DIAGRAM For Models: GCG-11C, GCG-11BC, GCG-11-C31N*, GCG-11-BC31N*, GCG-11-PC31N*,GCG-11-WC31N*, GCG-11-ZC31N*, GCG-11-AC31N*, For Models: G-11C,G-11BC, G-11-C31N*, G-11-BC31N* (*G,I,M,7, J plug) GCG-11-SC31N*, GCG-11-2SC31N* (*G,I,M,7,J plug) A. Evaporator Fan E. Thermostat B. Power Supply for LED Lights F. -
Page 10: G-11C Electrical Wiring Diagram
G-11/GCG-11c Instruction Manual G-11c ELECTRICAL WIRING DIAGRAM For Models: G-11C,G-11BC, G-11-C31N*, G-11-BC31N* (*G,I,M,7,J plug) Innovative DisplayWorks... - Page 11 Innovative DisplayWorks, Inc. To locate the distributor in your area go to: http://www.idw.global/contact/#distributors...
