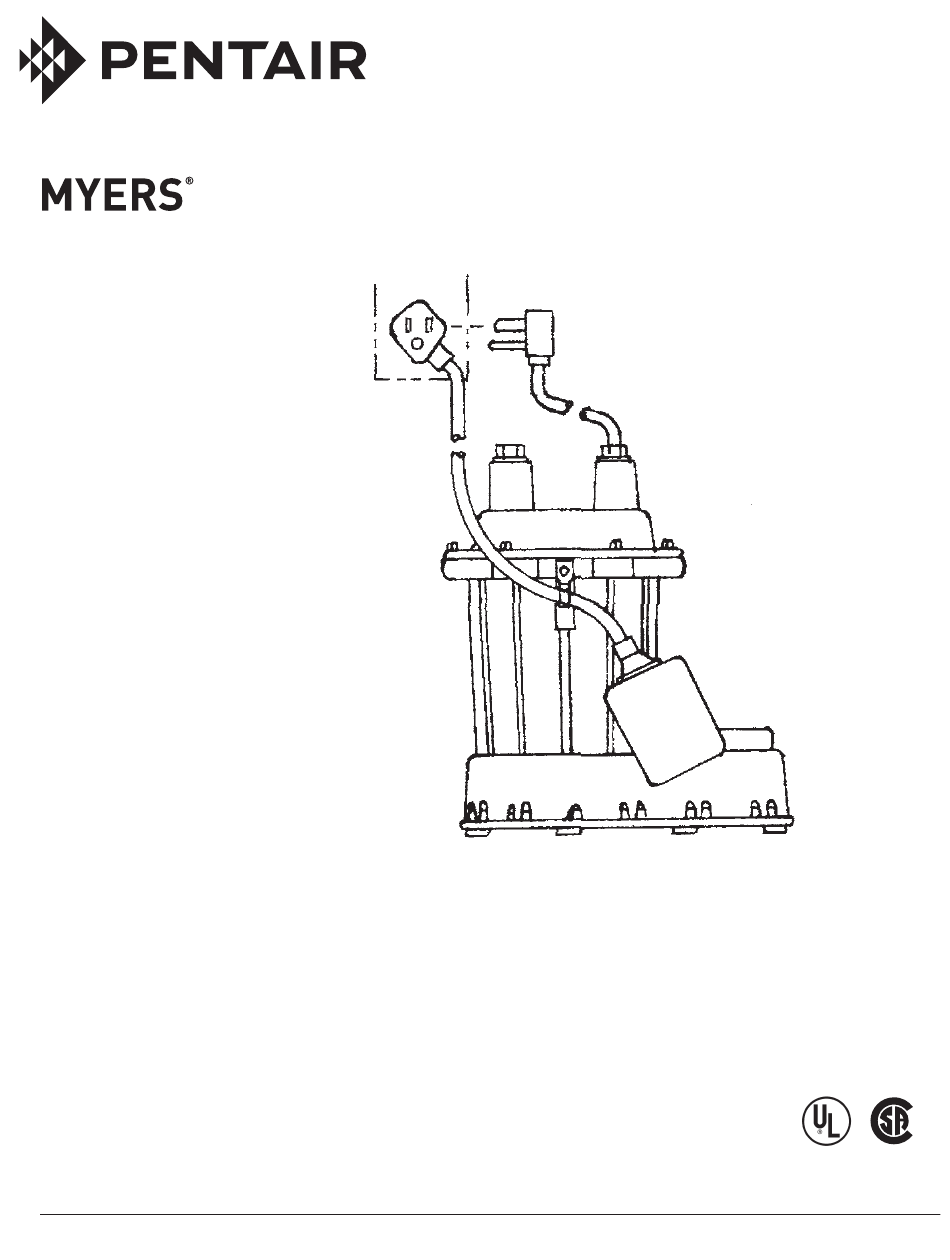

S25 SERIES
SUMP PUMPS
INSTALLATION AND SERVICE MANUAL
NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible
party who maintains the system.
Part # 23833A047 | © 2012 Pentair Pump Group, Inc. | 11/08/12
Advertisement
Related Manuals for Pentair MYERS S25 Series
Summary of Contents for Pentair MYERS S25 Series
- Page 1 INSTALLATION AND SERVICE MANUAL NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # 23833A047 | © 2012 Pentair Pump Group, Inc. | 11/08/12...
-
Page 2: California Proposition 65 Warning
WARNING: Risk of electric shock. This pump 3. Run water into sump until pump starts. is supplied with a grounding conductor and 4. Allow pump to operate through several on-off grounding-type attachment plug. To reduce cycles to be sure operation is satisfactory. the risk of electric shock, be certain that it is 5. - Page 3 HOW MECHANICAL SWITCH CLEANING FLOAT FLOAT OPERATES If pump becomes inoperative because of accumulation of trash on the float, remove from sump This level control uses a mechanical switch sealed in a and clean float. polypropylene float cylinder. The switch is not position sensitive;...
- Page 4 CHECK LIST IF PUMP DOES NOT OPERATE PROPERLY CONDITION PROBABLE CAUSE Pump does not run or hum. a. Line circuit breaker may be off, or fuse, if used, Refer to a., b., c., d., e. or f. may be blown or loose. b.
- Page 5 AUTOMATIC S25A1 & S25A1C MANUAL S25M1C VERTICAL FLOAT SWITCH AUTOMATIC S25V1 S25A1-PS & S25A1C-PS S25V1C (Proximity Switch) Part Numbers Ref. Description Qty. S25A1 S25A1C S25M1C S25A1-PS S25A1C-PS S25P-1 S25PC-1 S25V1 S25V1C Cord, Electric w/plug 21628B017 21628B044 21628B044 21628B017 21628B044 21628B017 21628B044 21628B017 21628B044...
- Page 6 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 7 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 8: Standard Limited Warranty
Warranty is effective only if Pentair Myers authorized control panels are used. All seal fail and heat sensing devices must be hooked up, functional and monitored or this warranty will be void. Pentair Myers will cover only the lower seal and labor thereof for all dual seal pumps. Under no circumstance will Pentair Myers be responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from the factory or an authorized Pentair Myers service facility.
