ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1
37XA5627
2
37XA5402-----LX
3
KMS600W-CS01
4
KMS600W-CS02
5
62KMS600AQ101
6
KMS600W-CS03
7
17C17A1306001Y3
8
17C33A0703001Y4
9
17C33A0712001Y4
You will need the following tools:
- Phillips Screwdriver (Not included)
- Hex. Key Wrench (See Part #17)
- Nut Wrench (See Part #18)
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.
Step 1:
Insert the leg brace (#5) into the left leg (#3) and right
leg (#4). Fasten them together by using screws (#7).
See Figure 1.
Note:
The labels marked "L" and "R" on the legs (#3 and #4)
should coincide with Figure 1 to ensure proper assembly.
Use the correct bolts as indicated. Do not tighten any of the bolts until the chair is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
!
required.
Keep children away during assembly. This item contains small parts that can be swallowed by children.
!
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC No. when contacting the service center.
!
V-3
INTENDED FOR RESIDENTIAL USE ONLY.

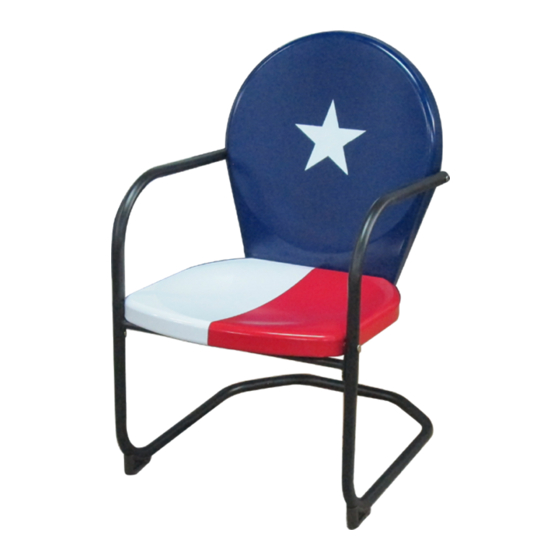

KMS600Z
PART
Q'TY
BACK ASSEMBLY
SEAT ASSEMBLY
LEFT LEG
RIGHT LEG
LEG BRACE
SUPPORT
SCREW ST4.2*16
BOLT M6*12
BOLT M6*35
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DO NOT RETURN TO THE STORE!
STOP
PAGE 1 OF 3
PART
MATERIAL CODE
NO.
1
10
17C33A0714001Y4
1
11
17FA05040301-Y4
1
12
17D03A030301-Y4
13
1
18000337004
1
14
18000337004---SM
15
1
18000319005
16
2
18000319005---SM
6
17
17KAA0101----Y4
18
2
17KAC3101----Y3
FIGURE 1
4
R
PART
BOLT M6*40
WASHER d6.5*D13*1.0
JAM NUT M6*1.0
BOLT CAP
BOLT CAP(BLUE)
NUT CAP M6
NUT CAP M6(BLUE)
HEX. KEY WRENCH 4MM
NUT WRENCH 10MM
3
L
5
7
COURTYARD CREATIONS INC.
Q'TY
2
18
8
6
4
6
2
1
1
