ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

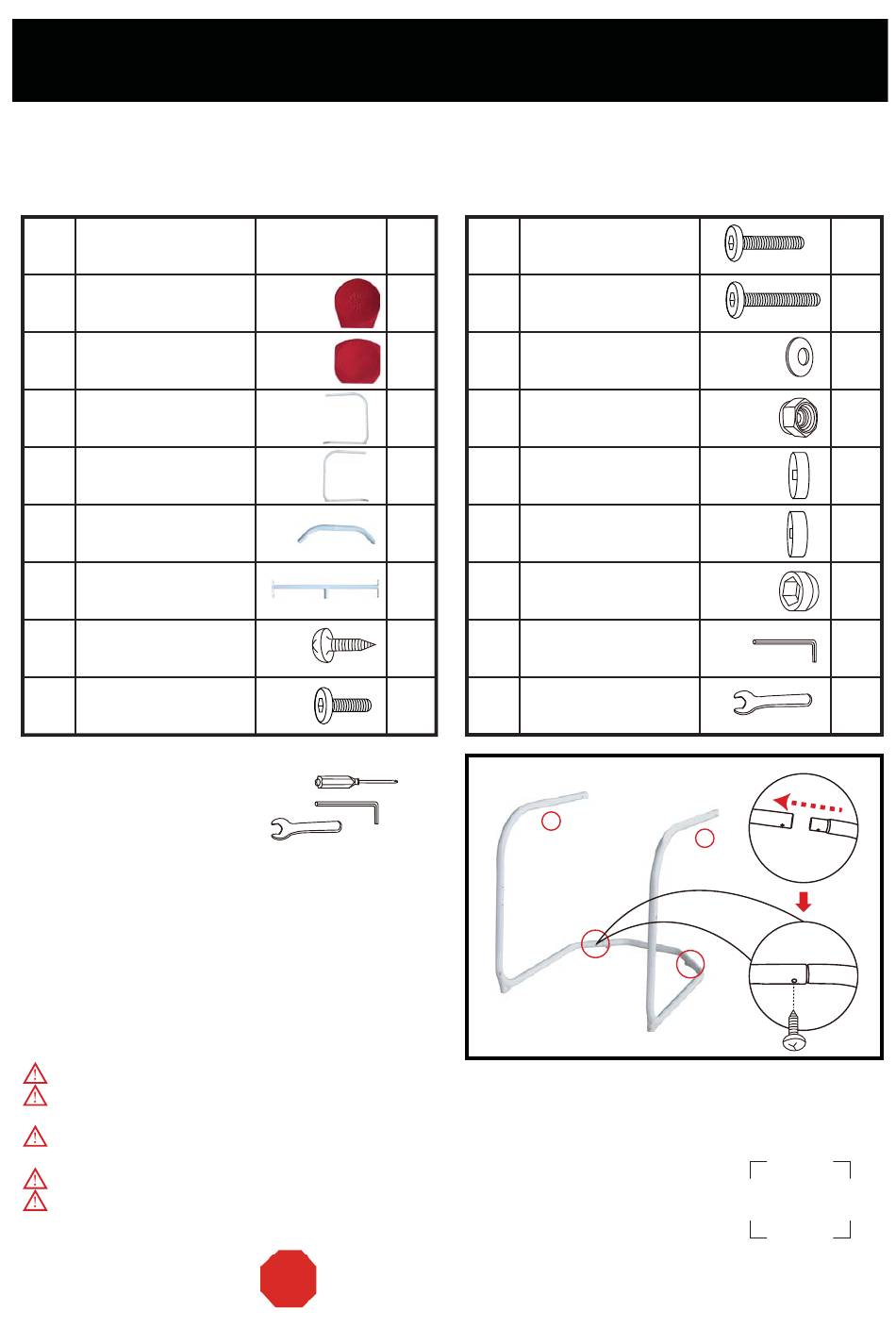

PARTS LIST
PART
MATERIAL CODE
NO.
1
27XA5608-----LX
2
27XA5402-----LX
3
KMS600W-CS01
4
KMS600W-CS02
5
62KMS600AQ101
6
KMS600W-CS03
7
17C17A1306001Y3
8
17C33A0703001Y4
You will need the following tools:
- Phillips Screwdriver (Not included)
- Hex. Key Wrench (See Part #16)
- Nut Wrench (See Part #17)
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.
Step 1:
Insert the leg brace (#5) into the left leg (#3) and right
leg (#4). Fasten them together by using screws (#7).
See Figure 1.
Note:
The labels marked "L" and "R" on the legs (#3 and #4)
should coincide with Figure 1 to ensure proper assembly.
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
required.
Keep children away during assembly. This item contains small parts that can be swallowed by children.
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
Quote the following FQC NO. when contacting the service center.
INTENDED FOR RESIDENTIAL USE ONLY.
KMS600 W-
PART Q'TY
1
BACK ASSEMBLY
1
SEAT ASSEMBLY
1
LEFT LEG
1
RIGHT LEG
1
LEG BRACE
1
SUPPORT
2
SCREW ST4.2*16
6
BOLT M6*12
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 3
WM
9
17C33A0712001Y4
10
17C33A0714001Y4
11
17FA05040301-Y4
12
17D03A030301-Y4
13
18000337004---LX
14
18000337004
15
18000319005---LX
16
17KAA0101----Y4
17
17KAC3101----Y3
FIGURE 1
4
R
COURTYARD CREATIONS INC.
BOLT M6*35
BOLT M6*40
WASHER d6.5*D13*1.0
JAM NUT M6*1.0
BOLT CAP (RED)
BOLT CAP
NUT CAP M6 (RED)
HEX.KEY WRENCH 4MM
NUT WRENCH 10MM
3 L
5
7
2
2
18
8
4
6
8
1
1
