Summary of Contents for Phenix Technologies MRM10E

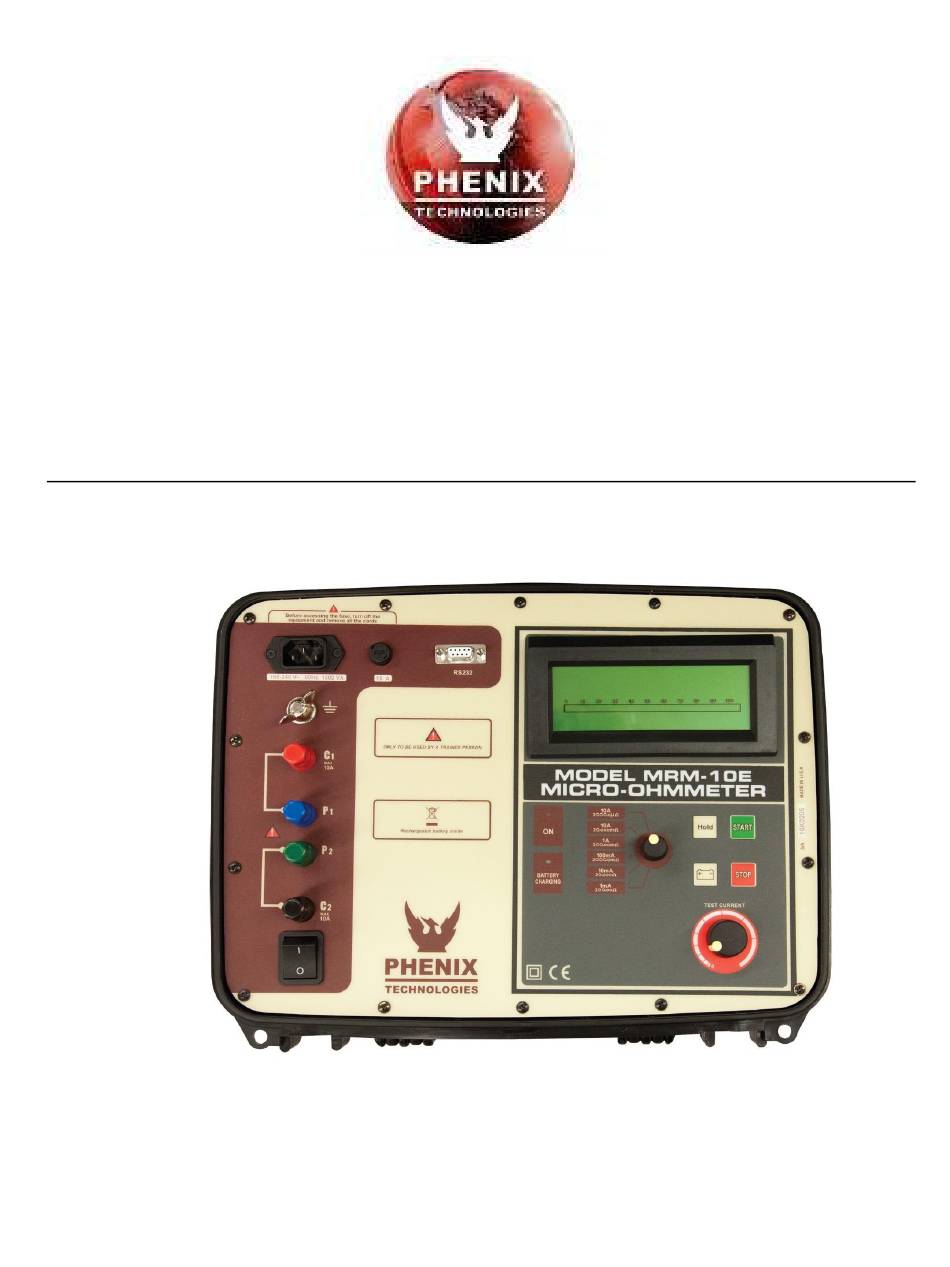

- Page 1 User’s Guide MRM10E Digital Micro-Ohmmeter GU-1522 Copyright © Phenix Technologies. All rights reserved. Rev 6/22/2018 MRM10E...
- Page 2 WARNING !! Complete Grounding of this unit is necessary for the safe operation of this equipment. Disconnect inputs before ungrounding this equipment. MRM10E...
- Page 3 Equipment complies with current EU Directives. The rubbish bin with a line through it means that in the European Union, the product must undergo selective disposal for the recycling of electric and electronic material, in compliance with Directive WEEE 2002/96/EC. MRM10E...
-
Page 4: Table Of Contents
3.2. Battery charger ..............7 4. Measurement ................8 5. Messages ................. 9 6. Some notes about accuracy ............. 9 7. RS232 output ................. 10 8. Cleaning ................. 10 9. Replacement fuse ..............10 10. Technical specifications ............11 MRM10E... -
Page 5: Description
This device uses the Kelvin Bridge architecture, with four terminals, avoiding testing leads resistance to cause error during measurement. The operator may choose test current and the reading is obtained by comparison through internal high-stability standards. The result appears in the alphanumeric display that is very easy to read. MRM10E... -
Page 6: Control Panel
6. Potential Terminals (P+ / P-) 7. Current Terminal (C-) 8. ON / OFF Switch 9. Displays both measured resistance value & messages for operator 10. ON Indicator LED 11. Battery Charge Iindicator 12. Range & Test Current Selector MRM10E... -
Page 7: Power Supply
The battery charge indicator will keep on lighting with a red light up to completing the charge. At that point, • it will change to a green light, and remain until the equipment is disconnected from the mains supply. MRM10E... -
Page 8: Measurement
10. Press the Stop key to finish the measurement. Do not turn Off the equipment without pressing the Stop key. 11. Finally, when finishing measurements, turn the equipment Off using the On/Off switch. CAUTION: Do not connect or disconnect the test leads during the measurement. MRM10E... -
Page 9: Messages
The resistance value to be measured will be the average between the values in one sense and in the contrary (direct and inverse current). MRM10E... -
Page 10: Rs232 Output
9. Replacement Fuse To check the instrument fuse, remove it with a screw driver. If the fuse is ruptured, replace it by another with the following specifications: Fuse Schurter, model SPT 5x20 (Time-lag) 5A/250V. High breaking capacity. MRM10E... -
Page 11: Technical Specifications
: 378 x 308 x 175 mm / 15 x 12 x 7 inches Accessories : 2 Combined current and potential leads (1.8 m). 1 Ground cable. 1 Communication cable (RS-232). 1 Power cord. 1 User guide. 1 Carrying bag. Subject to technical change without notice. MRM10E... - Page 12 SECTION 11: CUSTOMER COMMENTS / SUGGESTIONS Phenix Technologies made significant efforts to ensure that the materials in this Operator’s Manual are correct. If there are concerns or comments as you have used this information, Phenix Technologies appreciates any feedback. Unit Serial Number:...
