Good Earth Lighting GLS9721P-T8-WHI Quick Start Manual

Good Earth Lighting
Under Cabinet Fluorescent Light Fixture
Gabinete de luz fluorescente fijos

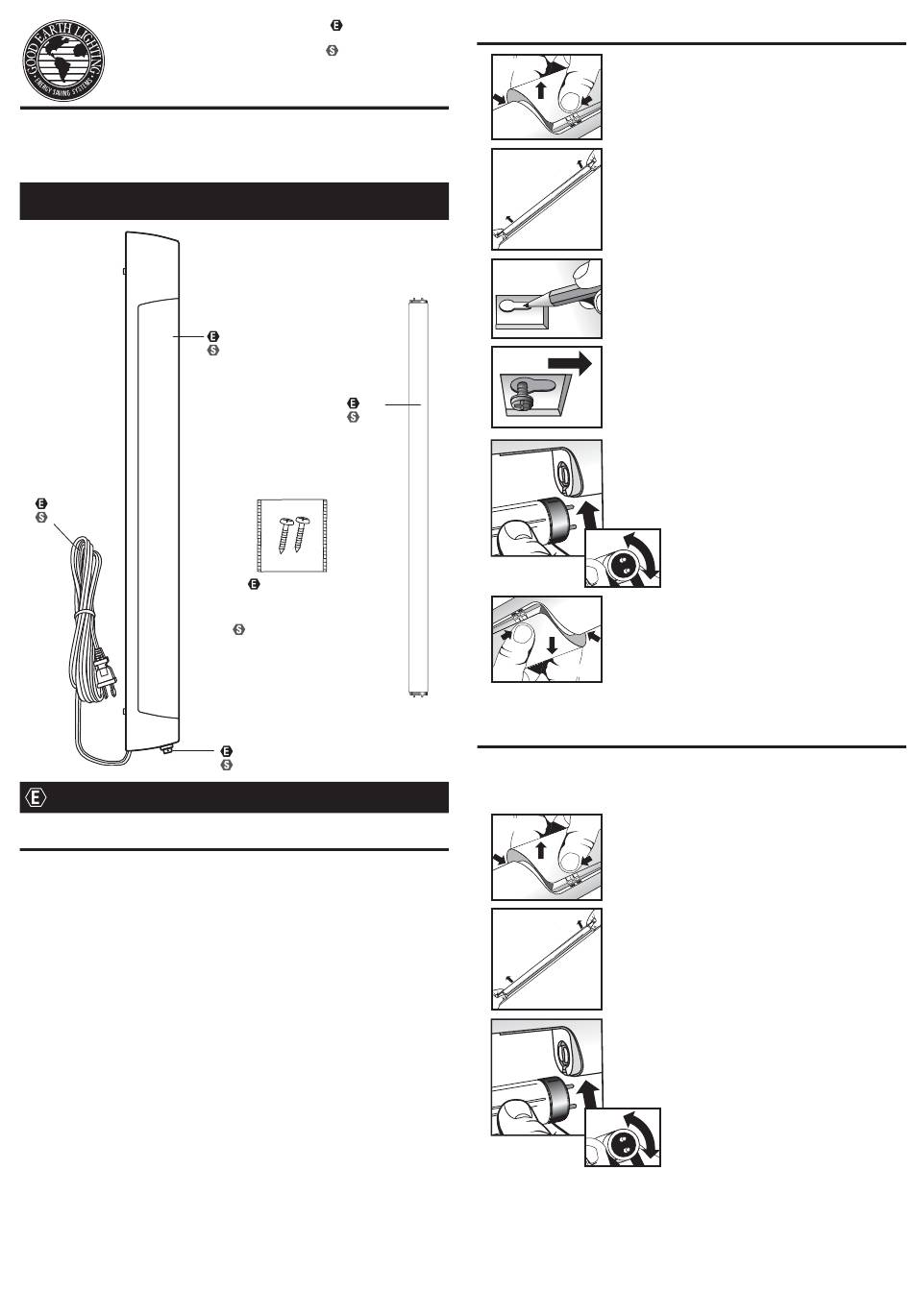

Parts List/Lista de Partes
Cord
Cordón eléctrico
english

Preparation

DO NOT USE THIS FIXTURE WITH A DIMMING CIRCUIT. If you presently have dimmer
controls, you will need to remove them and replace them with regular electrical switches.
If you have a three way dimmer, you will have to replace it with a regular three way
switch.
If you are unfamiliar with electrical installations, we recommend you have a qualified
electrician do your installation.

Important Safety Instructions

This light has a polarized plug (one blade is wider than the other) as a safety feature to
reduce the risk of electric shock. This plug will only fit in a polarized outlet one way. If the
plug does not fit, contact a qualified electrician. Never use with an extension cord unless
the plug can be fully inserted. DO NOT ALTER THE PLUG.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS. IMPORTANT SAFETY INSTRUCTIONS.
WARNING: To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
1. Turn off/unplug and allow to cool before replacing bulb (lamp).
2. Use only with a linear fluorescent bulb: Bulb #F15T8/PL/AQ 15W (GLS9721P-GROW-I);
Bulb #F15T8 15W (GLS9721P-WH-I).
3. Handle bulb(s) with care during replacing. The glass tube of bulb is very fragile and
can break easily.
For Indoor Use ONLY. Not for use with aquariums. Do NOT mount near hight heat source,
or areas subjected to water, or water spray.
IMPORTANT: Fluorescent bulbs are included with your Good Earth Lighting® fixture. In
order to protect the bulb during shipment, your bulb(s) may be packed in a separate area
of the packing materials. Additonally, your bulbs may already be placed into their
respective sockets, but may have a protective support collar slipped over the bulb. Do
NOT operate you fixture with this support collar in place. You can either cut this collar off
or remove the bulb from the sockets and slide the support collar off the bulb. Discard the
support collar.
Before installation, plug fixture in to a 120V 60Hz electrical outlet to check for proper
operation. Then unplug and begin the installation.
SAVE THESE INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL THIS LAMP WHILE IT IS PLUGGED IN. THIS LAMP IS FOR
INDOOR USE ONLY.
Model: GLS9721P-T8-WHI
GLS9721P-GROW-I
Modelo: GLS9721P-T8-WHI
GLS9721P-GROW-I
®
(Page 1)
(Página 4)
Diffuser
Difusor
Bulb
Bombilla
Hardware Kit
*Actual hardware kit may
differ from illustration
Juego de tornillería
*La tornillería real puede
diferir de la que se
muestra en la ilustración
Switch
Interruptor
- 1 -

Fixture Installation

1
Remove diffuser by pressing in the sides of diffuser at the
Fig. 1
tabs and lifting up (Fig. 1).
2
Remove the bulb from the fixture by placing your thumbs on
Fig. 2
the metal ends of the bulb. While applying slight pressure on
the bulb, roll the bulb toward you until the contact pins on
the ends of the bulb disengage from the socket. Pull the bulb
straight out from the socket and set aside during mounting
(Fig. 2). Handle bulb with care during replacing. Glass tube of
bulb is very fragile and can break easily.
3
Place fixture up to mounting surface and mark position of
Fig. 3
the narrow end of the keyslot holes on the mounting surface
with a pencil (Fig. 3). The screw hole locations must be
exact for the fixture to mount properly.
4 Drill a 1 /16 in. pilot hole into the marked screw locations. You
can also use an awl or nail to dimple the screw holes. Start
the screws, but do not tighten fully. Slide the fixture over
until the narrow legs of the keyhole slots are under the
heads of the screws (Fig. 4). Finish tightening the screws
until they are firmly seated and the fixture is tightly secured
Fig. 4
to the mounting surface.
5
Install the bulb into the sockets by aligning the pins of the
bulb with the slot in the sockets (Fig. 5). Using your thumbs
Fig. 5
and forefinger, press the metal ends of the bulb socket and
roll the bulb forward until it rotates 90 degrees inside the
socket, making contact between the bulb pins and the
socket contacts (Fig. 6).
Fig. 6
6
Replace diffuser by aligning pins with the slots pressing in
the sides of diffuser at the tabs and pushing up until the pins
lock in place (Fig. 7).
Fig. 7
7
Once the fixture is in place, route your power cord to the closest outlet. Plug it in and
turn on power switch.

Bulb Replacement Instructions

Replace only with linear fluorescent bulb: Bulb #F15T8/PL/AQ 15W (GLS9721P-GROW-I);
Bulb #F15T8 15W (GLS9721P-WH-I). Do not replace with any other wattage of linear
fluorescent bulb. These bulbs are readily available at your local home center and most
larger hardware stores.
1
Remove diffuser by pressing in the sides of diffuser at the
Fig. 1
tabs and lifting up (Fig. 1).
2
Remove the bulb from the fixture by placing your thumbs on
Fig. 2
the metal ends of the bulb. While applying slight pressure on
the bulb, roll the bulb toward you until the contact pins on
the ends of the bulb disengage from the socket. Pull the bulb
straight out from the socket and dispose of properly (Fig. 2).
3
Install the bulb into the sockets by aligning the pins of the
bulb with the slot in the sockets (Fig. 3). Using your thumbs
Fig. 3
and forefinger, press the metal ends of the bulb socket and
roll the bulb forward until it rotates 90 degrees inside the
socket, making contact between the bulb pins and the
socket contacts (Fig. 4).
Fig. 4
- 2 -
