Summary of Contents for NBK EPC-200-CC

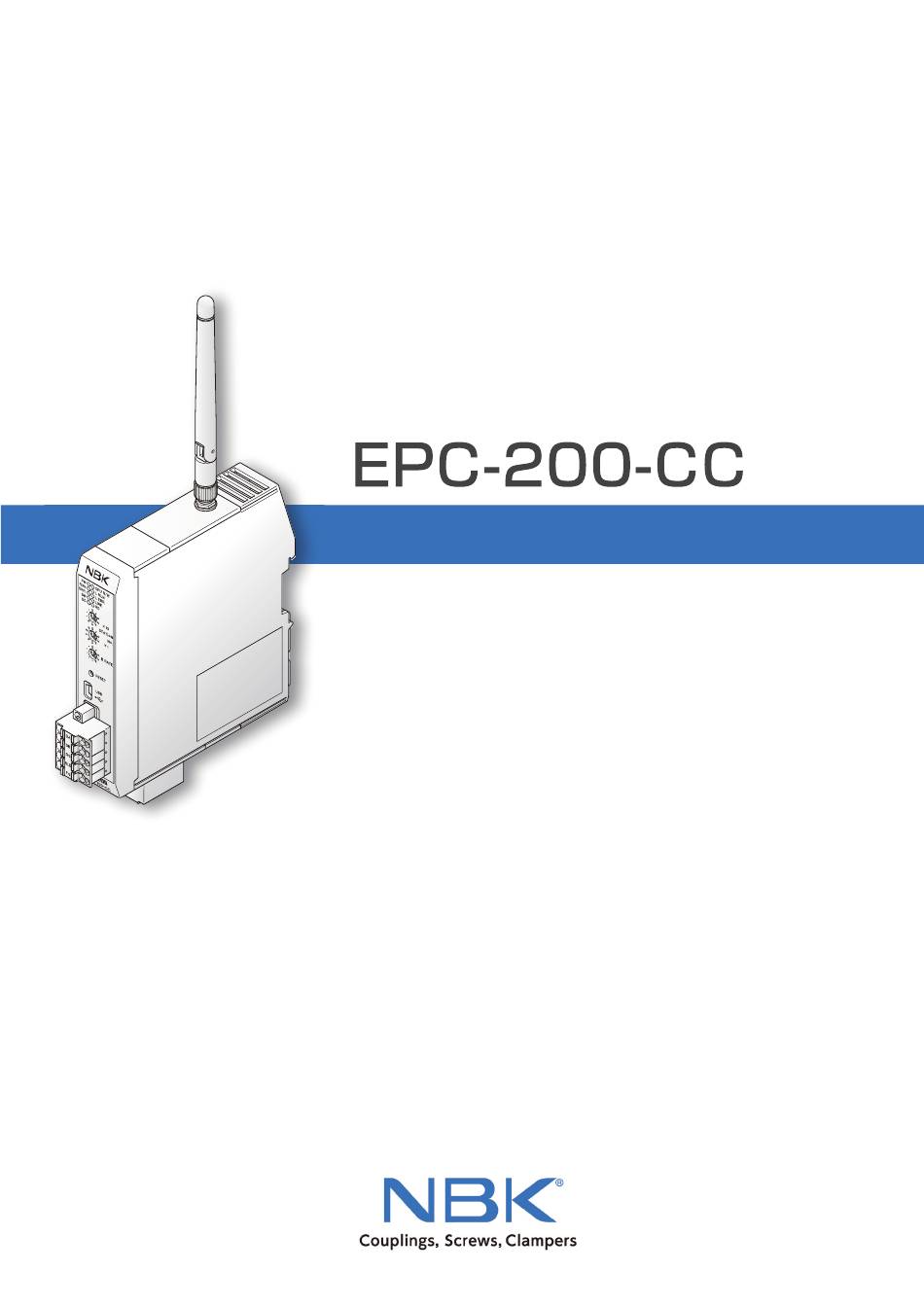

  • Page 1 Instruction Manual Transceivers - CC-Link Compliant...

  • Page 2: Introduction

    Introduction We wish to thank you for purchasing Transceivers - CC-Link Compliant (EPC-200-CC) from NBK. Carefully read this manual to ensure proper operation. "1. Safety Precautions" is an especially important section. Be sure to fully understand the contents of that section before use.
  • Page 3 Check the Packaged Items Power supply/wired CC-Link connection Main unit (x1) Antenna (x1) units connection connector (x1) connector (x1) Model: EPC-200-CC Model: TFKC 2,5/ 5-STF-5,08 Model: TFMC 1,5/ 7-STF-3,5 120 Ω terminating 1m (3.3-ft) USB 2.0 Simple Guide resistor (x1) cable (x1) Instruction Manuals for Wireless Positioning Units Prepare the following manuals according to the products you have purchased.

  • Page 4: Table Of Contents

    Contents Introduction 1 Safety Precautions Essential Precautions Precautions Related to Installation and Wiring Work Precautions Related to Operation and Inspection 2 Overview Product Overview Part Names and Functions Monitor LED Lighting Patterns CC-Link Station Number Setting Switch CC-Link Transmission Speed Setting Switch Block Diagram 3 Specifications 4 Installation and Connections...
  • Page 5 Contents Japan (Technical Conformity Mark) EU (CE) USA (FCC) Canada (ISED) Korea (KCC) Taiwan (NCC) 10 Warranty Revision History...

  • Page 6: Safety Precautions

    Safety Precautions Essential Precautions To ensure safety, please thoroughly read the following precautions and understand correctly before using this product. (1) When setting up a system that includes wireless positioning units, be sure to confirm the specifications of each equipment and device used in the system, and make sure that they are operated within their specified ratings and performance limits.

  • Page 7: Precautions Related To Installation And Wiring Work

    Safety Precautions 1.2 Precautions Related to Installation and Wiring Work WARNING [Perform as Indicated in Order to Prevent Injury, Electric Shock, Fire, and Failure] ・ Be sure to install the product in a safe and secure manner to prevent fire or accidents in case of an earthquake.
  • Page 8 Safety Precautions CAUTION [Perform as Indicated in Order to Prevent Injury, Electric Shock, Fire, and Failure] ・ Ensure that the wiring work is correctly performed and install according to the specified procedure. ・ Install the product in a location with an ambient temperature ranging from -5 to 55° COMPULSORY C (23 to 131°F) (no freezing) and an ambient humidity ranging from 20 to 85% RH (no / INSTRUCTION...

  • Page 9: Precautions Related To Operation And Inspection

    Safety Precautions 1.3 Precautions Related to Operation and Inspection WARNING [Perform as Indicated in Order to Prevent Injury, Electric Shock, Fire, and Failure] ・ When an error occurs, remove the cause, and check safety before restarting operation. ・ Persons with a pacemaker must maintain the proper distance of separation from this product.

  • Page 10: Overview

    ・ The DIN rail foot allows it to be easily attached to a DIN rail in a single step. EPC-200-CC is a remote device station equipment that supports CC-Link Ver. 2.00. Please note that CC-Link Ver. 1.10 is not supported. CC-Link is a registered trademark of Mitsubishi Electric Corporation. This is an open network for industrial use that enables communication between devices of many different manufacturers.

  • Page 11: Part Names And Functions

    Overview 2.2 Part Names and Functions Antenna Antenna for wireless communication DIN rail foot Used for mounting on a DIN rail Sample Product Nameplate Specifications Product No. Power Supply/Wired Units Connection Connector Connects the 24 VDC power supply or wired unit Monitor LED ①...

  • Page 12: Monitor Led Lighting Patterns

    Overview 2.3 Monitor LED Lighting Patterns CPU R/W L RUN ERR. L ERR. LINE Description Description name color name color On: Error has occurred On : Power ON CPU R/W Flashing: Hardware error has occurred Off: Power OFF Off: No error On: Transceiver is normal On: Data link is...

  • Page 13: Cc-Link Station Number Setting Switch

    Overview 2.4 CC-Link Station Number Setting Switch Set the station number of the transceiver. Set with the CC-Link station number setting switch (STATION NO.). x10 is the number in the tens place and x1 is the number in the ones place. Setting range: 01 to 64 (00 cannot be used) Default setting: 01 (x10: 0, x1: 1) 2.5 CC-Link Transmission Speed Setting Switch...

  • Page 14: Block Diagram

    Overview 2.6 Block Diagram Tra㎱ceivers - CC-L㏌k Compliant (EPC-200-CC) Rotary switch Rotary switch Rotary switch (Station number (Station number Reset switch (Baud rate) x10) Wireless communication CC-Link module RS-485 Low voltage Memory detection circuit...

  • Page 15: Specifications

    -5 to 55° C (23 to 131° F) Temperature (no freezing) Operating environment 20 to 85% RH Humidity (no condensation) Transceivers - CC-Link Compliant (EPC-200-CC) 24 VDC±10% (external power supply) Input voltage 5 VDC±5% (USB power supply) Current consumption 30mA PLC : CC-Link Ver.2.00 Host connection method PC : USB2.0...

  • Page 16: Installation And Connections

    Installation and Connections 4.1 Installation Requirements The environmental conditions for installation are shown below. Be sure to install the product in an appropriate environment. ・ An indoor environment. ・ A place where it is not exposed to direct sunlight (UV rays). ・...

  • Page 17: Transceiver Installation

    Installation and Connections 4.2 Transceiver Installation 4.2.1 Mounting on DIN Rail DIN Rail Mounting Hook the transceiver's ② Upper tab ② Upper tab onto the top of the ① DIN rail (width 35 mm (1.378 in.)). Press the ③ DIN rail foot against the ①...

  • Page 18: Performing Wireless Communication (Installing Antenna)

    Installation and Connections 4.2.2 Performing Wireless Communication (Installing Antenna) Remove the ① Protective cover of the screw and install the included ② ② Antenna Antenna. ① Protective cover Radio waves are radiated vertically Illustration of Radio Wave from the antenna axis. After connecting the antenna, adjust the angle of the antenna while considering the directivity of the radio waves.

  • Page 19: Connections

    Terminal Terminal block block block +24V +24V Shield EPU-220 EPC-200-CC Terminating EPU-220 EPU-220 resistor ON Terminating resistor OFF Terminating resistor OFF Install the terminating resistor (120 Ω) included to both communication line terminals "CA" and "CB" on the transceiver side.

  • Page 20: Wired Connection To Units

    Installation and Connections 4.3.2 Wired Connection to Units Power Supply/Wired Units Connection Connector Specifications Manufacturer PHOENIX CONTACT Model TFMC 1,5 / 7-STF-3,5 Number of pins Compatible wire AWG16-24 gauge Connector Pinout Signal name Description RS-485 communication signal (A) RS-485 communication signal (B) RS-485 GND/Shield 24VDC Frame GND/Shield...

  • Page 21: Connecting To Plc

    Installation and Connections Connecting the Power Supply/Wired Units Connection Connector to Lead Wire Remove 10 mm (0.394 in.) of ① Lead wire 10mm  (0.394 in.) insulation coating from the ① Lead wire. While pressing the ② Orange ② Orange button button with a precision flathead screwdriver, insert the lead wire.
  • Page 22 Installation and Connections Installation of CC-Link Connector Insert the ① Connector into the transceiver. ② Screws Tighten the two ② Screws with a flathead screwdriver. (Recommended tightening torque: 0.3 N m (2.65 lbf in.)) ① Connector Connecting the CC-Link Connector to Lead Wire ①...

  • Page 23: Connecting To Pc

    Installation and Connections 4.3.4 Connecting to PC USB Port Specifications Specifications USB2.0 Type Mini USB Type-B USB Cable Connection When connecting to a PC, connect the included ① USB connector of the ② USB port (Transceiver) USB cable to the ② USB port of the ①...

  • Page 24: Maintenance

    Maintenance To ensure safe operation, be sure to perform inspections on a monthly basis. If any abnormality is found, immediately stop operation and do not restart until the issue has been resolved. 5.1 Precautions for Inspection ・ The operator shall be responsible for turning the power on and off. ・...

  • Page 25: Troubleshooting

    Troubleshooting Explanation Symptom Verification Countermeasure Page Make sure the voltage level is as follows: Is the power supply voltage External power supply: within 24 V Monitor LED correct? ±10% does not light P.18 USB power supply: 5 V ±5% Is the power supply cable Wire correctly connected correctly? Is the station number...

  • Page 26: Dimensional Outline Drawings

    Dimensional Outline Drawings EPC-200-CC (Unit: mm (in.)) (69.3 (2.728)) Antenna (360° rotatable) CC-Link connection connector Power supply/ wired units 25 (0.984) 110.5 (4.35) connection connector (17.7(0.697)) 117 (4.606)

  • Page 27: Radio Wave And Emc Precautions

    Radio Wave and EMC Precautions 8.1 Radio Wave Precautions The radio modules built into Wireless Positioning Units (EPU-220) and Transceivers (EPC-200-CC, EPC-210-EIP) use the 2.4 GHz frequency band. For this reason, please read the following radio frequency precautions carefully and use the product correctly.

  • Page 28: Emc Precautions

    Radio Wave and EMC Precautions 8.2 EMC Precautions Wireless Positioning Units (EPU-220) and Transceivers (EPC-200-CC, EPC-210-EIP) have been evaluated for EMC under the conditions of the connection example (2.2) described in the instruction manual for the product configuration. EMC compliance as a device varies depending on the type of components used, their arrangement, wiring method, etc.

  • Page 29: Laws And Regulations

    *Only the black (-BK) model of the Wireless Positioning Units can be used in EU. List of available countries and regions Wirelss Positioning Units Transceivers Country / Region EPU-220-A-BL EPU-220-A-BK EPC-200-CC EPU-220-B-BL EPU-220-B-BK EPC-210-EIP (Blue Model) (Black Model) Japan ○...

  • Page 30: Eu (Ce)

    Radio Equipment Directive: 2014/53/EU RoHS Directive : (EU)2015/863 Product Name: Wireless Positioning Units / Transceivers Model Name: EPU-220-A-BK, EPU-220-B-BK / EPC-200-CC, EPC-210-EIP Manufacturer: Name: Nabeya Bi-tech Kaisha Add: 1, Toko-Taichi, Seki City, Gifu 501-3939, Japan The full text of the EU declaration of conformity is available at the following internet address: https://www.nbk1560.com/products/mechatronics/positioning_unit/download/epc-200-cc-doc/...

  • Page 31: Usa (Fcc)

    Laws and regulations 9.3 USA (FCC) Contains FCC ID : MCQ-S2CTH This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 32: Canada (Ised)

    Laws and regulations 9.4 Canada (ISED) Contains IC : 1846A-S2CTH This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to 　the following two conditions: (1) this device may not cause interference, and (2) this device must 　accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de　licence.

  • Page 33: Korea (Kcc)

    Laws and regulations 9.5 Korea (KCC) 인증번호: MSIP-CRM-DIG-XBee-S2C-TH R-R-NbK-EPU-220 (EPU-220) R-R-NbK-EPC-200-CC (EPC-200-CC) R-R-NbK-EPC-210—EIP (EPC-210-EIP) 사용자 안내문 ・ 이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기 로서 가정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다. ・ 본 기기에 내장되어 있는 무선 모듈은 한국의 인가를 받은 무선 모듈 을 내장하고 있습니다.

  • Page 34: Taiwan (Ncc)

    Laws and regulations 9.6 Taiwan (NCC) 認證編號： CCAB20LP1360T8 ・ 本 機內建之無線模組經台灣認可。 ・  N CC警語 取得審驗證明之低功率射頻器材 ，非經核准，公司、商號或使用者均不得擅自變更頻率 、 加大功率 或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用， 並改善至無干擾時方得繼續使用。 前述合法通信 ，指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 ・ 本 機使用的頻率也可運用於醫療用電子機器、產業與化學機器、 工廠生產線等使用的移動體識別 用建築內無線電 （需執照之無線電台） 與特殊低功率無線電 （無需執照之無線電台） 。此類場所可 能產生電波干擾，因此請確認電波造成的影響。 ・ 本 機與微波爐、數位無線電話、無線LAN、藍牙機器等使用相同頻率。 上列機器請各自保持距離使 用， 以避免電波相互干擾。 （依環境而異，電波可能無法傳達。 ） ・ 若...

  • Page 35: Warranty

    Warranty Warranty Period: One year after delivery. Warranty Scope: Under normal usage conditions in accordance with this manual, repairs or replacement shall be provided free of charge as long as the failure occurred within the warranty period. However, a fee may be charged in any of the following cases even if occurring within the warranty period: ・...
  • Page 36 MEMO...

  • Page 37: Revision History

    Revision History Date ID No. Revision Details Oct. 2019 UM-EPC200CC-SU-01E First edition Apr. 2021 UM-EPC200CC-SU-02E Second edition...
  • Page 38 Second edition Apr. 2021 UM-EPC200CC-SU-02E...
