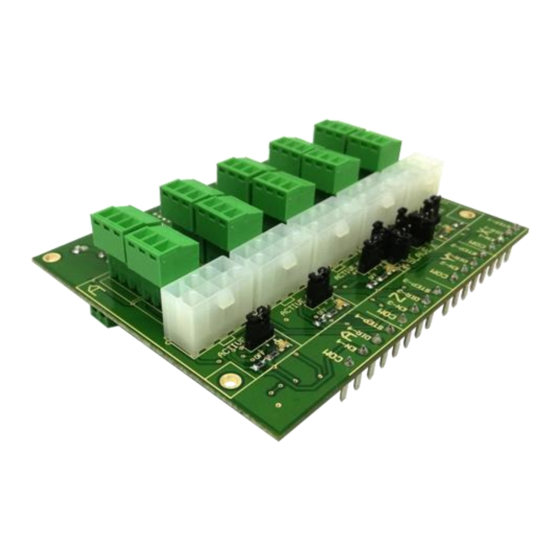

- Page 1 USER’S MANUAL VER.2 C86ACCP Clearpath Connector Board for the Acorn Controller Rev. 1.5 OCTOBER, 2019...
-
Page 2: Table Of Contents
USER'S MANUAL TABLE OF CONTENTS Contents Page # OVERVIEW ........................1 FEATURES ........................1 BOARD DESCRIPTION ....................1 REQUIREMENTS ......................2 4.1 Power Requirements ....................... 2 TERMINAL POWER ....................... 3 JUMPER TO SELECT THE ACTIVE AXIS ..............3 SLAVE AXI’S SELECT JUMPER WITH X AXIS OR Y AXIS .......... 4 PINOUT ........................... -
Page 3: Overview
OVERVIEW This board interface is used for the connection between Acorn CNC and the CLEARPATH SERVO DRIVE. FEATURES • Enable and disable the drives. • Splits Step and Direction signals from axis X or Y to allow wiring an additional axis using the same signals. •... -
Page 4: Requirements
REQUIREMENTS 4.1 Power Requirements Regulated +12VDC or +24VDC is required to power this board. WARNING Check the polarity and voltage of the external power source and connect the 12VDC or 24VDC and GND. Overvoltage or reverse-polarity power applied to these terminals can cause damage to the board, and/or the power source. -
Page 5: Terminal Power
TERMINAL POWER Regulated +12VDC or +24VDC is required to power this board. JUMPER TO SELECT THE ACTIVE AXIS Set of jumper as shown in the image 2-3: ON Set of jumper as shown in the image 1-2: OFF Note: turn the jumper to OFF if not use axis. User’s Manual Page 3... -
Page 6: Slave Axi's Select Jumper With X Axis Or Y Axis
SLAVE AXI’S SELECT JUMPER WITH X AXIS OR Y AXIS Set jumper 2-3 for X slave Set jumper 1-2 for Y slave Remove jumper if not use axis slave User’s Manual Page 4... -
Page 7: Pinout
PINOUT CONTROL CABLE PIN ASSIGNMENTS COLOR NAME HLFB+ INPUT B+ INPUT A+ ENABLE + HLFB- INPUT B- INPUT A- ENABLE - User’s Manual Page 5... -
Page 8: Wiring Example
WIRING EXAMPLE User’s Manual Page 6... -
Page 9: 10.0 Dimensions
10.0 DIMENSIONS All dimensions are in Millimeters Fixing holes (4 mm) DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
