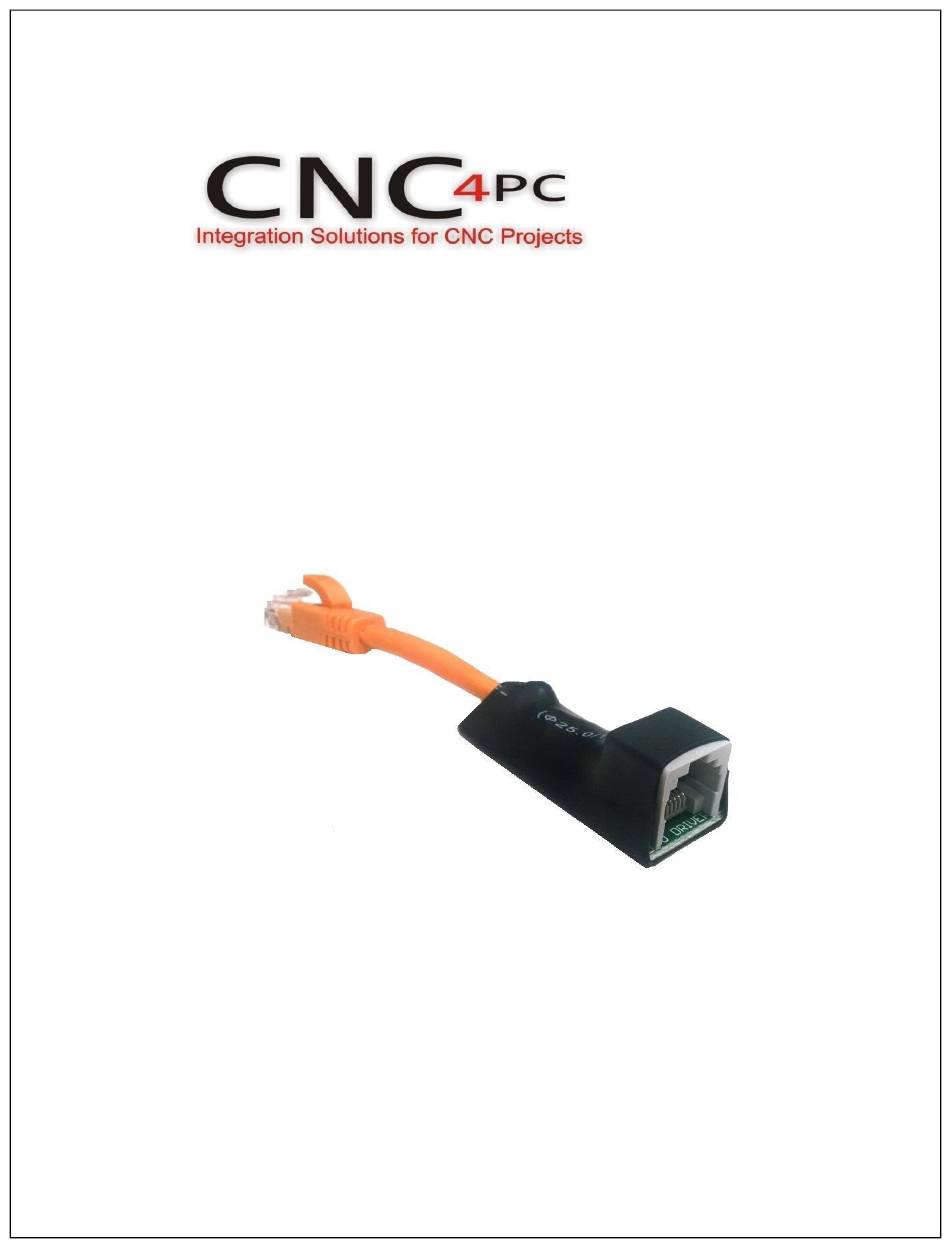

- Page 1 USER’S MANUAL VER.1 C74 – CONVERTER TO DIFFERENTIAL Rev. 1.1 JANUARY, 2017...
-
Page 2: Table Of Contents
USER'S MANUAL TABLE OF CONTENTS Page # Contents 1.0 OVERVIEW ........................1 2.0 FEATURES ........................1 3.0 BOARD DESCRIPTION ....................1 4.0 PINOUT ..........................2 5.0 WIRING DIAGRAMS ......................3 6.0 DIMENSIONS ........................4 User’s Manual Page... -
Page 3: Overview

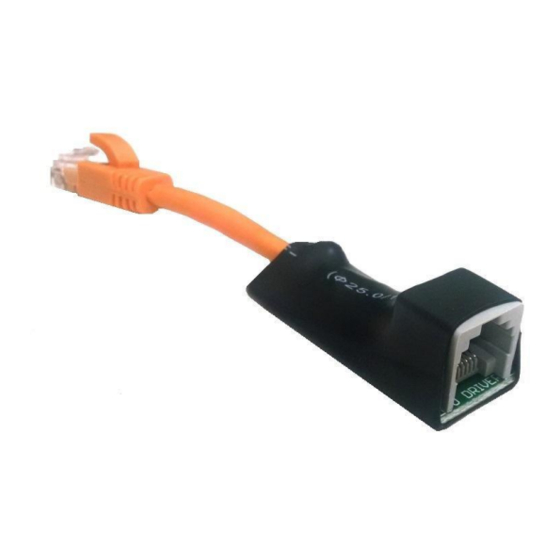

OVERVIEW This board converts the output signals (STEP and DIR) to differential. FEATURES • Converts output signal (STEP and DIR) to DIFFERENTIAL. • RJ45 connectors for easy connection with standard Ethernet cable. • UTP 568B Cable for Connection at Axes. BOARD DESCRIPTION User’s Manual Page 1... -
Page 4: Pinout
PINOUT Ethernet Cable Connector RJ45 RJ45 INPUT SIGNAL RJ45 OUTPUT SIGNAL RJ45 PIN Function RJ45 PIN Function NOT USED STEP- STEP STEP+ NOT USED DIR- DIR+ 12V/24V 12V/24V The output signals of STEP and DIR are differentials. User’s Manual Page 2... -
Page 5: Wiring Diagrams
WIRING DIAGRAMS User’s Manual Page 3... -
Page 6: Dimensions
DIMENSIONS All dimensions are in Millimeters. DISCLAIMER: Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
